How can I identify a turbo?
I feel like an idiot but I need to know how I can identify what kind of turbo is on this car...
It's a Garrett turbocharger and it says .70 A/R on the compressor side. Where else do I look to find out what everything is? I've had some people take a quick "at a glance" look at it and say it's a GT35R and some say it's a 60-1. And they say that the .70 A/R on the compressor side means the hotside is .70 A/R. I'm trying to find out what it is and what size the hotside is as well as what type of flange it has because if it is a GT35R I'd like to go up to a T04Z with a 1.00 A/R hotside and I need to know if I need a new manifold to do so...
It's a Garrett turbocharger and it says .70 A/R on the compressor side. Where else do I look to find out what everything is? I've had some people take a quick "at a glance" look at it and say it's a GT35R and some say it's a 60-1. And they say that the .70 A/R on the compressor side means the hotside is .70 A/R. I'm trying to find out what it is and what size the hotside is as well as what type of flange it has because if it is a GT35R I'd like to go up to a T04Z with a 1.00 A/R hotside and I need to know if I need a new manifold to do so...
04-26-08, 09:59 PM
#2
Royale with cheese
Join Date: Jan 2004
Location: Las Vegas, by way of Poulsbo, WA
Posts: 1,256
Likes: 0
Received 0 Likes
on
0 Posts
Heres a link that shows the dimensions of a few flanges. You can measure and compare. But they make the gt35 in both a t3 and t4 flange, so that probably wont help you..
http://images.google.com/imgres?imgu...%3Den%26sa%3DN
http://images.google.com/imgres?imgu...%3Den%26sa%3DN
04-28-08, 01:37 AM
#4
.70 A/R on the compressor could be a lot of things. If it is coupled with an undivided .96 A/R on the hotside it is highly likely that it is a 60-1 . T4 GT35R is usually a divided .82 or 1.0, or larger sometimes. It is highly unlikely that the hotside is .70 A/R as well as the compressor side.
05-01-08, 08:17 PM
#5
BRAP BRAP BRAP...
Thread Starter
Join Date: Mar 2008
Location: Plano, Texas
Posts: 424
Likes: 0
Received 0 Likes
on
0 Posts
.70 A/R on the compressor could be a lot of things. If it is coupled with an undivided .96 A/R on the hotside it is highly likely that it is a 60-1 . T4 GT35R is usually a divided .82 or 1.0, or larger sometimes. It is highly unlikely that the hotside is .70 A/R as well as the compressor side.
05-08-08, 06:22 PM
#6
airplane apex seals
Join Date: Mar 2004
Location: either sunnyvale or san jose
Posts: 552
Likes: 0
Received 0 Likes
on
0 Posts

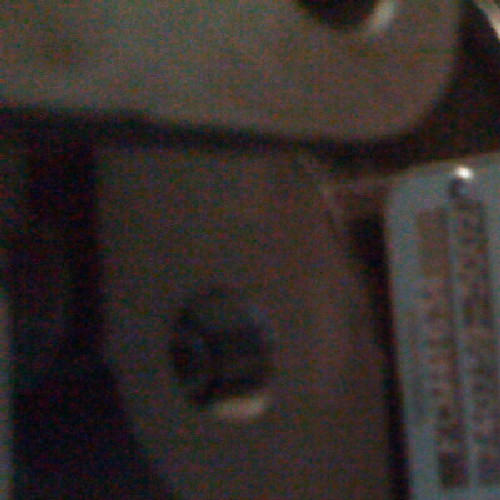

Check to see if you have a plack on the cool side like in the pic; mine says 740759-5002 which means its a t04z. Sorry the pics not the best but hopeful you get the idea.
Last edited by seanfd3s; 05-08-08 at 06:23 PM. Reason: add
Trending Topics
05-08-08, 06:30 PM
#8
BRAP BRAP BRAP...
Thread Starter
Join Date: Mar 2008
Location: Plano, Texas
Posts: 424
Likes: 0
Received 0 Likes
on
0 Posts
05-09-08, 08:06 AM
#10
BRAP BRAP BRAP...
Thread Starter
Join Date: Mar 2008
Location: Plano, Texas
Posts: 424
Likes: 0
Received 0 Likes
on
0 Posts
No I would have to borrow a friends camera and remove stuff from the car just to get a pic of it. I have a tool shortage so I can't really do much work to the car myself. I need to remove a metal heat shield that is intricately attached to the turbo in ways that my crappy tools can't remove. I just ran into a problem involving some possibly clogged injectors so I'm just going to have bigger ones put in and while Gotham works on that and a water/meth kit I'll have them ID the turbo.
