TimsR1

See link below. Not sure which year RX7 this is for. Any one know please respond.

http://pg.photos.yahoo.com/ph/humble...e2.jpg&.src=ph


Thanks,
Timothy

The Griffin

That's for a FC3S.

Poweraxel

looks like an FC unit

TimsR1

thanks

Bukwild

that is 100% for a 2nd gen.

jimmyv13

How can you guys tell?

RacerXtreme7

iTrader: (2)

because the way it looks. If you've seen someone so many times, can't you pick them out of a crowd?

~Mike.........

jimmyv13

That's very helpful, thank you.

What are the visual differences between the FC and FD manifold?

signofinfinity

the runners are longer at the bottom. that is the pipe from the engine flange extends more on FC then FD, this is to clear the LIM of the fc. I stand to be corrected, but thats a massive giveaway...

george

signofinfinity

ie... the turbo is further away in an fc then fd....

thats fc for sure..

GUITARJUNKIE28

on the fc manifolds, the turbo flange is parallel (or close to parallel) to the engine-manifold flange.

on the fd's, the turbo flange is angled up to provide more clearance for the frame rail.
also, the only fd manifolds i've seen from them are divided. i don't know if ALL of them are--just all the ones i've seen.

jimmyv13

Thank you guys for the intelligent responses...

RacerXtreme7

iTrader: (2)

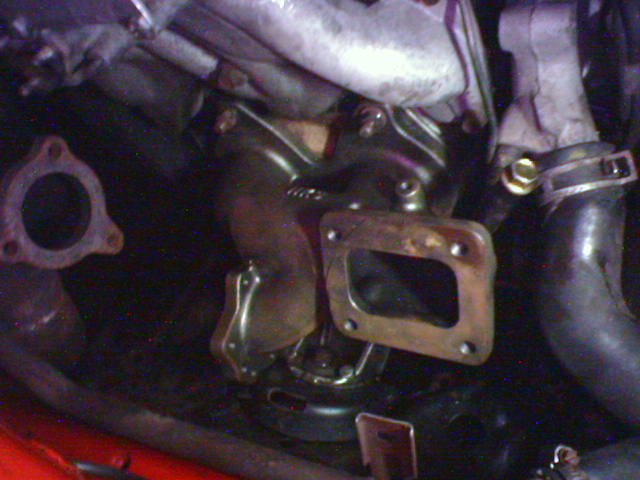

Sorry about my last response (yes, I detected your sarcasm). I answer vague questions with vague answers. But, more specifically, all the 3rd gen HKS cast manifolds I've seen are divided and look like this pic as opposed to the 2nd gen maniflds which place the turbo farther forward and are non divided.

~Mike..............

87GTR

iTrader: (61)

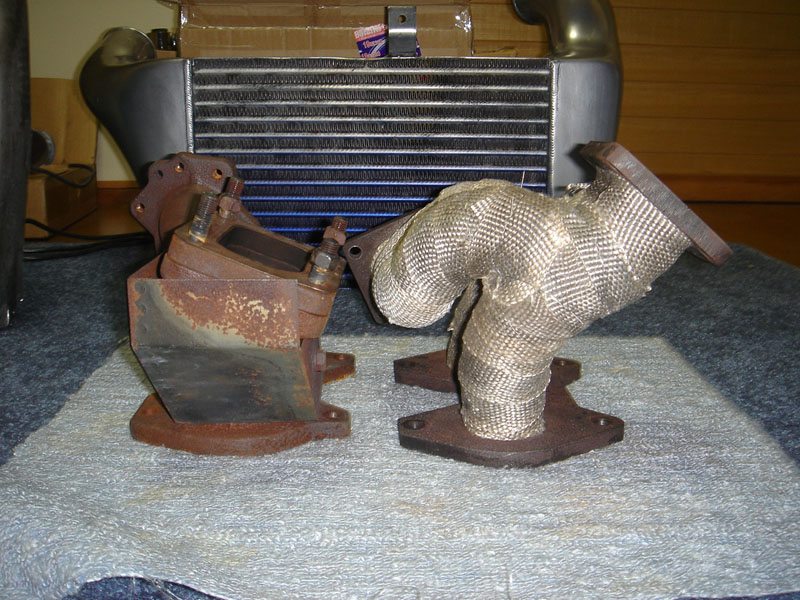

FC VS FD manifold

left is FC right is FD

RacerXtreme7

iTrader: (2)

I think in the thread we're compairing 3rd gen HKS cast with 2nd gen HKS cast. Your pic of the 3rd gen mani is a wrapped tubular.

~Mike.............

GUITARJUNKIE28

oops. looks like i was wrong about it being parallel. my bad.

Bukwild

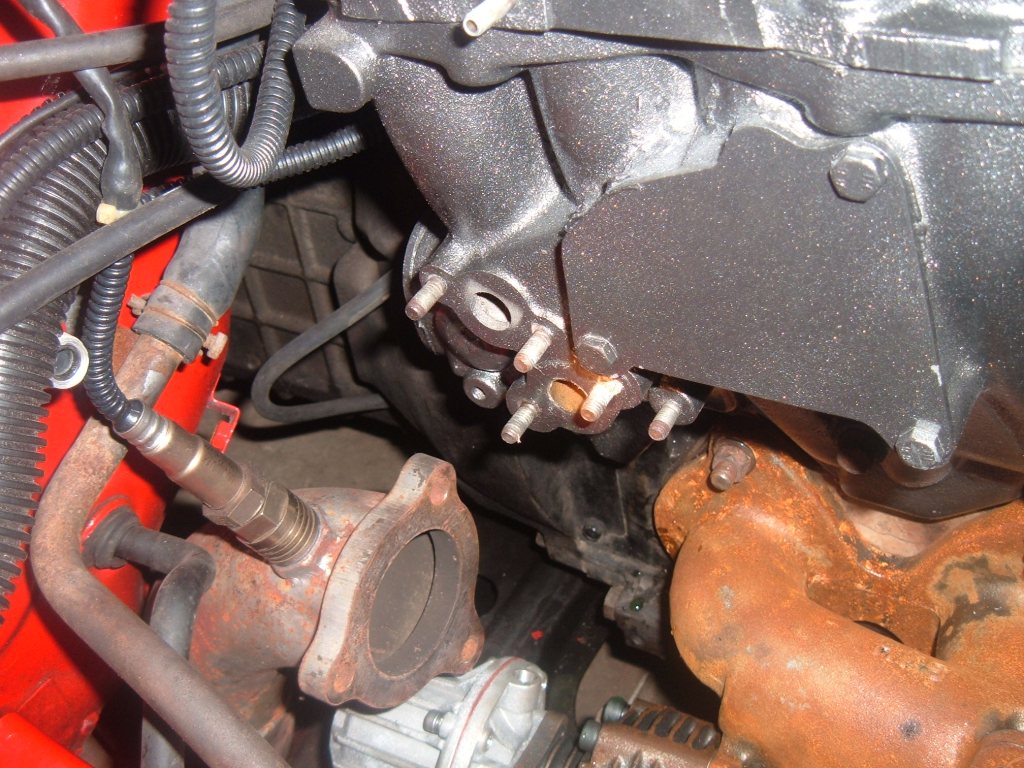

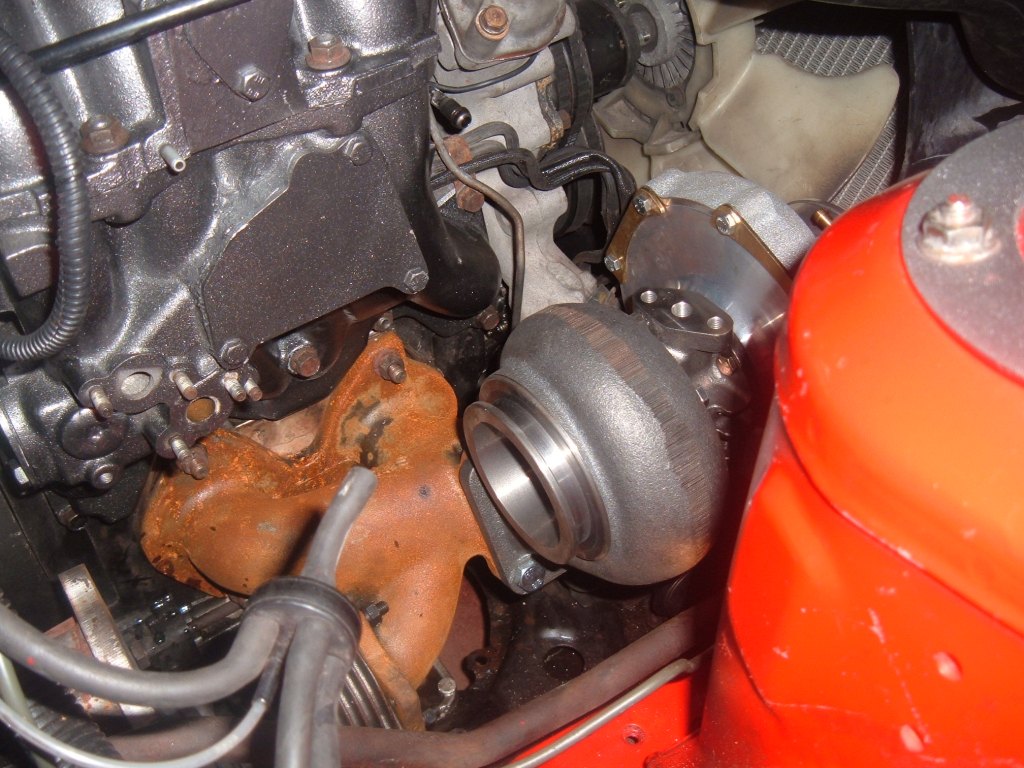

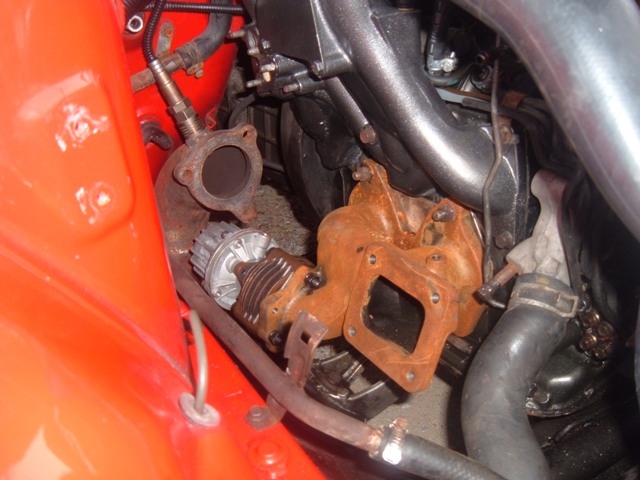

heres a pic of this manifold installed on a second gen. Sorry for the rust but I have noticed lately that this thing turned bright orange over night. I also noticed that when i got it it was all black cast and the oil from your hand would change the color.
