Single Turbo RX-7's Questions about all aspects of single turbo setups.

GT4088 vs T62-1

Thread Tools

Search this Thread

Old Mar 2, 2006 | 09:52 AM
  #1
marix1521's Avatar
Thread Starter
Turn on Tune in Drop out
Tenured Member 05 Years

Joined: Dec 2003
Posts: 576
Likes: 0
From: Right near da beach! OOOOEEEE!!!
GT4088 vs T62-1

what would the power difference at 15psi on a large streetport be between a GT4088 and a T62-1? any extra info would be great. thanks

(i'm referring to the GT4088 and T62-1 kits on www.rx7store.net if you need to know the specs)
Reply
Old Mar 2, 2006 | 11:29 AM
  #2
pistonsuk's Avatar
Senior Member
Tenured Member 15 Years

Joined: Oct 2002
Posts: 685
Likes: 1
From: Portland, OR
Originally Posted by marix1521
what would the power difference at 15psi on a large streetport be between a GT4088 and a T62-1? any extra info would be great. thanks

(i'm referring to the GT4088 and T62-1 kits on www.rx7store.net if you need to know the specs)
Well from the looks of it the the turbines are nearly identical. The 62-1 has a smaller compressor. You should estimate the flow of your engine and then with desired pressure ratios pick the better compressor.

If you have AFR's and injector duties I have a corrected lbs/min calulator I can email you.

Justin

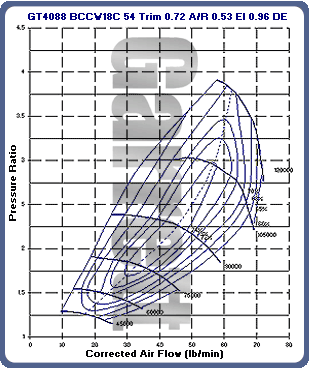

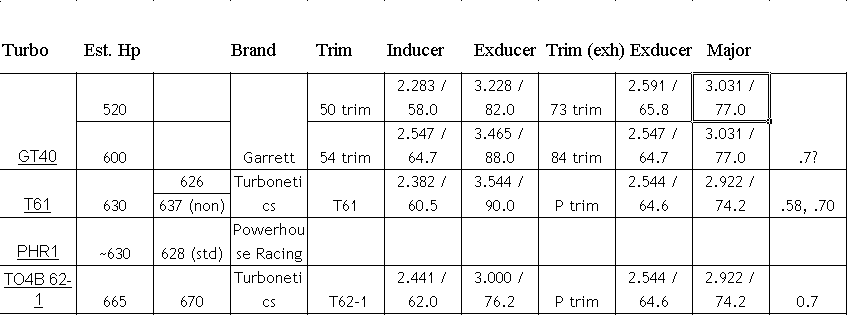

Attached Thumbnails GT4088 vs T62-1-gt4088.gif   GT4088 vs T62-1-62-1.gif
Attached Images
File Type: bmp
Reply
Old Mar 3, 2006 | 07:05 AM
  #3
marix1521's Avatar
Thread Starter
Turn on Tune in Drop out
Tenured Member 05 Years

Joined: Dec 2003
Posts: 576
Likes: 0
From: Right near da beach! OOOOEEEE!!!
right now my FD is stock and sitting in the yard with a blown motor (sound familiar to everyone?) and it was my daily driver, but now i'm using my moms car (the Anti-Chrysler ). Basically, what it boils down to. I'm going to take out a fairly large loan and do most everything to my car all at once. I'm looking for about 400-450RWHP on 93 pump gas at 15psi. thanks.
Reply
Old Mar 3, 2006 | 09:57 AM
  #4
Rotary Freak
Tenured Member: 20 Years

Joined: Jan 2002
Posts: 1,643
Likes: 0
From: l.a.
you're looking at 20+hp for the gt40 at 15psi and an even greater difference at higher boost.
Reply
Old Mar 3, 2006 | 12:43 PM
  #5
FD Rey's Avatar
I brake boost
Tenured Member 20 Years

Joined: Aug 2003
Posts: 2,128
Likes: 0
From: Orlando
Originally Posted by marix1521
I'm looking for about 400-450RWHP on 93 pump gas at 15psi. thanks.
If you're looking for that much hp at that specific psi then you're considering the wrong turbos. The 62-1 will get you to the 400rwhp figure, but I don't think the GT40 will. Check out this thread for reference.
https://www.rx7club.com/showthread.p...ghlight=GT4088
Reply
Old Mar 3, 2006 | 02:37 PM
  #6
2a+RoN's Avatar
Rotary Freak
Tenured Member 15 Years

Joined: Dec 2001
Posts: 2,402
Likes: 0
From: chandler, AZ
fd rey, that is the gt4082, not the gt4088..
Reply
