hey guys

i have a 88 turboII that came with a Greddy tdo6-20g kit and im been wondering for how much HP this kit is good for? i search around and i found some people running in the mid 300hp but is that all that kit is for? and how much boost i can run efficiently with that turbo because i have it tuned for 12 psi and is already god but i know this have more. thanks

eddie



my old setup (complete with **** tune) with a haltech managed 315wheel @ 15PSI with a mild ported S4 Turbo motor.

I believe this turbo can do 20PSI efficiently

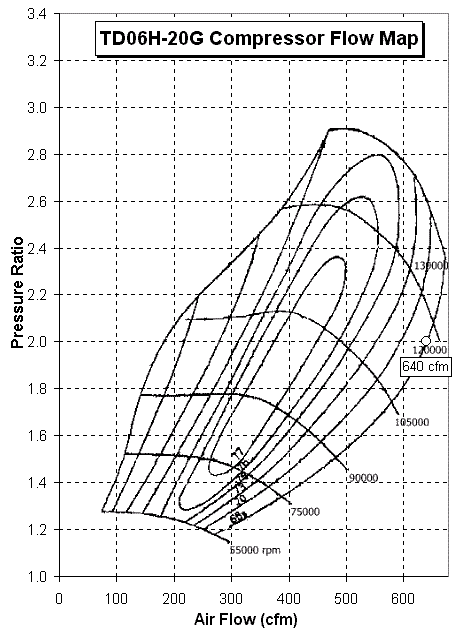

looks like about 700 cfm

or about 48 lbs/min

which is around 371 rwhp on a rotary

CFM x .069= Lbs per Min.

i wouldn't run it much over 20 psi as it start falling off.



1 bar is the sweet spot on this turbo IMO for rotary. Great street turbo.



i agree, i love this turbo, spools very fast and gets to 12 psi real quick and scare the **** out of people with it too lol. dont seem to flow good after 7k rpms. im planning to keep it unless i can find a tdo7 or tdo-625g, im been search around and i cant find any they seem to be hard to find



Does anyone have experience running the Greddy TD06H-20G on an FD?

I can get a brand new kit at a good price. I was looking for a streetable setup with ~350hp



Trying to increase my post count



One more post to go...



There are a few dyno sheets of a TD06-20G on an FC (FC kit I think) doing in the low to mid 300s.



88 10th ann street port,racing brat 20 g 15-20 psi with water meth, never dynod, even race with mustang 408 stroker with 400rwhp,turbo spools very nice,15 psi at half throttle,hits good at 15 psi,easy to make high boost with this turbo on a rx7
