Always tweaks me that these dang turbo companies do such a crappy job showing the external dimensions. Their motto is “buy it first and then see if it fits where you want to install it”.

So maybe helpful to somebody someday. This was from the G30 housing, but my understanding is that the same G35 housing is dimensionally the same. Just using my man fingers on the iPwn, so ignore crooked lines etc.

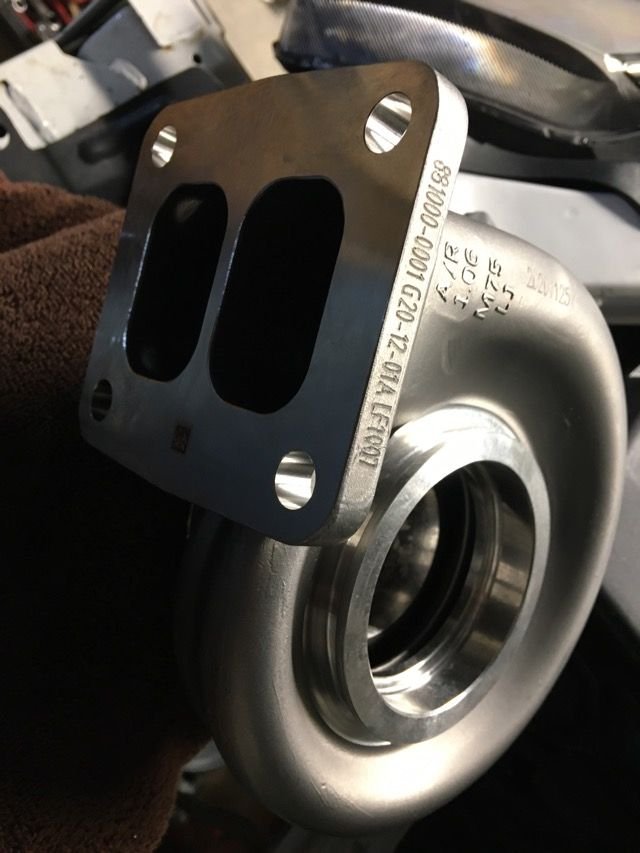

I have a V-band flange and when making a direct comparison against the T4 still have a hard time believing that a 2-rotor is not going to be restricted trying to use that style housing. It would require a long tapered inlet with a center divider to merge the 13B exhaust pulses half way decent imo; not recommended.

.

.

.

.
