Fuel Sump in tank?
#1
Fuel Sump in tank?
Has Anybody done a Fuel Sump in their tank?
What's the Easiest way to do this?
Is it really necessary?
Can a regular Welder do this? What about the Fittings?
I will be running an Aeromotive 1000HP fuel pump, and would like it as quiet as possible, any advice on this too?
I am doing a Cosmo 13BT into an 85 GSL-SE.
I have a spare GSL-SE tank off of my donor car and was thinking of doing the sump to advance my project if it is needed.
Please let me know!
What's the Easiest way to do this?
Is it really necessary?
Can a regular Welder do this? What about the Fittings?
I will be running an Aeromotive 1000HP fuel pump, and would like it as quiet as possible, any advice on this too?
I am doing a Cosmo 13BT into an 85 GSL-SE.
I have a spare GSL-SE tank off of my donor car and was thinking of doing the sump to advance my project if it is needed.
Please let me know!
#2
Lives on the Forum
That's is technically not a fuel "sump" - you're just moving the fuel pick-up at a more advantageous spot.  A "sump" implies a baffled area that tends to "trap" fluid sloshing around.  The FC's already have a sump built into the stock gas tanks.  Pop the cover and looks for the 4 walls in the middle of the gas tank where the fuel pump and pick-up sits in.
If you want to do something that similar to the picture, there's a lot of aftermarket V8 vendors that offer a panel you went into your stock gas tank.  I think Moroso sells something similar?  You'll need to remove your gas tank and take it to a shop that can weld GAS CONTAINERS.  Slap the AN fittings into the fuel pump and you're done...
-Ted
If you want to do something that similar to the picture, there's a lot of aftermarket V8 vendors that offer a panel you went into your stock gas tank.  I think Moroso sells something similar?  You'll need to remove your gas tank and take it to a shop that can weld GAS CONTAINERS.  Slap the AN fittings into the fuel pump and you're done...
-Ted
Last edited by RETed; 04-28-02 at 08:26 PM.
#4
Junior Member
Join Date: Mar 2002
Location: Austin, TX
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
Baffels keep fuel from sloshing, a sump keeps the fuel pump from running dry in extreme acceleration or side to side movement(ie drag or road racing). Yes you can sump your stock tank, just remember to wash it out and let it dry before welding. The Aeromotive pumps are very good but are kinda loud, you can mount them to the front of your tank to keep the noise down.
#5
Originally posted by Directfreak
Okay, then another question..
Does the GSL-SE (fuel Injected) have baffles inside the tank?
So do I NEED to do that fuel Reservoir to the tank?
Or are some people giving me advice just talking out of their ***?
Okay, then another question..
Does the GSL-SE (fuel Injected) have baffles inside the tank?
So do I NEED to do that fuel Reservoir to the tank?
Or are some people giving me advice just talking out of their ***?
If you continue listenning to advise from people talking out their *** instead of the one who's gonna be building your car then you should probably take it there to get done!
Just by looking at the pic above the pump is mounted in the wrong place to begin with. Just about every external pump have to be gravity feed and by placing the pump higher than the sump it's actually not serving any purpose unless the forces of gravity have changed lately!
crispeed
87 Rx-7 TII
9.204@150.47mph
2600lbs
Last edited by crispeed; 04-29-02 at 02:23 AM.
#6
Junior Member
Join Date: Mar 2002
Location: Austin, TX
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
Just about every external pump have to be gravity feed and by placing the pump higher than the sump it's actually not serving any purpose unless the forces of gravity have changed lately!
#7
Originally posted by crispeed
Alex!
If you continue listenning to advise from people talking out their *** instead of the one who's gonna be building your car then you should probably take it there to get done!
Just by looking at the pic above the pump is mounted in the wrong place to begin with. Just about every external pump have to be gravity feed and by placing the pump higher than the sump it's actually not serving any purpose unless the forces of gravity have changed lately!
crispeed
87 Rx-7 TII
9.204@150.47mph
2600lbs
Alex!
If you continue listenning to advise from people talking out their *** instead of the one who's gonna be building your car then you should probably take it there to get done!
Just by looking at the pic above the pump is mounted in the wrong place to begin with. Just about every external pump have to be gravity feed and by placing the pump higher than the sump it's actually not serving any purpose unless the forces of gravity have changed lately!
crispeed
87 Rx-7 TII
9.204@150.47mph
2600lbs
Thanks Cris.
Trending Topics
#8
Lives on the Forum
Originally posted by crispeed
Just by looking at the pic above the pump is mounted in the wrong place to begin with. Just about every external pump have to be gravity feed and by placing the pump higher than the sump it's actually not serving any purpose unless the forces of gravity have changed lately!
Just by looking at the pic above the pump is mounted in the wrong place to begin with. Just about every external pump have to be gravity feed and by placing the pump higher than the sump it's actually not serving any purpose unless the forces of gravity have changed lately!
I think almost all modern stock FI systems run their fuel pumps "above" the fuel level, so all fuel has to "fight" gravity to flow correctly?
What does FI fuel pump mounting position have to do with the fuel system working effectively?  Are you saying all the stock fuel systems are wrong?
-Ted
#9
Rotary Enthusiast
Join Date: Oct 2001
Location: Canada
Posts: 1,020
Likes: 0
Received 0 Likes
on
0 Posts
I was searching for more info on a fuel sump for the FD. Does anyone have any recomendations on a fuel sump. Can the Aeromotive pump actually be mounted below the fuel level or does it have enough suction to be mounted slighlty above the fuel level on the tank?
Steve
Steve
#12
Originally posted by RETed
Hey crispeed, what the hell you smoking man?  We talking about FI applications, right?  Not carb, right?
I think almost all modern stock FI systems run their fuel pumps "above" the fuel level, so all fuel has to "fight" gravity to flow correctly?
What does FI fuel pump mounting position have to do with the fuel system working effectively?  Are you saying all the stock fuel systems are wrong?
-Ted
Hey crispeed, what the hell you smoking man?  We talking about FI applications, right?  Not carb, right?
I think almost all modern stock FI systems run their fuel pumps "above" the fuel level, so all fuel has to "fight" gravity to flow correctly?
What does FI fuel pump mounting position have to do with the fuel system working effectively?  Are you saying all the stock fuel systems are wrong?
-Ted
#13
Lives on the Forum
how much is that "sump" kit? i found it to be part # c4040 from http://competitionengineering.com/ca...?CatCode=10070
i have never used them before. does each of their dealers set their own price? or is it a standard price across the board? just wondering if i should call around for the "best" price.
i have never used them before. does each of their dealers set their own price? or is it a standard price across the board? just wondering if i should call around for the "best" price.
#14
Rotary Enthusiast
Join Date: Oct 2001
Location: Canada
Posts: 1,020
Likes: 0
Received 0 Likes
on
0 Posts
rxrotary2, Jeggs has one that looks a bit better and is cheaper. From reading here I would use a hole saw for the tank instead of cutting a large hole, it will help with keeping the fuel in the sump. They look easy to make and a welding or fab shop could make a custom one for cheaper. I was thinking a longer sump with an extra piece of metal welded on to mount the pump to since there in not to many good mounting spots? What should I use for an intank filter?
Last edited by sub-zero; 10-05-02 at 10:33 AM.
#15
Crispeed is absolutely CORRECT... The fuel pump should be lower then the sump. You guys are forgetting these pumps don't suck fuel out of the tank. You have to have them gravity feed.
Another bit of advice as for the fuel sump. When you go ahead and cut out the fuel tank, DON'T cut a hole the exact size of the fuel sump. Instead cut out a dozen or so few holes with a hole saw. This way the sump will fill up with fuel very quick and the fuel will stay in the sump under hard acceleration or cornering. this should keep the fuel from sloshing around.
Another bit of advice as for the fuel sump. When you go ahead and cut out the fuel tank, DON'T cut a hole the exact size of the fuel sump. Instead cut out a dozen or so few holes with a hole saw. This way the sump will fill up with fuel very quick and the fuel will stay in the sump under hard acceleration or cornering. this should keep the fuel from sloshing around.
#16
Full Member
Join Date: Jul 2001
Location: Leavenworth, KS
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts
I talked to Aeromotive and asked them if I could mount the pump in tank. They told me that it was fine and would work very well. I was trying to avoid welding a sump in the tank like in the picture.
#19
i have my aeromotive pump mounted in the spare tire well. http://www.jouleusa.com/photo.htm
#20
Lives on the Forum
i am digging this thread up because i wanted to know some opinions about the "sump" discussed in this thread. this is the point i am at right now.
i have the sump welded to the tank and the pump mounted. my problem is this...
the second hold on the "sump"...can it be used as a return?
i was originaly going to weld a steel AN fitting to the top of the stock plate and use a tube on the other side for my return tube. then use a tube to connect the stock supply and return lines together to cap them off rather than crip them and weld them shut incase i ever need them for anything.
the reason i am asking is because i saw a DSM with the same "sump" and he was using the second 3/8 hole for his return. and when i saw it, it made me think back to the other time i have seen this. i dont remember the line being hooked up to a second pump.
would doing this cause a syphon or any turbulance that i should be concerned about?
any thoughts on this? somthing i am missing? anything?
i have the sump welded to the tank and the pump mounted. my problem is this...
the second hold on the "sump"...can it be used as a return?
i was originaly going to weld a steel AN fitting to the top of the stock plate and use a tube on the other side for my return tube. then use a tube to connect the stock supply and return lines together to cap them off rather than crip them and weld them shut incase i ever need them for anything.
the reason i am asking is because i saw a DSM with the same "sump" and he was using the second 3/8 hole for his return. and when i saw it, it made me think back to the other time i have seen this. i dont remember the line being hooked up to a second pump.
would doing this cause a syphon or any turbulance that i should be concerned about?
any thoughts on this? somthing i am missing? anything?
#22
Senior Member
Join Date: Jun 2002
Location: Wayward Hayward
Posts: 735
Likes: 0
Received 0 Likes
on
0 Posts
WHy not go with a whole new tank? Or maybe it just won't fit correctl?

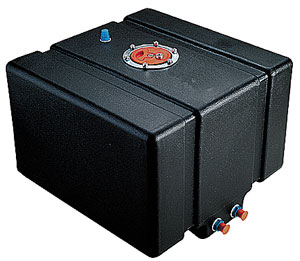

I was looking at jegs maybe something like this one? Only $189! =) But it has foam insert... and sender... and sump! yummy!
I was looking at jegs maybe something like this one? Only $189! =) But it has foam insert... and sender... and sump! yummy!
#23
IRS 4 Life
iTrader: (12)
Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 2 Likes
on
2 Posts
so my idea for usinf the stock steel feed line as a return was no good......lol
personally i dont see what it wouldnt work but u got to figure if u have a full tank the fuel return is gonna be getting pushed back in @ the highest pressure point, wich could **** with your fuel press when u have a full or a empty tank...personally i would try to have the return dump in the top of the tank, but what do i know
personally i dont see what it wouldnt work but u got to figure if u have a full tank the fuel return is gonna be getting pushed back in @ the highest pressure point, wich could **** with your fuel press when u have a full or a empty tank...personally i would try to have the return dump in the top of the tank, but what do i know
#25
Rotary Enthusiast
Join Date: Oct 2001
Location: Canada
Posts: 1,020
Likes: 0
Received 0 Likes
on
0 Posts
rxrotary2_7, I dont understand Your question and maybe I should. I just pulled My tank off and had the guys I work with make Me a sump like the one from Jegs. This is welded to the bottom of My gas tank with holes drilled in the tank to allow the gas to enter but not escape as easy. If You are using the factory return will it not enter the plastic factory intank sump? The factory sump looks like it is made well and I dont think You are going to have to worry about siphon problems but I could be wrong? I think the bottom of tank sump is much cheaper and safer then an in car fuel cell.
