finally tuned up billet 6765 on pump and race gas.. vids.
09-18-11, 07:57 PM
#1
finally tuned up billet 6765 on pump and race gas.. vids.
got the rx-7 tuned up on both pump/meth and race gas. keep in mind that the dynos in my area read low. the car the way it runs right now will do the 1/4 mile trap at 133mph on pump/meth and 140mph on race gas. i get all my data using a vbox.

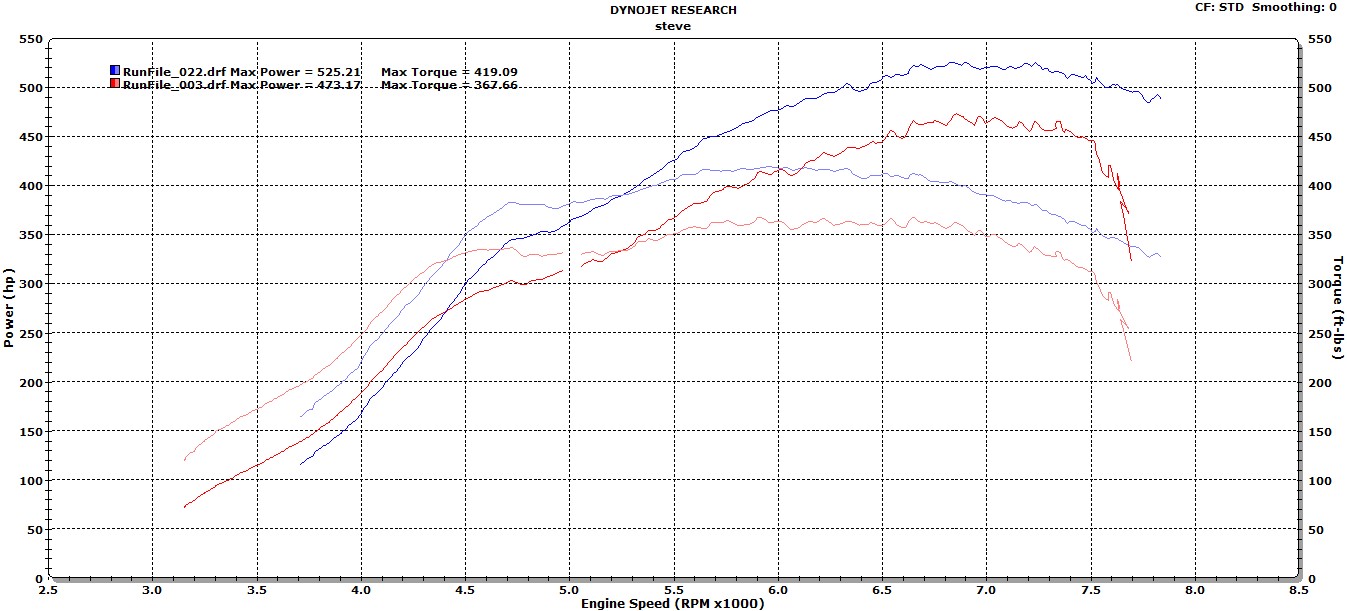

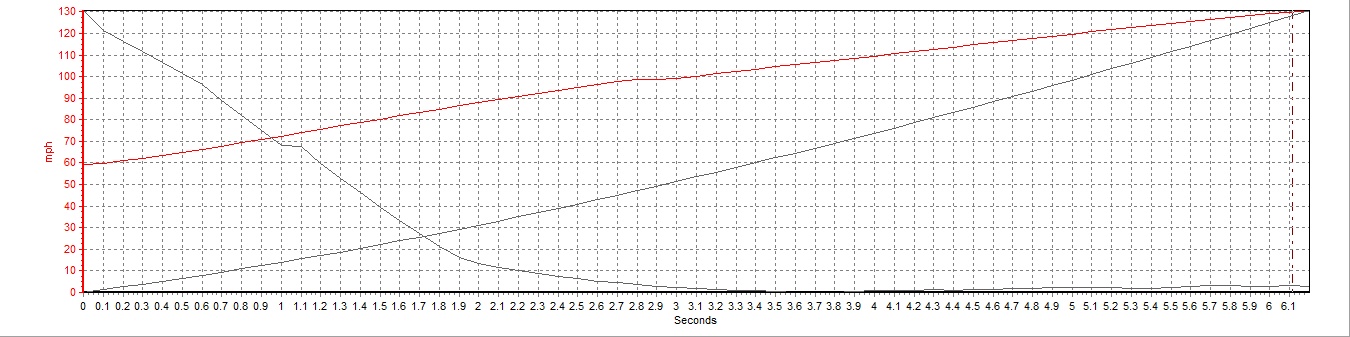

so it made 473whp at 23psi on pump/meth and 525whp at 27psi on race gas. i decided to keep the wastegate rerouted rather then open dump. i am losing about 20whp at the very top but i do gain some torque from the reroute gate. i would notice with the open gate a little lag on upshifts. anyway here are my vbox 60-130mph pulls.
pump/meth 23psi 7.34 sec.
race gas 27psi 6.02 sec.
just a little comparison, a lightly modded gtr that runs 10.90s at 130mph flat does the 60-130mph run in 8.0 sec.
i will probably end up dynoing at a place that compares to internet dyno numbers better. should pull 570-580whp on race gas. i did a little video of the ride to the dyno and some pulls on the dyno. also the vbox run which i ended up doing 60-140mph.
http://www.youtube.com/watch?v=1ejRl6FODw0
so it made 473whp at 23psi on pump/meth and 525whp at 27psi on race gas. i decided to keep the wastegate rerouted rather then open dump. i am losing about 20whp at the very top but i do gain some torque from the reroute gate. i would notice with the open gate a little lag on upshifts. anyway here are my vbox 60-130mph pulls.
pump/meth 23psi 7.34 sec.
race gas 27psi 6.02 sec.
just a little comparison, a lightly modded gtr that runs 10.90s at 130mph flat does the 60-130mph run in 8.0 sec.
i will probably end up dynoing at a place that compares to internet dyno numbers better. should pull 570-580whp on race gas. i did a little video of the ride to the dyno and some pulls on the dyno. also the vbox run which i ended up doing 60-140mph.
http://www.youtube.com/watch?v=1ejRl6FODw0
09-19-11, 09:04 AM
#7
Senior Member
Join Date: Nov 2008
Location: Czech republic
Posts: 357
Likes: 0
Received 0 Likes
on
0 Posts
Nice numbers. Everything matches reality. Its really interesting to see that dynojet can give realistic power figures
Power increase matches boost increase and Vbox acceleration numbers show us true performance.
Could you share weight of the car as run? Also some graphic data from Vbox would be nice
Power increase matches boost increase and Vbox acceleration numbers show us true performance.Could you share weight of the car as run? Also some graphic data from Vbox would be nice
Trending Topics
09-19-11, 04:54 PM
#10
Senior Member
Join Date: Apr 2008
Location: Sarasota FL
Posts: 488
Likes: 0
Received 0 Likes
on
0 Posts
GTR with switzer p600 kit runs 10.7 at 130mph and 60-130 in 7.05
considering that the GTR has incredibly faster gear shifts and instant torque, thats very impressive
congrats...youre haulin ***!
considering that the GTR has incredibly faster gear shifts and instant torque, thats very impressive
congrats...youre haulin ***!
09-19-11, 11:01 PM
#11
^ possibly. i went off an older gt-r vbox i seen on 6speedonline. when i did 132mph in the 1/4 my vbox runs were 7.40s. again as you said the shifts do count alot.
great sig line btw. i agree with that 100% as it sums up my lifestyle as well.
great sig line btw. i agree with that 100% as it sums up my lifestyle as well.
09-20-11, 08:14 AM
#13
ok so here is a good comparison to see the performance of my car right now. again these dyno numbers mean nothing that i made dynos are really just tuning tools.
gt-r with p800 kit 100kmh to 200kmh 5.50 sec.
my rx-7 race gas 100 kmh to 200kmh 5.17 sec.
i have not run out to 300kmh which is 186mph as im not sure if i can. i have the jdm short 5th tranny. if anything i will come close i just need to find a stretch of road.
http://www.youtube.com/watch?v=qrlM1...feature=relmfu
here is the same gt-r racing a hayabusa.
http://www.youtube.com/watch?v=LTm8a...feature=relmfu
gt-r with p800 kit 100kmh to 200kmh 5.50 sec.
my rx-7 race gas 100 kmh to 200kmh 5.17 sec.
i have not run out to 300kmh which is 186mph as im not sure if i can. i have the jdm short 5th tranny. if anything i will come close i just need to find a stretch of road.
http://www.youtube.com/watch?v=qrlM1...feature=relmfu
here is the same gt-r racing a hayabusa.
http://www.youtube.com/watch?v=LTm8a...feature=relmfu
09-20-11, 01:32 PM
#15
Sounds like it turned out nice! Why not take it to the track and get some real numbers? I guess I need to read up on the v-box thing. You mentioned it to me before.. I am just too scared to go play on the public streets these days. Even with MT et streets tires it still wont hook until 3rd gearish...
09-20-11, 01:54 PM
#16
i ran it again and did a 5.92 60-130mph.
it was approved by dragtimes.com here is the link
http://www.dragtimes.com/Mazda-RX-7-Timeslip-21941.html
sk8 ill probably go up to the track within the next few weeks to get a few runs in. i have the same issue with the hoosier no full traction until 3rd gear. leaves great patches all the way up the road though.
it was approved by dragtimes.com here is the link
http://www.dragtimes.com/Mazda-RX-7-Timeslip-21941.html
sk8 ill probably go up to the track within the next few weeks to get a few runs in. i have the same issue with the hoosier no full traction until 3rd gear. leaves great patches all the way up the road though.
09-20-11, 07:34 PM
#20
i have never really posted any of my parts list anywhere i have no problem sharing though.
-built and ported motor by me. port is judge ito based and then extended out to my liking.
-a-spec billet 6765 kit with a 1.00 a/r t4 turbine and ported H cover for fancy sound.
-power fc tuned by me
-850/2000cc injectors
-dual walbro pump and a kenne bell boost a pump
-coolingmist 250psi pump with a c10 injector 800cc running 50/50 meth
-exhaust is 3" all the way back.
-exedy twin disk setup
-3 bar map sensor
-greddy profec s bc
-blitz fmic
-alum radiator
somethings that i could change that would help is move to a 4" exhaust as i have the downpipe re routed and it makes the egt's rise a bit up top in the rpms. possibly would have went with a billet 6768 for the bigger turbine but they do not offer a divided housing. the car is mostly driven on the street so i wanted it to have a nice flat powerband so i went with the 6765. you noticed the billet making more power past 20psi by a good margine. i dynoed 375whp at 18psi and 473 at 23psi. thats really a night and day differance when it comes to boost gain ratio. overall though its a badass street setup.
-built and ported motor by me. port is judge ito based and then extended out to my liking.
-a-spec billet 6765 kit with a 1.00 a/r t4 turbine and ported H cover for fancy sound.
-power fc tuned by me
-850/2000cc injectors
-dual walbro pump and a kenne bell boost a pump
-coolingmist 250psi pump with a c10 injector 800cc running 50/50 meth
-exhaust is 3" all the way back.
-exedy twin disk setup
-3 bar map sensor
-greddy profec s bc
-blitz fmic
-alum radiator
somethings that i could change that would help is move to a 4" exhaust as i have the downpipe re routed and it makes the egt's rise a bit up top in the rpms. possibly would have went with a billet 6768 for the bigger turbine but they do not offer a divided housing. the car is mostly driven on the street so i wanted it to have a nice flat powerband so i went with the 6765. you noticed the billet making more power past 20psi by a good margine. i dynoed 375whp at 18psi and 473 at 23psi. thats really a night and day differance when it comes to boost gain ratio. overall though its a badass street setup.
09-21-11, 12:33 PM
#24
Indifferent
iTrader: (3)
Join Date: Mar 2001
Location: Long Island,NY
Posts: 979
Likes: 0
Received 0 Likes
on
0 Posts
nice results. i am wondering why you didn't run more than 23 psi on pump/meth? I have heard of guys running aroung with 28 pounds on just water. I am not questionong you, just trying to learn.
John
John
