Fd3s going single, what do I do with all the vacume lines, fittings and other stuff.
02-26-08, 11:19 PM
#1
Junior Member
Thread Starter
Join Date: Sep 2007
Location: Ca
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
Fd3s going single, what do I do with all the vacume lines, fittings and other stuff.
Ok so I have a 94 fd that I'm making single turbo, I'm doing it myself ;( (stupid I know) and after I'm getting it tuned. But, I'm a little lost on all the lines that ran to old intake turbo system, so does anyone have like a link that would help or maybe pictures. Or anyone local wanna help?
02-27-08, 05:28 AM
#2
Doing it youself isn't stupid as long as you know what your doing fabrication wise. I would print off a few of the pages here http://www.turborx7.com/rx7vacuum.htm
https://www.rx7club.com/showthread.p...acuum+diagrams
Fitting wise it depends on the turbo you use and lines you want to run. Again searches in this section should go a long way. All the information is here.
https://www.rx7club.com/showthread.p...acuum+diagrams
Fitting wise it depends on the turbo you use and lines you want to run. Again searches in this section should go a long way. All the information is here.
02-28-08, 03:29 PM
#3
Lost You in the Rear View
Join Date: Jul 2007
Location: Rocky Hill, CT
Posts: 560
Likes: 0
Received 0 Likes
on
0 Posts
this diagram should help you out a bunch more..
stuff i did not noted on this diagram: i put breather filters on top of my metering oil injectors, and removed my purge control solinoid as well as the rest of the other solinoids under the UIM. all unused ports were blocked off with vacuum caps. PCV was removed, and oil filler port where the PCV valve was attached is now going to an oil catch can. Fuel pressure regulator was also attached to a port on the UIM
stuff i did not noted on this diagram: i put breather filters on top of my metering oil injectors, and removed my purge control solinoid as well as the rest of the other solinoids under the UIM. all unused ports were blocked off with vacuum caps. PCV was removed, and oil filler port where the PCV valve was attached is now going to an oil catch can. Fuel pressure regulator was also attached to a port on the UIM
02-28-08, 07:12 PM
#4
Original Gangster/Rotary!
iTrader: (213)
Re: the vacuum caps, I've found it works much better to either:
(a) in the case of side by side nipples, loop a short length of silicone hose from one nipple to the other, or
(b) use a short length of silicone hose with a bolt in the end. doesnt look pretty, but......
the rubber vacuum caps will degrade pretty quickly from the engine bay heat, causing them to be very failure prone. the silicone is much more resistant, if anyone has a source for silicone vacuum by all means share it with the rest of us
Also, one huge advantage of going with the GZ LIM is to get rid of many of the useless nipples.
Keep in mind the row of 4 nipples on each side of the stock LIM are simply pass throughs and can be kept uncapped.
(a) in the case of side by side nipples, loop a short length of silicone hose from one nipple to the other, or
(b) use a short length of silicone hose with a bolt in the end. doesnt look pretty, but......
the rubber vacuum caps will degrade pretty quickly from the engine bay heat, causing them to be very failure prone. the silicone is much more resistant, if anyone has a source for silicone vacuum by all means share it with the rest of us
Also, one huge advantage of going with the GZ LIM is to get rid of many of the useless nipples.
Keep in mind the row of 4 nipples on each side of the stock LIM are simply pass throughs and can be kept uncapped.
Trending Topics
03-09-08, 08:08 PM
#8
Junior Member
Thread Starter
Join Date: Sep 2007
Location: Ca
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
this diagram should help you out a bunch more..
stuff i did not noted on this diagram: i put breather filters on top of my metering oil injectors, and removed my purge control solinoid as well as the rest of the other solinoids under the UIM. all unused ports were blocked off with vacuum caps. PCV was removed, and oil filler port where the PCV valve was attached is now going to an oil catch can. Fuel pressure regulator was also attached to a port on the UIM
stuff i did not noted on this diagram: i put breather filters on top of my metering oil injectors, and removed my purge control solinoid as well as the rest of the other solinoids under the UIM. all unused ports were blocked off with vacuum caps. PCV was removed, and oil filler port where the PCV valve was attached is now going to an oil catch can. Fuel pressure regulator was also attached to a port on the UIM

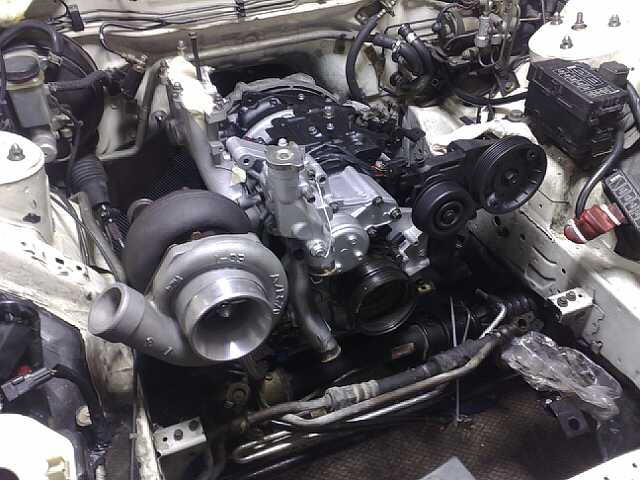

do i just pull untill there gone or any ideas or pics what some one else did?
03-14-08, 10:50 PM
#9
Lost You in the Rear View
Join Date: Jul 2007
Location: Rocky Hill, CT
Posts: 560
Likes: 0
Received 0 Likes
on
0 Posts
the "rats nest" should be removed. it controls the twins and emmisions controls. the only thing u need under the UIM is the fuel rails/injectors and coils
03-15-08, 11:01 PM
#12
Junior Member
iTrader: (34)
Join Date: Nov 2004
Location: AZ
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
i would think the proper way would be to cut and cap all that are unused wires for that really clean look. personaly i am just leaving them there as my harness is in really good condition.
03-15-08, 11:09 PM
#13
Junior Member
iTrader: (34)
Join Date: Nov 2004
Location: AZ
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
i would think the proper way would be to cut and cap all that are unused wires for that really clean look. personaly i am just leaving them there as my harness is in really good condition.
03-16-08, 05:08 PM
#15
Full Member

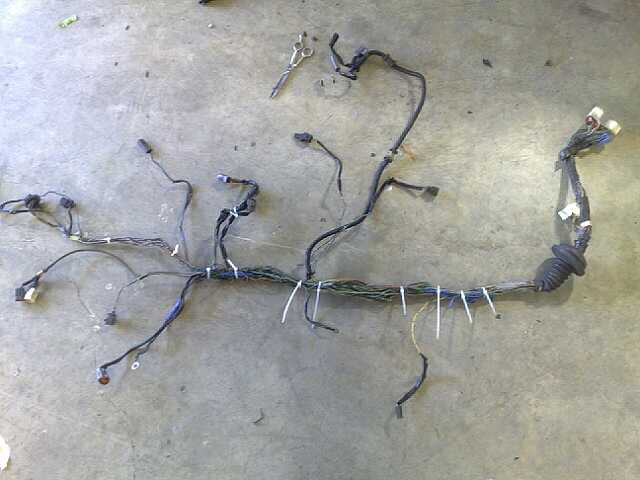

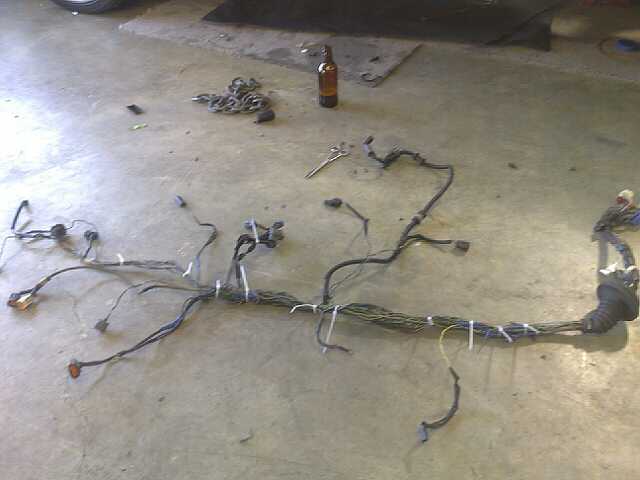

Hey yeah Im gonna do the big mish and cut all the unused wires off, im gonna use this as a reference
http://www.blackgto.com/RX7/wireharness1.jpg
http://www.blackgto.com/RX7/wireharness1.jpg
