Fam Speed v-mount intercooler setup!
10-07-04, 09:15 PM
#1
Boost Addict
Thread Starter
Join Date: Jun 2004
Location: ajax
Posts: 2,274
Likes: 0
Received 0 Likes
on
0 Posts
Fam Speed v-mount intercooler setup!
http://www.jt-imports.com/Fam_Speed_FD_Parts_List.htm
any one herd of this or used it? looks like a big core!
and any one dealt with jt-imports?
jus looking around and came to this.
any one herd of this or used it? looks like a big core!
and any one dealt with jt-imports?
jus looking around and came to this.
10-08-04, 12:01 AM
#3
Boost Addict
Thread Starter
Join Date: Jun 2004
Location: ajax
Posts: 2,274
Likes: 0
Received 0 Likes
on
0 Posts
fam speed - $2575.95 includes rad, intercooler, all mounting hardwear and air spliter
Hks - $2100/$2500 no rad only intercooler and mounting brakets for rad and air spliter
rotary extreme - $2850 includes rad, intercooler, air spliter and mounting equipment, piping
signal - N/A have not got a responce from them yet
these are some of the largest out there so how is this overpriced? to me you are getting the same deal as rotary extreme but getting a larger intercooler and rad! but this is only from what i can see in the picture..waiting for jason to get back to me from jt-imports.
Hks - $2100/$2500 no rad only intercooler and mounting brakets for rad and air spliter
rotary extreme - $2850 includes rad, intercooler, air spliter and mounting equipment, piping
signal - N/A have not got a responce from them yet
these are some of the largest out there so how is this overpriced? to me you are getting the same deal as rotary extreme but getting a larger intercooler and rad! but this is only from what i can see in the picture..waiting for jason to get back to me from jt-imports.
10-08-04, 12:10 AM
#5
Boost Addict
Thread Starter
Join Date: Jun 2004
Location: ajax
Posts: 2,274
Likes: 0
Received 0 Likes
on
0 Posts

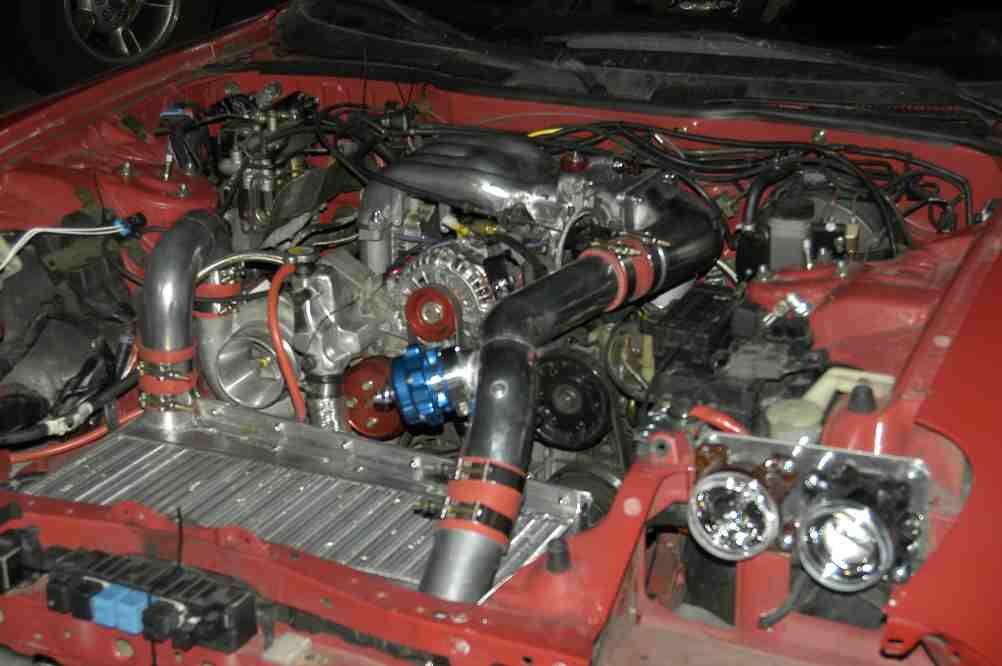

i have a really nice pic of it installed ina car if u want it pm me and i will e-mail it to ya or if u have msn..i will try and post it here..it looks like a really good deal..and from the pic i just just found right now it looks THICKKKKKKKKKKK core..
jus tried to upload pic to big
jus tried to upload pic to big
10-08-04, 02:37 AM
#6
Originally Posted by GOTBANNED?
fam speed - $2575.95 includes rad, intercooler, all mounting hardwear and air spliter
Hks - $2100/$2500 no rad only intercooler and mounting brakets for rad and air spliter
[COLOR=red}rotary extreme - $2850 includes rad, intercooler, air spliter and mounting equipment, piping[/COLOR]
signal - N/A have not got a responce from them yet
these are some of the largest out there so how is this overpriced? to me you are getting the same deal as rotary extreme but getting a larger intercooler and rad! but this is only from what i can see in the picture..waiting for jason to get back to me from jt-imports.
Hks - $2100/$2500 no rad only intercooler and mounting brakets for rad and air spliter
[COLOR=red}rotary extreme - $2850 includes rad, intercooler, air spliter and mounting equipment, piping[/COLOR]
signal - N/A have not got a responce from them yet
these are some of the largest out there so how is this overpriced? to me you are getting the same deal as rotary extreme but getting a larger intercooler and rad! but this is only from what i can see in the picture..waiting for jason to get back to me from jt-imports.
That and chuck does incredible work, has great technical support, and really serves the rotary community enthusiastically which makes a real difference when you want something changes to fit professionally with the other components of your system.
10-08-04, 02:43 AM
#7
That and if you are merely running twins (don’t know your setup just guessing) this will be more than sufficient and the price is 2350
http://www.rx7store.net/index.asp?Pa...ROD&ProdID=829
http://www.rx7store.net/index.asp?Pa...ROD&ProdID=829
Trending Topics
10-08-04, 10:09 AM
#8
Boost Addict
Thread Starter
Join Date: Jun 2004
Location: ajax
Posts: 2,274
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by rotarypower101
That and if you are merely running twins (don’t know your setup just guessing) this will be more than sufficient and the price is 2350
http://www.rx7store.net/index.asp?Pa...ROD&ProdID=829
http://www.rx7store.net/index.asp?Pa...ROD&ProdID=829
i am running a 60-1 setup..and thats the rotaryextreme setup i think..i need a single turbo setup i know they have one but the core looks alot smaller than the fam speed
i know chuck and his service i have read up on him and it seems like he's a great guy that puts alot of effort in his work and is proud..but i have not been able to get ahold of him..i will try and call him again today
Last edited by GOTBANNED?; 10-08-04 at 10:22 AM.
10-08-04, 10:23 AM
#10
Boost Addict
Thread Starter
Join Date: Jun 2004
Location: ajax
Posts: 2,274
Likes: 0
Received 0 Likes
on
0 Posts
it says on his answear machin he returns on the 6th..so maybe thats why i haven't been able to get ahold of him
and i just looked at his site again now i see the size diminsions sof the intercooler..thats pretty big..maybe it just looks smaller in the pic but it says it is
20"X11"X4.5" which is pretty big!
and i just looked at his site again now i see the size diminsions sof the intercooler..thats pretty big..maybe it just looks smaller in the pic but it says it is
20"X11"X4.5" which is pretty big!
Last edited by GOTBANNED?; 10-08-04 at 10:36 AM.
10-10-04, 03:12 AM
#11
Boost Addict
Thread Starter
Join Date: Jun 2004
Location: ajax
Posts: 2,274
Likes: 0
Received 0 Likes
on
0 Posts
jason from jt-imports got back to me and said he will get back to me soon with a final price on a single turbo setup. and what the whole kit includes. i will post again when he gets back to me again..
10-12-04, 10:26 PM
#12
Boost Addict
Thread Starter
Join Date: Jun 2004
Location: ajax
Posts: 2,274
Likes: 0
Received 0 Likes
on
0 Posts
just talked to signal they need your car there to do the custom kit..no total pakage soo that what they told me is around 2800-3000 for the custome kit..
knight sports this is what i got from them.
Hello.
Thank you very much for your e-mail.
Our v-mount kit included is as follows;
*Intercooler(core size : 400x260x65mm) capacity 400ps.
*In and out pipe & hose(70mm dia) with hose band
*Aluminum radiator
*Water pipe & hose (38mm dia) with hose band
*electrical motor fun extension harness
*bracket, bolt, nut
*battery tray modified parts
As to your questions,
Do you carry a kit for a single turbo setup?
No. you need to make turbo-intercooler pipe.
are all mounting brackets, clamps and hoses supplied?
Yes.
is there an air spliter included in the kit to divide the air for rad and intercooler?
No.
thank you.
KNIGHT SPORTS STAFF
price - $2850.19 usd
knight sports this is what i got from them.
Hello.
Thank you very much for your e-mail.
Our v-mount kit included is as follows;
*Intercooler(core size : 400x260x65mm) capacity 400ps.
*In and out pipe & hose(70mm dia) with hose band
*Aluminum radiator
*Water pipe & hose (38mm dia) with hose band
*electrical motor fun extension harness
*bracket, bolt, nut
*battery tray modified parts
As to your questions,
Do you carry a kit for a single turbo setup?
No. you need to make turbo-intercooler pipe.
are all mounting brackets, clamps and hoses supplied?
Yes.
is there an air spliter included in the kit to divide the air for rad and intercooler?
No.
thank you.
KNIGHT SPORTS STAFF
price - $2850.19 usd
Last edited by GOTBANNED?; 10-12-04 at 10:37 PM.
10-14-04, 04:30 PM
#13
Hey, where did my $$$ go?
Join Date: Feb 2001
Location: Bimingham, AL
Posts: 4,413
Likes: 0
Received 0 Likes
on
0 Posts
Damn, thats a baby IC. Its less than 3" thick. I'd expect a better IC for that price. Hell, I wouldnt pay that price no matter what IC core was used but still they should throw in something a little more substantial. I believe thats less total volume than a M2 med and it cost over $2800.
10-14-04, 05:44 PM
#14
Eats, Sleeps, Dreams Rotary
iTrader: (2)
Our small vmount IC core measures 15"x10.75"x3" (381mm x 273mm x 76mm) so it's a little bigger than the Knight Sports one. The Fam Speed one should be the same size as the Knight Sports one. The Knight Sports one or the Fam Speed one might look a little bigger mounted on the car because they fit it with the stock battery that the IC mounts more toward the passenger side. I am pretty sure our monster vmount IC core is the biggest one out there by volume.
Chuck
Chuck
10-14-04, 05:46 PM
#15
Boost Addict
Thread Starter
Join Date: Jun 2004
Location: ajax
Posts: 2,274
Likes: 0
Received 0 Likes
on
0 Posts
thats why i will not be goin with the knight sports setup..too much money and not worth it i feel..
still waiting on a responce from jason from jt-imports
still waiting on a responce from jason from jt-imports
10-16-04, 12:47 AM
#19
Originally Posted by rotaryextreme
Our small vmount IC core measures 15"x10.75"x3" (381mm x 273mm x 76mm) so it's a little bigger than the Knight Sports one. The Fam Speed one should be the same size as the Knight Sports one. The Knight Sports one or the Fam Speed one might look a little bigger mounted on the car because they fit it with the stock battery that the IC mounts more toward the passenger side. I am pretty sure our monster vmount IC core is the biggest one out there by volume.
Chuck
Chuck
Isnt the smaller Vmount you make sufficient to right around 655HP and capable of flowing 935 CFM.
Shoudnt this be capable and more than adequate for this application?
What would be the benefit of running a much larger IC other than for maybe a little faster recovery, and the bling factor?
Does the larger internal volume contribute to lag in any substantial/quantifiable way?
Is the large a bar and plate?
Last edited by rotarypower101; 10-16-04 at 12:51 AM.
10-18-04, 02:37 PM
#20
Eats, Sleeps, Dreams Rotary
iTrader: (2)
The current small vmount IC core is alittle bigger. It should be 15"x10.75"x2.87" to be exact.
The monster vmount IC core has lower pressure drop and it takes longer to be heat soaked. Since the volume is more, it has more lag at lower rpm. At higher rpm, the turbo provides enough air flow so the lag is almost the same as the small one. The monster vmount IC core is bar and plate and the regular one is tube and fin.
Chuck
The monster vmount IC core has lower pressure drop and it takes longer to be heat soaked. Since the volume is more, it has more lag at lower rpm. At higher rpm, the turbo provides enough air flow so the lag is almost the same as the small one. The monster vmount IC core is bar and plate and the regular one is tube and fin.
Chuck
Originally Posted by rotarypower101
Chuck aren’t the dimensions on that core itself 15x10.5x2.87., not that it is a huge issue but it is not quite 3” making the metric equivelent with the width correction (381mm x 266.7mm x 72.898mm)
Isnt the smaller Vmount you make sufficient to right around 655HP and capable of flowing 935 CFM.
Shoudnt this be capable and more than adequate for this application?
What would be the benefit of running a much larger IC other than for maybe a little faster recovery, and the bling factor?
Does the larger internal volume contribute to lag in any substantial/quantifiable way?
Is the large a bar and plate?
Isnt the smaller Vmount you make sufficient to right around 655HP and capable of flowing 935 CFM.
Shoudnt this be capable and more than adequate for this application?
What would be the benefit of running a much larger IC other than for maybe a little faster recovery, and the bling factor?
Does the larger internal volume contribute to lag in any substantial/quantifiable way?
Is the large a bar and plate?
10-18-04, 03:09 PM
#21
Senior Member
Join Date: Jan 2004
Location: Colorado
Posts: 341
Likes: 0
Received 0 Likes
on
0 Posts
With these dimensions you should be lucky to flow a third of what you indicated. (assuming that air flows through the longer and fewer tubes) No wonder Chuck didn't comment on this.
10-19-04, 01:56 PM
#23
Senior Member
Join Date: Jan 2004
Location: Colorado
Posts: 341
Likes: 0
Received 0 Likes
on
0 Posts
You can#t really calculate the flow rate without all measurements. Since all reputable intercoolers have similar performance attributes you can check one of the manufacturers website, like spearco or bell, for an IC with similar dimensions. The flow rate is usually indicated on the webiste. In any case, I looked at all the Vmounts and for that matter FMICs and didn#t like the way they are designed. All IC set-ups are based on a core that flows air through a few but long tubes. What you want are short air ways but a lot of them. In other words the endtanks should be on top and the bottom rather than on the side. This design will yield better cooling and less pressure loss. The only draw back is the piping. Plumbing will be more complicated but can be accomplished as long as you relocate the battery. I can send you a pic of my custom build Vmount, once I am back home.
Last edited by z8cw; 10-19-04 at 02:18 PM.
12-30-04, 04:30 PM
#24
No... Do it again.
Join Date: May 2003
Location: New Zealand
Posts: 122
Likes: 0
Received 0 Likes
on
0 Posts
I would appreciate a pic of your v-mount setups, thanks. breadrizzle(deletethis)@hotmail.com
What you say about the dimensions of i/c and the effects is interesting.
When using an i/c with short tubes but more of them as you say, this makes long/higher-volume end tanks?, how does this affect flow/lag?
What you say about the dimensions of i/c and the effects is interesting.
When using an i/c with short tubes but more of them as you say, this makes long/higher-volume end tanks?, how does this affect flow/lag?
12-30-04, 06:11 PM
#25
Senior Member
Join Date: Jan 2004
Location: Colorado
Posts: 341
Likes: 0
Received 0 Likes
on
0 Posts
The end tanks are larger with this set-up but really not that much. They tapper of and the shorter air passages way offset the larger end tanks. I have to admit I don't have a direct comparison since my tubing with the V moint is so much shorter now than it was with the standard FMIC. So this is based on theory rather than direct comparison.
