DIY Exhaust Manifold

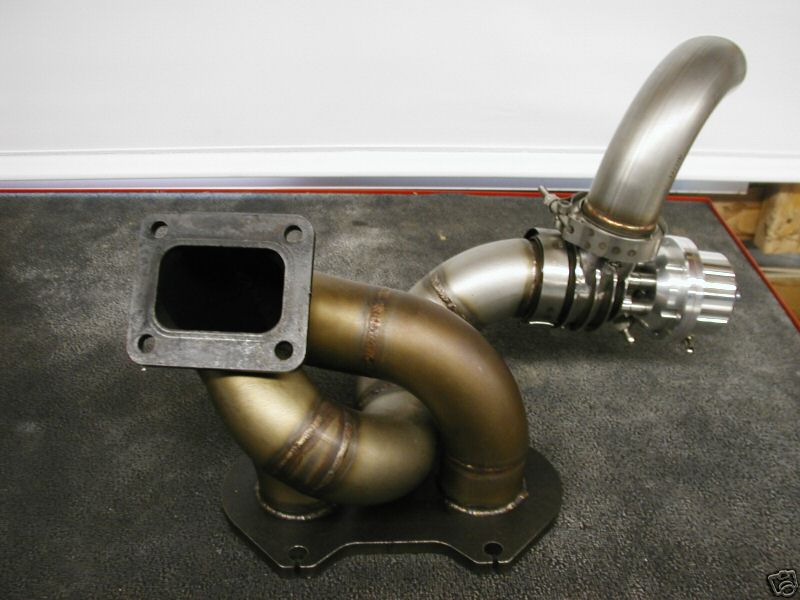

Do you guys see a problem in buying a flange and some piping from Racingbeat and building your own manifold?
My friend build is making his from a used 13b header
so whats the difference between that and this?
I guess my questions are: Why are some people charging $600-900 for something that the materials seem to be somewhat inexpensive?
Will a header from a NA/13B withstand the temps of the turbochaged Rotary?

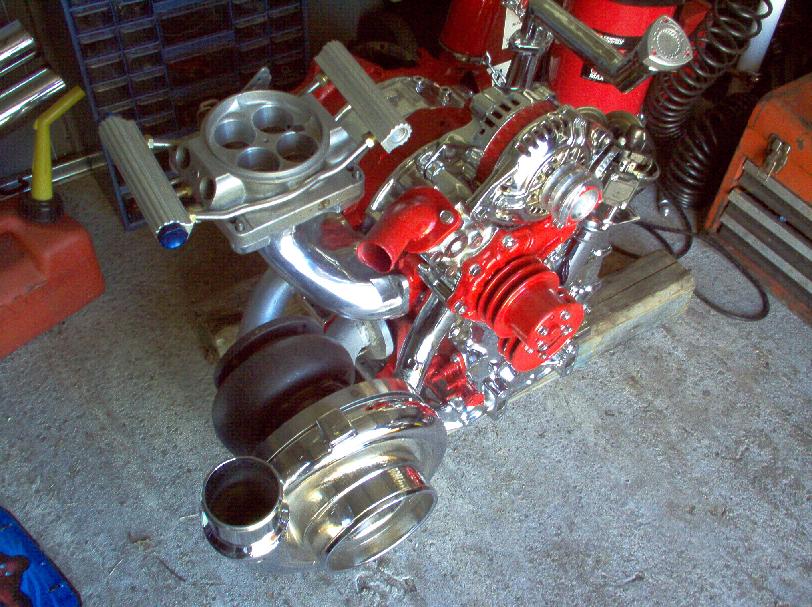

My friend build is making his from a used 13b header
so whats the difference between that and this?
I guess my questions are: Why are some people charging $600-900 for something that the materials seem to be somewhat inexpensive?
Will a header from a NA/13B withstand the temps of the turbochaged Rotary?
Last edited by luiml73; 05-12-05 at 09:26 PM.
#4
Rotary on a budget
iTrader: (1)
Join Date: Sep 2003
Location: Austin, Tx
Posts: 823
Likes: 0
Received 0 Likes
on
0 Posts
I only paided 200 for my exhast manifold for my twin kit. 341 SS 2.5in u-bend. had a local exhast shop do the tig welding for me...works great.
that bend in the rear turbo runner is going to hurt the flow somewhat.
that bend in the rear turbo runner is going to hurt the flow somewhat.
#5
Rotary Powered Boobies
Thread Starter
iTrader: (1)
Join Date: Oct 2001
Location: Miami Beach
Posts: 2,530
Likes: 0
Received 0 Likes
on
0 Posts
I know the wastegate cost alot. The one in that pic is $600 alone.
http://www.youngsperformance.com/art...84255638/print
I guess I'll let my friend know he might want to fix that spot on his manifold.
Thanks for the info.
http://www.youngsperformance.com/art...84255638/print
I guess I'll let my friend know he might want to fix that spot on his manifold.
Thanks for the info.
Last edited by luiml73; 05-13-05 at 06:34 AM.
#6
Rotary Enthusiast
iTrader: (1)
Get the disassembled header http://www.racingbeat.com/FRmazda1.htm it's $88.00 and the piping is mild steel and .125 wall thickness it won't crack. You'll have more than enough piping to make any manifold you want. All you'll need is the flange for the turbo and flange for the the wastegate. Also what are your horsepower goals? Depending on what kind of boost your making you can go with a different wastegate than that Newgen. I picked up a Tial 46mm for under $500 from here http://kgparts.com/tial_wastegates.htm
#7
Senior Member
Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes
on
0 Posts
I've destroyed .125 thick mild steel headers in two years of racing with an N/A car. The heat from a turbo car is even greater. My advise would be to go very thick with mild steel or go stainless. You also want to keep the runner length equal and have the manifold as straight as possible. you also want flat flanges which often warp from welding processes other than TIG.
In short, a really good exhaust manifold is the result of a careful design, excellent fabrication skills and a strong understanding of the requirements for the system. I've seen some very well thought out and well crafted manifolds on here. That thought and effort will equal performance and longevity.
-Trent
In short, a really good exhaust manifold is the result of a careful design, excellent fabrication skills and a strong understanding of the requirements for the system. I've seen some very well thought out and well crafted manifolds on here. That thought and effort will equal performance and longevity.
-Trent
