Critique my GT35R Dyno sheet
04-24-07, 10:31 AM
#28
ErnieTKiLLA
Thread Starter
Join Date: Feb 2002
Location: new york
Posts: 972
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by crispeed
I've made over 700 rwhp with an eliminator pump. No pressure drop on the street even in 4th gear at 160 mph.
Nice power and tuneup. Seems like the person doing the tune have some experience.
Nice power and tuneup. Seems like the person doing the tune have some experience.
Hey Crispeed was that 700hp made with rotors or pistons? What else did you have for fuel. how many injectors etc? trying to figure out why this pump wont flow enough.
04-24-07, 06:48 PM
#32
Originally Posted by turboR1
Hey Crispeed was that 700hp made with rotors or pistons? What else did you have for fuel. how many injectors etc? trying to figure out why this pump wont flow enough.
Also check the voltage to the pump when under full load. How do you have the supply/feed line connected to the tank? I hope it's at least a -12.
04-24-07, 08:34 PM
#33
ErnieTKiLLA
Thread Starter
Join Date: Feb 2002
Location: new york
Posts: 972
Likes: 0
Received 0 Likes
on
0 Posts
The supply line is a -12 to the pump coming from a little custom sump at the bottom of the tank.. and then -10 feeding with an -8 return. I know the pump is rated at 40psi we have it at 65psi, wonder how much less it flows at the higher pressure. Havent checked the voltgage yet.
04-24-07, 08:47 PM
#34
Originally Posted by turboR1
The supply line is a -12 to the pump coming from a little custom sump at the bottom of the tank.. and then -10 feeding with an -8 return. I know the pump is rated at 40psi we have it at 65psi, wonder how much less it flows at the higher pressure. Havent checked the voltgage yet.
I run them at 40-45psi base pressure and 70 to 75psi under boost.
How long is that feed line and where exactly is the pump mounted. Those pumps must be gravity fed.
As for voltage the difference in power the pump will support approx. at 65psi is very great
At 12v/65psi = 950hp
At 13.5v/65psi = 1300hp
The pump is rated at 1100hp at 75psi running at 13.5 volts. At the same pressure but at 12 volts it's rated at 800hp.
Last edited by crispeed; 04-24-07 at 09:03 PM.
04-24-07, 08:48 PM
#35
Original Gangster/Rotary!
iTrader: (213)
Originally Posted by GoRacer
Another 35R with similar numbers to 500R.
turboR1, nice numbers, I'm sure that your FD is very streetable with a nice powerband
04-24-07, 09:16 PM
#37
ErnieTKiLLA
Thread Starter
Join Date: Feb 2002
Location: new york
Posts: 972
Likes: 0
Received 0 Likes
on
0 Posts
turboR1, nice numbers, I'm sure that your FD is very streetable with a nice powerband [/QUOTE]
Thanks. The car is perfectly streetable and the power is very smooth. I made about 30rwhp more from the SP alone without any changes at all at the same psi. actually this was with less timing and more fuel to be safe. I am shooting for 500rwhp with c16 and 25psi in a few weeks.
[/QUOTE]Thanks. The car is perfectly streetable and the power is very smooth. I made about 30rwhp more from the SP alone without any changes at all at the same psi. actually this was with less timing and more fuel to be safe. I am shooting for 500rwhp with c16 and 25psi in a few weeks.
04-24-07, 11:59 PM
#43
Originally Posted by turboR1

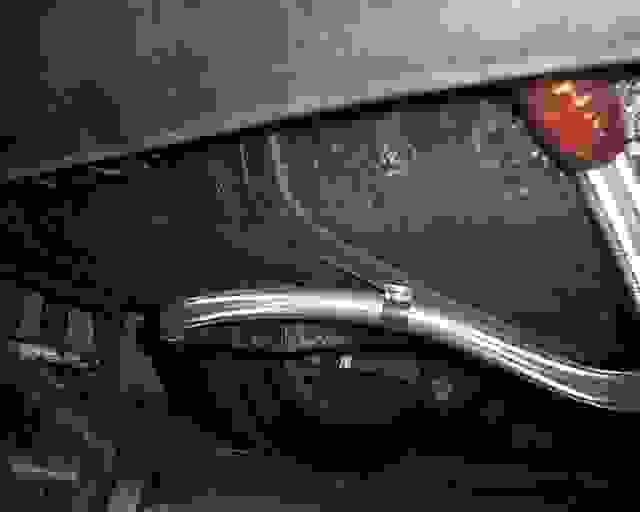

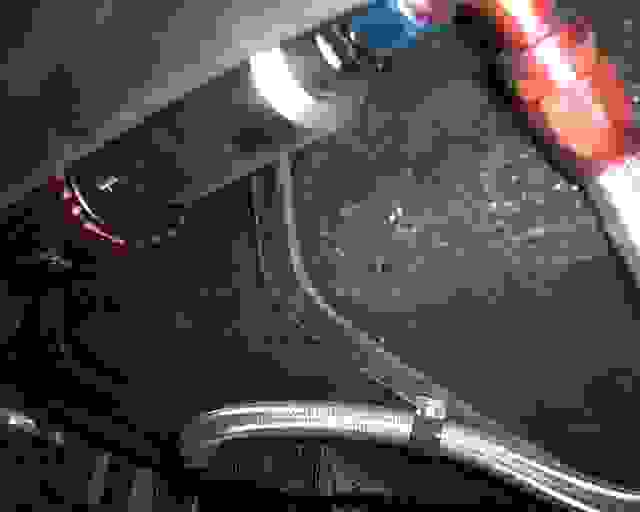

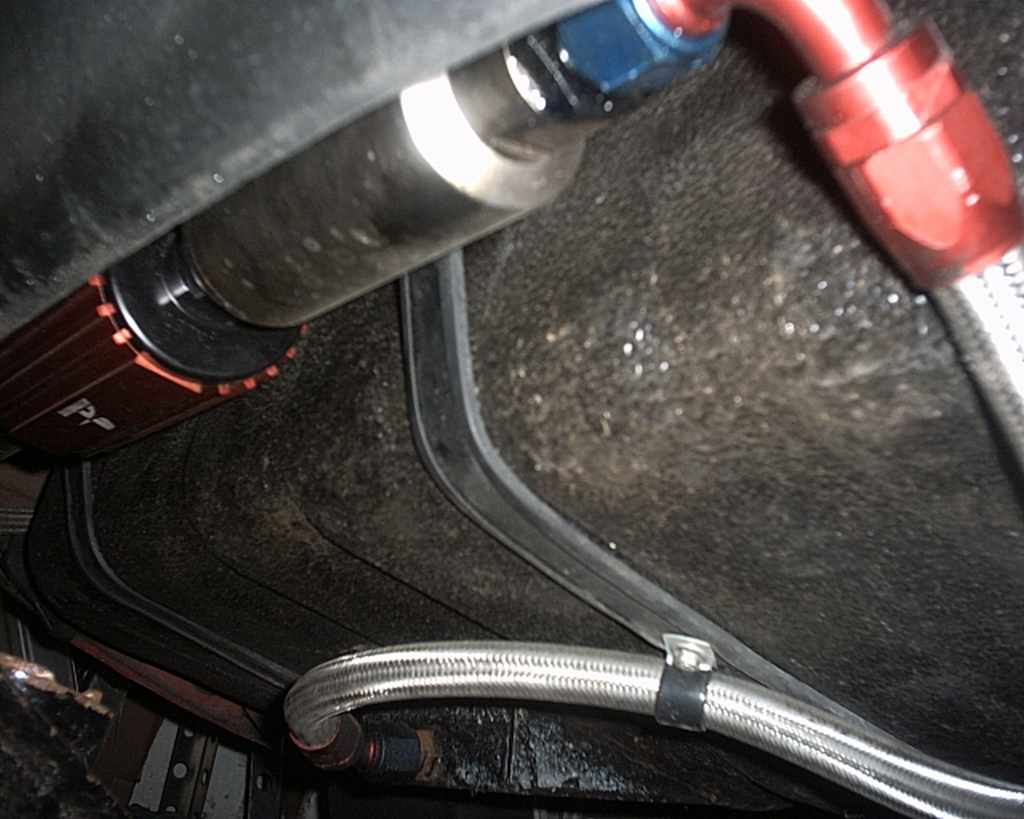

let me try this again.
The supply line isn't exactly gravity feeding the pump plus that loop going forward then back is not good. That pump is probably allready damaged from air pockets.
Just for an experiment try hanging the pump lower and see if it stilll have the same problems.
04-25-07, 04:23 PM
#44
Looking at that pump set-up, personaly I would fab up an fuel accumulator with walbro intank suppling your mega pump. The walbro would supply more than enough fuel volume to keep up with your larger pump with your hp goals. This set-up also would be an additional benifit to you in low fuel situations.
04-25-07, 05:48 PM
#45
Originally Posted by t-von
Looking at that pump set-up, personaly I would fab up an fuel accumulator with walbro intank suppling your mega pump. The walbro would supply more than enough fuel volume to keep up with your larger pump with your hp goals. This set-up also would be an additional benifit to you in low fuel situations.
I use the area behind the diff between the tank and the subframe to mount everything. Pump, two filters and a surge tank fits perfetly.
04-25-07, 09:42 PM
#46
Originally Posted by crispeed
That's how I do it and it works perfectly. There's a lot of room under a 3rd gen.
I use the area behind the diff between the tank and the subframe to mount everything. Pump, two filters and a surge tank fits perfetly.
I use the area behind the diff between the tank and the subframe to mount everything. Pump, two filters and a surge tank fits perfetly.
Yea your not kidding about the room. Currently I have my custom fabricated water injection set-up there.
04-28-07, 05:41 PM
#48
ErnieTKiLLA
Thread Starter
Join Date: Feb 2002
Location: new york
Posts: 972
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by vkotis
Thats too much HP. I wouldn't know what to do with all that power. I like the lower 300 range
But then again, i don't race.
But then again, i don't race.
01-09-13, 06:47 PM
#50
Fail and Fail.
As this is your first post it indicates you didn't read any rules. As the rules serve to help increase your post count.
As you can see this thread is from SIX YEARS ago. I honestly doubt the numbers in the OP's post are even accurate. XLR8 just made 450ish on a t3 1.06 Gt35r and he had AI and 23Psi on a street ported motor.
Last of all. A GTX3071R would not be an ideal turbo choice. A T3 .82 housing is way too small for a rotary. It also has a 60mm turbine wheel. Also way to small. A GTX3071R would be good for MAYBE 375 HP on HIGH boost. After 6000RPM I imagine it would choke itself to death.
Matt
As this is your first post it indicates you didn't read any rules. As the rules serve to help increase your post count.
As you can see this thread is from SIX YEARS ago. I honestly doubt the numbers in the OP's post are even accurate. XLR8 just made 450ish on a t3 1.06 Gt35r and he had AI and 23Psi on a street ported motor.
Last of all. A GTX3071R would not be an ideal turbo choice. A T3 .82 housing is way too small for a rotary. It also has a 60mm turbine wheel. Also way to small. A GTX3071R would be good for MAYBE 375 HP on HIGH boost. After 6000RPM I imagine it would choke itself to death.
Matt
