Single Turbo RX-7's Questions about all aspects of single turbo setups.

Crazy HP numbers

Old 03-24-08, 08:05 PM
  #1
V8-TZR
5 Year Member
Thread Starter

ICE_Pilot's Avatar

Join Date: Oct 2002
Location: Auckland NZ
Posts: 888
Likes: 0
Liked 0 Times in 0 Posts
Crazy HP numbers

Is it possible to make 588RWHP on 20psi from a GT35/40 BB turbo with 1.06 hot side? Or is the dyno not working properly?

I run a 98ron fuel with 10% Ethanol and water injection. Large extended porting 550 primarys 1680 secondarys. 2 x walbro pumps.

Im not at home right now but I will post up the dyno graph later on when I get home.
ICE_Pilot is offline
Old 03-24-08, 08:15 PM
  #2
Learned alot | Alot to go
10 Year Member
iTrader: (2)

CrackHeadMel's Avatar

Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,233
Likes: 0
Liked 0 Times in 0 Posts
err 580 on a gt35/40.. i dont think that compressor will flow nearly that much
CrackHeadMel is offline
Old 03-24-08, 08:23 PM
  #3
V8-TZR
5 Year Member
Thread Starter

ICE_Pilot's Avatar

Join Date: Oct 2002
Location: Auckland NZ
Posts: 888
Likes: 0
Liked 0 Times in 0 Posts
Yea must be the dyno. Had some twin turbo FDs on there that i tuned with all the bolt ons and both put out 250kw wich is 335hp. Is that about right for TT on 15psi?
ICE_Pilot is offline
Old 03-24-08, 10:49 PM
  #4
Supra Smasher
5 Year Member

pwwatkins's Avatar

Join Date: Nov 2005
Location: indiana
Posts: 777
Likes: 0
Liked 0 Times in 0 Posts
That sounds high...500rwhp would seem about right
pwwatkins is offline
Old 03-24-08, 11:23 PM
  #5
Chasing numbers
iTrader: (5)

sk8world's Avatar

Join Date: Apr 2001
Location: Alabama
Posts: 5,092
Likes: 0
Liked 4 Times in 3 Posts
the twins sound close but the 35r sounds high to me but you never know. Took me 22psi on a 4094 to make 504!
sk8world is offline
Old 03-25-08, 12:47 AM
  #6
V8-TZR
5 Year Member
Thread Starter

ICE_Pilot's Avatar

Join Date: Oct 2002
Location: Auckland NZ
Posts: 888
Likes: 0
Liked 0 Times in 0 Posts
do you guys have restrictions on your exhaust systems? Do you still have to run a cat of some sort and the airpump?

I have no cat at all and no airpump. Just wondering. Will post my dyno graph soon.
ICE_Pilot is offline
Old 03-25-08, 01:18 AM
  #7
V8-TZR
5 Year Member
Thread Starter

ICE_Pilot's Avatar

Join Date: Oct 2002
Location: Auckland NZ
Posts: 888
Likes: 0
Liked 0 Times in 0 Posts

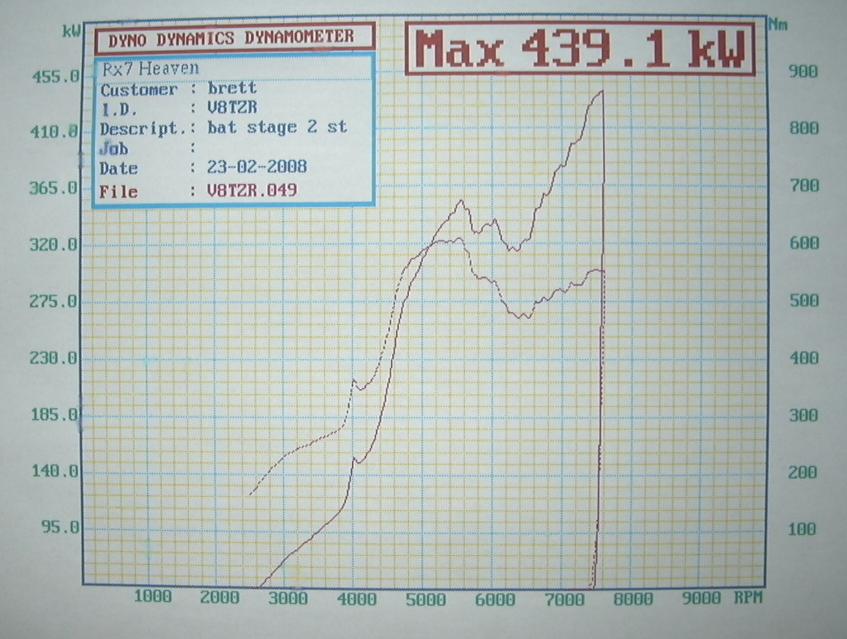

Ok heres the graph.

Its in KW but 440KW = 588HP

I dont know what the dip in the graph is, perhaps the ignition or something.
We were runing 7 and 9 plugs with water injection but they soon died on the track the day after the dyno tune. I have some HKS race plugs now.

I will see if I can get it back on the dyno and see if the new plugs make a difference.
Attached Thumbnails Crazy HP numbers-p1000760.jpg

Last edited by ICE_Pilot; 03-25-08 at 01:19 AM. Reason: spelling
ICE_Pilot is offline
Old 03-25-08, 06:47 AM
  #8
Senior Member
5 Year Member

blitzboy's Avatar

Join Date: Nov 2004
Location: England
Posts: 383
Likes: 0
Liked 0 Times in 0 Posts
That does not look right at all!! The hp curve drops so much before shooting off to the sky very very weird, take it to another Dyno
blitzboy is offline
Old 03-25-08, 01:30 PM
  #9
V8-TZR
5 Year Member
Thread Starter

ICE_Pilot's Avatar

Join Date: Oct 2002
Location: Auckland NZ
Posts: 888
Likes: 0
Liked 0 Times in 0 Posts
Yea I know. It was the last run of the day on stock plugs, they were on the way out. We did not have any colder plugs to use that day so we decided to see how the water injection would cope.

I have another sheet with all the graphs on and that is the only 1 that seems to dip.
ICE_Pilot is offline
Old 03-26-08, 12:25 AM
  #10
Chasing numbers
iTrader: (5)

sk8world's Avatar

Join Date: Apr 2001
Location: Alabama
Posts: 5,092
Likes: 0
Liked 4 Times in 3 Posts
dyno sheet

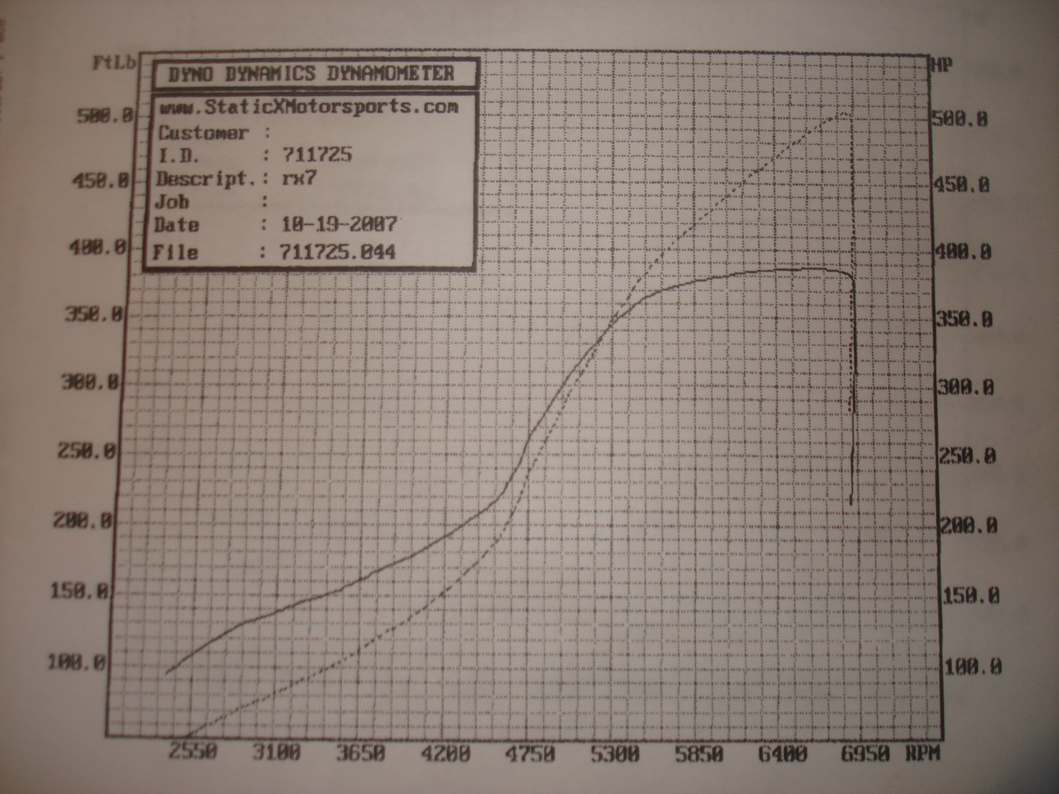

That shet seems weird. Here is mine on the same dyno "dyno dynamics" just for comparision. You could always just go trap it in the 1/4 mile and we could pin point your rwhp.
Attached Thumbnails Crazy HP numbers-dynno.jpg
sk8world is offline
Old 03-27-08, 12:50 AM
  #11
Just turn up the boost!
iTrader: (1)

ZAN_TUNING's Avatar

Join Date: Jul 2007
Location: HELL
Posts: 662
Likes: 0
Liked 0 Times in 0 Posts
dyno dynamics read low and are wonderfully accurate and my favorite dyno to tune on.... HOWEVER something is either up with the dyno operator maybe with the hand controller or the dyno itself is free loading after peak torque. something is definitely wrong there...

altho, i got 600hp out of a gt35r on our dynamics.... in a civic
ZAN_TUNING is offline
Old 02-14-10, 06:32 PM
  #12
Junior Member
5 Year Member

Hastur's Avatar

Join Date: Apr 2004
Location: In a house
Posts: 8
Likes: 0
Liked 0 Times in 0 Posts
Red face

Originally Posted by ICE_Pilot View Post
Yea I know. It was the last run of the day on stock plugs, they were on the way out. We did not have any colder plugs to use that day so we decided to see how the water injection would cope.

I have another sheet with all the graphs on and that is the only 1 that seems to dip.
Send through your other sheets, that sheet is aweful. could be wheel spin, or the dyno not coping with what you are doing. ie over speed.
Your torque should be a nice flat line with horsepower rising in quite a linear fashion once the turbo is on full boost.

Power figures seem way way too high for that size turbo.
Hastur is offline
Old 02-16-10, 02:18 AM
  #13
Garage Hero
iTrader: (93)

mannykiller's Avatar

Join Date: Aug 2009
Location: Quartz Hill
Posts: 4,203
Likes: 0
Liked 8 Times in 8 Posts
holy this post is 2 years old batman haha.. i'm sure they've lost interest. haha
mannykiller is offline
