Coolant lines routing

Hey have a quick question on how the turbo coolant lines should be routed. Right now I have one line coming from the rear iron. The other line comes from the bottom right of the radiator if looking at the front of the car. should I leave it like this or reroute them somewhere else? thanks
RexRyder is offline
Old 04-13-15, 10:44 AM
  #2
Rotary Freak
Thread Starter
iTrader: (9)

RexRyder's Avatar

Join Date: Dec 2001
Location: Tucson
Posts: 2,889
Likes: 0
Received 1 Like on 1 Post
Anyone?
Attached Thumbnails Coolant lines routing-image.jpg
RexRyder is offline
Old 04-13-15, 10:01 PM
  #3
Rotary Enthusiast

Havoc's Avatar

Join Date: Aug 2004
Location: Australia - Perth
Posts: 1,320
Received 7 Likes on 6 Posts
what point on the rear Iron?

should be fine, The coolant gets so hot at the turbo is will flow just with convection currents if set up right.

Mine personally is setup just after the pump.
Havoc is offline
Old 04-14-15, 08:45 AM
  #4
Rotary Freak
Thread Starter
iTrader: (9)

RexRyder's Avatar

Join Date: Dec 2001
Location: Tucson
Posts: 2,889
Likes: 0
Received 1 Like on 1 Post
If looking at the front of the car it's the top left of the rear iron. Thanks
RexRyder is offline
Old 04-15-15, 12:43 AM
  #5
Rotary Freak
Thread Starter
iTrader: (9)

RexRyder's Avatar

Join Date: Dec 2001
Location: Tucson
Posts: 2,889
Likes: 0
Received 1 Like on 1 Post
So I found out that line going to the turbo from the rear iron was a thermowax line so it originally went to the throttle body. If anyone else has input on this or would like to suggest another way let me know. Thanks
RexRyder is offline
Old 04-15-15, 01:26 AM
  #6
Rotary Freak
Thread Starter
iTrader: (9)

RexRyder's Avatar

Join Date: Dec 2001
Location: Tucson
Posts: 2,889
Likes: 0
Received 1 Like on 1 Post

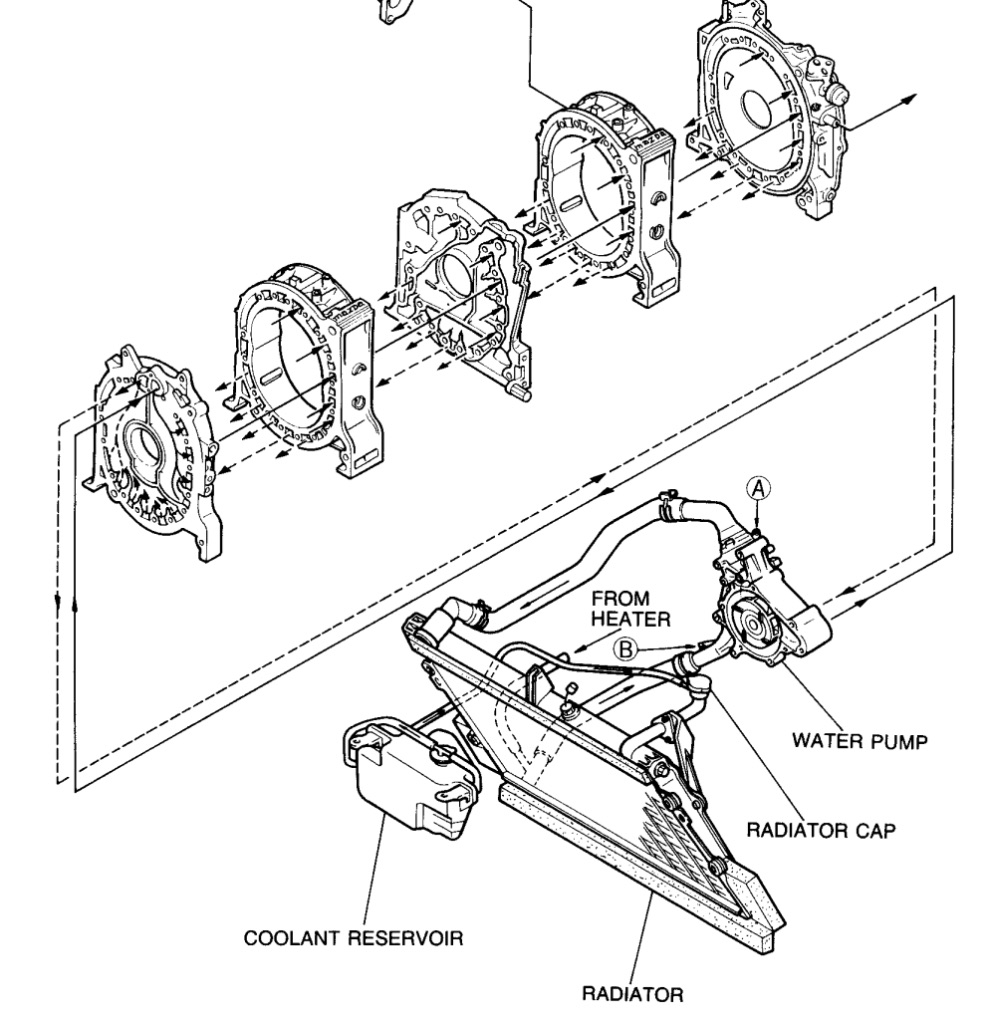

So I've decided to move my coolant return to the lower radiator elbow. There's is a coolant nipple there that I think was for the stock turbo. It's weird that the return nipple there would face down though. That means the coolant return from the turbo would travel down, then up, then down again, but looking at the diagram it makes sense.
Attached Thumbnails Coolant lines routing-image.jpg
