Single Turbo RX-7's Questions about all aspects of single turbo setups.

Choosing Wastegate/s

Old 02-29-16, 12:22 PM
  #26
Full Member

Join Date: Aug 2012
Location: Netherlands
Posts: 82
Received 0 Likes on 0 Posts
Originally Posted by Turblown View Post
There can be a difference in power when plumbing back in, one has to factor the engine ports, size of the turbo, size of the exhaust system, and how the WGs re enter.

However if you are looking to reroute your wastegates, without a DOUBT choose an IWG EFR, Especially on a dual wastegate setup.
Very nice mani / dump pipe setup.. just a sidenote the 2nd wastegate will disturb exhaust flow beeing plubmed back in at an 90 degree angle of the DP first one is gine though..

eplusz is offline
Old 02-29-16, 01:39 PM
  #27
Rotary Enthusiast
5 Year Member

96fd3s's Avatar

Join Date: Apr 2008
Location: NZ
Posts: 1,092
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Turblown View Post
However if you are looking to reroute your wastegates, without a DOUBT choose an IWG EFR, Especially on a dual wastegate setup.
I agree 100%, if one is going with an EFR.

to get some more examples up, here's my plumbed back setup on a RHD FD with a BW S300..i do wish I could afford an EFR, lol.




96fd3s is offline
Old 02-29-16, 07:12 PM
  #28
Very Stable Genius
iTrader: (1)

WANKfactor's Avatar

Join Date: May 2011
Location: omnipresent
Posts: 1,262
Received 64 Likes on 57 Posts
Just in reference to the wastegate overheating thing again. Was just under the car now doing something else and wondering how the hell i was going to duct around moving steering arms and ****. I'm almost certain now my problem only happened on the dyno. now that i think about it, after the 1st dyno session early last year, the black anodised progate40 turned brown, stayed like that until the next dyno session where it went Gold and the diaphragm finally ruptured, and i put a new wastegate in.
Halfway through resuming the next dyno session i turn up at the shop and arranged to have a fan blowing air under the hot-side.

Upon inspection, the black anodising on the offending WG is just starting to brown, but has stayed that way after a couple 100km's of driving.

My Hypothesis - blow air on them at the dyno. Other than that they should be fine. And the anodising on the top hat seems to be a good indicator.

Last edited by WANKfactor; 02-29-16 at 07:21 PM. Reason: wrong button
WANKfactor is offline
Old 02-29-16, 07:36 PM
  #29
Very Stable Genius
iTrader: (1)

WANKfactor's Avatar

Join Date: May 2011
Location: omnipresent
Posts: 1,262
Received 64 Likes on 57 Posts

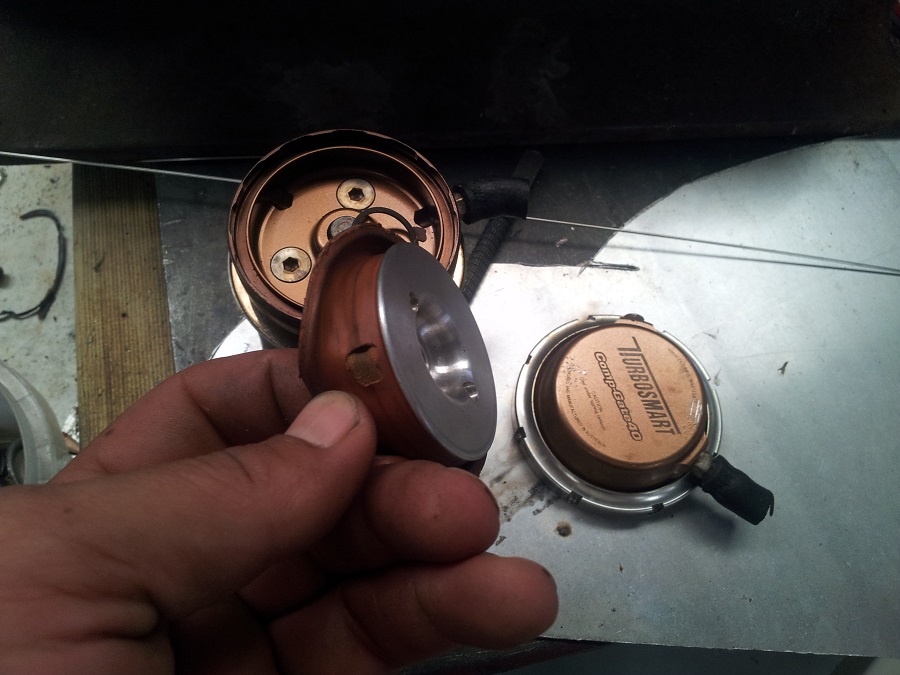

1st pic showing cooked gate and de-laminated diaphragm.

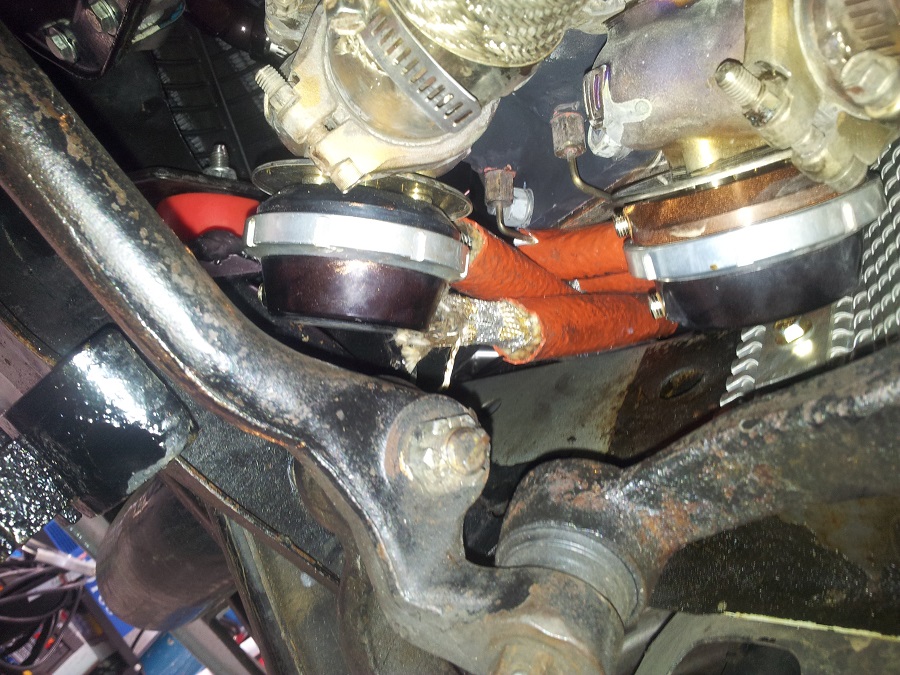

2nd pic showing old wg on left showing no signs of heat damage, new wg on right which got cooked a bit but caught early.
Attached Thumbnails Choosing Wastegate/s-cooked-wg-010.jpg   Choosing Wastegate/s-cooked-wg-012.jpg
WANKfactor is offline
Old 03-03-16, 09:04 PM
  #30
Zoom Zoom
Thread Starter

Rx7ViXeN's Avatar

Join Date: Apr 2015
Location: Western NC
Posts: 34
Likes: 0
Received 0 Likes on 0 Posts
Choosing Wastegate/s

So much knowledge and soaking it all in! Lovely setups. Thank you all for contributing!

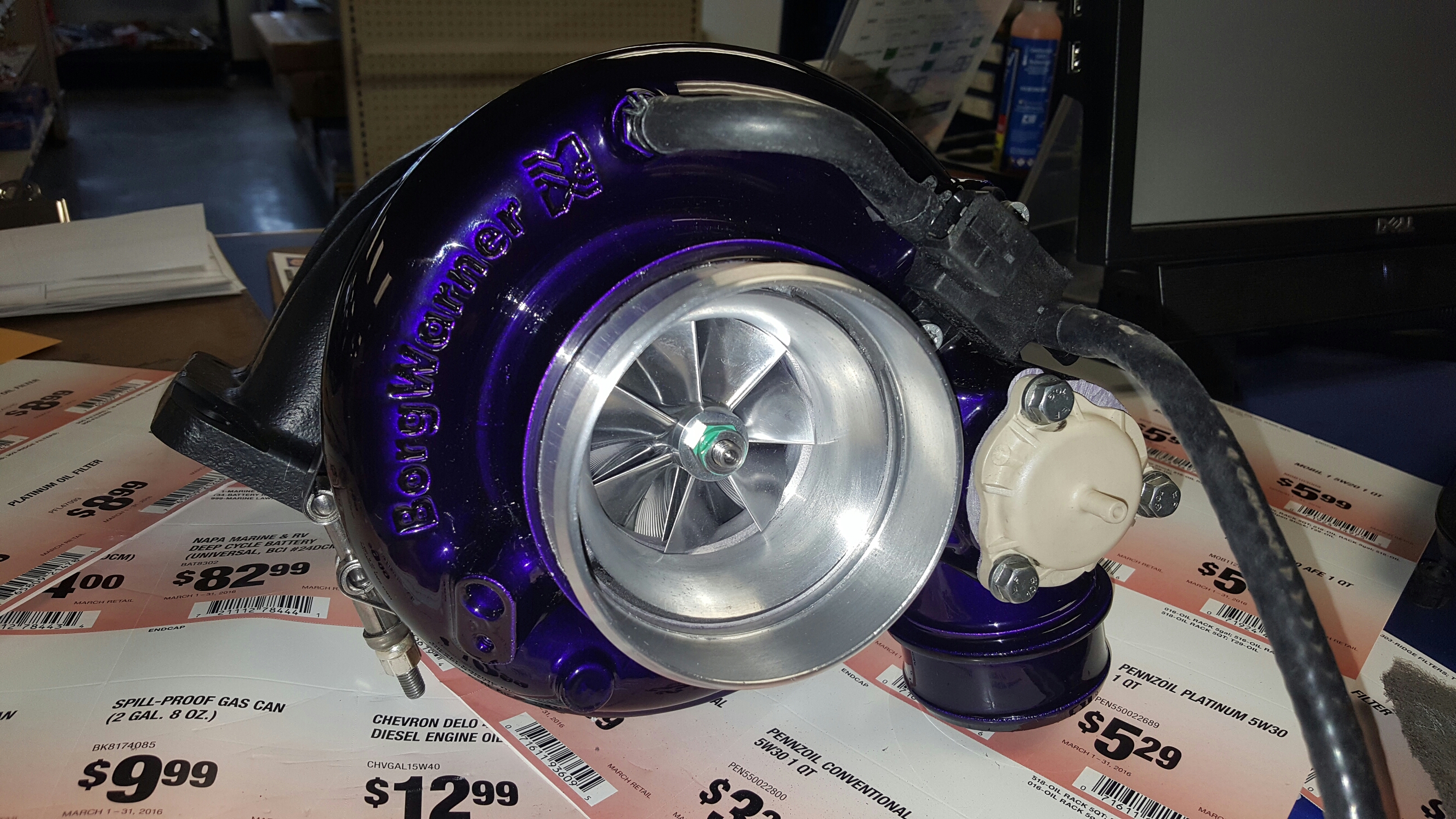

I got my turbo back today from getting it some fancy coatings. 2000 degree ceramic coating on the hot side and powdercoated on the cold side.


Choosing Wastegate/s-20160303_151838.jpg
Rx7ViXeN is offline
Old 07-17-18, 06:36 PM
  #31
Full Member
iTrader: (3)

moritsune's Avatar

Join Date: Sep 2008
Location: Boyd Texas
Posts: 132
Likes: 0
Received 0 Likes on 0 Posts
Any updates Rx7ViXen?
moritsune is offline
