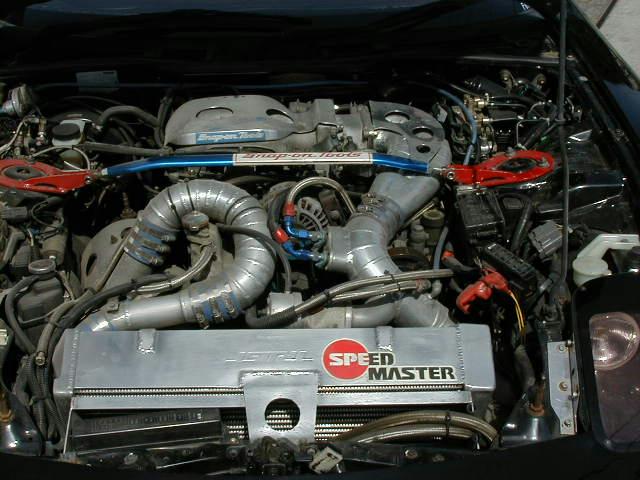

Check out this Single Turbo setup.
Trending Topics
#8
Looks cramped - opposite of my style for sure! I'm into the clean clear engine bays (simpler is better!).
I think the tin is some sort of heat shielding... not sure why it's there b/c I highly doubt it does much of anything in places like on top of the intake manifold.
The two lines going into the intercooler's "cold side" tubing appear to be 2 additional fuel injectors. What I don't understand is why they are mounted so far downstream!?!?
That piping doesn't look too nice. Not sure if it's mandrel bends or not, but it looks kind of "cramped" the way it's routed and bent. It's huge in diameter - probably 3 inches.
Is that a BOV I see mounted just behind the IC feeding off the intercooler piping? If so, why is there such a long feed pipe off the intercooler pipe for it?
Not my type of engine set up at all. I wonder what all the info on it is...
I think the tin is some sort of heat shielding... not sure why it's there b/c I highly doubt it does much of anything in places like on top of the intake manifold.
The two lines going into the intercooler's "cold side" tubing appear to be 2 additional fuel injectors. What I don't understand is why they are mounted so far downstream!?!?
That piping doesn't look too nice. Not sure if it's mandrel bends or not, but it looks kind of "cramped" the way it's routed and bent. It's huge in diameter - probably 3 inches.
Is that a BOV I see mounted just behind the IC feeding off the intercooler piping? If so, why is there such a long feed pipe off the intercooler pipe for it?
Not my type of engine set up at all. I wonder what all the info on it is...
#11
Full Member
Join Date: Feb 2001
Location: Pockyville
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by lane_change
I was thinking additional fuel injectors.
I was thinking additional fuel injectors.
They might be injectors... but it's hard to tell. If they aren't injectors it may be an alcohol/water injection set-up.
#14
Rotors still spinning
iTrader: (1)
I'd believe it if that car was in Japan. They really like to section and weld pipe together when they can't figure out how to bend it properly. Who knows about that metal on the UIM. Decoration? Heat shielding? Look closely and you'll see the custom made tb elbow. That looked fun to make. Those are additional fuel injectors.
#18
Learned alot | Alot to go
iTrader: (2)
Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,232
Likes: 0
Received 0 Likes
on
0 Posts
They really like to section and weld pipe together when they can't figure out how to bend it properly
#19
Junior Member
Join Date: Jan 2003
Location: Near Chicago
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
crazy looking stuff yo... i'd be curious what kind of power he's pushin. definately looks like an after thought under the engine bay.
i'd could only think the injectors are so far down to cool off the fuel. and the heat shields for the heat from the hood in the sun, but hey, what do i know, could be some junk some tard put together.
i'd could only think the injectors are so far down to cool off the fuel. and the heat shields for the heat from the hood in the sun, but hey, what do i know, could be some junk some tard put together.
#20
It's got a huge *** IC and the "bends" in the pipe are pretty smooth, if not pretty. The elbow looks pretty nice. It isn't
"perfect" but I bet it works pretty well overall.
-Max
"perfect" but I bet it works pretty well overall.
-Max
#21
Senior Member
the bends look good, but they sure seem very small for the size of the intercooler. definately a japanese car though, master cyliinder is on the right hand side.
i like the look of those welded pipes. looks like it too some time..
-lou
i like the look of those welded pipes. looks like it too some time..
-lou
