Single Turbo RX-7's Questions about all aspects of single turbo setups.

Which cat for high HP single turbo FD?

Thread Tools

Search this Thread

Old Oct 10, 2010 | 08:21 AM
  #51
moehler's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years
Liked
iTrader: (12)

Joined: Mar 2003
Posts: 2,319
Likes: 32
From: South Jersey
I got everything installed yesterday and I couldn't be happier with the results. At idle the car sounds exactly the same as with the open midpipe. On the road, however, it's really quite quiet; in fact the sound of the turbo spooling is louder than the exhaust note. I also plumbed my open wastegate back into the downpipe so it really feels like a totally different car. It sounds like an aggressive factory sports car all the way to redline.

The cat cleaned up the smell perfectly.

As far as power goes, I definitely feel like some was lost. Before I was literally scared to redline it in 3rd gear, now it's predictable. I can still break the tires loose at 60 mph though, so that's good . I would guess I lost around 30rwhp over 7k, the car feels exactly the same below that. The turbo spool is exactly the same as well. Overall the car is so much more drivable that I don't miss the small power loss.

This set-up cost me $325 with welding and using my existing midpipe. So if the cat lasts, it's clearly a more affordable option that the others that are out there. It doesn't look nearly as pretty, but this is one area on the car that no one will ever see so I could care less.

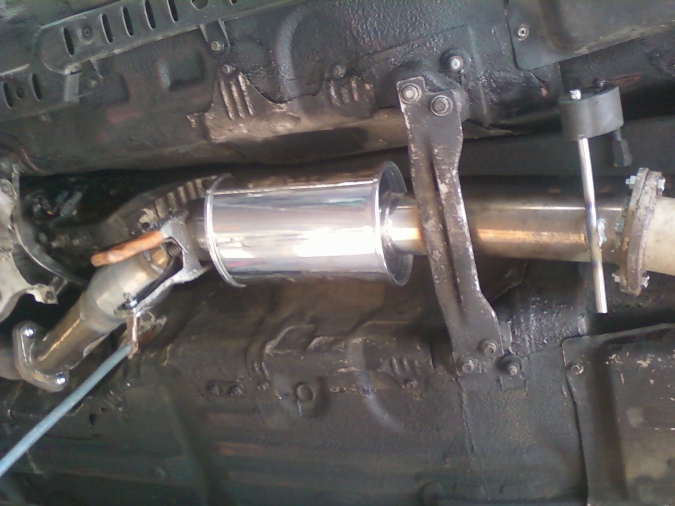

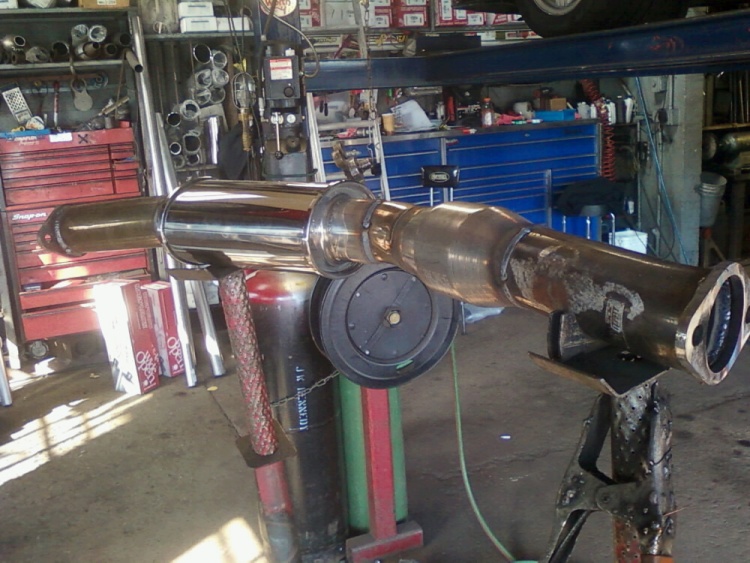

Attached Thumbnails Which cat for high HP single turbo FD?-photo0396.jpg   Which cat for high HP single turbo FD?-photo0398.jpg   Which cat for high HP single turbo FD?-photo0400.jpg
Reply
Old Oct 10, 2010 | 09:24 AM
  #52
arghx's Avatar
rotorhead
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Aug 2004
Posts: 16,205
Likes: 461
From: cold
wait, so you installed a resonator, a cat, and recirculated the wastegate at the same time? I'm glad you're happy with the Vibrant cat, I've had good luck with their parts.
Reply
Old Oct 10, 2010 | 09:30 AM
  #53
Double_J's Avatar
Rotary Freak
iTrader: (28)

Joined: Jun 2009
Posts: 2,089
Likes: 0
From: Ontario, Canada
I too have a resonator and a cat at the same time. It is quiet for sure. I just wonder if I'd rather have the extra ponies. Have you tried just a straight through with no resonator before? Just wondering how much louder that would be.....
Reply
Old Oct 10, 2010 | 09:31 AM
  #54
arghx's Avatar
rotorhead
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Aug 2004
Posts: 16,205
Likes: 461
From: cold
the resonator seems overkill. just recirculating the wastegate makes a huge difference.
Reply
Old Oct 10, 2010 | 10:05 AM
  #55
moehler's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years
Liked
iTrader: (12)

Joined: Mar 2003
Posts: 2,319
Likes: 32
From: South Jersey
Yeah, I added the resonator, cat and plumbed the wastegate all at once. The WG obviously made a huge difference, but the resonator is noticeable; my WG doesn't open until 13 lbs and the car is definitely quieter until that point. Also,my last car had a plumbed WG and a straight midpipe - it was much louder than this. The resonator is small enough (and a straight through design) where I don't think it's a big power killer - the cat is primarily responsible for that I would assume.

So, it's probably overkill for many on this forum, but I'm looking for this car to have the volume of a factory Porshe or vette at WOT. It's definitely there. There is still a loud drone on the highway cruising, I think a different catback can clean that up. Hopefully at 16 psi I'll still be over 400 rwhp (before I was at 475 at 17psi) but it will be a while before I'll get back on the dyno.

Originally Posted by arghx
I'm glad you're happy with the Vibrant cat, I've had good luck with their parts.
Thanks for the recommendation!
Reply
Old Oct 10, 2010 | 10:08 AM
  #56
arghx's Avatar
rotorhead
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Aug 2004
Posts: 16,205
Likes: 461
From: cold
If you're ok with the subtle look, consider an RB catback with the vibrant cat, no resonator, and recirculated wastegate. In my experience the RB exhausts have the least amount of highway drone, even without a cat.
Reply
Old Oct 11, 2010 | 07:13 AM
  #57
Double_J's Avatar
Rotary Freak
iTrader: (28)

Joined: Jun 2009
Posts: 2,089
Likes: 0
From: Ontario, Canada
I have the RB dual tip, and I get drone on the highway. It seems to go away if I get above 120km/hr though.
Reply
