Borg Warner EFR Manifold Build

I recently purchased a BW 8374 EFR from Elliot at turbo source. Super nice person. However I didn't purchase the manifold. I decided to try my hand at it. I have all the necessary machines/equipment to make this thing so I had no excuse not to try it. I started by hanging the turbo from threaded rod and positioning it. I used 1/2" stainless for the flanges and 1-1/2" schedule 10 elbows in 304 stainless. I bought the divided T4 flange but had to make the engine flange. Once I had the turbo hanging and both flanges in place I welded 2 pieces of flat stock between the flanges so as to maintain their position in relation to each other. Once that was done the rest was fitting and welding the pipe in between. I would like to Thank Elliot for the work he invested in the design of this style of manifold. Mine is just a close copy of his based on any pics I could find.

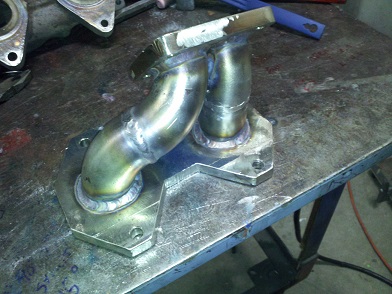

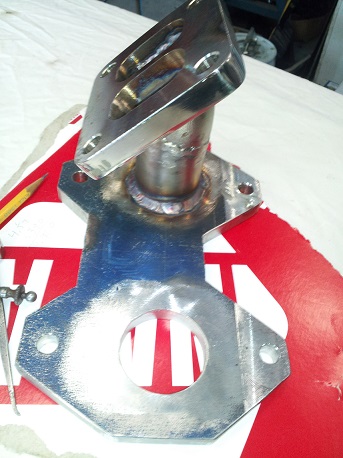

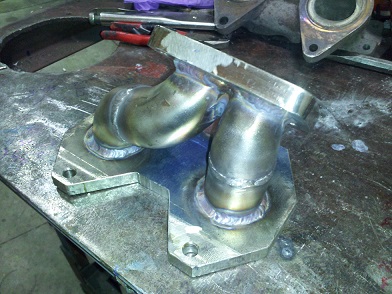

Attached Thumbnails Borg Warner EFR Manifold Build-2015-01-31-16.49.37.jpg   Borg Warner EFR Manifold Build-2015-02-07-14.52.10.jpg   Borg Warner EFR Manifold Build-2015-02-07-20.17.37.jpg   Borg Warner EFR Manifold Build-2015-02-07-20.18.31.jpg
Ernstudet22 is offline
Old 02-08-15, 04:25 PM
  #2
Senior Member

Join Date: Oct 2012
Location: Manassas
Posts: 340
Likes: 0
Received 2 Likes on 1 Post
Looks good, how much war page did you end up with on the flanges?
Vicoor is offline
Old 02-08-15, 07:41 PM
  #3
Junior Member
Thread Starter
iTrader: (4)

Join Date: Apr 2014
Location: Indiana
Posts: 44
Likes: 0
Received 2 Likes on 2 Posts
I had to face .033 off the engine flange and .070 off the T4 flange to make them flat again.
Ernstudet22 is offline
Old 02-08-15, 09:37 PM
  #4
turbo or bust
iTrader: (8)

erick31876's Avatar

Join Date: May 2012
Location: bristol,pa
Posts: 870
Likes: 0
Received 0 Likes on 0 Posts
Nice manifold
erick31876 is offline
Old 02-09-15, 12:51 AM
  #5
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,608
Likes: 0
Received 0 Likes on 0 Posts
Is this going to be running an internal wastegate with 1.5 inch runners?
rx72c is offline
Old 02-09-15, 05:52 AM
  #6
Junior Member
Thread Starter
iTrader: (4)

Join Date: Apr 2014
Location: Indiana
Posts: 44
Likes: 0
Received 2 Likes on 2 Posts
Yes the runners are 1.5" pipe schedule 10 which has a 1.682" ID. And yes to the IWG.
Ernstudet22 is offline
Old 02-09-15, 09:18 AM
  #7
BadAss DoItYourselfer
iTrader: (8)

jetlude's Avatar

Join Date: Jun 2008
Location: Paradise
Posts: 827
Likes: 0
Received 0 Likes on 0 Posts
How much boost are you planning to run?
jetlude is offline
Old 02-09-15, 09:01 PM
  #8
Junior Member
Thread Starter
iTrader: (4)

Join Date: Apr 2014
Location: Indiana
Posts: 44
Likes: 0
Received 2 Likes on 2 Posts
I would like to make 450 rwhp on a conservative dyno. I hope I don't have to push past low to mid 20's to get there.
Ernstudet22 is offline
Old 02-10-15, 11:14 AM
  #9
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,892
Received 26 Likes on 24 Posts
One of our dealers made 400rwhp at 10 psi on our iwg 8374 kit( raceport engine however ).
Turblown is offline
Old 02-10-15, 06:53 PM
  #10
Time or Money, Pick one
iTrader: (31)

silverTRD's Avatar

Join Date: Oct 2005
Location: Torrance, ca.
Posts: 2,728
Likes: 0
Received 16 Likes on 16 Posts
why only 1.5" runners? are ports are closer to 2" in diameter. Or does it taper down to 1.5? if so, why?
silverTRD is offline
Old 02-11-15, 07:00 AM
  #11
BadAss DoItYourselfer
iTrader: (8)

jetlude's Avatar

Join Date: Jun 2008
Location: Paradise
Posts: 827
Likes: 0
Received 0 Likes on 0 Posts
Lets hope you don't run into boost control issues using the 1.5 runners.
jetlude is offline
Old 02-11-15, 07:30 AM
  #12
Brap Brap, Fap Fap
iTrader: (7)

Shainiac's Avatar

Join Date: Jun 2006
Location: Lyme, CT
Posts: 1,485
Received 9 Likes on 9 Posts
Nominal pipe dimensions are different than tubing.
SCH10 1.5" PIPE is actually 1.9" OD and 1.7" ID.
2.0" 11 gauge TUBING is 2" OD and .120" wall thickness ~1.76" ID.
Not a huge difference.
Shainiac is offline
Old 02-11-15, 12:52 PM
  #13
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,892
Received 26 Likes on 24 Posts
We have been using 1.5 schedule 10 pipe in our IWG kits for quite some time now. Every owner has report 10 to 13psi base( and lowest) boost pressure on the dyno and street. 1.5" pipe I.D is the EXACT size of a T4 divided flange.
__________________
Rx7 Rotary Performance Parts
Turblown is offline
Old 02-11-15, 02:15 PM
  #14
Rotary Freak
iTrader: (8)

rx72c's Avatar

Join Date: Jun 2003
Location: Australia
Posts: 2,608
Likes: 0
Received 0 Likes on 0 Posts
You should move to Australia. Hard to find quality fabricators down here(who actually want to work).
rx72c is offline
Old 02-17-15, 11:04 PM
  #15
Rotary Enthusiast
iTrader: (5)

Join Date: Apr 2006
Location: sb
Posts: 881
Likes: 0
Received 32 Likes on 29 Posts
Originally Posted by rx72c View Post
You should move to Australia. Hard to find quality fabricators down here(who actually want to work).
Wat? He wanted to try to build his own manifold. Mission accomplished.
dguy is offline
Old 02-23-15, 01:52 PM
  #16
Senior Member
iTrader: (6)

jojodotcom's Avatar

Join Date: Jan 2005
Location: Vancouver
Posts: 389
Received 0 Likes on 0 Posts
I believe rx72c is complimenting Ernstudet22's fabrication skills~ and suggested that he should move to Australia to start a business.

Nice work btw!
jojodotcom is offline
Old 02-23-15, 06:11 PM
  #17
Rotary Enthusiast
iTrader: (5)

Join Date: Apr 2006
Location: sb
Posts: 881
Likes: 0
Received 32 Likes on 29 Posts
Originally Posted by jojodotcom View Post
I believe rx72c is complimenting Ernstudet22's fabrication skills~ and suggested that he should move to Australia to start a business.

Nice work btw!
Haha, I reread the response, my apologies rx72c!
dguy is offline
Old 03-25-15, 07:33 PM
  #18
Full Member

Join Date: Jul 2011
Location: Alberta Canada
Posts: 129
Likes: 0
Received 0 Likes on 0 Posts
Thought I would jump into this thread as I did the same thing.
I used Schedule 40 1.5" 304SS piping.

I didn't get the piping to match up to the t4 flange as closely as I would have liked so I laid a lot of weld around the flanges so that I could make a very smooth internal flow path. the downside is that it looks a lot worse and it warped the flanges quite a bit. but after having it machined flat the warpage is fixed. the manifold will be more or less invisible on the car anyways.
This is also my first time tg welding stainless as I only picked up the welder 4 months ago and I've spent all my time with aluminum. I'm confident in the strength but the welds are by no means pretty lol.


Made a jig after I decided how the turbo should fit.
Name:  0FEE05A0-537E-4D0A-8F64-7556B5C9FF6C_zpskv01pkar.jpg
Views: 63
Size:  120.3 KB
Name:  BBCA18E4-8499-4B81-A5A3-965E1B1B9D1B_zpsz3xfilcl.jpg
Views: 69
Size:  82.5 KB
Name:  E9D43683-7697-468A-BD8A-033EA8A2CAB0_zps6zms19wh.jpg
Views: 75
Size:  88.1 KB
Name:  A4E1D5EA-5B26-4521-A976-0E3912A25BA2_zpsvfltqcpg.jpg
Views: 67
Size:  83.6 KB

The problem with buying a engine flange is that they are meant for larger piping.
Name:  9B43AF79-E5E3-4C7A-B814-831A49685343_zpszycamcas.jpg
Views: 71
Size:  167.3 KB

Name:  BC40951C-A65B-402E-B990-709982200165_zpsjblztzzu.jpg
Views: 73
Size:  78.7 KB

Name:  E3F08C72-8AD5-4C69-9235-924381CC05CB_zpsxruvpghg.jpg
Views: 69
Size:  287.8 KB

Name:  80C6A32C-1F3B-4FC9-8895-8A01064EB093_zps9e9hqj2r.jpg
Views: 94
Size:  199.4 KB
diesel dakota is offline
