Aeromotive 340 Stealth Fuel Pump

Single Turbo RX-7's Questions about all aspects of single turbo setups.

Aeromotive 340 Stealth Fuel Pump

Old 02-08-12, 10:06 PM
  #51
Rotary Enthusiast
10 Year Member
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Thanks: 0
Thanked 1 Time in 1 Post
I probably overtightened the worm gear clamps, easy to do with that soft hose, and damaged the hose, otherwise it may have been ok.
tom94RX-7 is offline
Old 02-08-12, 10:22 PM
  #52
Original Gangster/Rotary!

iTrader: (205)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,979
Thanked 108 Times in 95 Posts
^^Not based on Garrett's hose. It was destroyed after a few days. The piece they provide is not suitable for the intended use, case closed.
GoodfellaFD3S is offline
Old 02-09-12, 01:18 PM
  #53
silver ghost
iTrader: (11)

G's 3rd Gen's Avatar

Join Date: Sep 2003
Location: Home of the Rolex 24
Posts: 3,050
Thanks: 0
Thanked 1 Time in 1 Post
Originally Posted by GoodfellaFD3S View Post
^^Not based on Garrett's hose. It was destroyed after a few days. The piece they provide is not suitable for the intended use, case closed.
100% agreed. The hose was deteriorated, swollen and spongy. The in-tank labeled hose that I pulled from the RP pump previously was in for 2 years and showed zero flaws. G
G's 3rd Gen is offline
Old 02-14-12, 11:35 PM
  #54
rotary sensei
15 Year Member
iTrader: (5)

Mr rx-7 tt's Avatar

Join Date: Mar 2001
Location: Virginia
Posts: 2,311
Thanks: 0
Thanked 0 Times in 0 Posts
I pulled the 340 fuel pump and looked at the submersible hose which was supplied by Aeromotive. It looked fine with no signs of deterioration. The pump has been in the car for six weeks or so.
Mr rx-7 tt is offline
Old 02-15-12, 12:03 AM
  #55
Original Gangster/Rotary!

iTrader: (205)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,979
Thanked 108 Times in 95 Posts
Glad to hear it Chris. Maybe they're sending out different brands of hose?
GoodfellaFD3S is offline
Old 02-15-12, 12:52 AM
  #56
rotary sensei
15 Year Member
iTrader: (5)

Mr rx-7 tt's Avatar

Join Date: Mar 2001
Location: Virginia
Posts: 2,311
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by GoodfellaFD3S View Post
Glad to hear it Chris. Maybe they're sending out different brands of hose?
That would be my guess or maybe the gas blend used by 3rd gen is caustic to the hose.
Mr rx-7 tt is offline
Old 02-15-12, 09:06 AM
  #57
Wastegate John
iTrader: (13)

RENESISFD's Avatar

Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,982
Thanks: 0
Thanked 1 Time in 1 Post
^ He was using pump gas. No E85 or race fuel.




John
RENESISFD is offline
Old 02-15-12, 10:15 AM
  #58
I Like Guns
10 Year Member
iTrader: (5)

jhammerrx7's Avatar

Join Date: Mar 2002
Location: Bismarck, ND
Posts: 512
Thanks: 0
Thanked 0 Times in 0 Posts
I just received my Stealth pump and just for grins I also picked up a foot of Gates submersible fuel hose.

The dude at Napa tried selling me normal fuel injection line and I said it needed to be submersible. He said he worked in a garage for over 30 years and this is all they used.
A 1 foot chunk cost about $6 of normal fuel injection hose.

I went back home, checked Napa's website and found a part # of HB-209 (I think) for actual submersible rated hose. Says submersible right on the hose.

Went back and purchased the HB-209. Cost $30 bucks for a 1' length, but I will sleep better using the submersible hose than taking the guy at Napa's advice and using fuel injection hose.

If any of you guys need some submersible hose I have about 7 - 8" left off the 1' length.
Shoot me a PM if you want the remainder and we can work something out.
jhammerrx7 is offline
Old 02-15-12, 11:41 AM
  #59
rotary sensei
15 Year Member
iTrader: (5)

Mr rx-7 tt's Avatar

Join Date: Mar 2001
Location: Virginia
Posts: 2,311
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by RENESISFD View Post
^ He was using pump gas. No E85 or race fuel.

John
May not have to be E85 or race fuel different blends have different additives.
Mr rx-7 tt is offline
Old 02-15-12, 12:46 PM
  #60
Wastegate John
iTrader: (13)

RENESISFD's Avatar

Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,982
Thanks: 0
Thanked 1 Time in 1 Post
^ That may be true, but the fact is that he is filling at a normal gas station, it should not have been spongy.

IMHO, It should not matter if I fill up at a Hess, BP, or a Shell station; or if I go on a trip to another part of the country, the hose should be able to withstand the different "blends" of gasoline.






John
RENESISFD is offline
Old 02-15-12, 04:33 PM
  #61
silver ghost
iTrader: (11)

G's 3rd Gen's Avatar

Join Date: Sep 2003
Location: Home of the Rolex 24
Posts: 3,050
Thanks: 0
Thanked 1 Time in 1 Post
I am running 93 pump gas with idimetsu pre mix at 1 oz per gallon
G's 3rd Gen is offline
Old 02-15-12, 05:11 PM
  #62
FD Project
iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,352
Thanks: 0
Thanked 0 Times in 0 Posts
i just swap the fuel line this weekend with the gates submersible hose, the one that came with the stealth pump was spongy and one of them was even coming apart.
BLACK MAMBA is offline
Old 02-15-12, 07:41 PM
  #63
silver ghost
iTrader: (11)

G's 3rd Gen's Avatar

Join Date: Sep 2003
Location: Home of the Rolex 24
Posts: 3,050
Thanks: 0
Thanked 1 Time in 1 Post
Originally Posted by FC3S1991 View Post
i just swap the fuel line this weekend with the gates submersible hose, the one that came with the stealth pump was spongy and one of them was even coming apart.
They must have switched fuel hose distributors or have received the wrong batch of hoses to put in the kits. I am going to e-mail them of these occurences. Hopefully save someone a motor down the road. G
G's 3rd Gen is offline
Old 02-16-12, 12:11 AM
  #64
35r 13b first gen
iTrader: (3)

zaridar's Avatar

Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,289
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Jason View Post
That pump is loud as hell. Sounds like a chain saw
Some like that.... racecar....
zaridar is offline
Old 02-16-12, 12:20 AM
  #65
35r 13b first gen
iTrader: (3)

zaridar's Avatar

Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,289
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by GoodfellaFD3S View Post
Glad to hear it Chris. Maybe they're sending out different brands of hose?
Is everyone running premix on the the failed hoses.. I doubt Aeromotive tests their fuel pumps with 2 cycle premix in their gas.....
zaridar is offline
Old 02-16-12, 01:23 AM
  #66
rotary sensei
15 Year Member
iTrader: (5)

Mr rx-7 tt's Avatar

Join Date: Mar 2001
Location: Virginia
Posts: 2,311
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by zaridar View Post
Is everyone running premix on the the failed hoses.. I doubt Aeromotive tests their fuel pumps with 2 cycle premix in their gas.....
I was not running any premix.
Mr rx-7 tt is offline
Old 02-16-12, 07:11 AM
  #67
35r 13b first gen
iTrader: (3)

zaridar's Avatar

Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,289
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Mr rx-7 tt View Post
I was not running any premix.
No ****..... I wonder if the different fuels in different areas is actually valid or just some lame excuse to cover up a mistake with a poor quality hose? Dang I always though Aeromotive stuff what top of the line... Have any of you guys sent your crapped out hoses to them and see what they say? I think I would.... Might get some kind of refund for the hose replacement and maybe even labor of doing it twice. If they were a good company they would.
zaridar is offline
Old 02-17-12, 12:32 PM
  #68
Built not Bought
iTrader: (18)

vrx8's Avatar

Join Date: May 2010
Location: San Antonio, TX
Posts: 656
Thanked 2 Times in 2 Posts

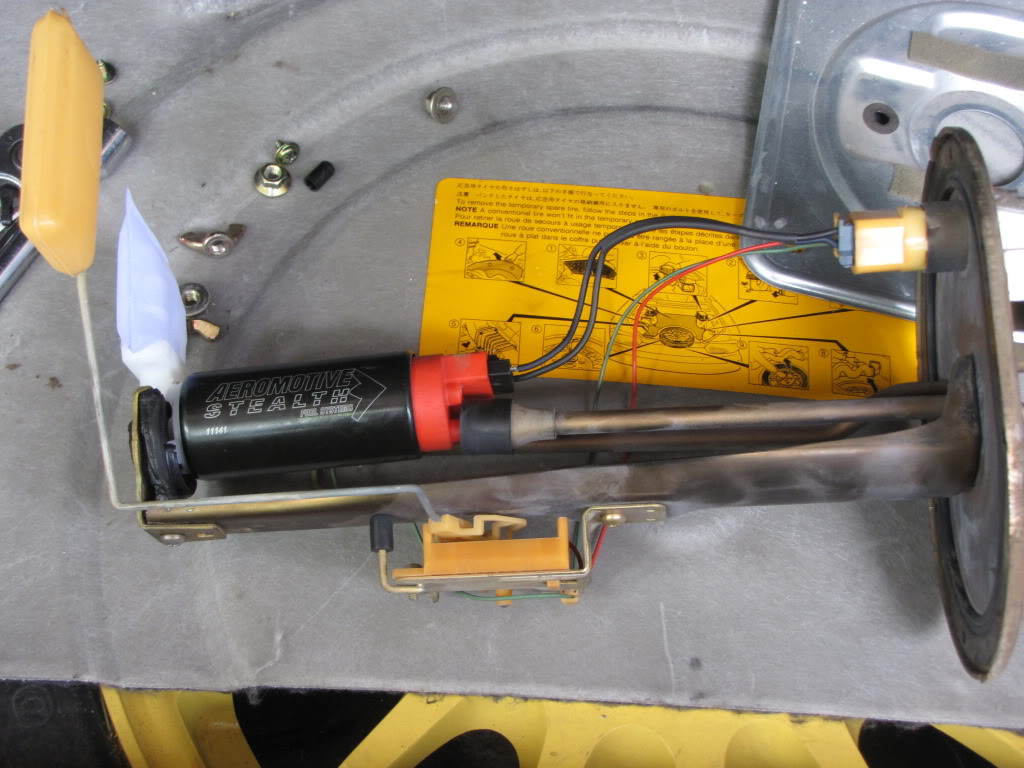

this is how i installed mine, didn't use the hose.
Name:  IMG_3860.jpg
Views: 697
Size:  114.4 KB
vrx8 is offline
Old 02-17-12, 03:50 PM
  #69
T2 Duo!
iTrader: (6)

tuscanidream's Avatar

Join Date: Oct 2010
Location: RI/CT
Posts: 1,665
Thanks: 0
Thanked 0 Times in 0 Posts
Looks clean @vrx8! Thanks for the pic!
tuscanidream is offline
Old 02-19-12, 12:46 AM
  #70
rotary sensei
15 Year Member
iTrader: (5)

Mr rx-7 tt's Avatar

Join Date: Mar 2001
Location: Virginia
Posts: 2,311
Thanks: 0
Thanked 0 Times in 0 Posts
I would say with a half assed analysis the problem is premix. Now the question is are the Gates hoses good with premix? Maybe someone with a Gates replacement can look?


Maybe G's 3rd Gen???
Mr rx-7 tt is offline
Old 02-19-12, 01:04 AM
  #71
Rotary Enthusiast
10 Year Member
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Thanks: 0
Thanked 1 Time in 1 Post
My gates hose looks good, but it hasn't been in there for more than a few months, with premix.
tom94RX-7 is offline
Old 02-19-12, 09:05 PM
  #72
Built Not Bought
iTrader: (13)

TwinCharged RX7's Avatar

Join Date: May 2008
Location: Stamford, CT
Posts: 2,519
Thanks: 0
Thanked 24 Times in 22 Posts
Will this pump work with E85? And also, how do I find hose that is compatable with E85 and premix?
TwinCharged RX7 is offline
Old 02-19-12, 09:25 PM
  #73
Original Gangster/Rotary!

iTrader: (205)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,979
Thanked 108 Times in 95 Posts
vrx8, how are you keeping the pump on the hanger?

Last edited by GoodfellaFD3S; 02-19-12 at 10:46 PM.
GoodfellaFD3S is offline
Old 02-19-12, 09:50 PM
  #74
Built not Bought
iTrader: (18)

vrx8's Avatar

Join Date: May 2010
Location: San Antonio, TX
Posts: 656
Thanked 2 Times in 2 Posts
Just like you see it.
vrx8 is offline
Old 02-20-12, 07:58 PM
  #75
35r 13b first gen
iTrader: (3)

zaridar's Avatar

Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,289
Thanks: 0
Thanked 0 Times in 0 Posts
sheer magic jk
