--Addicted Performance Built Full Bridge w/ S366--

Hey guys, We just got done with another build here at the shop this week and wanted to show the final results. This car was bone stock when it was dropped off and the customer wanted a turn key car that would be ready to pick up in 6-8 weeks with a reliable 400whp with the option to turn it up down the road. Here are the parts we used in this particular build


Specs-
-Addicted Performance Rebuilt 13B with a Full Bridge Port
-E & J Seals
-Addicted Performance Turbo Kit(Turbosmart 50mm WG/3.5" Downpipe)
-Borgwarner S366 Turbo
-FFE Secondary Rail
-ID2000 Injectors
-Fuellab Regulator
-ACT Clutch
-ETS Front Mount Intercooler
-Haltech PS1000

The car made 441whp and 326tq at 15.5 PSI. When the car is brought back we will be shooting for 30psi using race fuel.

If you have any questions about a build or pricing feel free to give us a call at 865-982-4109 or send us a PM on here.

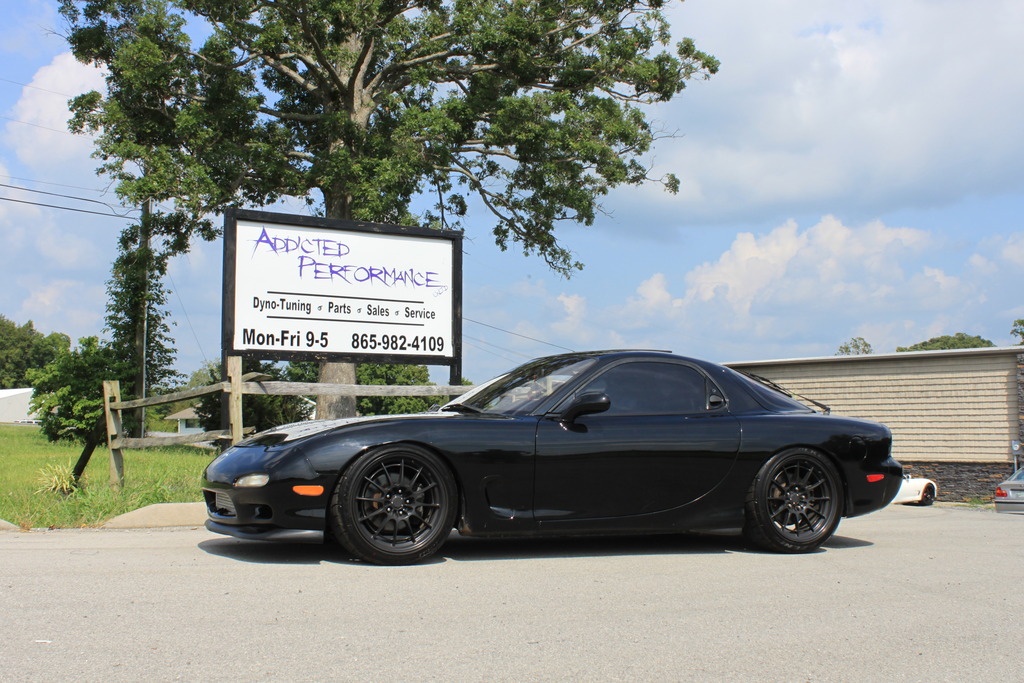

Name:  IMG_2642_zpstzbgr1b6.jpg
Views: 92
Size:  277.3 KB

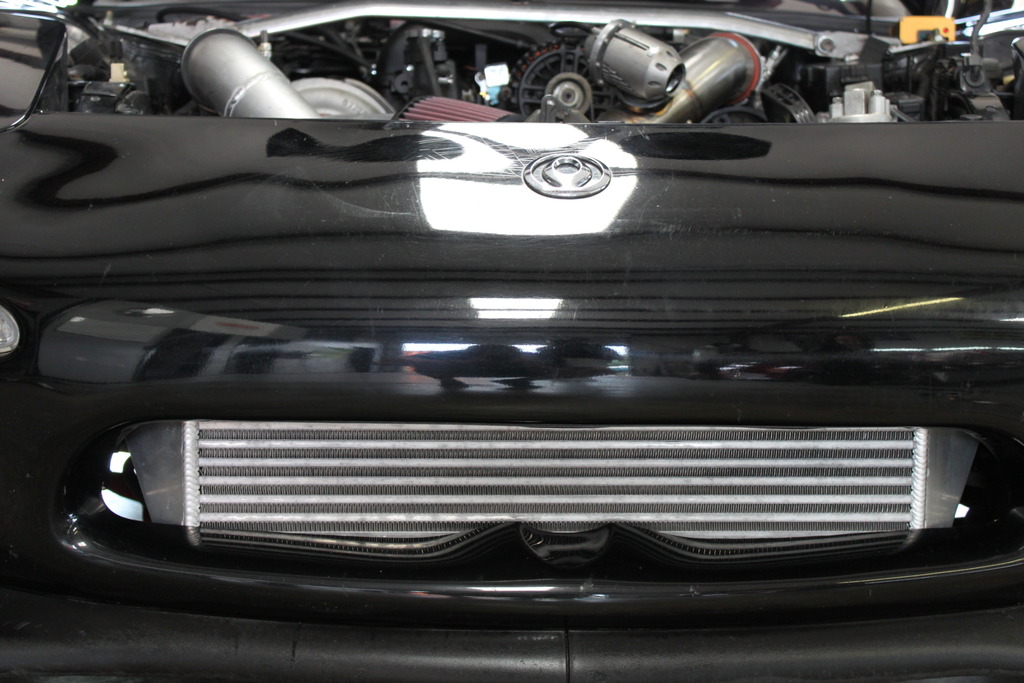

Name:  IMG_2637_zpsoa9qlxt0.jpg
Views: 78
Size:  192.0 KB

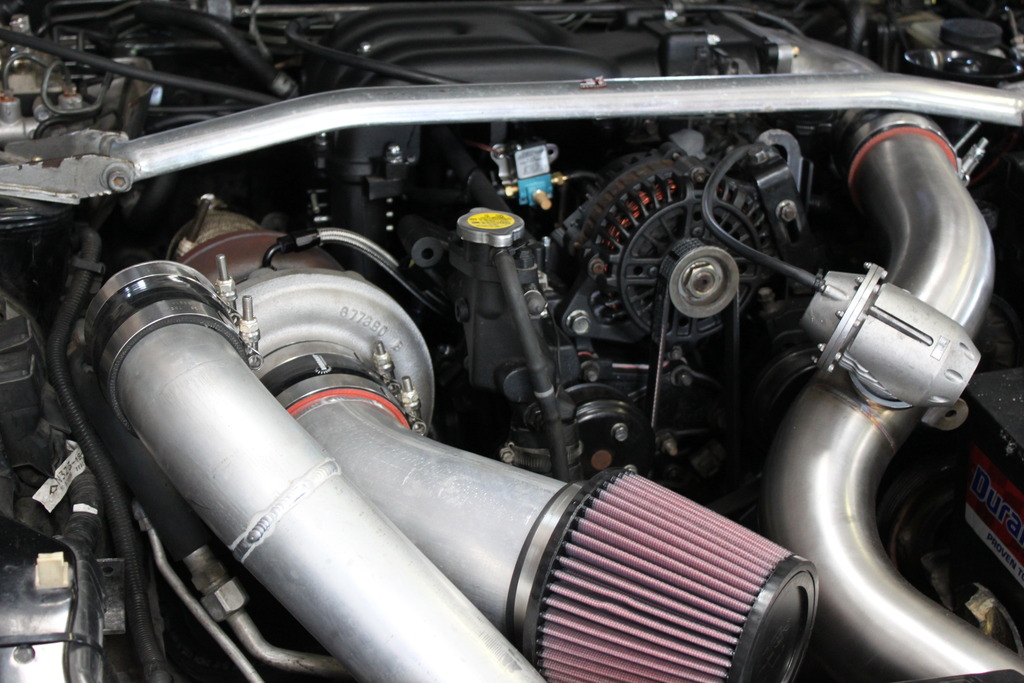

Name:  IMG_2638_zpsojhjxg0u.jpg
Views: 80
Size:  212.4 KB

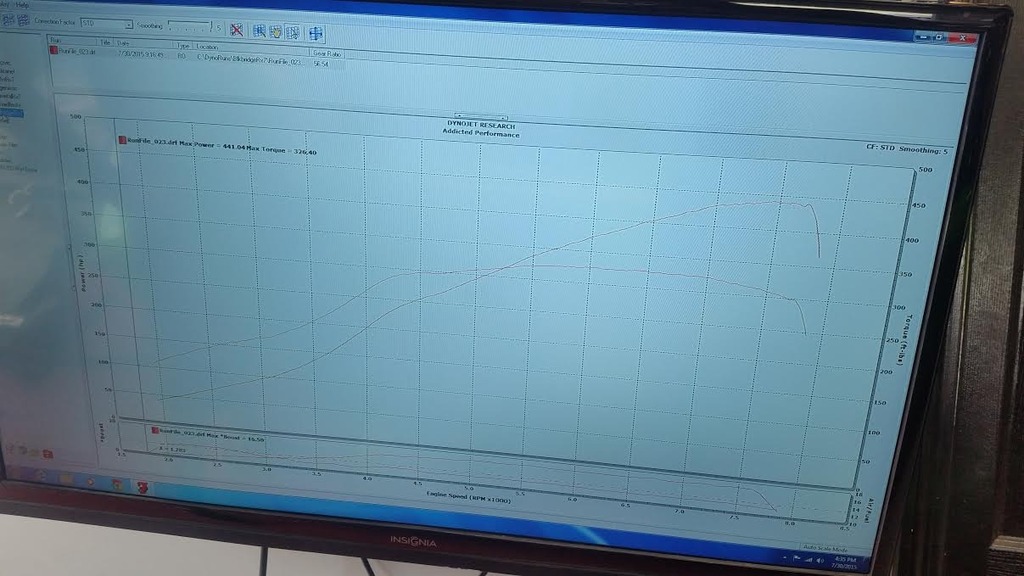

Name:  unnamed_zpspieqcdov.jpg
Views: 117
Size:  138.9 KB

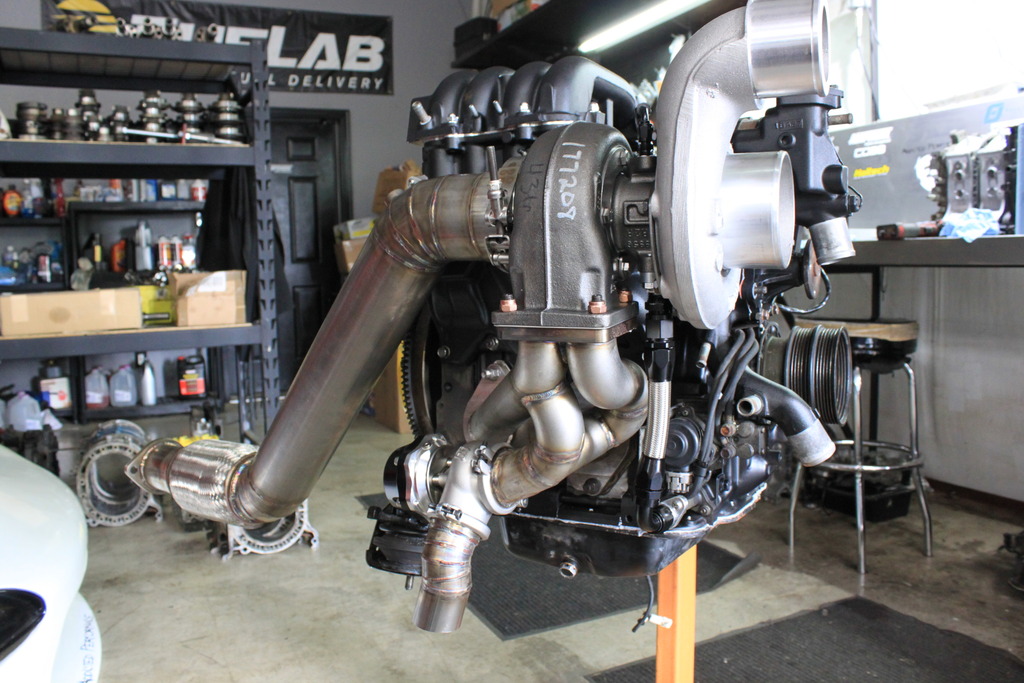

Name:  IMG_2495_zpsvo2hjafx.jpg
Views: 51
Size:  236.3 KB

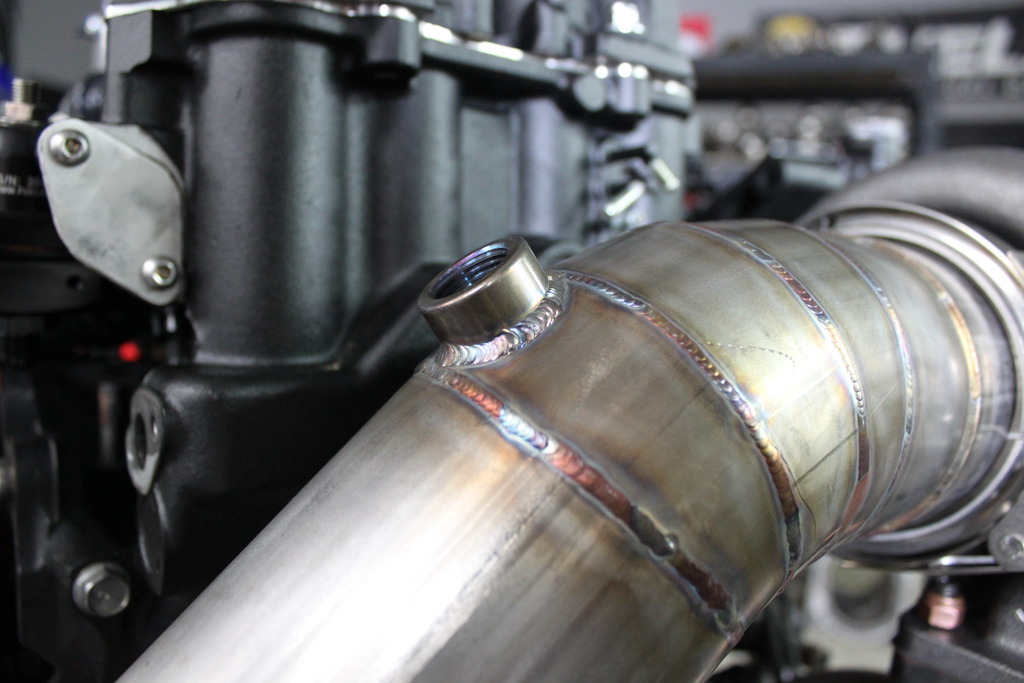

Name:  IMG_2472_zpst0a1qyrj.jpg
Views: 79
Size:  168.1 KB
Old 07-30-15, 05:47 PM
  #2
Moderator

iTrader: (3)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 10,811
Received 305 Likes on 266 Posts
looks good all around.

questions:

1. why the bridge port?

2. is there any alcohol in the future of this thing?

3. what's that spacer in the intake for?
Old 07-30-15, 08:21 PM
  #3
BadAss DoItYourselfer

iTrader: (9)

jetlude's Avatar

Join Date: Jun 2008
Location: Paradise
Posts: 869
Received 3 Likes on 2 Posts
Engine looks clean!!!
Old 07-31-15, 09:17 AM
  #4
Sponsor
Thread Starter
iTrader: (51)

Addicted Performance's Avatar

Join Date: Aug 2008
Location: Tenn
Posts: 816
Received 0 Likes on 0 Posts
Originally Posted by diabolical1
looks good all around.

questions:

1. why the bridge port?

2. is there any alcohol in the future of this thing?

3. what's that spacer in the intake for?

Thank you!

The customer requested a bridge port and it will be tuned on E-85 or 116 octane the next time it comes to our shop.


The spacer is our LIM blocker we sell that we had on there for mock up purposes.
Old 07-31-15, 07:51 PM
  #5
My job is to blow **** up

iTrader: (8)

lastphaseofthis's Avatar

Join Date: Jan 2005
Location: palmyra Indiana
Posts: 2,900
Received 3 Likes on 3 Posts
clicking the the ad in your signature doesnt link to the website, and i or anyone else can fix that for you... just fyi
Old 08-03-15, 10:39 AM
  #6
Sponsor
Thread Starter
iTrader: (51)

Addicted Performance's Avatar

Join Date: Aug 2008
Location: Tenn
Posts: 816
Received 0 Likes on 0 Posts
Originally Posted by lastphaseofthis
clicking the the ad in your signature doesnt link to the website, and i or anyone else can fix that for you... just fyi
Thanks for pointing that out. I will get that fixed
Old 08-03-15, 04:57 PM
  #7
Full Member


h_turbo's Avatar

Join Date: Jul 2006
Location: New Jersey
Posts: 163
Received 2 Likes on 2 Posts
Where are you guys located?
Old 08-04-15, 08:30 AM
  #8
Sponsor
Thread Starter
iTrader: (51)

Addicted Performance's Avatar

Join Date: Aug 2008
Location: Tenn
Posts: 816
Received 0 Likes on 0 Posts
Originally Posted by h_turbo
Where are you guys located?

We are located just south of Knoxville, TN. Although most of our customer base is located out of state. I think right now our shop is filled with cars from South Florida and New Jersey area.
