Anyone know anything about the HKS TO4Z turbo?





Old 03-15-03, 09:23 PM
  #1
Full Member
10 Year Member
Thread Starter

Jim Swantko's Avatar

Join Date: Feb 2001
Location: Pockyville
Posts: 137
Likes: 0
Received 0 Likes on 0 Posts
Question Anyone know anything about the HKS TO4Z turbo?

Just curious... I'm guessing it's the replacement for the TO4R?

Jim Swantko is offline
Old 03-15-03, 11:44 PM
  #2
Senior Member

Join Date: Jan 2002
Location: cali
Posts: 694
Likes: 0
Received 0 Likes on 0 Posts
translate

Also ball bearing edition " TO4Z " of the TO4R
600HP CLUB is offline
Old 03-16-03, 12:43 AM
  #3
Banned. I got OWNED!!!

88fc3sw/HX83's Avatar

Join Date: Jul 2002
Location: Oregon
Posts: 930
Likes: 0
Received 0 Likes on 0 Posts
I'll buy that for a dollar!
88fc3sw/HX83 is offline
Old 03-16-03, 12:57 AM
  #4
Senior Member

Join Date: Jan 2002
Location: cali
Posts: 694
Likes: 0
Received 0 Likes on 0 Posts
you mean for many dollars............
600HP CLUB is offline
Old 03-16-03, 12:11 PM
  #5
Bann3d. I got OWNED!!!
iTrader: (20)

RX7 RAGE's Avatar

Join Date: Feb 2001
Location: San Diego, CA
Posts: 4,974
Received 4 Likes on 3 Posts
wow, nice
RX7 RAGE is offline
Old 03-16-03, 01:37 PM
  #6
Rotor DEMON !
5 Year Member

bigmack000's Avatar

Join Date: Nov 2002
Location: alberta canada/soon to be cape coral FL:D
Posts: 1,074
Likes: 0
Received 0 Likes on 0 Posts
nice turbo i would like to see what #'s it can make.
bigmack000 is offline
Old 03-16-03, 03:15 PM
  #7
Rotary Enthusiast
10 Year Member

Join Date: Feb 2001
Location: Calgary, Alberta, Canada
Posts: 809
Likes: 0
Received 0 Likes on 0 Posts
Re: translate

i think theres its more than just a ball bearing hks t04r.

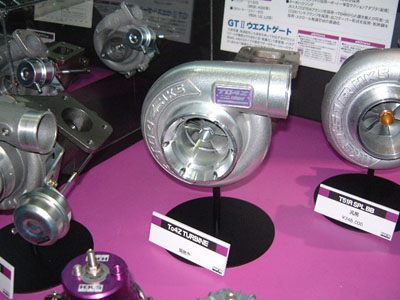

The compressor housing looks alot bigger as well. Basically as big as the t51.
Astro is offline
Old 03-16-03, 03:38 PM
  #8
Senior Member
5 Year Member

Join Date: Nov 2002
Location: out there
Posts: 603
Likes: 0
Received 0 Likes on 0 Posts
ASTRO- Its not any bigger at least of what you can see by the naked "I" hehe

The T51 sits next to it. Just look at the compressor and not the funnel intake and you will notice WAY smaller. Same the the TO4-R. I can get some EXACT specs from a Friend.
SpiritR is offline
Old 03-16-03, 04:11 PM
  #9
Rotary Enthusiast
10 Year Member

Join Date: Feb 2001
Location: Calgary, Alberta, Canada
Posts: 809
Likes: 0
Received 0 Likes on 0 Posts
Originally posted by SpiritR
ASTRO- Its not any bigger at least of what you can see by the naked "I" hehe

The T51 sits next to it. Just look at the compressor and not the funnel intake and you will notice WAY smaller. Same the the TO4-R. I can get some EXACT specs from a Friend.
hmm..my "I's" must be playing tricks on me.
Heh
It kinda looks bigger..maybe cause i can't see the t51 next to it properly.
One things for sure..it looks alot prettier now..haha
Astro is offline
Old 03-16-03, 10:09 PM
  #10
Senior Member
5 Year Member

Join Date: Nov 2002
Location: out there
Posts: 603
Likes: 0
Received 0 Likes on 0 Posts
Oh yeah..... It looks nice...... me like......
SpiritR is offline
Old 03-17-03, 10:32 AM
  #11
Senior Member
5 Year Member

Join Date: Nov 2002
Location: LA
Posts: 574
Likes: 0
Received 1 Like on 1 Post
yeah that thing's clean esp love the purple backround it makes us FD owners look like pansies
TTurboXfd3s is offline
Old 03-17-03, 11:37 PM
  #12
Senior Member
5 Year Member

Join Date: Nov 2002
Location: out there
Posts: 603
Likes: 0
Received 0 Likes on 0 Posts
Well its HKS...hehe

Purple hummmm Maybe its a female?
SpiritR is offline
Old 07-19-03, 08:55 AM
  #13
Original Gangster/Rotary!

iTrader: (206)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,996
Received 133 Likes on 106 Posts
Re: Anyone know anything about the HKS TO4Z turbo?

Originally posted by Jim Swantko
Just curious... I'm guessing it's the replacement for the TO4R?

GoodfellaFD3S is offline
Old 07-22-03, 07:40 AM
  #14
Thrashing your Roy score!
iTrader: (18)

laujesse's Avatar

Join Date: Apr 2002
Location: Japan
Posts: 1,559
Received 26 Likes on 4 Posts
It looks smaller than the T51R SPL sitting next to it...

But I bet it is the same as the (smaller) T51R KAI Compressor with a T4 instead of a circle flange.
laujesse is offline
Old 07-22-03, 05:56 PM
  #15
Senior Member
5 Year Member

Join Date: Nov 2002
Location: out there
Posts: 603
Likes: 0
Received 0 Likes on 0 Posts
Its a BB T04R with a V-flange like the T51R
SpiritR is offline
Old 07-23-03, 11:12 PM
  #16
Full Member
15 Year Member

red 7's Avatar

Join Date: May 2001
Location: FL
Posts: 219
Likes: 0
Received 0 Likes on 0 Posts
doesnt T51R also have a v-band on the manifold to turbine flange(in) as well as turbine to downpipe(out)

http://www.hksusa.com/images/?id=1303

the pic of the To4Z clearly shows a to4 divided flange(in)

so why would they have 2 types of flanges on the same turbine if one outflows the other
red 7 is offline
Old 07-24-03, 06:18 AM
  #17
Senior Member
5 Year Member

Join Date: Nov 2002
Location: out there
Posts: 603
Likes: 0
Received 0 Likes on 0 Posts
The downpipe has a V-flange, the engine flange is the exact same T04 one
SpiritR is offline
Old 07-24-03, 09:48 PM
  #18
Speed Mach Go Go Go
15 Year Member
iTrader: (2)

GoRacer's Avatar

Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 0 Likes on 0 Posts
There's no kit for it yet. Damn, better hit the craps table in vegas

GoRacer is offline
Old 07-24-03, 10:04 PM
  #19
Senior Member
5 Year Member

Join Date: Nov 2002
Location: out there
Posts: 603
Likes: 0
Received 0 Likes on 0 Posts
There is a kit for it says JT, but its made $$$$ I think like $6000 or somewhere around that, I cant remember maybe ask him
SpiritR is offline
Old 08-12-03, 10:27 PM
  #20
Full Member
15 Year Member

RX-7_ZX-9's Avatar

Join Date: Mar 2001
Location: near Charlotte ,NC
Posts: 74
Likes: 0
Received 0 Likes on 0 Posts
Found this on the other rotary forum

http://www.hks-power.co.jp/products/..._to4z_frm.html
RX-7_ZX-9 is offline
Old 08-13-03, 02:12 AM
  #21
Is that you John Wayne?

Rutt's Avatar

Join Date: Mar 2001
Location: Japan
Posts: 871
Likes: 0
Received 0 Likes on 0 Posts
Specs translation:

trim 63
inducer 66.7mm
exducer 84mm

Compressor housing inlet 100mm
compressor housing outlet 70mm

Exhaust housing:
trim 76
inducer 74.2mm
exducer 64.7mm

2port T04Z flange
99.1mm V-band outlet flange

available ex housings:
AR.61 /10cm^2
AR.81 /13cm^2
AR1.00 /17cm^2

Site only shows a kit for an S14/S15 Silvia.
Rutt is offline
Old 08-13-03, 02:25 AM
  #22
Full Member
15 Year Member

RX-7_ZX-9's Avatar

Join Date: Mar 2001
Location: near Charlotte ,NC
Posts: 74
Likes: 0
Received 0 Likes on 0 Posts
Anyone have the specs on the RX-7 T04R kit for comparison?

Here's the specs from HKS's Website for the general use T04R that you can buy separate:

HKS T04R - 650-700 PS Output

COMPRESSOR:
-Wheel- 63 Trim - 66.7 Inducer / 84.0 Major
-Housing- 100 Inlet / 60 Outlet - 0.70 A/R
TURBINE:
-Wheel- 76 Trim - 74.2 Major / 64.7 Exducer
-Housing- T04 inlet / 65.75 outlet - 0.81, 0.96, 1.15 A/R
RX-7_ZX-9 is offline
Old 08-13-03, 06:08 PM
  #23
Full Member
15 Year Member

red 7's Avatar

Join Date: May 2001
Location: FL
Posts: 219
Likes: 0
Received 0 Likes on 0 Posts
same specs so its problly BB
red 7 is offline
Old 08-13-03, 06:08 PM
  #24
Full Member
5 Year Member

Join Date: Aug 2003
Location: Earth
Posts: 163
Likes: 0
Received 0 Likes on 0 Posts
wish they would lower the price on those new beauties
x X CLoud X x is offline
Old 08-14-03, 08:07 PM
  #25
Senior Member
5 Year Member

Join Date: Nov 2002
Location: out there
Posts: 603
Likes: 0
Received 0 Likes on 0 Posts
Yeah its basically a T04R thats BB. Didnt I mention that before?
