SakeBomb Garage Universal Coil Mounts and Oil Filter Pedestals now back in stock!

SakeBomb Garage Universal Coil Mounts and Oil Filter Pedestals now back in stock!

Old 10-24-17, 07:04 PM
  #1
www.SakeBombGarage.com
RX7Club Vendor
Thread Starter
iTrader: (17)

SakeBomb Garage's Avatar

Join Date: Jan 2011
Location: California
Posts: 1,901
Received 65 Likes on 40 Posts
Talking SakeBomb Garage Universal Coil Mounts and Oil Filter Pedestals now back in stock!

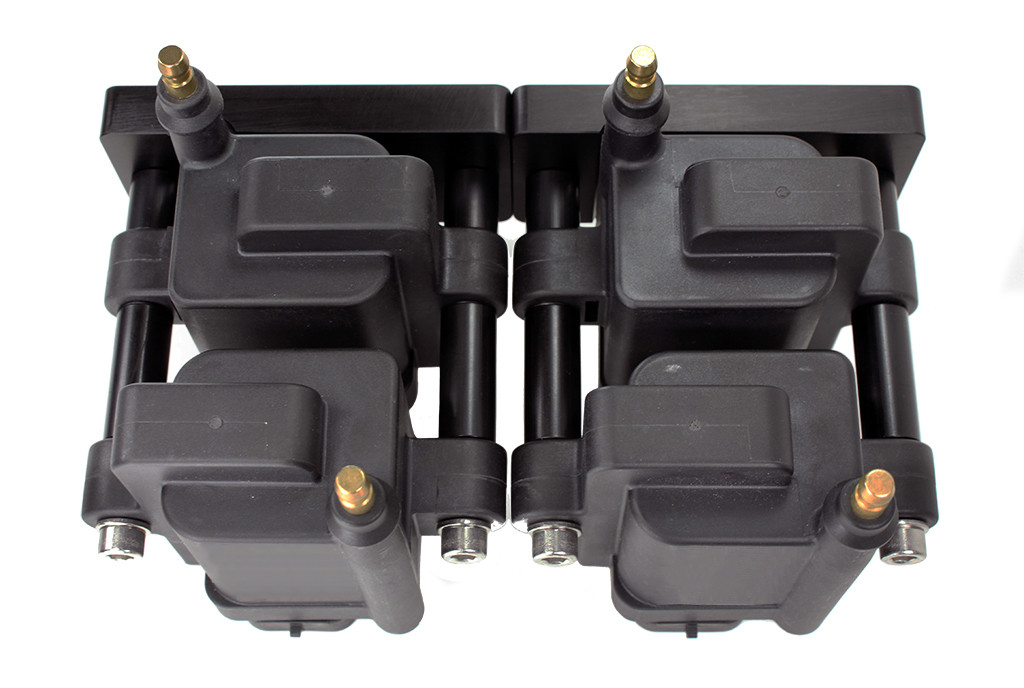

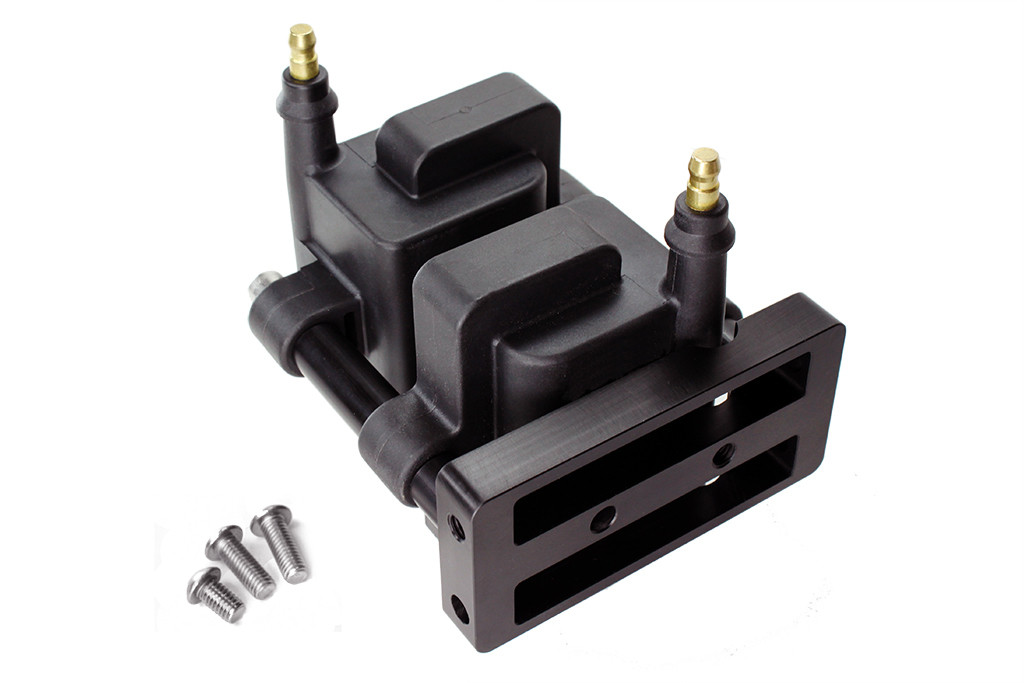

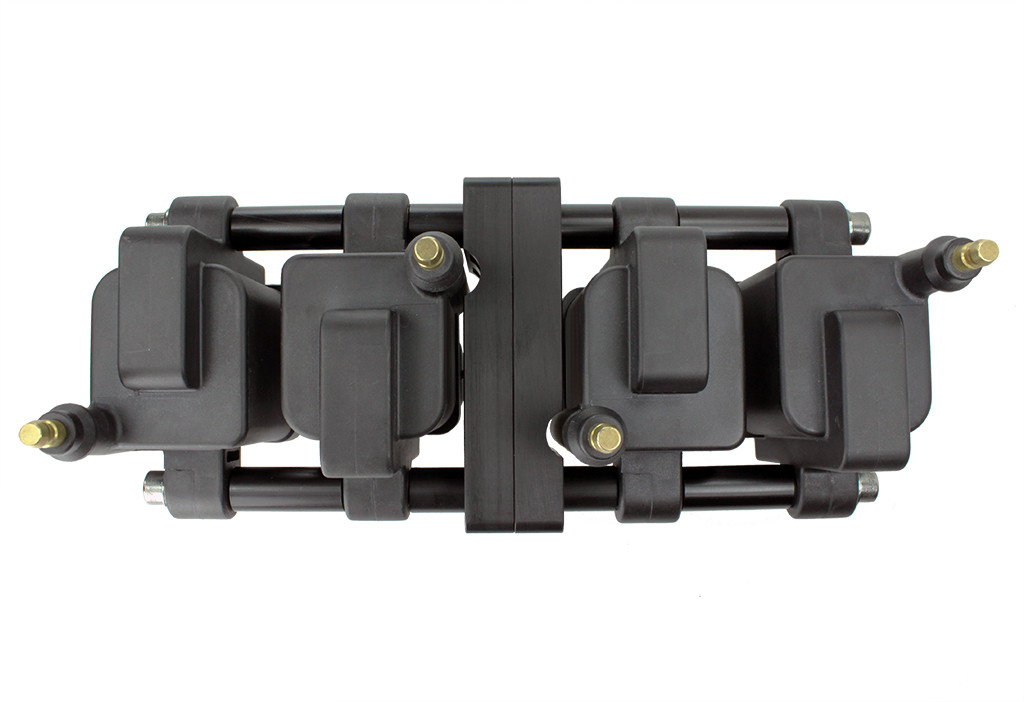

BACK IN STOCK! Our popular FD3S RX-7 Billet Aluminum Oil Filter Pedestals, and our Universal IGN-1A Ignition Coil Mounting Brackets!

Both parts are CNC milled billet 6061 aluminum with a mil-spec hard anodized finish for lifetime durability. Nearly half of each production run is already spoken for, so grab yours today while we still have them on the shelves! This also means that our FD3S IGN-1A Ignition Coil Kit with the Universal Brackets is back in stock as well!

Link for Oil Filter Pedestals

Link for Universal Coil Mounts
__________________
SAKEBOMB GARAGE LLC
www.SAKEBOMBGARAGE.com
Specialty aftermarket parts & service // Fremont, California
Contact: [email protected]
SakeBomb Garage is offline
Old 01-18-18, 10:26 PM
  #2
www.SakeBombGarage.com
RX7Club Vendor
Thread Starter
iTrader: (17)

SakeBomb Garage's Avatar

Join Date: Jan 2011
Location: California
Posts: 1,901
Received 65 Likes on 40 Posts
New shipment arrived packed and ready to ship! Get them while this run lasts! Now on sale on the website.

New pricing for 2018!

Link for Oil Filter Pedestals - $115!!

Link for Universal Coil Mounts
__________________
SAKEBOMB GARAGE LLC
www.SAKEBOMBGARAGE.com
Specialty aftermarket parts & service // Fremont, California
Contact: [email protected]
SakeBomb Garage is offline
Old 06-06-18, 12:56 PM
  #3
CYD
Senior Member

CYD's Avatar

Join Date: Oct 2006
Location: Oregon
Posts: 363
Received 1 Like on 1 Post
O rings installation

Do these black rings stay in with the install or do they get removed before adding the pedestal?
CYD is offline
Old 06-08-18, 12:41 AM
  #4
www.SakeBombGarage.com
RX7Club Vendor
Thread Starter
iTrader: (17)

SakeBomb Garage's Avatar

Join Date: Jan 2011
Location: California
Posts: 1,901
Received 65 Likes on 40 Posts
Originally Posted by CYD View Post
Do these black rings stay in with the install or do they get removed before adding the pedestal?
Those get removed... we include new viton O-rings with each kit.
__________________
SAKEBOMB GARAGE LLC
www.SAKEBOMBGARAGE.com
Specialty aftermarket parts & service // Fremont, California
Contact: [email protected]
SakeBomb Garage is offline
Old 06-08-18, 08:34 AM
  #5
Eats, Sleeps, Dreams Rotary
iTrader: (14)

neit_jnf's Avatar

Join Date: Apr 2003
Location: Around
Posts: 3,296
Received 12 Likes on 11 Posts
I'd like to add a 6an oil line from your oil pedestal to the front plate oil feed port.

Can I buy this from you? 14x1.5 to 6an fitting or banjo for the front feed, 3/8npt to 6an fitting for your pedestal and a nylon braided line already built with fittings for a plug and play solution?? Thanks
neit_jnf is offline
Old 06-19-18, 08:02 PM
  #6
www.SakeBombGarage.com
RX7Club Vendor
Thread Starter
iTrader: (17)

SakeBomb Garage's Avatar

Join Date: Jan 2011
Location: California
Posts: 1,901
Received 65 Likes on 40 Posts
Originally Posted by neit_jnf View Post
I'd like to add a 6an oil line from your oil pedestal to the front plate oil feed port.

Can I buy this from you? 14x1.5 to 6an fitting or banjo for the front feed, 3/8npt to 6an fitting for your pedestal and a nylon braided line already built with fittings for a plug and play solution?? Thanks
Shoot us an email at [email protected] and we can get one put into your order or discuss further how we can make it happen.
__________________
SAKEBOMB GARAGE LLC
www.SAKEBOMBGARAGE.com
Specialty aftermarket parts & service // Fremont, California
Contact: [email protected]
SakeBomb Garage is offline
Old 06-19-18, 08:02 PM
  #7
www.SakeBombGarage.com
RX7Club Vendor
Thread Starter
iTrader: (17)

SakeBomb Garage's Avatar

Join Date: Jan 2011
Location: California
Posts: 1,901
Received 65 Likes on 40 Posts
Limited quantities left, these things are flying!
__________________
SAKEBOMB GARAGE LLC
www.SAKEBOMBGARAGE.com
Specialty aftermarket parts & service // Fremont, California
Contact: [email protected]
SakeBomb Garage is offline
Old 06-19-18, 09:53 PM
  #8
Rocket Appliances
iTrader: (11)

Skeese's Avatar

Join Date: Nov 2013
Location: Houston TX
Posts: 910
Received 71 Likes on 51 Posts
Not quite sure how its a universal coil mount if it can only mount one type of coil
Skeese is offline
Old 06-20-18, 12:17 AM
  #9
Built Not Bought
iTrader: (13)

TwinCharged RX7's Avatar

Join Date: May 2008
Location: Stamford, CT
Posts: 2,639
Likes: 0
Received 55 Likes on 44 Posts
It's universal in that you can mount the coils in different locations.
TwinCharged RX7 is offline
Old 06-20-18, 10:11 AM
  #10
Rocket Appliances
iTrader: (11)

Skeese's Avatar

Join Date: Nov 2013
Location: Houston TX
Posts: 910
Received 71 Likes on 51 Posts
Originally Posted by TwinCharged RX7 View Post
It's universal in that you can mount the coils in different locations.
Got it.
Skeese is offline
Old 06-20-18, 12:32 PM
  #11
www.SakeBombGarage.com
RX7Club Vendor
Thread Starter
iTrader: (17)

SakeBomb Garage's Avatar

Join Date: Jan 2011
Location: California
Posts: 1,901
Received 65 Likes on 40 Posts
Originally Posted by Skeese View Post
Not quite sure how its a universal coil mount if it can only mount one type of coil
Back to back, side to side, individually, side bracket mount (threaded holes on the sides), or "firewall" mount direct through the bracket with m6 bolts. There are tons of configurations for different mounting solutions for these coils... but we don't make mounting solutions for any other coil (because every other coil is inferior in nearly every way )



__________________
SAKEBOMB GARAGE LLC
www.SAKEBOMBGARAGE.com
Specialty aftermarket parts & service // Fremont, California
Contact: [email protected]
SakeBomb Garage is offline
Old 06-29-18, 08:25 PM
  #12
Rocket Appliances
iTrader: (11)

Skeese's Avatar

Join Date: Nov 2013
Location: Houston TX
Posts: 910
Received 71 Likes on 51 Posts
Originally Posted by SakeBomb Garage View Post
Back to back, side to side, individually, side bracket mount (threaded holes on the sides), or "firewall" mount direct through the bracket with m6 bolts. There are tons of configurations for different mounting solutions for these coils... but we don't make mounting solutions for any other coil (because every other coil is inferior in nearly every way )
You made it clear in the other thread that you don't understand how any of the other alternatives work, so this statement is worthless. LINK TO THREAD

Skeese
Skeese is offline
Old 06-30-18, 05:43 PM
  #13
Built Not Bought
iTrader: (13)

TwinCharged RX7's Avatar

Join Date: May 2008
Location: Stamford, CT
Posts: 2,639
Likes: 0
Received 55 Likes on 44 Posts
They are better coils. Why on earth would you run anything different that was comparable in performance but requires a box in the engine bay. There is no reason for CDI on most applications when you can run IGN coils instead.
TwinCharged RX7 is offline
Old 07-03-18, 10:15 AM
  #14
Rocket Appliances
iTrader: (11)

Skeese's Avatar

Join Date: Nov 2013
Location: Houston TX
Posts: 910
Received 71 Likes on 51 Posts
The IGN coils work great, but you can't just repetitively blare that they are the best and only functional option if you dont understand the alternatives. The IGNs cant be pushed beyond about 600 on E85 as you have to drop the dwell at high rpm to keep them from overheating from extended high duty operation causing breakup. Below that, they are perfectly fine.

For the money they are great, but aggresively badgering someone like they're an idiot for using a MSD box on a beefy leading coil is just salesman mode. Its been done successfully on rotary engines for years. There's more than one way to skin a cat, people just get all offended when you suggest a method they aren't selling.

Skeese
Skeese is offline
Old 07-03-18, 09:46 PM
  #15
www.SakeBombGarage.com
RX7Club Vendor
Thread Starter
iTrader: (17)

SakeBomb Garage's Avatar

Join Date: Jan 2011
Location: California
Posts: 1,901
Received 65 Likes on 40 Posts
Originally Posted by Skeese View Post
The IGN coils work great, but you can't just repetitively blare that they are the best and only functional option if you dont understand the alternatives. The IGNs cant be pushed beyond about 600 on E85 as you have to drop the dwell at high rpm to keep them from overheating from extended high duty operation causing breakup. Below that, they are perfectly fine.

For the money they are great, but aggresively badgering someone like they're an idiot for using a MSD box on a beefy leading coil is just salesman mode. Its been done successfully on rotary engines for years. There's more than one way to skin a cat, people just get all offended when you suggest a method they aren't selling.


Skeese
That thread was basically titled (paraphrasing)... "HELP...MY COILS DON'T WORK"

From the other thread:


Originally Posted by SakeBomb Garage View Post
And that's at what duty cyle? This is the entire point.... the LS Truck coils (d585) and MSD coils, for instance, are brilliant on PISTON ENGINES. Cheap and high output coils. Problem is they CAN NOT RECHARGE FAST ENOUGH... so the 135mj output is nothing close to that when you fire them TWICE as often on a rotary (or 4x in waste spark). They're not designed to recharge this quickly. The LS and MSD coils are great for what they were designed to do, but double or quadruple ignition evens is not what they were designed for. 18,000 RPM equivalent on a piston engine in direct fire, and 36,000 RPM equivalent in waste spark.

Feel free to continue experimenting, but the IGN1A was designed from the ground up as a high ouput two stroke coil (aka rotary ignition events) meaning the internal design is focused on ultra fast recharge times. This is why it's the only choice for rotary coils, no one else makes a 2 stroke (rotary) coil that's this high output and durability.
__________________
SAKEBOMB GARAGE LLC
www.SAKEBOMBGARAGE.com
Specialty aftermarket parts & service // Fremont, California
Contact: [email protected]

Last edited by SakeBomb Garage; 07-03-18 at 09:50 PM.
SakeBomb Garage is offline
Old 07-04-18, 12:22 AM
  #16
Rocket Appliances
iTrader: (11)

Skeese's Avatar

Join Date: Nov 2013
Location: Houston TX
Posts: 910
Received 71 Likes on 51 Posts
Either you don't read, or are incapable or processing the difference. I 100% understand the firing requirements of a rotary vs a piston engine, and those of wasted spark vs direct fire. I understand dwell times, and their limitations associated with the firing demand of the engine, again in both wasted spark and direct fire as related to both a rotary and piston engine. That guy had a wiring problem and you tried to sell him a whole new ignition and all but called him an idiot.

NEWS FLASH: YOU DON'T HAVE TO CHARGE THE COIL WITH A CDI IGNITION, SO THE TIME AVAILABLE PER FIRING EVENT IS NOT A LIMITATION.

I'm not saying the IGN-1A isn't a good coil, nor that it isn't a good coil for our platform. I'm saying when all you can do is try and sell them, but don't understand the alternative, then you aren't helpful to those on here looking for guidance. It obviously isn't about having a technical understanding or helping others, just about selling something.
Skeese is offline
