JHew84

iTrader: (9)

Yeah, price would be a factor, but even at $2000 it would be the cheapest kit on the market hands down.

How much would you charge for just the radiator/brackets/hoses? not even worth it because the IC would be a small fraction of the cost?

KaiFD3S

iTrader: (37)

Its not a cheap setup for the radiator. If someone sends their radiator to us we can modify it for $400. It would be $769 to purchase a koyo with modifications.

Jason

jpangeles

thats really cool setup

FD3S2005

iTrader: (11)

is it just koyo or could you do fludyne too?

IamRobbyah

Outstanding! Right in time too! Once I'm done paying off my single set up, gonna definately swoop up on this. Hopefully by then, you'll have the bugs all worked out. Was worried I was going to be waiting on Ramy's kit for who-knows-how-long. No offense to him, just that you've proved to be mighty productive on this. Can't wait to see the final product. Nice one, Jason!

Jason

iTrader: (5)

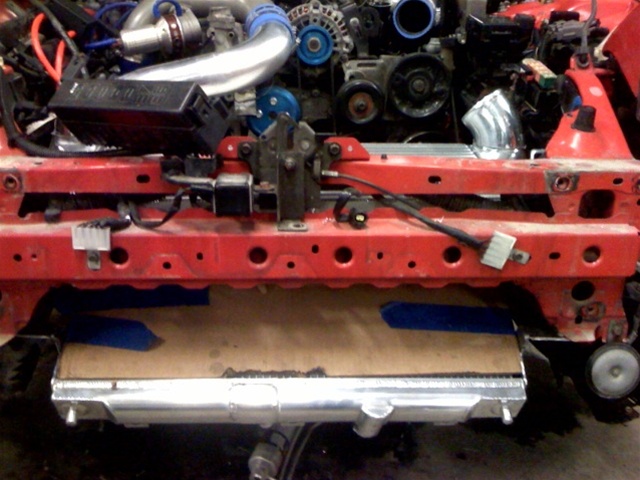

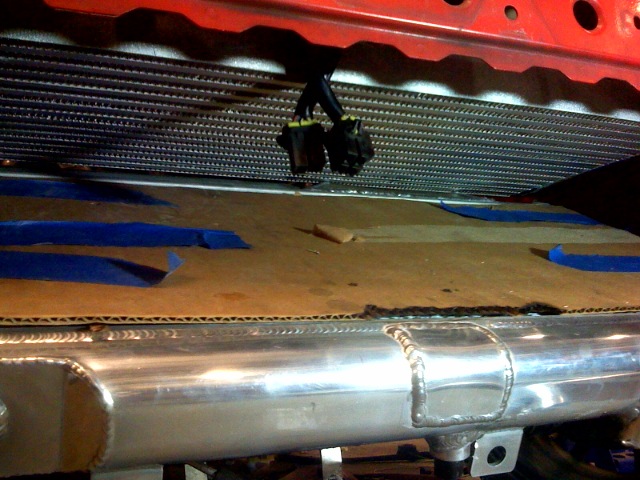

Here are some updated pics. I think this is going to turn out really well. We should have a completed intercooler later today. For those that already have a Greddy front mount, you can send us your Intercooler/ radiator and we will turn it into a V mount.
The nice thing about using the Greddy intercooler is it comes with the piping, so we dont have to fabricate that and it keeps the cost down. We are working on a solution to mount a PC680 behind the intercooler on the crossbrace.

Jason

iTrader: (5)

The pics.

turbodrx7

iTrader: (43)

I used a Bell Intercoolers intercooler for my kit. I think my cooler cost about $675, obviously size matters. They did a really good job though and were very easy to work with.

-Austin

Jason

iTrader: (5)

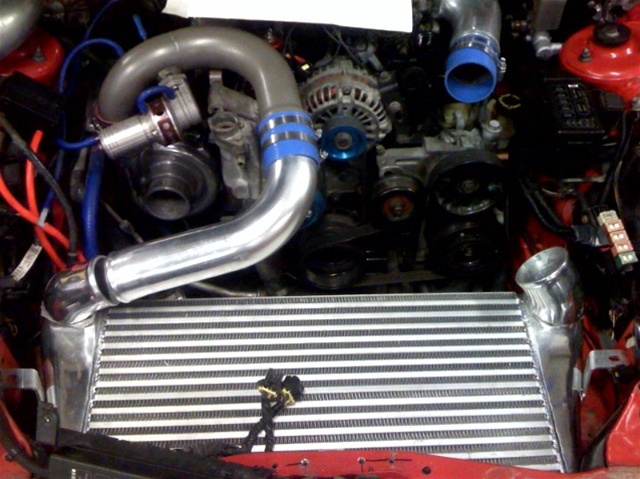

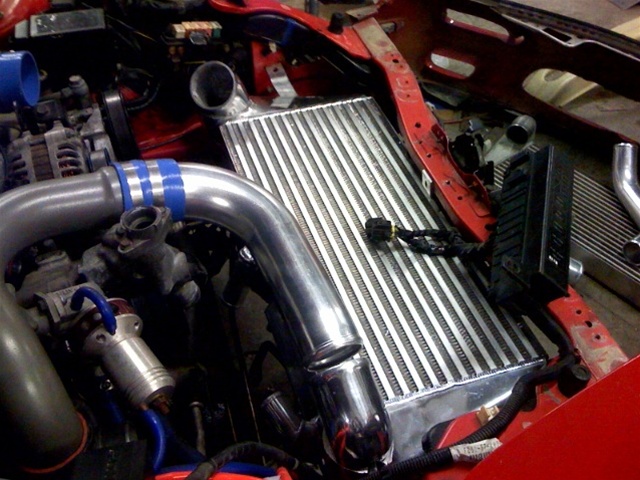

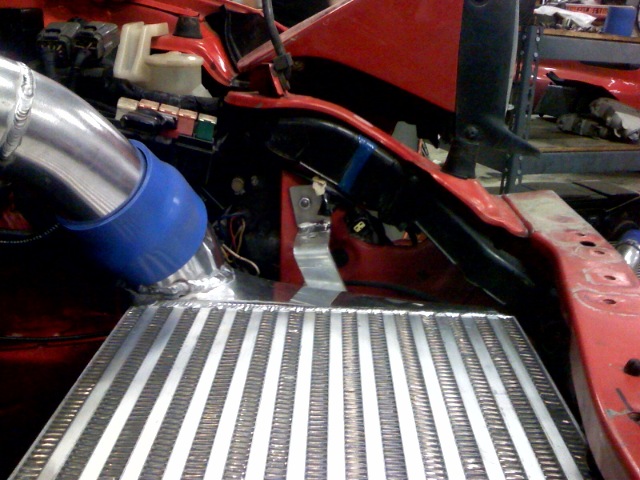

Here are some completed pictures. Only issue with this setup is its up to the buyer to run the AC. There isnt room for the condensor in the stock location, but looks like it can be relocated between the intercooler and radiator. Im guessing most people that buy this setup dont run the A/C anyway.
We can modify the intercooler for either the stock twins or single turbo.

mrb63083

iTrader: (4)

Jason, now seeing the pictures in which you re-did the end take inlets and outlets, looks amazing! Very well done, I look forward to seeing the smaller version!

RX7LINK

iTrader: (3)

looks great!. i noticed the way this greddy IC is layed out, its perfect to do single turbo piping like the Apexi D1 FD. but i understand this way it's one setup fits all.

Pred

iTrader: (3)

Looks a lot cleaner now. Less bends.

Looks like you just cut the end tanks and re-clocked em.

JHew84

iTrader: (9)

Yeah I caught that bit, I was asking how much a kit sans intercooler would be, if it's only going to be $769 sign me up! .

Jason

iTrader: (5)

Pricing on the kit is $1550. That includes the intercooler, piping, radiator and mounting hardware.
If someone sends me their FMIC and radiator for modification then its $650.

For just the modified radiator its $769 or $400 if you provide the radiator.

Jason

MADDSLOW

iTrader: (11)

Any chance you would be able to modify the Fluidyne to work with this kit?

jacobcartmill

iTrader: (6)

jason,
why not just a straight shot to the IC from the turbo outlet? it seems like wasted piping to go around the t-stat housing.

Jason

iTrader: (5)

That is just the way the XS Engineering Turbo kit is setup. Typically we would just go straight to the turbo, but the way its routed is similar to how we would do it for a stock twin car.

Jason

Jason

iTrader: (5)

Yea fluidyne would work also. Similar setup to the Koyo.

Jason

GoodfellaFD3S

iTrader: (213)

On I on crack, or did Jason move to Alaska ?

jacobcartmill

iTrader: (6)

ahh. interesting. makes sense.

jacobcartmill

iTrader: (6)

could we possibly get some pics of the radiator installed with the hoses? i'm wanting to do a similar setup, but i'm kinda confused as to how you altered the radiator.

Et3rNaL

iTrader: (17)

So $400 to modify the radiator, what about the mounting for the IC? What we be the total cost if I just use my greddy ic and koyo rad? Single turbo, T-78

broken_apex

iTrader: (1)

where are you going to relocate the relay box?

Oliv

Which intake would fit with the stock twins?

David Hayes

iTrader: (6)

Any thoughts of doing something like this for the 20B and single turbo?
