Originally Posted by FD-BOOST
what front bumper is this? i know car says panspeed but searched and nothing came up. just curious.... thxs

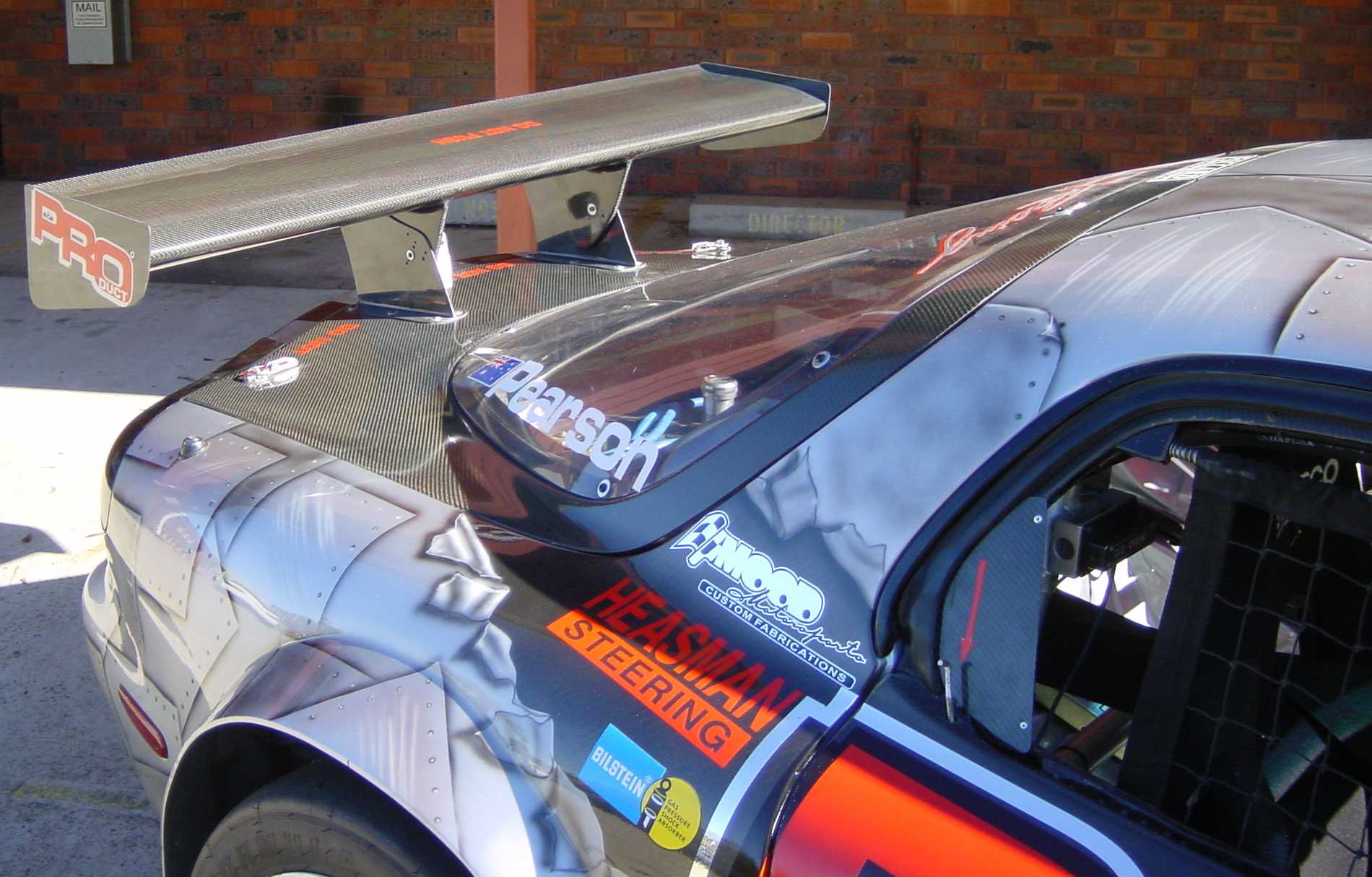

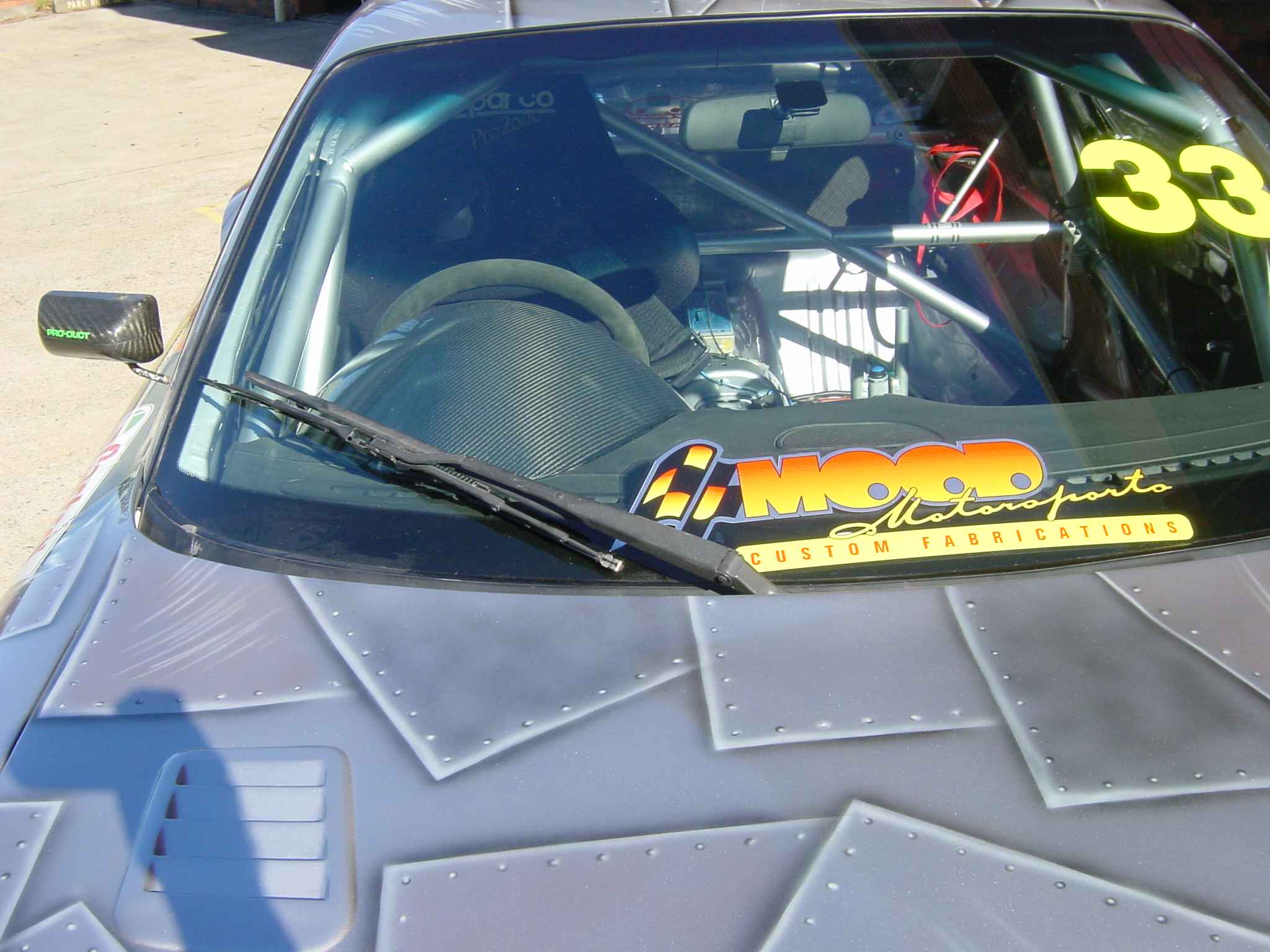

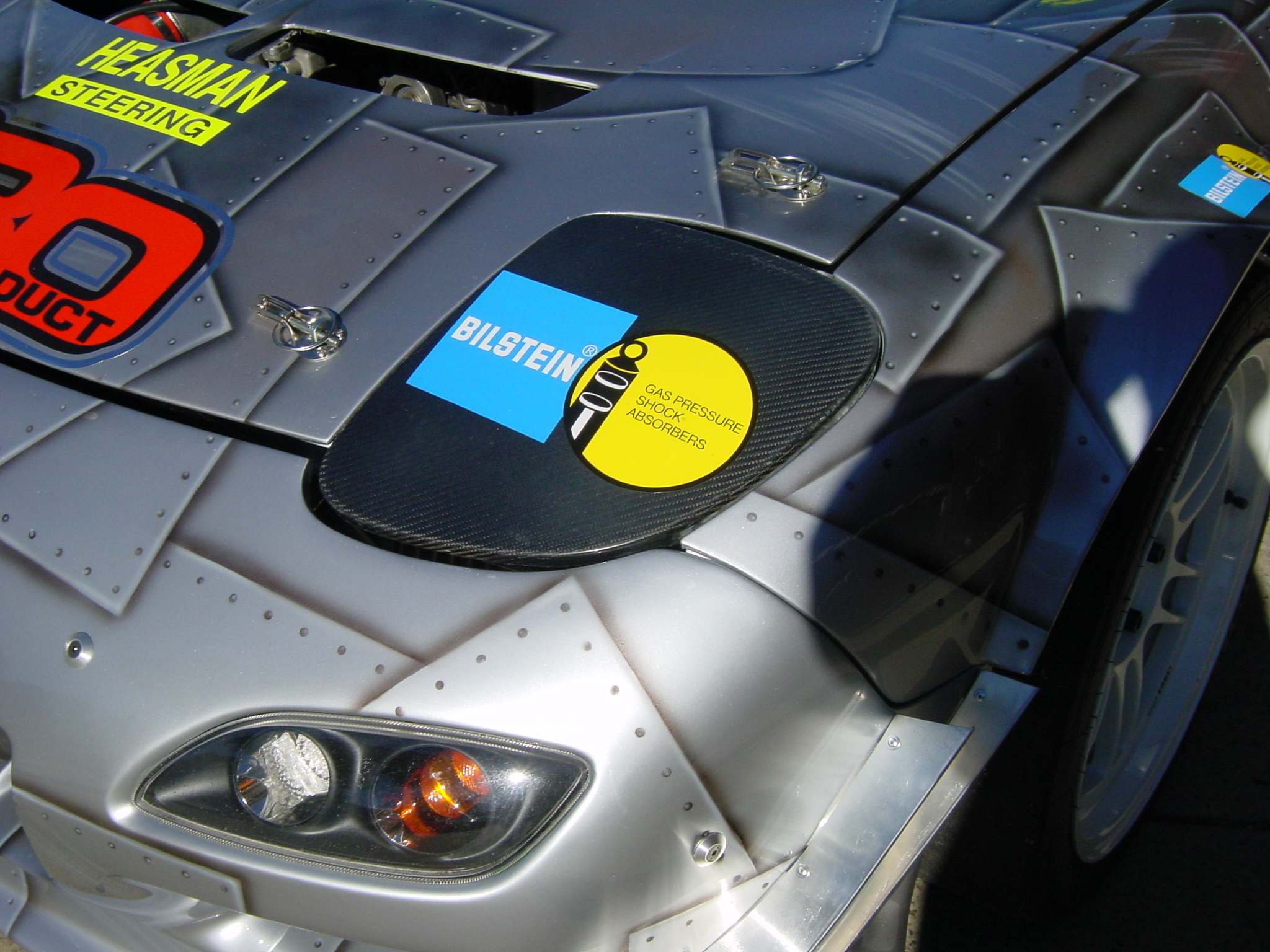

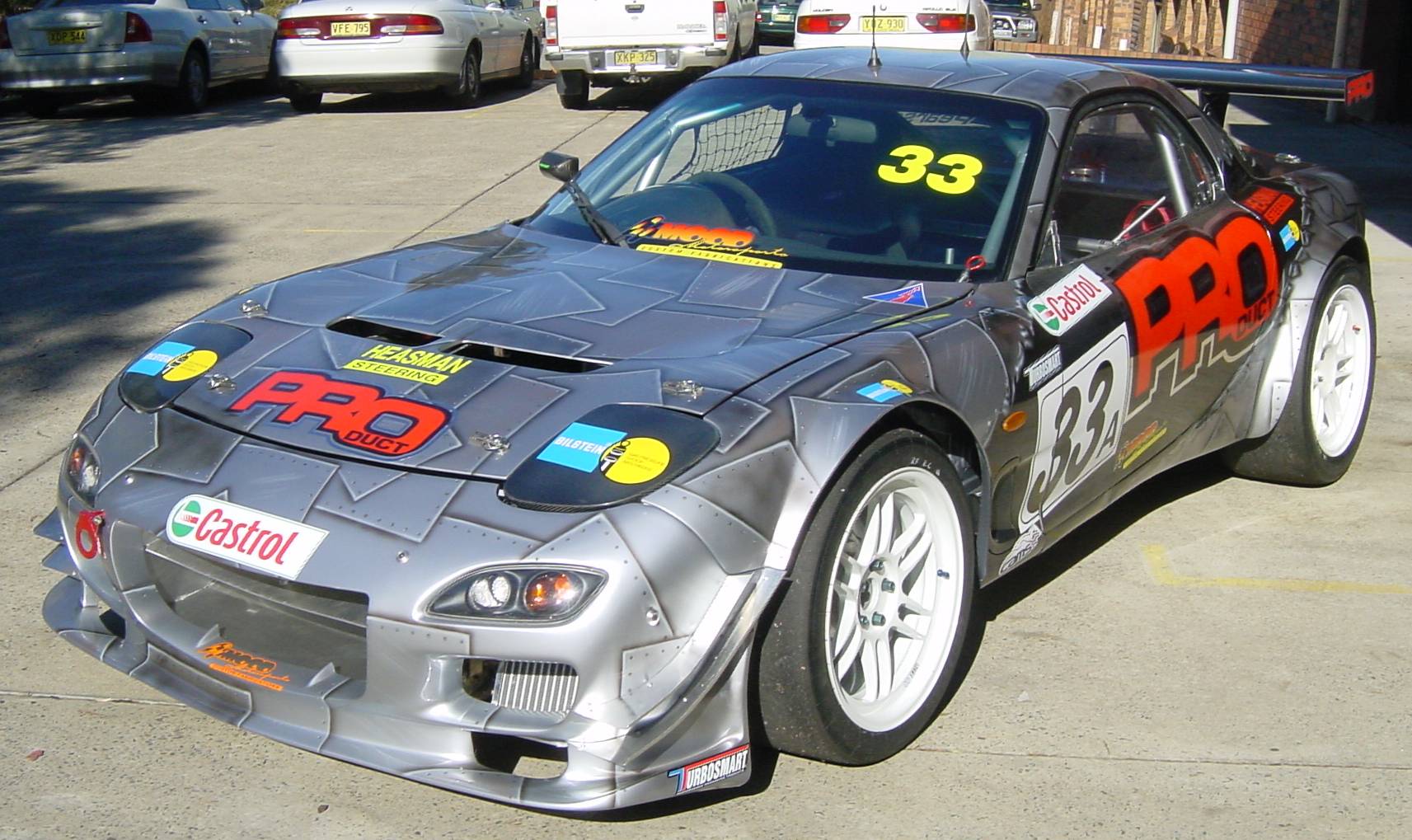

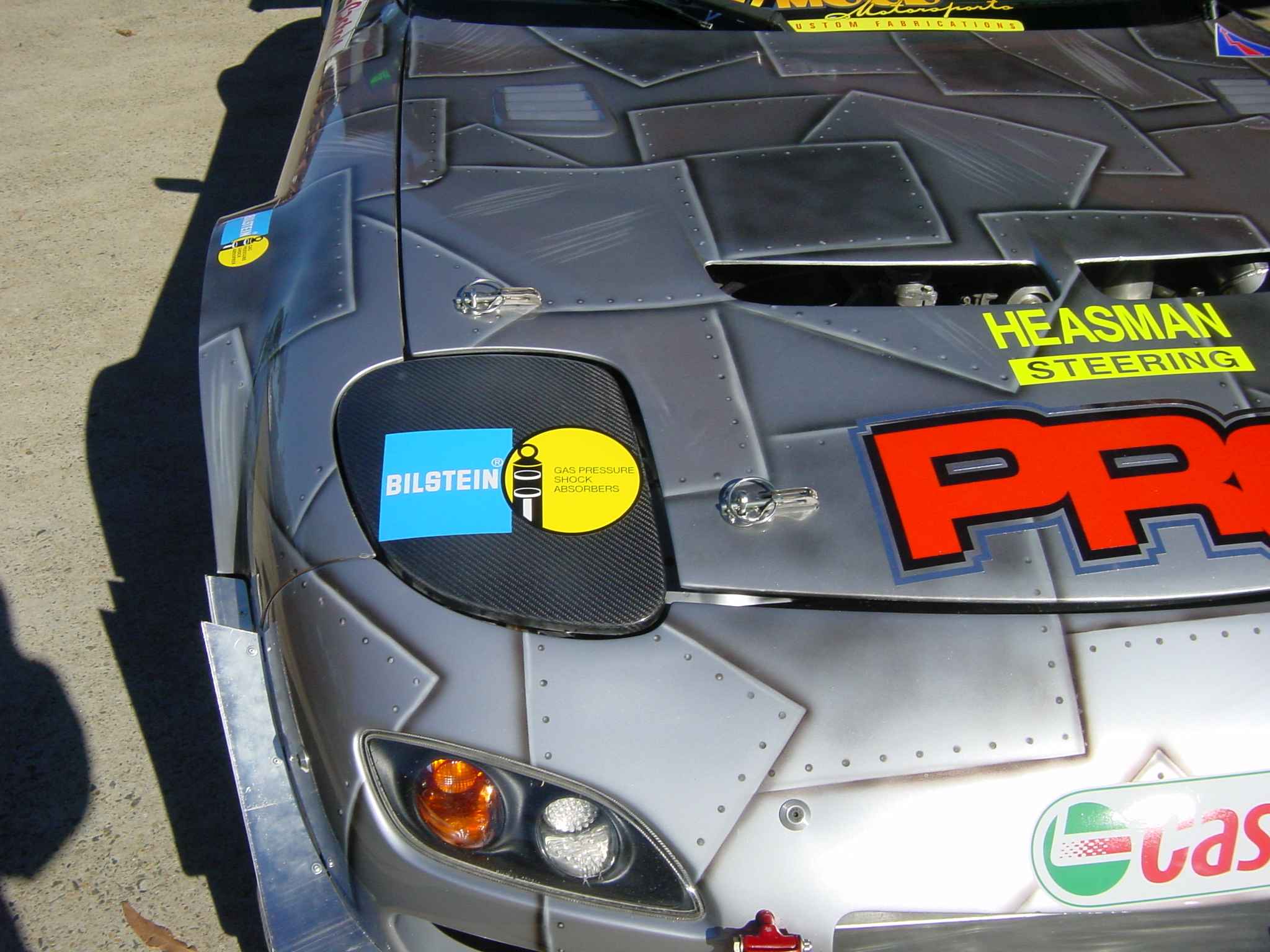

Some more track cars:
#52
Sleeper but still slow
iTrader: (1)
Join Date: Jan 2006
Location: Georgia
Posts: 1,766
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by SayNoToPistons
its mounted properly.... wtf are you talking about...
A) go around the seat but rather through it
B) should not be bolted to the frame and any belt angle past 110 degrees is unsafe (as in the belt passes through the seat then angles around the shoulders into the lap of the person)
C) have the bracket bolted more than 30 degrees of angle from the location of the belt going off the bracket.
These setups fail to meet B and possibly C but I cannot see the brackets.
#54
Originally Posted by '87 trubo FC
only if you like a compressed spine. The belts aren't supposed to down to the frame. They actually aren't supposed to go down once on th eother side of the seat. The go straight back and are supposed ot be attatched to the lower bar of roll cage. These belts keep you from going forward in a crash if you crashed like this the unibody frame plus the way your body would move would crush your spine. it's been proven before in many tests and there is an article in PAS magazine about it maybe 1 year back. The harness should not:
A) go around the seat but rather through it
B) should not be bolted to the frame and any belt angle past 110 degrees is unsafe (as in the belt passes through the seat then angles around the shoulders into the lap of the person)
C) have the bracket bolted more than 30 degrees of angle from the location of the belt going off the bracket.
These setups fail to meet B and possibly C but I cannot see the brackets.
A) go around the seat but rather through it
B) should not be bolted to the frame and any belt angle past 110 degrees is unsafe (as in the belt passes through the seat then angles around the shoulders into the lap of the person)
C) have the bracket bolted more than 30 degrees of angle from the location of the belt going off the bracket.
These setups fail to meet B and possibly C but I cannot see the brackets.
Last edited by Zebb; 06-16-06 at 06:08 PM.
#55
Full Member
Thread Starter
Join Date: Jul 2004
Location: Sydney
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts

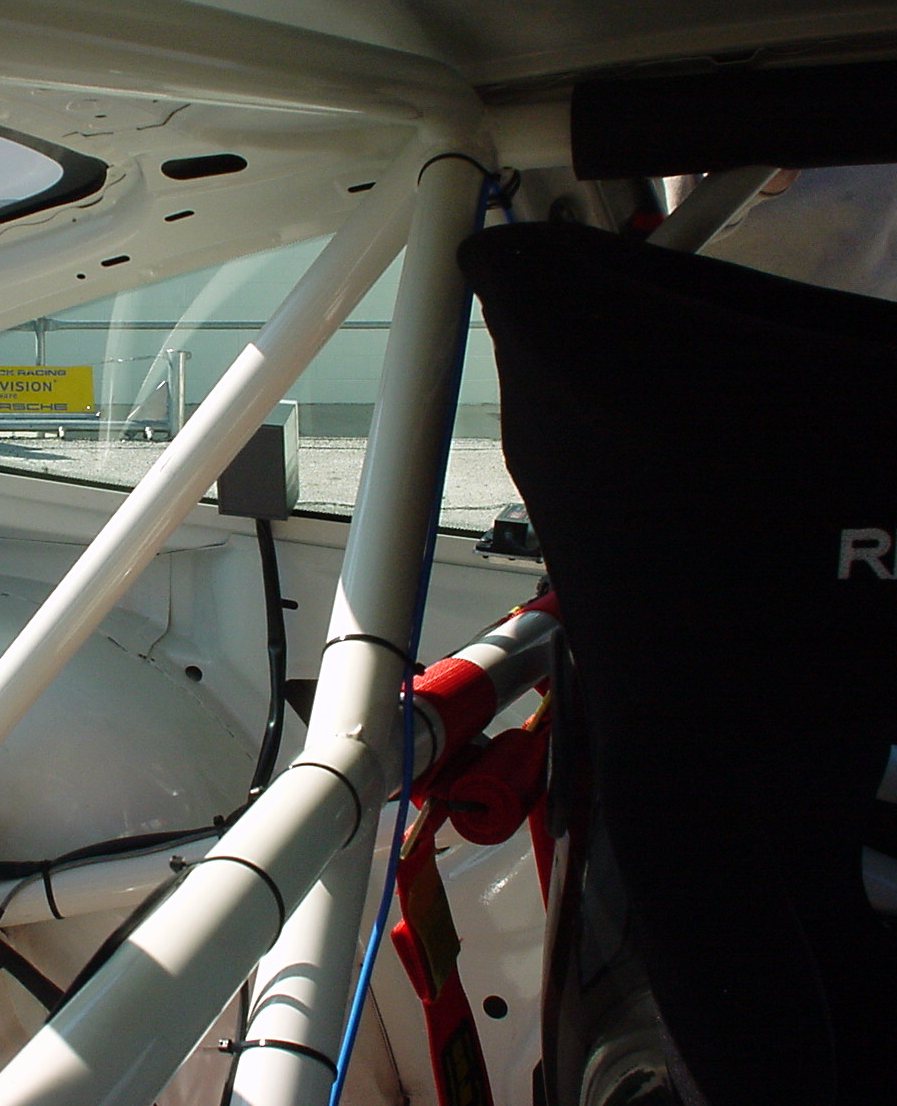

Seat belt mounting, I believe there should be a cross bar in the roll cage directly behind the drivers seat at the hight of the holes in the seat for the seat belt and the shoulder straps for the seat belts to be attached to that bar. A few years ago a race car I was pit crewing on had a large impact into the side of a bridge and the impact was enough to tear the seat mounts out of the floor and because the seat belts were mounted a distance away from the seat the seat was flicked lick a whip and the driver suffered massive head injuries when his helmet was smashed against the pasenger side of the cars main roll hoop.
The shorter and the straighter the belts the less stretch and whip can be generated.
I also believe the top of the seat should be rubber mounted to the cross over hoop so that in a rear end inpact there is at least something to take the forces on the top of the seat to prevent it getting torn out of the floor and whipping backwards. This did happen to another driver I worked with and he died from his injuries in that crash.
The shorter and the straighter the belts the less stretch and whip can be generated.
I also believe the top of the seat should be rubber mounted to the cross over hoop so that in a rear end inpact there is at least something to take the forces on the top of the seat to prevent it getting torn out of the floor and whipping backwards. This did happen to another driver I worked with and he died from his injuries in that crash.
#57
Sleeper but still slow
iTrader: (1)
Join Date: Jan 2006
Location: Georgia
Posts: 1,766
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by carbon man
Seat belt mounting, I believe there should be a cross bar in the roll cage directly behind the drivers seat at the hight of the holes in the seat for the seat belt and the shoulder straps for the seat belts to be attached to that bar. A few years ago a race car I was pit crewing on had a large impact into the side of a bridge and the impact was enough to tear the seat mounts out of the floor and because the seat belts were mounted a distance away from the seat the seat was flicked lick a whip and the driver suffered massive head injuries when his helmet was smashed against the pasenger side of the cars main roll hoop.
#58
Full Member
Thread Starter
Join Date: Jul 2004
Location: Sydney
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by '87 trubo FC
that is the proper way of monuting, could you immagine the seat lifting up with the belts on the floor? If they were directly behind him, the seat would've gone backwards and no one gets hurt. These should be illegal harness monuts but I know that's an official D1 car so I guess they let it slide (no pun intended) or maybe the Japanese are less concerned about the drivers dying.
#59
Floor mounting is ok. Mounting the belt on the strutbar is ok as long as the angle is 10 or more degrees. OEM FD strutbar wont do.
But i can agree that those angles look a little extreme. I wouldent mount it that way. FIA recommed no more that 45 degree, but at least 10.
But i can agree that those angles look a little extreme. I wouldent mount it that way. FIA recommed no more that 45 degree, but at least 10.
#64
.
iTrader: (1)
Join Date: Dec 2005
Location: Central MA
Posts: 570
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Zebb
Floor mounting is ok. Mounting the belt on the strutbar is ok as long as the angle is 10 or more degrees. OEM FD strutbar wont do.
But i can agree that those angles look a little extreme. I wouldent mount it that way. FIA recommed no more that 45 degree, but at least 10.
But i can agree that those angles look a little extreme. I wouldent mount it that way. FIA recommed no more that 45 degree, but at least 10.
#65
PV = nRT
Join Date: Jan 2003
Location: New Zealand (was California)
Posts: 2,250
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Zebb
Hard to explain in english, but the seatbelts are OK. You wont have any more load on the shoulders depending on the angle of the seatbelts. The seatbelt should ALWAYS hit the seat BEFORE touching your shoulders. If not, the seat is to short for you, and will cause injury on your spin.
#73
Not the company
Originally Posted by SayNoToPistons
um... are those two FDs even circuit cars?
Were Lupe's drag car's that he posted circuit cars? How about the autocross pictures?
