Secondary Transition Stumble
What I and others know and have known about secondary transition stumble for a long time:
Buying a RTEK2.0 won't solve THAT problem.
This is a ECU grounding problem on series four na and turboII.
The fix is the same as has been mentioned many times on this forum.
Extract the ground wires 3A, 3G and 2R from the ECU plugs.
Buy some SINGLE STRAND 18-20 gauge wire, solder, solder flux and soldering iron , and a couple of RING terminals to attach one end of the wires to a common ground like one of the attach studs for the ECU bracket.
Cut three pieces of wire about a foot to a foot and a half long.
Strip one end of each wire.
Tin each stripped end with flux/solder.

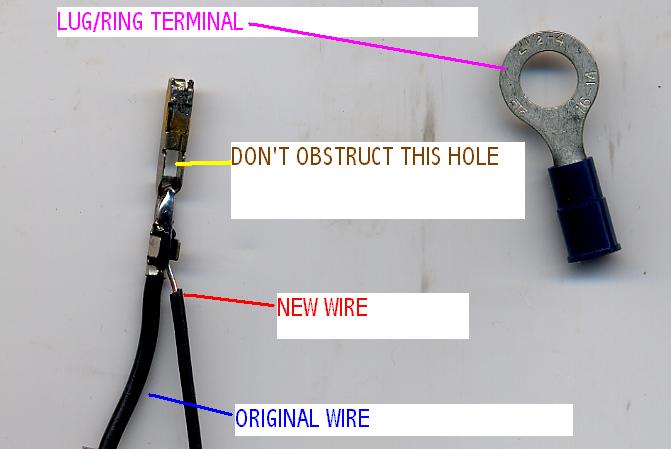

Lay an individual wire inside a wire terminal and solder it in place. Do NOT let the wire fill the place on the terminal wire the plastic tab of the plug holds the terminal in place or the wire won'l lock in when reattached to the plug.
Do the other two wires mentioned above the same way. Then reinsert the wires in their respective plugs and reattach the plugs to the ECU.
Twist all three wires into one wire bundle. Then strip all three wires and crimp or solder to a single ring terminal. Attach that terminal to the ECU bracket stud and bolt down with a 10mm nut.
Done. This is nothing more than a repeat of what has been written numerous times in the past.
DOES THIS WORK? Ask a very respected member of this forum, NZCONVERTIBLE. Yes it does work. Also ask me. Yes it works. I can remove this EXTRA grounding and the hesitation will come back like magic. Reattach the new gnds and all's well.
Why does this work when you KNOW the gnd terminals on the top of the rear rotor housing are good, clean and well attached? I'm clueless. NZCONVERTIBLE thinks it might be the mechanical crimps inside the harness that are corrupt. IF you've ever taken a harness cover off you'll see numerous mechanical wire crimps connecting two or more wires together.
I've NOTHING against mechanical crimps. Airplanes have LOADS of mechanical crimped wires and they fly fairly good that way.
What I can observe with the NEW gnds not connected, is a AFR in the 9'S during the HESISTATION. With the NEW gnds there is a seamless transition and NO damned 9AFR bullshit afr. I hate 9 AFR's and low 10 AFR'S. Just venting my spleen.
Buying a RTEK2.0 won't solve THAT problem.
This is a ECU grounding problem on series four na and turboII.
The fix is the same as has been mentioned many times on this forum.
Extract the ground wires 3A, 3G and 2R from the ECU plugs.
Buy some SINGLE STRAND 18-20 gauge wire, solder, solder flux and soldering iron , and a couple of RING terminals to attach one end of the wires to a common ground like one of the attach studs for the ECU bracket.
Cut three pieces of wire about a foot to a foot and a half long.
Strip one end of each wire.
Tin each stripped end with flux/solder.
Lay an individual wire inside a wire terminal and solder it in place. Do NOT let the wire fill the place on the terminal wire the plastic tab of the plug holds the terminal in place or the wire won'l lock in when reattached to the plug.
Do the other two wires mentioned above the same way. Then reinsert the wires in their respective plugs and reattach the plugs to the ECU.
Twist all three wires into one wire bundle. Then strip all three wires and crimp or solder to a single ring terminal. Attach that terminal to the ECU bracket stud and bolt down with a 10mm nut.
Done. This is nothing more than a repeat of what has been written numerous times in the past.
DOES THIS WORK? Ask a very respected member of this forum, NZCONVERTIBLE. Yes it does work. Also ask me. Yes it works. I can remove this EXTRA grounding and the hesitation will come back like magic. Reattach the new gnds and all's well.
Why does this work when you KNOW the gnd terminals on the top of the rear rotor housing are good, clean and well attached? I'm clueless. NZCONVERTIBLE thinks it might be the mechanical crimps inside the harness that are corrupt. IF you've ever taken a harness cover off you'll see numerous mechanical wire crimps connecting two or more wires together.
I've NOTHING against mechanical crimps. Airplanes have LOADS of mechanical crimped wires and they fly fairly good that way.
What I can observe with the NEW gnds not connected, is a AFR in the 9'S during the HESISTATION. With the NEW gnds there is a seamless transition and NO damned 9AFR bullshit afr. I hate 9 AFR's and low 10 AFR'S. Just venting my spleen.
Trending Topics
#9
Rotary Freak
Join Date: Dec 2006
Location: New Hampshire
Posts: 1,791
Likes: 0
Received 0 Likes
on
0 Posts
Thanks Hailers, while im working on my BACV I guess I will do this too.
My theory is that there is many grounding points on one ground wire, I think this works the same as check volts at the better vs the alternator. There is a lot of draw at the bat terminal so the voltage is lower. So maybe the different gnd loads on the one ground wire at certain points causes to much resistance?
My theory is that there is many grounding points on one ground wire, I think this works the same as check volts at the better vs the alternator. There is a lot of draw at the bat terminal so the voltage is lower. So maybe the different gnd loads on the one ground wire at certain points causes to much resistance?
#12
Senior Member
Join Date: Apr 2007
Location: San Diego, Ca
Posts: 268
Likes: 0
Received 0 Likes
on
0 Posts
I was farting around yesterday and applied the same correction that I used on DSMs, I richened the secondary transition point up significantly and tapered off the correction towards the top end. No stumble, If I go back to 0 correction the stumble comes back.
At this point, I am pretty confident that my injectors are causing the problem. The same style correction that I had to use on stock DSM ecus fixed the stumble problem that I am having.
Mike, I have been doing alot of work on the car over the past few weeks. Every time I dive into another project I disconnect the battery, so it gets disconnected at least once a week for a few hours. Should be enough time to initialize the ecu?
#15
Senior Member
#16
RotoriousRx7
Join Date: Oct 2005
Location: goodlettsville,tennessee 37072
Posts: 1,236
Likes: 0
Received 0 Likes
on
0 Posts
my stumble is getting better, i have richened up the first four bars on the graph to about 5% at the lowest and 10% the rest. i have left the high rpms alone since i cant rev that high yet. i also figured out that my car was running warm because the fan blades where in backwards and i had it wired up the right way and it pulled air through but not the way it was supposed to so no that it fixed it stays around 178-198 but more 185 average. not thats it runs cooler it doesnt stuimble bad at all,also tonight i was driving back home and it did it a little but it was pretty cool out so i dont know if that had something to do with it.
#19
RotoriousRx7
Join Date: Oct 2005
Location: goodlettsville,tennessee 37072
Posts: 1,236
Likes: 0
Received 0 Likes
on
0 Posts
well its is a richer mix but im breaking in still. not boosting. i going to reset ecu again soon to verify conditions, and no wideband yet im trying to learn more about the zeitronics. like a price?
and my stumble causes excessive lean.
and my stumble causes excessive lean.
#20
Senior Member
When you guys are talking about stumble do you mean its like if you were to keep pressing the gas pedal over and over ? I did this fix just now it didnt seem to fix my problem . If I have the pedal slightly pressed the car will go past 3800 but if I get on it the car will instantly start studdering or just bog right down and go nowhere no acceleration at all . I redid the grounds once before recently to the ECU and under the hood it was fixed ran like a top but then 2 days later it was back to running like crud again and here I am . I am also kinda wondering if the three big holes in my rear cat would cause the car to not get enough back pressure to kick the ports open and get past 3800 or what ever the rpms are at ? Thanx for any advice you can give .
#21
Senior Member
Join Date: Apr 2007
Location: San Diego, Ca
Posts: 268
Likes: 0
Received 0 Likes
on
0 Posts
The symptoms that Hailers described was rich during his transition, mine happens to be lean. It can go either way.
#23
RotoriousRx7
Join Date: Oct 2005
Location: goodlettsville,tennessee 37072
Posts: 1,236
Likes: 0
Received 0 Likes
on
0 Posts
when you all say cold/hot maybe posting specific degrees.that could narrow it down to something temp realted..mine was bad when temp got to 213-226 but now my car doesnt get that warm andthe problem kinda went away.. 4th gear low rpms in vacuum it still does it some what but its getting better
[MOD EDIT: This was moved from the "do you have the secondary stumble" thread]
[MOD EDIT: This was moved from the "do you have the secondary stumble" thread]
Last edited by turbo2ltr; 08-02-07 at 12:34 PM.
#24
RotoriousRx7
Join Date: Oct 2005
Location: goodlettsville,tennessee 37072
Posts: 1,236
Likes: 0
Received 0 Likes
on
0 Posts
Rtek Version: 2.0
Engine conditions: hot
RPM of occurance: 2800k
Load: light throttle
Boost: No boost, hppens under high vacume
Occurance frequency: Always at 2800k on light throttle
Severity: severe/mild
Did the car have 3800rpm stumble before: yes
Did the stumble change with the Rtek: THis is whats wierd. The (very light) 3800 stumble went away, shortly after the 2800k stumble appeared IIRC.
What year is the car, 88
Block: TII
Rotors: TII
Port work: Street Port
Injector size (pri/sec): 550, 720
Injector Impedance (pri/sec): HIgh
Resistor blocks: no
Other mods to car: In Sig
Hesitation description: (describe the hesitation and how/when it happens)
It is a constant hesitation around 2800k. You can see in my log below where it ahppens.
You may remeber Turbo2ltr, I called about this many months ago. You and I had a long phone conversation about a wierd stumble I was getting. It is good to see this thread, because it gives me hope. Until today, I was still looking for the damn stumble. Today I will stop until I see more about it.
Thanks,
Chris
Engine conditions: hot
RPM of occurance: 2800k
Load: light throttle
Boost: No boost, hppens under high vacume
Occurance frequency: Always at 2800k on light throttle
Severity: severe/mild
Did the car have 3800rpm stumble before: yes
Did the stumble change with the Rtek: THis is whats wierd. The (very light) 3800 stumble went away, shortly after the 2800k stumble appeared IIRC.
What year is the car, 88
Block: TII
Rotors: TII
Port work: Street Port
Injector size (pri/sec): 550, 720
Injector Impedance (pri/sec): HIgh
Resistor blocks: no
Other mods to car: In Sig
Hesitation description: (describe the hesitation and how/when it happens)
It is a constant hesitation around 2800k. You can see in my log below where it ahppens.
You may remeber Turbo2ltr, I called about this many months ago. You and I had a long phone conversation about a wierd stumble I was getting. It is good to see this thread, because it gives me hope. Until today, I was still looking for the damn stumble. Today I will stop until I see more about it.
Thanks,
Chris
see where you say it happens at 2800 mine is not steady its any time vacuum 2-3k, it almost seems like when the motor is under a load in vacuum like 16-5 inhg it wants to go lean... so maybe i need to data log my load index and add fuel..???
turbo2ltr i need info on the zeitronics too
[MOD EDIT: This was moved from the "do you have the secondary stumble" thread]
Last edited by turbo2ltr; 08-02-07 at 12:34 PM.
#25
Banned. I got OWNED!!!
Join Date: May 2007
Location: Home
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
When you guys are talking about stumble do you mean its like if you were to keep pressing the gas pedal over and over ?
. I am also kinda wondering if the three big holes in my rear cat would cause the car to not get enough back pressure to kick the ports open and get past 3800 or what ever the rpms are at ? Thanx for any advice you can give .
