Android Please

Reply



Old 03-13-12, 01:56 PM
  #26
088
...Serf of Taxifornia...
iTrader: (6)

088's Avatar

Join Date: Jul 2006
Location: Haywards 5000
Posts: 282
Thanks: 0
Thanked 0 Times in 0 Posts
^ RX7PlViewer.jar is a Java app.....

Logging and tuning is what I do most. The low pixel density of the Palm makes it a little inconvenient to review logged data with any degree of precision. I typically copy the log files to an SD card and review them on a PC. But it would be nice to have slightly more sophisticated graphing tools available on the device talking to the RTek.

With respect to tuning, I'd like to see a toggled feature that interpolates values between two cells, resulting in a smooth transition between the two numbers.

(A little off the topic, but I'd like to be able to specify tire size, diff ratio, gear ratio, and known peak whp value from the dyno (alternatively, vehicle weight + frontal area for street tuning) to plot an estimated hp or torque curve from the rpm vs. time data.)
088 is offline
Reply With Quote
Old 03-13-12, 02:11 PM
  #27
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2003
Location: ..
Posts: 1,302
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by 088 View Post
^ RX7PlViewer.jar is a Java app.....
I didn't write it. It was written by a customer.

Originally Posted by 088 View Post
Logging and tuning is what I do most. The low pixel density of the Palm makes it a little inconvenient to review logged data with any degree of precision. I typically copy the log files to an SD card and review them on a PC. But it would be nice to have slightly more sophisticated graphing tools available on the device talking to the RTek.
Yeah with more modern connections like mountable file system, sd cards and internet, I hope to make it much easier to get data in other formats.

Originally Posted by 088 View Post
With respect to tuning, I'd like to see a toggled feature that interpolates values between two cells, resulting in a smooth transition between the two numbers.
Not sure what you mean. The ECU already interpolates between cells. There is no additional resolution that could be set....unless you mean you want to define two to four points in the map (that have at least one cell between them), set those points and have the software calculate and set the cells in between?

Originally Posted by 088 View Post
(A little off the topic, but I'd like to be able to specify tire size, diff ratio, gear ratio, and known peak whp value from the dyno (alternatively, vehicle weight + frontal area for street tuning) to plot an estimated hp or torque curve from the rpm vs. time data.)
Ok, now you are pushing it.. lol. Lets get some basic functionality going before we get to feature requests..
turbo2ltr is offline
Reply With Quote
Old 03-13-12, 02:26 PM
  #28
088
...Serf of Taxifornia...
iTrader: (6)

088's Avatar

Join Date: Jul 2006
Location: Haywards 5000
Posts: 282
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by turbo2ltr View Post
define two to four points in the map (that have at least one cell between them), set those points and have the software calculate and set the cells in between?
Correct, 2 to 4 non-adjacent cells.
088 is offline
Reply With Quote
Old 03-14-12, 12:57 PM
  #29
Rotary Freak
10 Year Member
iTrader: (6)

Nick_d_TII's Avatar

Join Date: May 2002
Location: Beaverton, OR
Posts: 1,621
Thanked 0 Times in 0 Posts
Awesome... Tuning, viewing logs, and a way to output maps/logs to spreadsheets would be pretty handy.

I want to learn Java/Android too, and .net ... Good luck!
Nick_d_TII is offline
Reply With Quote
Old 03-31-12, 09:24 PM
  #30
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2003
Location: ..
Posts: 1,302
Thanks: 0
Thanked 0 Times in 0 Posts
Looks like I have a decent foundation created to manage the connection to the ECU and handle communications...now on to the actual UI.

Hardware Bluetooth dongle is also being developed concurrently.
turbo2ltr is offline
Reply With Quote
Old 04-07-12, 03:47 PM
  #31
290 to the wheel!!!!
5 Year Member

rxcookie's Avatar

Join Date: Mar 2008
Location: socal
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
Looking forward to Android, bluetooth etc, & all Rteks other future improvemnts..
good luck guys!m

GOOOO RTEKs!!!!!!!!!!!!!!!
rxcookie is offline
Reply With Quote
Old 04-07-12, 04:31 PM
  #32
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2003
Location: ..
Posts: 1,302
Thanks: 0
Thanked 0 Times in 0 Posts

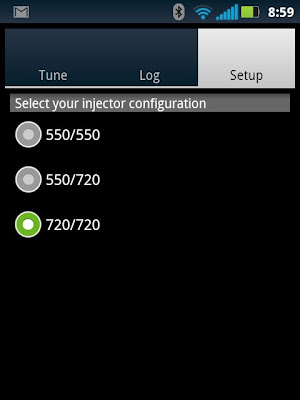

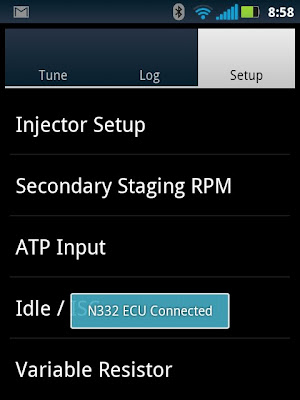

I started with the ECU setup screen... Took a bit longer than I expected, but I have injector config and staging RPM working. This means the communication foundation is working well and development *should* start going a little faster now....maybe...

I'm hoping to have the first PC boards for the BT dongle ordered be the end of next week.
turbo2ltr is offline
Reply With Quote
Old 04-08-12, 10:20 PM
  #33
Senior Member

bikeboy23332's Avatar

Join Date: May 2007
Location: kentucky
Posts: 717
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by turbo2ltr View Post
I started with the ECU setup screen... Took a bit longer than I expected, but I have injector config and staging RPM working. This means the communication foundation is working well and development *should* start going a little faster now....maybe...

I'm hoping to have the first PC boards for the BT dongle ordered be the end of next week.
great news man.
bikeboy23332 is offline
Reply With Quote
Old 04-09-12, 10:23 AM
  #34
My job is to blow **** up
iTrader: (8)

lastphaseofthis's Avatar

Join Date: Jan 2005
Location: palmyra Indiana
Posts: 2,871
Thanked 0 Times in 0 Posts
Originally Posted by turbo2ltr View Post
I started with the ECU setup screen... Took a bit longer than I expected, but I have injector config and staging RPM working. This means the communication foundation is working well and development *should* start going a little faster now....maybe...

I'm hoping to have the first PC boards for the BT dongle ordered be the end of next week.
So this is working on your palm admiral, with Android 2.3.5? and blue tooth??

damn bro, props!

And to think my Gf has me trying to convince me to get a smart phone, and an android OS at that... guess i'll have too now...

but a few questions...

1. Are you pretty much porting the exact software for the palm, or re writing it all from scratch?

2. I know the answer is you're writing it all from scratch , does this mean we can design a few necessity from the get go? mainly imputing numbers in to the timing/fuel tables. select more then one box at a time, jump .1 1 or 10 increments...?

3. how can i help?

4. why won't you let me help?
lastphaseofthis is offline
Reply With Quote
Old 04-09-12, 11:26 AM
  #35
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2003
Location: ..
Posts: 1,302
Thanks: 0
Thanked 0 Times in 0 Posts
Yes it's working. When you load the program, it will automatically try to connect to the last connected BT device. Takes about 3-4 seconds to connect up, then maintains the connection.




Yes I'm starting essentially from scratch. Even though java and C are similar, how you interact with the OS is completely different.

Yeah, now's the time to get your feature requests in. I definitely want to improve the map input interface as well as the logging/playback to take advantage of the higher res screens.

Well as soon as the bluetooth hardware is out, I'd like people to start testing on different devices... I can't afford to buy all kinds of devices so I'll need to rely on others for testing. Unfortunately the Android emulator that comes with the SDK doesn't support bluetooth at all. so my program won't even run on it. I have to do all the dev on the device itself.

I may try to pick up a cheap android tablet for testing.
turbo2ltr is offline
Reply With Quote
Old 04-09-12, 11:40 AM
  #36
My job is to blow **** up
iTrader: (8)

lastphaseofthis's Avatar

Join Date: Jan 2005
Location: palmyra Indiana
Posts: 2,871
Thanked 0 Times in 0 Posts
i'll buy an android tablet TODAY, if it means i can help
lastphaseofthis is offline
Reply With Quote
Old 04-09-12, 11:55 AM
  #37
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2003
Location: ..
Posts: 1,302
Thanks: 0
Thanked 0 Times in 0 Posts
Lol, well at least wait until I get the BT hardware done. Thanks for your enthusiasm..

Anyone good at making android-esque icons? The tabs need some love and graphic design is not my strong suit...
turbo2ltr is offline
Reply With Quote
Old 04-09-12, 12:07 PM
  #38
My job is to blow **** up
iTrader: (8)

lastphaseofthis's Avatar

Join Date: Jan 2005
Location: palmyra Indiana
Posts: 2,871
Thanked 0 Times in 0 Posts
Originally Posted by turbo2ltr View Post
Lol, well at least wait until I get the BT hardware done. Thanks for your enthusiasm..

Anyone good at making android-esque icons? The tabs need some love and graphic design is not my strong suit...
.png, 72x72? how many? just 3 icons or 4?

https://www.google.com/search?hl=en&...w=1280&bih=933




googled some, just steal the **** out of them
lastphaseofthis is offline
Reply With Quote
Old 04-09-12, 04:57 PM
  #39
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2003
Location: ..
Posts: 1,302
Thanks: 0
Thanked 0 Times in 0 Posts
I just picked up a Vizio VTAB1008 from Costco for $189. Bluetooth was a little temperamental, but once I got it paired, it works. This is running 2.2, but it already asked me if i wanted to update to 3.2, but I wanted to do the 2.2 tests first as it's one less than the 2.3 on my phone.
turbo2ltr is offline
Reply With Quote
Old 04-09-12, 08:07 PM
  #40
My job is to blow **** up
iTrader: (8)

lastphaseofthis's Avatar

Join Date: Jan 2005
Location: palmyra Indiana
Posts: 2,871
Thanked 0 Times in 0 Posts
sounds sweet, how much code does it take for the rteks to work with bluetooth and communicate with the tablet, i know the android software side is a BIG TASK. or will there just be a serial to bluetooth adapter that works for all current /new rteks? you said something about a dongle... just curious if we'll be sending our ecus back in, or just buy the extra part
lastphaseofthis is offline
Reply With Quote
Old 04-09-12, 08:18 PM
  #41
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2003
Location: ..
Posts: 1,302
Thanks: 0
Thanked 0 Times in 0 Posts
It will be a dongle you can plug in to all existing Rteks. No need to send the ECU back.




It will have power wires coming out of it as well. The DB9 on the ECU has no power in it so you have to supply power to the dongle. Ugly, but it works.
turbo2ltr is offline
Reply With Quote
Old 04-10-12, 12:13 AM
  #42
088
...Serf of Taxifornia...
iTrader: (6)

088's Avatar

Join Date: Jul 2006
Location: Haywards 5000
Posts: 282
Thanks: 0
Thanked 0 Times in 0 Posts
Feature Requests

a.) Allow selecting / logging of > 9 parameters so the RTek and 'Roid don't hose each other. i.e., fix this bug.
b.) Fix the AFM temp units. This issue.
c.) Expand the rpm range for AWS, 6PI, and/or VDI outputs so I can activate my shift light at >> 8160 rpm, etc.
d.) Allow a range of values for the rev limiter, rather than just a single setting of 9200.
e.) Interpolate between cells or select multiple and raise by the same or gradually scaled amount, as suggested above.
f.) Implement a smoothing function for the data plots.
g.) Export feature to dump the data directly into a CSV
h.) Estimate and plot power and torque curves from RPM and time data, given a known whp value (i.e. scaling factor).
088 is offline
Reply With Quote
Old 04-10-12, 12:24 AM
  #43
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2003
Location: ..
Posts: 1,302
Thanks: 0
Thanked 0 Times in 0 Posts
Wow, I totally missed ever seeing bug a.
b is some mismatch caused by a change in the way we formatted the temp. The viewer is not in sync with the palm. Now that I'm learning java, I'll be able to make updates to the log viewer and get that fixed.
C and D are features for the ECU itself, not the logger app.
E I think you or someone mentioned before..def on the list.
F you mean for the maps?
G definitely
H Sounds good.
turbo2ltr is offline
Reply With Quote
Old 04-10-12, 12:51 AM
  #44
088
...Serf of Taxifornia...
iTrader: (6)

088's Avatar

Join Date: Jul 2006
Location: Haywards 5000
Posts: 282
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by turbo2ltr View Post
Wow, I totally missed ever seeing bug a.
Yeah, I can repro at will.
Originally Posted by turbo2ltr View Post
Now that I'm learning java, I'll be able to make updates to the log viewer.
If the PLViewer's X Y Scatter plot function could be fixed, I would be excited. But before we get to that, yes, finish the 'Roid app first.
Originally Posted by turbo2ltr View Post
C and D are features for the ECU itself, not the logger app.
Indeed.
Originally Posted by turbo2ltr View Post
F you mean for the maps?
No, I mean the data plots, when displayed at high resolution (well, at least better than the Palm's) are frequently noisy. Much of it is due to parameters being internally represented as discrete values inside the ECU (e.g. IAT, AFM, timing advance). Some sensors are more noisy than others (e.g. MAP, some widebands). And a lot of it is just plain electronic s/n issues. Would be nice to have a toggle on the data charts to turn on smoothing globally or for a given parameter.
088 is offline
Reply With Quote
Old 04-10-12, 02:13 PM
  #45
Rotary Freak
10 Year Member
iTrader: (6)

Nick_d_TII's Avatar

Join Date: May 2002
Location: Beaverton, OR
Posts: 1,621
Thanked 0 Times in 0 Posts
Awesome!
Nick_d_TII is offline
Reply With Quote
Old 04-10-12, 03:01 PM
  #46
Full Member
iTrader: (11)

Join Date: Dec 2009
Location: Saint Louis, MO
Posts: 71
Thanks: 0
Thanked 0 Times in 0 Posts
I just ordered the 2.1 upgrade a month ago or so, and I have ICS on my Asus tablet if you want some extra testing. I assume just a 12v wire to power the dongle? or something else?

or a use for the cig lighter hah?

Last edited by Dunnhopen; 04-10-12 at 03:05 PM.
Dunnhopen is offline
Reply With Quote
Old 04-11-12, 02:01 AM
  #47
I
10 Year Member
iTrader: (25)

Howru's Avatar

Join Date: Dec 2005
Location: Vallejo, CA
Posts: 651
Thanks: 0
Thanked 0 Times in 0 Posts
I just got POSE working with my laptop and this comes along. XD

Another feature I'd like is to make the all the solenoids trigger by RPM, like the EGR solenoid. Maybe in a future build?

I'd like an offline mode to edit maps to later load onto the ECU.
Howru is offline
Reply With Quote
Old 04-11-12, 11:07 AM
  #48
Full Member
iTrader: (11)

Join Date: Dec 2009
Location: Saint Louis, MO
Posts: 71
Thanks: 0
Thanked 0 Times in 0 Posts
Any idea what kind of price points you are looking at? Are you going to do an app on the app store?

I do like the idea of the bluetooth being powered by the cig lighter so I can turn it of and on at well, rather then leave it on all the time.
Dunnhopen is offline
Reply With Quote
Old 04-11-12, 11:28 AM
  #49
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2003
Location: ..
Posts: 1,302
Thanks: 0
Thanked 0 Times in 0 Posts
What would the purpose of turning it off be?

I still need to get a final cost on the hardware. I expect it to be under $50.
turbo2ltr is offline
Reply With Quote
Old 04-11-12, 11:34 AM
  #50
ROC
5 Year Member

ROCN7's Avatar

Join Date: Nov 2006
Location: UTAH
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
Cant wait for this to come out. I was just wondering what devices would be used to run this program. Is it just android phones/ tablets or can an iphone/ ipad be used. Thanks
ROCN7 is offline
Reply With Quote




Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
turbo2ltr
Rtek Forum
234
08-15-16 09:22 AM
Engine stand ready
Introduce yourself
1
09-08-15 04:57 PM
andek3
How to use this Site
3
09-08-14 05:10 PM


Thread Tools
Search this Thread
Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -5. The time now is 02:22 PM.


All content Copyright 2007 by Internet Brands, Inc.
