Who here is running Tilton Flow Control for drag racing?
05-19-11, 05:06 AM
#26
Senior Member
Thread Starter
Join Date: Nov 2004
Location: England
Posts: 383
Likes: 0
Received 0 Likes
on
0 Posts
The end result went racing last weekend, 2nd round of our Jap street class competition...
guess what I won class!!! no breakages!! beat three Skylines with circa 700-900 in the eliminations.
In the final match up with my old friend in his 700bhp Rx7, my reaction time and launch was the deciding factor even though he reeled me in towards the end with his huge power, his terminal of 146 to my 131mph, both hit 10.8 for the quarter.
I didnt do any burnouts all weekend so my 60fts were only in the 1.5ft to 1.6ft range, but I felt the clutch was not as snappy off the line, felt there was a progression of power being fed in.
Next round I will be lowering tyre pressures,doing a burnout and upping the boost, and see if anything breaks, it seems for now the valve is doing its job.
Here is the vid of the final
http://www.youtube.com/watch?v=BXjY7nmbcaU
guess what I won class!!! no breakages!! beat three Skylines with circa 700-900 in the eliminations.
In the final match up with my old friend in his 700bhp Rx7, my reaction time and launch was the deciding factor even though he reeled me in towards the end with his huge power, his terminal of 146 to my 131mph, both hit 10.8 for the quarter.
I didnt do any burnouts all weekend so my 60fts were only in the 1.5ft to 1.6ft range, but I felt the clutch was not as snappy off the line, felt there was a progression of power being fed in.
Next round I will be lowering tyre pressures,doing a burnout and upping the boost, and see if anything breaks, it seems for now the valve is doing its job.
Here is the vid of the final
http://www.youtube.com/watch?v=BXjY7nmbcaU
05-19-11, 05:39 AM
#27
IRS 4 Life
iTrader: (12)
Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 2 Likes
on
2 Posts
Thants awesome! COngrats!!
Wich "orafice" did you use?
I was gonna do the tube nuts, but I have about a mile less clutch line LOL. I went with the -3 banjo, 2 sections of 10" -3 line, and the female metric adapter. will be finishing the install tonight. But it tucks right under the master cylinder, and ill be selling my goodridge SS clutch line soon
Wich "orafice" did you use?
I was gonna do the tube nuts, but I have about a mile less clutch line LOL. I went with the -3 banjo, 2 sections of 10" -3 line, and the female metric adapter. will be finishing the install tonight. But it tucks right under the master cylinder, and ill be selling my goodridge SS clutch line soon
05-19-11, 06:00 AM
#28
Senior Member
Thread Starter
Join Date: Nov 2004
Location: England
Posts: 383
Likes: 0
Received 0 Likes
on
0 Posts
I used the middle sized one the .28 I think it was.
When undoing the valve to change the pill, be warned you need to put that thing in a vice, and use a breaker bar\torque wrench to undo the thing, its been done up to 50lbs of torque and needs to be retorqued to the same value so you dont get leaks
When undoing the valve to change the pill, be warned you need to put that thing in a vice, and use a breaker bar\torque wrench to undo the thing, its been done up to 50lbs of torque and needs to be retorqued to the same value so you dont get leaks
05-20-11, 02:48 AM
#31
05-20-11, 06:39 AM
#36
4th string e-armchair QB
iTrader: (11)
Join Date: May 2005
Location: North Bay, Ontario
Posts: 2,745
Likes: 0
Received 0 Likes
on
0 Posts
That one specifically looks like the unit from Magnus, flow control combined with line lock so it only limits off the line. Its not $10 either
05-20-11, 09:30 AM
#37
IRS 4 Life
iTrader: (12)
Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 2 Likes
on
2 Posts
yep magnus launch controll device
Launch Control Device
Everybody who has been racing long enough knows that dropping the clutch is a sure way to be picking up a whole lot of parts at the starting line, not to mention makes you inconsistent as a drag racer.
This Device was developed by 9sec9 and we decided to give it a shot in our race car. It worked well! What it did was take away alot of the thinking we had to do to make sure we were slipping the clutch. we adjust it to where we wanted for the track conditions for that day, and we forget its there. Just let go of the clutch and go. This will provide the amount of slip you have dialed into your hydraulic clutch system.
The built in Line lock restricts on launch, then bypasses when off the 2 step button. Must use a mighty vac to bleed correctly.
$275.00
looks like it could even be set up for push button launches
Launch Control Device
Everybody who has been racing long enough knows that dropping the clutch is a sure way to be picking up a whole lot of parts at the starting line, not to mention makes you inconsistent as a drag racer.
This Device was developed by 9sec9 and we decided to give it a shot in our race car. It worked well! What it did was take away alot of the thinking we had to do to make sure we were slipping the clutch. we adjust it to where we wanted for the track conditions for that day, and we forget its there. Just let go of the clutch and go. This will provide the amount of slip you have dialed into your hydraulic clutch system.
The built in Line lock restricts on launch, then bypasses when off the 2 step button. Must use a mighty vac to bleed correctly.
$275.00
looks like it could even be set up for push button launches
05-20-11, 09:43 AM
#38
Senior Member
Thread Starter
Join Date: Nov 2004
Location: England
Posts: 383
Likes: 0
Received 0 Likes
on
0 Posts
looks impressive! one question how does the line lock work? I am assuming it goes into the clutch line not the brake line, so hows does it lock your front brakes ?
05-20-11, 10:00 AM
#39
That design have been used by the drag bike cummunity for many years.
Actually tested that exact valve way before it was being marketed and sold by Marco(Magnus Motorsports). What we found in testing is that by replacing the actual adjustable valve with the tilton flow control gave way better results. Then for ultimate control you can use tthe ecu or a switch to activate the solenoid the way you want. Using the TFCV by itself without the solenoid affect the clutch engagement in every instead of just first gear.
Actually tested that exact valve way before it was being marketed and sold by Marco(Magnus Motorsports). What we found in testing is that by replacing the actual adjustable valve with the tilton flow control gave way better results. Then for ultimate control you can use tthe ecu or a switch to activate the solenoid the way you want. Using the TFCV by itself without the solenoid affect the clutch engagement in every instead of just first gear.
05-20-11, 10:07 AM
#40
4th string e-armchair QB
iTrader: (11)
Join Date: May 2005
Location: North Bay, Ontario
Posts: 2,745
Likes: 0
Received 0 Likes
on
0 Posts
it uses a solenoid exactly like a line lock to limit the clutch line flow on launch only, and then afterward just bypasses the orifice through the solenoid.
05-21-11, 08:41 AM
#41
IRS 4 Life
iTrader: (12)
Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 2 Likes
on
2 Posts
fot those that still dont follow, the black thing with a silver **** is the adjustable flow valve, the line lock solonid when activated closes forcing the fluid to take the path through the valve, then when you release the solenoid, the fluid flows through the "line lock" solenoid unrestricted.
Other side pic
Other side pic
05-21-11, 02:46 PM
#42
05-21-11, 03:49 PM
#43
IRS 4 Life
iTrader: (12)
Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 2 Likes
on
2 Posts
That design have been used by the drag bike cummunity for many years.
Actually tested that exact valve way before it was being marketed and sold by Marco(Magnus Motorsports). What we found in testing is that by replacing the actual adjustable valve with the tilton flow control gave way better results. Then for ultimate control you can use tthe ecu or a switch to activate the solenoid the way you want. Using the TFCV by itself without the solenoid affect the clutch engagement in every instead of just first gear.
Actually tested that exact valve way before it was being marketed and sold by Marco(Magnus Motorsports). What we found in testing is that by replacing the actual adjustable valve with the tilton flow control gave way better results. Then for ultimate control you can use tthe ecu or a switch to activate the solenoid the way you want. Using the TFCV by itself without the solenoid affect the clutch engagement in every instead of just first gear.
06-03-11, 08:46 PM
#44
Rotary Enthusiast
Join Date: Aug 2006
Location: Melbourne FL/San Antonio TX/Okinawa Japan
Posts: 1,216
Likes: 0
Received 10 Likes
on
10 Posts

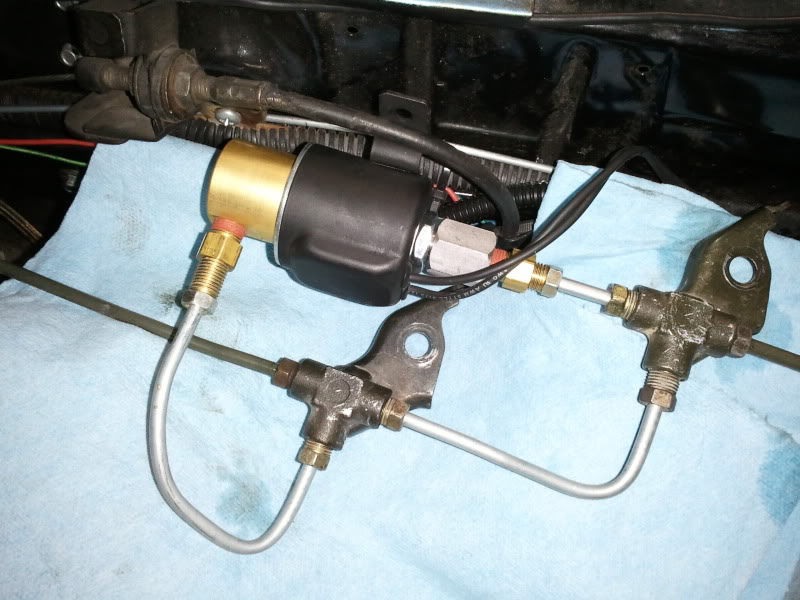

Changed a few things but it seems to work and very cheap to make. Used a Zex nitrous jet to control fluid back pressure. The "T"s are from the junk yard and the line lock is the cheapest Jegs sales. So far so good. No leaks and seems to work as planned. Have the momentary button on the steering wheel. Also got that from the junk yard. It's a kill switch for aftermarket alarms.
Just thought I would share.
11-27-11, 10:23 AM
#50

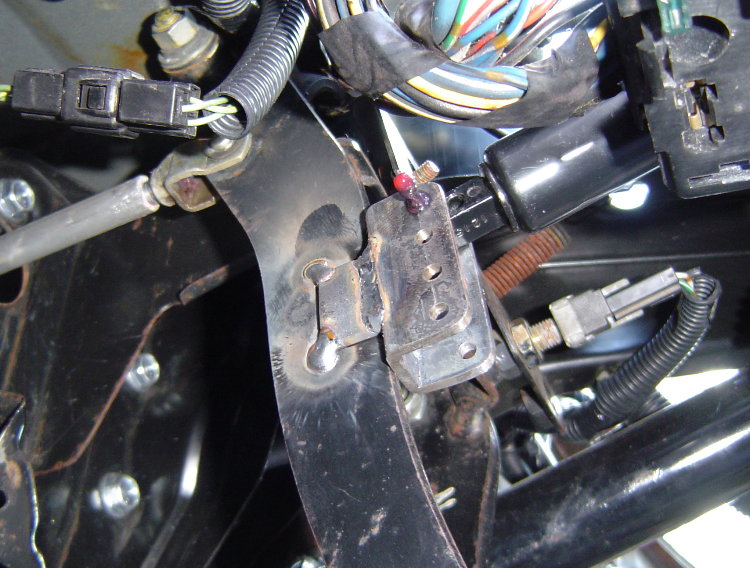

here is another version, under $10 and works just as great, no bleeding, adjustment with a flathead or phillips, you can't beat it
Attachment 448745
Attachment 448745
