JIMMYL

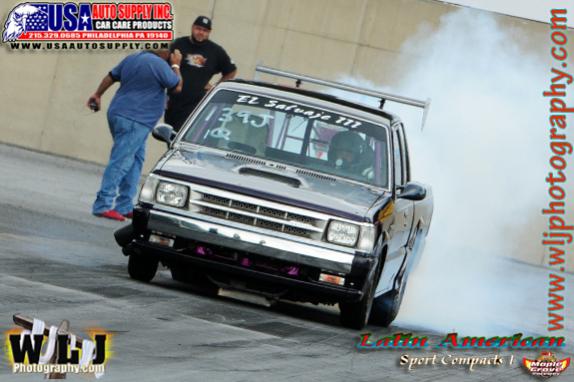

here is my 88 mazda b2200 race truck all steel . have been working on this project for awhile . in 2008 had a lot of cracked housing .found out that the coils were wired wrong by the speed shop who did the wiring . so i decided to put way. till 2011 and went to work on it . came out this year . just made a few passes and were having a few problems one the truck once it left the line it would die after the 100 ft mark the truck would pick up and take off and still went 133 mph weighing 2580 lb only using 3 gears .all at 15 lbs of boost .

have been working with electromotive and ken sheepers.
we believe we found the issue and will be ready for next season
to make some serious runs

here is a pic

JIMMYL

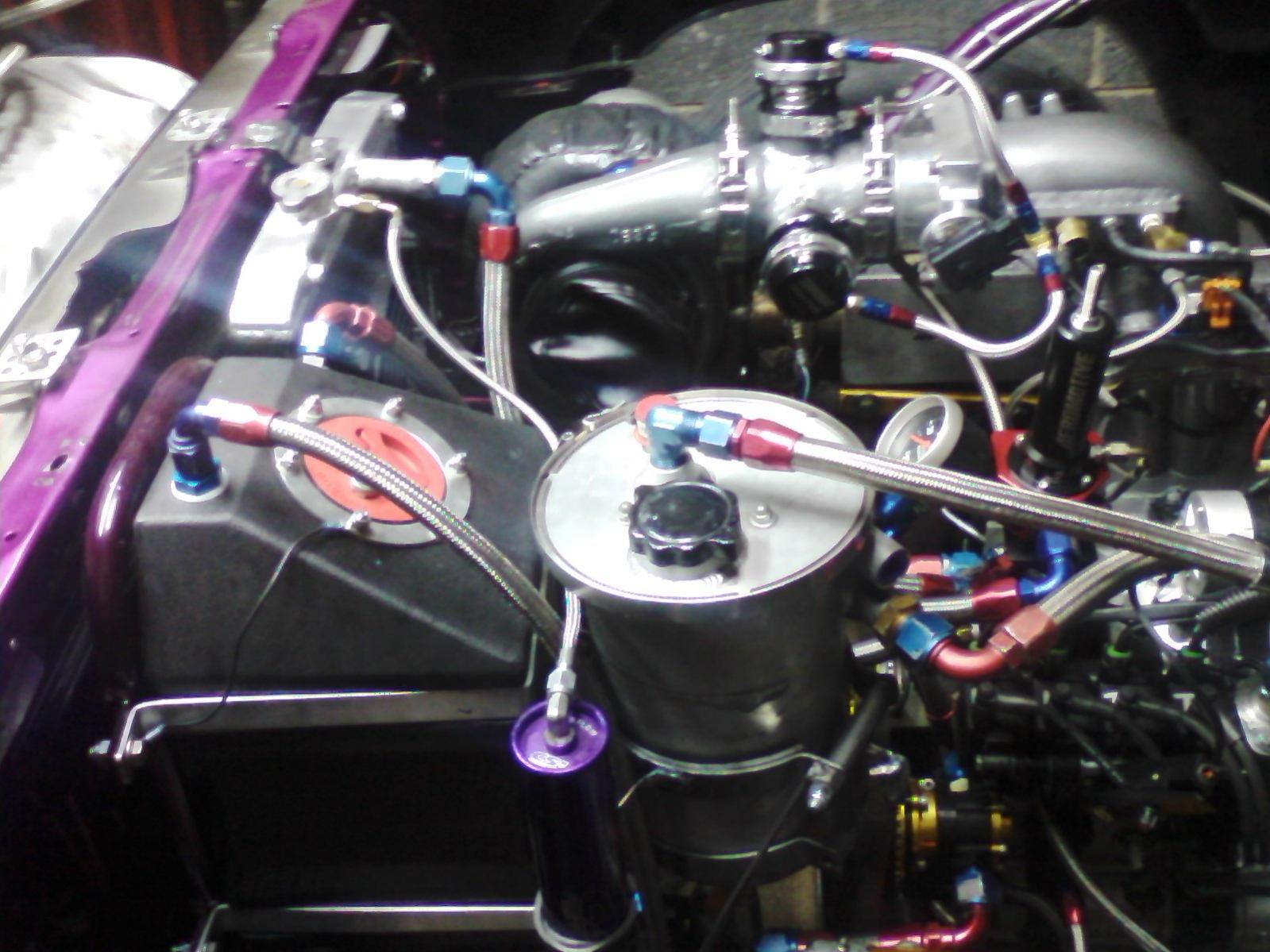

engine 13b cosmo ported semi all done by me
goopy resurfaced rotor housing and i usde his apex seal
88 mm turbo
with lenco 4 speed and adjustable clutch

c/m back half truck

sleeper7

Very nice! Tech III or GT?

sk8world

iTrader: (5)

What's your fuel setup?

JTPERF

nice get them bugs out and you should have a fast machine!!

krazy4

Awesome truck!

JIMMYL

thanks its a tec3r
were running 8 injectors and mechancal fuel pump on methanol

were going to add 4 more injectors over the winter .

send the computer to electromotive to do the updates .

prrex4ever

iTrader: (3)

Nice, good luck.

JIMMYL

thanks

tearbo2

iTrader: (2)

Can't wait till you guys get her dialed in!!!

JIMMYL

thanks we cant wait to. We should be testing by april let you know .

riceburner1r2001

iTrader: (4)

wow ken sheepers is still racing

BlueMx5

iTrader: (4)

That's an awesome setup! So what rpm does that 88 kick in with the semi-pp and is that a s400 frame( like a s488)?

JIMMYL

thanks ken sheepers isn't drag racing that I know of but he is real familiar with electromotive. mine is a s400 right now we are only turning it 9500 rpm until we get the bugs out if it runs the numbers at 9500 rpm we will leave we will keep some more updates after testing

s2kguy17

iTrader: (5)

cant wait to see it running Jim, I will keep a look out on this thread. Jonathan Ortiz

JIMMYL

thanks hey jon is this louie son like to make a race at florida once we get it dialed in

s2kguy17

iTrader: (5)

Yes Louie Son, I got a 1993 Rx7 I am going to start putting together. Weather is great down here no need to wait till springtime up there.

JIMMYL

i know dont temp me to move there lol
ur back to mazda cool

mymmeryloss

iTrader: (13)

Badass!

diabolical1

iTrader: (3)

good stuff. I like those B-series trucks. should have had a rotary option from the factory. anyway, I hope you get the quirks worked out this year. good luck.

mymmeryloss

iTrader: (13)

I love B's so much i decided to make a modern day Repu

JIMMYL

thanks we will be testing soon hopefully mid may ,13

JIMMYL

update we have tested and still working out some small gremlins best et so far at 15 lbs of boost weighing at 2600 went 10.21@141

go to you tube and look up jl racing test and tune for videos

mymmeryloss

iTrader: (13)

Awesome!

ultimatejay

iTrader: (1)

That's a high ET for the MPH. Did you spin or miss a gear?
