Rotary Drag Racing The place to post your racing stories and info

FD Weld fitment offsets and bolt Patterns:

Thread Tools

Search this Thread

Old Sep 2, 2006 | 03:44 PM
  #26
ErnieT's Avatar
Thread Starter
Living life 9 seconds at a time
Tenured Member: 20 Years
iTrader: (2)

Joined: Feb 2001
Posts: 6,541
Likes: 0
From: Abingdon, Md
Originally Posted by LETHAL RX7
ernie are they 15x4 or 15x4.5?? fronts
Greg
Tires are 15x4.5x26
Reply
Old Sep 2, 2006 | 03:46 PM
  #27
LUPE's Avatar
Banned. I got OWNED!!!

Joined: Apr 2005
Posts: 5,506
Likes: 0
From: Belleville, IL
Originally Posted by ErnieT
Tires are 15x4.5x26

Which front tires did you get? I got caught out in the rain on tuesday with my ET Front Drags and Et Streets..........

Nice fun drive down the HWY.
Reply
Old Sep 2, 2006 | 05:22 PM
  #28
ErnieT's Avatar
Thread Starter
Living life 9 seconds at a time
Tenured Member: 20 Years
iTrader: (2)

Joined: Feb 2001
Posts: 6,541
Likes: 0
From: Abingdon, Md
ET streets
Reply
Old Sep 3, 2006 | 09:03 PM
  #29
LETHAL RX7's Avatar
Senior Member
Tenured Member 15 Years
iTrader: (1)

Joined: Oct 2001
Posts: 535
Likes: 0
From: pa
I meant the rim size..but i was curious about the tire too.
Greg
Reply
Old Sep 4, 2006 | 06:59 AM
  #30
andrewb70's Avatar
Senior Member
Tenured Member 10 Years

Joined: May 2003
Posts: 343
Likes: 0
From: WI

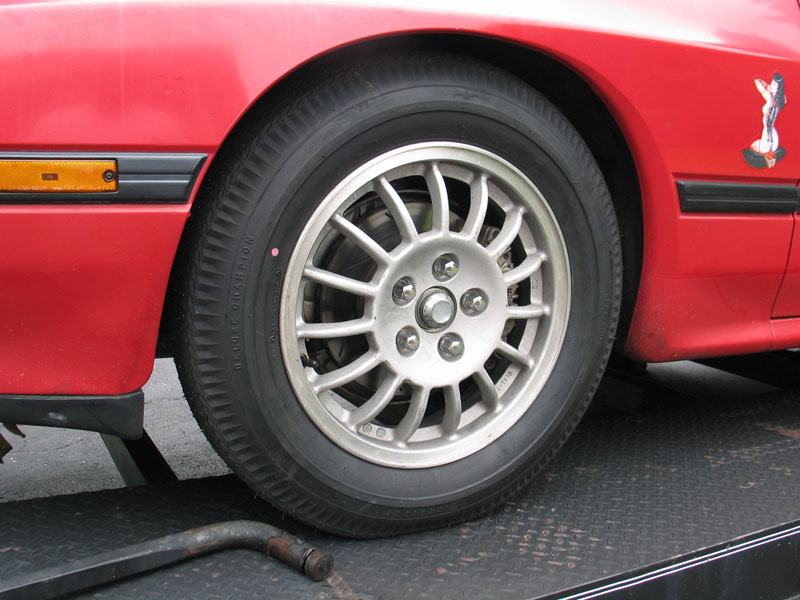

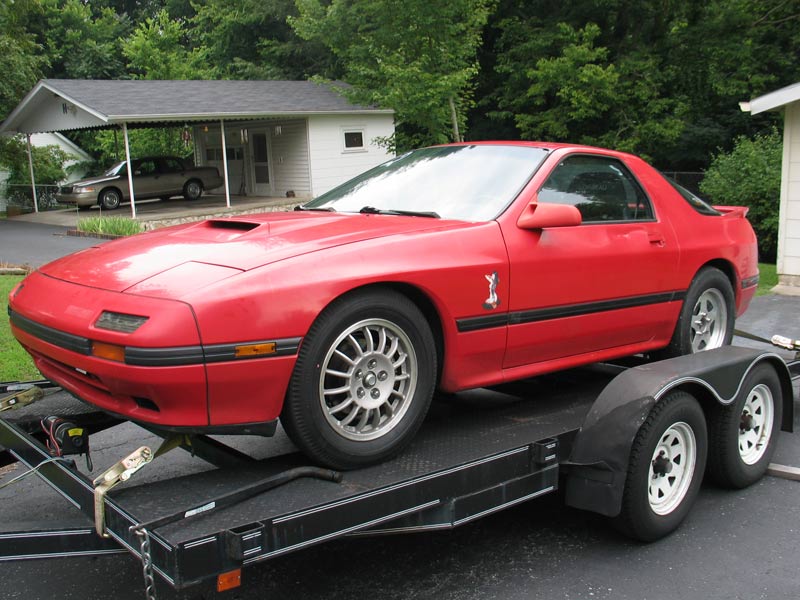

FC spare wheels work great!

Andrew
Attached Thumbnails FD Weld fitment offsets and bolt Patterns:-img_0876sm.jpg   FD Weld fitment offsets and bolt Patterns:-img_0877sm.jpg
Reply
Old Oct 11, 2006 | 07:58 AM
  #31
SilvioRX7's Avatar
Senior Member
Tenured Member 05 Years

Joined: Apr 2002
Posts: 625
Likes: 0
From: West Palm Beach, FL
What is the correct rim backspacing for an FD running a Weld Pro Star 15 x 8? ErnieT posted 7 1/4" backspacing, and Dan Schechter posted 5 1/2" backspacing. So which one is it??? I'm looking into ordering them this week but don't know which backspace to order.

-Silvio
Reply
Old Oct 15, 2006 | 01:33 PM
  #32
Dan Schechter's Avatar
JIGSAWRX7
Tenured Member 20 Years

Joined: Apr 2001
Posts: 333
Likes: 0
From: Celina, TX
Wheel bs

Originally Posted by SilvioRX7
What is the correct rim backspacing for an FD running a Weld Pro Star 15 x 8? ErnieT posted 7 1/4" backspacing, and Dan Schechter posted 5 1/2" backspacing. So which one is it??? I'm looking into ordering them this week but don't know which backspace to order.

-Silvio
Sorry for the delay.
I run 5.5" bs, but you have to add a 1/2" spacer to clear the caliper and toe link bolt. I don't know about a 7 1/4" bs, but it seems to work for Ernie. I don't think it would work for my setup. I would think the wheels would hit the trailing links, and not fitting, but I could be wrong. Personally, I haven't tried it. If you have any questions, let me know.

Last edited by Dan Schechter; Oct 15, 2006 at 01:35 PM.
Reply
Old Oct 17, 2006 | 11:47 AM
  #33
SilvioRX7's Avatar
Senior Member
Tenured Member 05 Years

Joined: Apr 2002
Posts: 625
Likes: 0
From: West Palm Beach, FL
Originally Posted by Dan Schechter
Sorry for the delay.
I run 5.5" bs, but you have to add a 1/2" spacer to clear the caliper and toe link bolt. I don't know about a 7 1/4" bs, but it seems to work for Ernie. I don't think it would work for my setup. I would think the wheels would hit the trailing links, and not fitting, but I could be wrong. Personally, I haven't tried it. If you have any questions, let me know.
Now when you use the 1/2" spacer, do you still have to grind the toe link bolt?

Thanks,
Silvio
Reply
Old Dec 30, 2006 | 12:35 PM
  #34
13BNUT's Avatar
Rotary Enthusiast
Tenured Member 15 Years
iTrader: (8)

Joined: Nov 2004
Posts: 1,020
Likes: 0
From: Long Beach, CA
I just ordered my Pro Stars from Welds but they are on back order. I was told that they were being bought off by another company but will continue producing the wheels, so be patient guys.
Reply
Old Dec 30, 2006 | 08:05 PM
  #35
Dan Schechter's Avatar
JIGSAWRX7
Tenured Member 20 Years

Joined: Apr 2001
Posts: 333
Likes: 0
From: Celina, TX
Originally Posted by SilvioRX7
Now when you use the 1/2" spacer, do you still have to grind the toe link bolt?

Thanks,
Silvio
Yeah, Unfortunately.

Sorry for the delay in response, I never got an email notification of your post.

Last edited by Dan Schechter; Dec 30, 2006 at 08:09 PM. Reason: Reply Time...
Reply
Old Dec 30, 2006 | 08:06 PM
  #36
Dan Schechter's Avatar
JIGSAWRX7
Tenured Member 20 Years

Joined: Apr 2001
Posts: 333
Likes: 0
From: Celina, TX
Originally Posted by 13BNUT
I just ordered my Pro Stars from Welds but they are on back order. I was told that they were being bought off by another company but will continue producing the wheels, so be patient guys.
Weld wheels went bankrupt, and is being taken over by American Racing.
Reply
Old Jan 7, 2007 | 02:31 PM
  #37
theracingstore's Avatar
Newbie

Joined: Dec 2003
Posts: 3
Likes: 0
From: FLORIDA
Custom Wheels FD/FC

Hey guys,another option would be Holeshot wheels,they are custom made to any backspacing and have 5 different styles,they are 3 piece design and I personally use them on my street car and my race car.They cost more than the regular Welds but are lighter and can be upgraded very easily.Here is a pic of a couple of them sorry about the big pics:

http://www.theracingstore.com/index....d=27&Itemid=26




Reply
Old Jan 7, 2007 | 02:33 PM
  #38
13BNUT's Avatar
Rotary Enthusiast
Tenured Member 15 Years
iTrader: (8)

Joined: Nov 2004
Posts: 1,020
Likes: 0
From: Long Beach, CA
Man those are some nice wheels but I dont know what it is about the WELD's that just look bitching. It doesn't matter what kind of car it is.
By the way how much do these wheels cost?
Reply
Old Jan 8, 2007 | 10:12 AM
  #39
Dan Schechter's Avatar
JIGSAWRX7
Tenured Member 20 Years

Joined: Apr 2001
Posts: 333
Likes: 0
From: Celina, TX
Originally Posted by theracingstore
Hey guys,another option would be Holeshot wheels,they are custom made to any backspacing and have 5 different styles,they are 3 piece design and I personally use them on my street car and my race car.They cost more than the regular Welds but are lighter and can be upgraded very easily.
Thanks for the input! These look like a great alternative source, expecially while Weld/American Racing does their thing to swap companies.
Reply
Old Mar 11, 2008 | 03:54 AM
  #40
AnthonyNYC's Avatar
Stay tuned...
Tenured Member 20 Years
iTrader: (3)

Joined: Jul 1997
Posts: 2,917
Likes: 1
From: West Islip, Long Island NY
Good Info!
Reply
Old Mar 11, 2008 | 06:37 AM
  #41
KBSRX7's Avatar
Full Member
Tenured Member 10 Years

Joined: Jan 2006
Posts: 235
Likes: 0
From: Blackwood,NJ
I can't believe these rims grew on me. I mean, I want to rock them on daily street riding , not just for the track. Yo anthony Tom's 20B IS CRAZY!!!!!!!! He lives by me and all I hear is what sounds like godzilla on crack roaming the streets! HA HA
Reply
Old Sep 21, 2008 | 10:41 AM
  #42
AnthonyNYC's Avatar
Stay tuned...
Tenured Member 20 Years
iTrader: (3)

Joined: Jul 1997
Posts: 2,917
Likes: 1
From: West Islip, Long Island NY
Bump...
Reply
Old Sep 21, 2008 | 04:22 PM
  #43
Jay7 Nyc's Avatar
Rotary Freak
Tenured Member 10 Years
iTrader: (3)

Joined: Feb 2004
Posts: 1,696
Likes: 0
From: NYC - SFL
ErnieT or Danny, think I can use a 15in front skinnie with a big back spacing to clear my Big Brake Caliper? I really don't want to take off my brakes just to run skinnies...
Reply
Old Sep 21, 2008 | 07:27 PM
  #44
justturbo2's Avatar
Registered User
Tenured Member: 20 Years
iTrader: (4)

Joined: Jan 2005
Posts: 1,576
Likes: 0
From: new york
good info. I will be ordering my front wheels soon.
Reply
Old Sep 21, 2008 | 10:16 PM
  #45
sk8world's Avatar
Chasing numbers
Tenured Member 20 Years
iTrader: (5)

Joined: Apr 2001
Posts: 5,097
Likes: 4
From: Alabama
yeah, sticky this.
Reply
Old Sep 25, 2008 | 04:30 AM
  #46
gusfd3s's Avatar
E85 Addict

Joined: Jun 2007
Posts: 519
Likes: 2
From: Stockholm
Pro star 15x8 5.5bs, no spacer, had to grind down the calipers pretty much though.
