What is this bevel on the rotor housing called?
07-14-17, 08:03 PM
#1
Rotary Freak
Thread Starter
Join Date: Jan 2002
Location: Overland Park, KS
Posts: 2,360
Likes: 0
Received 0 Likes
on
0 Posts
What is this bevel on the rotor housing called?

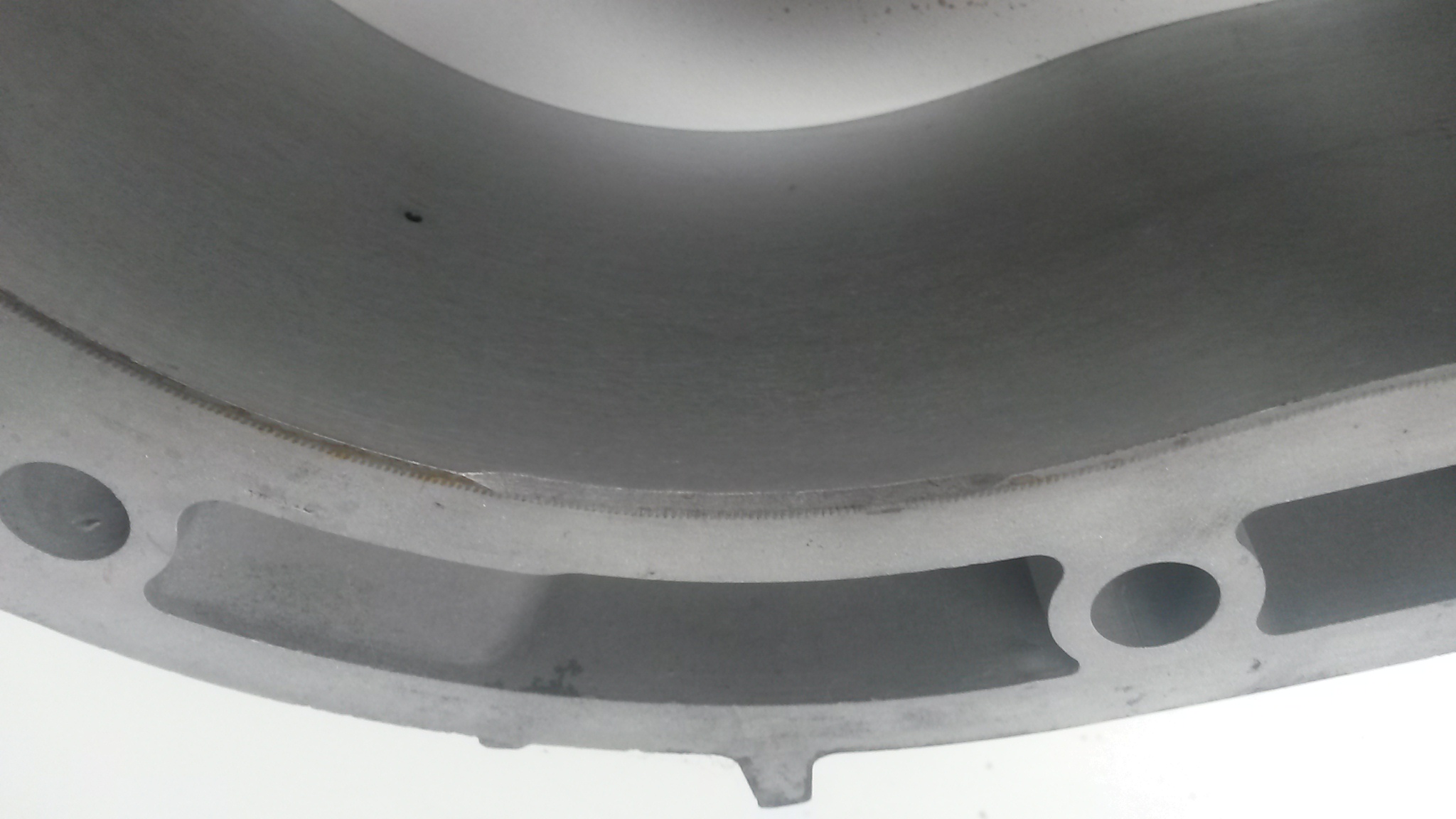

I'm clearing out some extra items in the garage and found a seemingly unique thing on the edge of a pair of rotor housings. I'm looking to know what it's called so I can call it out in the ad. I know I've seen it in the past, but couldn't seem to find it.
07-16-17, 05:33 PM
#3
Old [Sch|F]ool
Yes, relieved for bridge port.
That's rather small to insignificant. Probably because those are for an '86-02 based engine and you can't make a bridge very large without cutting into the coolant groove.
My bridge ports are "small" and they are relieved way more than that. J-bridge ports extend the relief way PAST the water seal and into the water jacket, which is what the J stands for.
That's rather small to insignificant. Probably because those are for an '86-02 based engine and you can't make a bridge very large without cutting into the coolant groove.
My bridge ports are "small" and they are relieved way more than that. J-bridge ports extend the relief way PAST the water seal and into the water jacket, which is what the J stands for.
