Pics of exhaust sleeves in a FD vs Cosmo...??

Thread Tools

Search this Thread

Old 03-25-04, 08:47 AM
  #1
Full Member

Thread Starter

Join Date: Jan 2002
Location: Denmark
Posts: 236
Likes: 0
Received 0 Likes on 0 Posts
Pics of exhaust sleeves in a FD vs Cosmo...??

Hi...

Does anybody have pics of the exhaust sleeves in a Cosmo engine vs a FD engine..

I know there is a big different in the size of these two engines but i need a picture of the different or the size in cm/feet...???

I have a cosmo engine in my FD and i want to make the exhaust sleeves bigger so it is the same as the Fd engine....

Thanx
Old 03-25-04, 02:41 PM
  #2
Queer


Cosmo Donk's Avatar

Join Date: Mar 2001
Location: Formerly in the Ass end of the pacific.
Posts: 742
Likes: 0
Received 0 Likes on 0 Posts
I can help you with the center plate intake ports and the Cosmo exhaust but not the FD exhaust. Cosmo 1st, FD 2nd, Cosmo and FD 3rd (Cosmo is the big one), Cosmo 4th.



Old 03-25-04, 05:39 PM
  #3
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
What in god's name happened to that plate in the 1st picture?!?
Old 03-25-04, 05:47 PM
  #4
OLDROTA


Jaime Enriquez's Avatar

Join Date: Apr 2003
Location: Los Angeles
Posts: 1,389
Likes: 0
Received 1 Like on 1 Post
That's what I want to know.....Shitloads of NOS or 40 lbs? SHEESH!!!
Old 03-25-04, 05:49 PM
  #5
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
Or perhaps a secret Miller-cycle rotary prototype?
Old 03-25-04, 05:59 PM
  #6
I wish I was driving!


Join Date: Dec 2001
Location: BC, Canada
Posts: 5,241
Received 84 Likes on 68 Posts

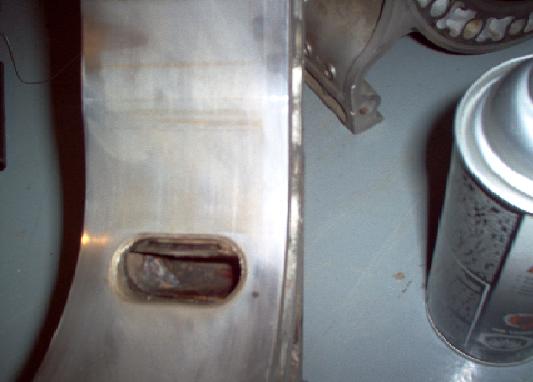

Don't have an FD rotor housing kicking around at the house... but here is a cosmo scrap rotor housing.



Last edited by scathcart; 03-25-04 at 06:09 PM.
Old 03-25-04, 06:05 PM
  #7
I wish I was driving!


Join Date: Dec 2001
Location: BC, Canada
Posts: 5,241
Received 84 Likes on 68 Posts
*whistles*
Old 03-25-04, 06:08 PM
  #8
I wish I was driving!


Join Date: Dec 2001
Location: BC, Canada
Posts: 5,241
Received 84 Likes on 68 Posts
und once more...
Old 03-25-04, 06:59 PM
  #9
Rotary Freak


setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts
Frozen water damage. Here in MN you need to make sure you have plenty of antifreeze in the engine.

What's wrong with that "scrap" cosmo housing?
Old 03-25-04, 07:08 PM
  #10
I wish I was driving!


Join Date: Dec 2001
Location: BC, Canada
Posts: 5,241
Received 84 Likes on 68 Posts
Originally posted by setzep
Frozen water damage. Here in MN you need to make sure you have plenty of antifreeze in the engine.

What's wrong with that "scrap" cosmo housing?
Severe pitting of the aluminum surrounding the exhaust sleeve. Not worth my risk to use, despite its really nice trochoid surface.
