Massive streetport

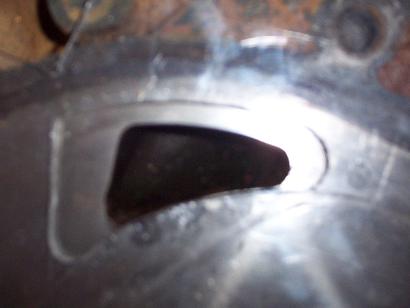

Well i designed this port for a race only 13b running around 15-18 psi boost, i had looked at a picture of judge ito's monster port before making it, hense its giganticness. What i am wonder is if this is extreme over kill, i would like the engine to produce boost extremely quickly as the transmission is a c4 automatic with a 5000 stall converter. Here is a pic of the template i made sitting over an old 1974 13b housing. The opening edge follows the side seal path. And the closing edge is 73 degrees ABDC
#4
Senior Member
Originally Posted by Michael_Rudy
the coner seal is supported, well 1/2 to 2/3's of it is supported
#5
Full Member
Thread Starter
Join Date: Jan 2005
Location: Kelowna, B.C. ,Canada
Posts: 218
Likes: 0
Received 0 Likes
on
0 Posts
i have a hole cut in the middle of the plexi glass it is on and i just it over a rotor in the housing and just spin the rotor and the corner seal is supported the whole intire way. I am going to be using 12a housings so they do have a lot of meat on them for porting i figure i will go over and leave 1-2 mm of thickness and then after that just roll the end over until i get to the end of my port design. Then it will have a nice smooth progressive roll so i won't munch up the side seals
#6
Full Member
Thread Starter
Join Date: Jan 2005
Location: Kelowna, B.C. ,Canada
Posts: 218
Likes: 0
Received 0 Likes
on
0 Posts
i have a hole cut in the middle of the plexi glass it is on and i just it over a rotor in the housing and just spin the rotor and the corner seal is supported the whole intire way. I am going to be using 12a housings so they do have a lot of meat on them for porting i figure i will go over and leave 1-2 mm of thickness and then after that just roll the end over until i get to the end of my port design. Then it will have a nice smooth progressive roll so i won't munch up the side seals.

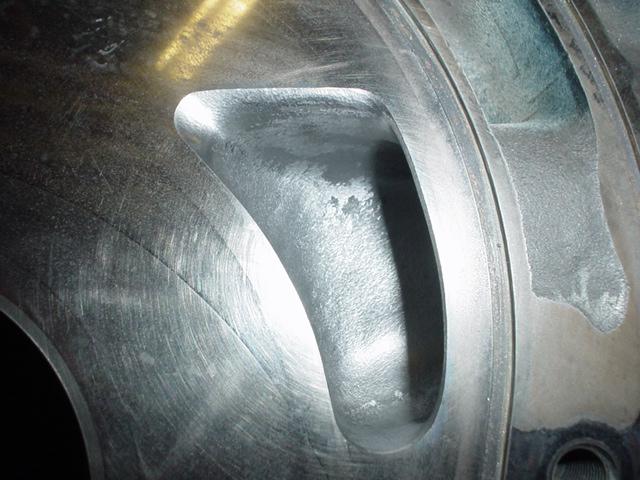

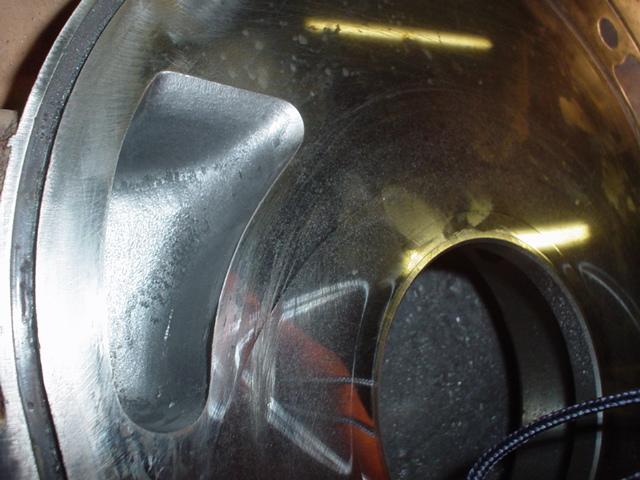

Here are a couple pics of judge itos monster streetports, kind like what i am aiming for.
Here are a couple pics of judge itos monster streetports, kind like what i am aiming for.
#7
Senior Member
Originally Posted by Michael_Rudy
i have a hole cut in the middle of the plexi glass it is on and i just it over a rotor in the housing and just spin the rotor and the corner seal is supported the whole intire way. I am going to be using 12a housings so they do have a lot of meat on them for porting i figure i will go over and leave 1-2 mm of thickness and then after that just roll the end over until i get to the end of my port design. Then it will have a nice smooth progressive roll so i won't munch up the side seals.
Here are a couple pics of judge itos monster streetports, kind like what i am aiming for.
Here are a couple pics of judge itos monster streetports, kind like what i am aiming for.
With most stage 2 ports the side seals are unsuported over the intake except for the leading edge alsways must have support, does that pespex idea leave you with a scribed line from the side seal leading edge?

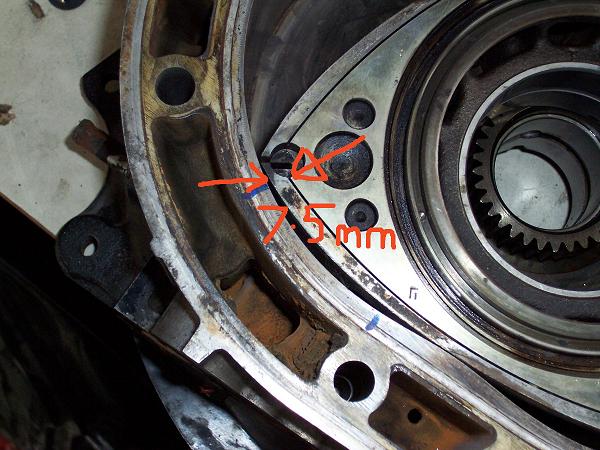

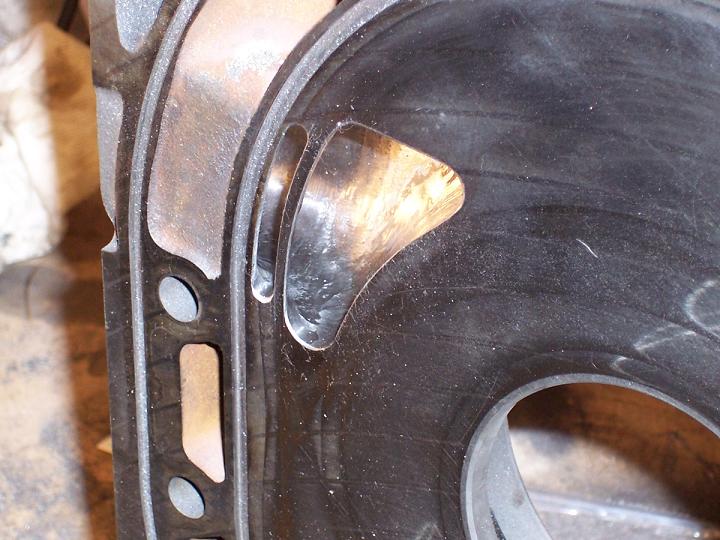

here is a pick of my port. i think youll find it very similer size to judge ito. this is done with the measurement or size calculation and dimesions given above.
Trending Topics
#9
boxed in and drawn out
Join Date: Dec 2003
Location: Bayouself
Posts: 555
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Michael_Rudy
i have a hole cut in the middle of the plexi glass it is on and i just it over a rotor in the housing and just spin the rotor and the corner seal is supported the whole intire way. I am going to be using 12a housings so they do have a lot of meat on them for porting i figure i will go over and leave 1-2 mm of thickness and then after that just roll the end over until i get to the end of my port design. Then it will have a nice smooth progressive roll so i won't munch up the side seals.
Here are a couple pics of judge itos monster streetports, kind like what i am aiming for.
Here are a couple pics of judge itos monster streetports, kind like what i am aiming for.
