First exhaust port job.
#1
First exhaust port job.

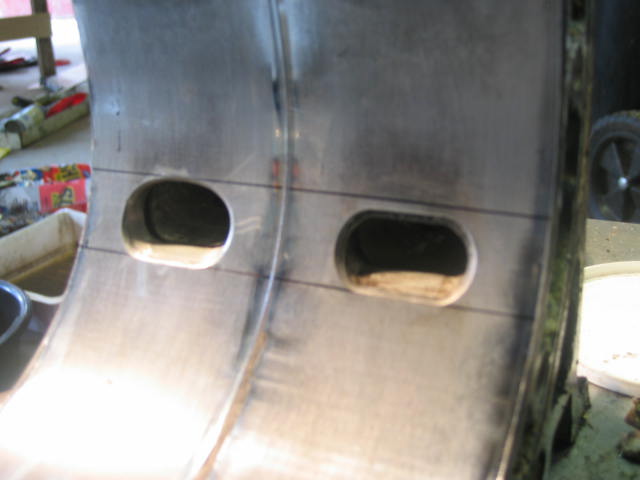

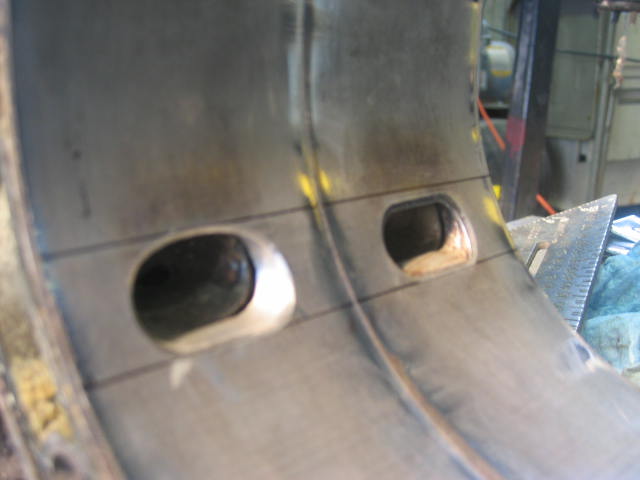

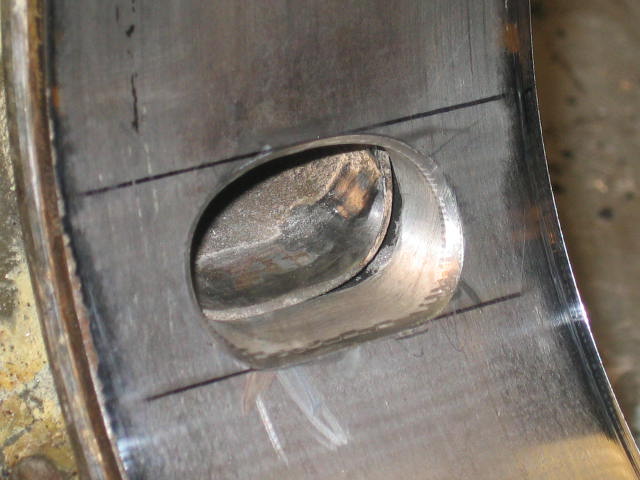

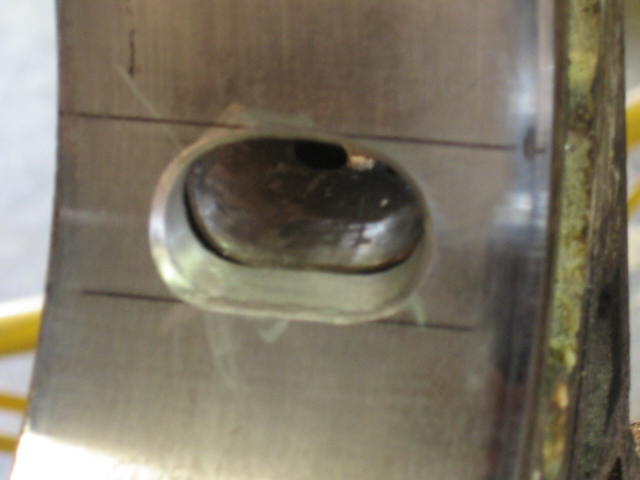

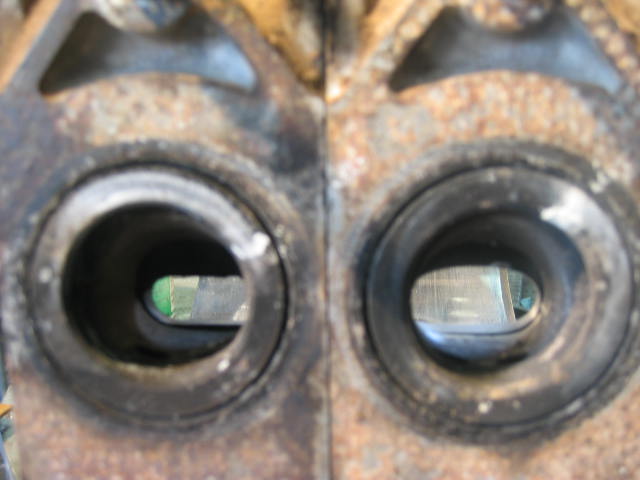

Ok I need some input. I'm in the process of rebuilding my 12A. I decided to experiment on the old unusable housings. I didn't have a template or anything just free hand. I just tried to enlarge and retain the stock oval opening. The upper inside of the port is tapered upward. Basically just seeing if I could port at all. All opinions welcome!
#2
Displacement > Boost
Join Date: Oct 2002
Location: Mississippi
Posts: 3,503
Likes: 0
Received 0 Likes
on
0 Posts
Craftsmanship looks pretty good to me.
Exhaust porting is a black art. Paul Yaw uses a special rotary engine modeled flow bench to test his exhaust ports. It's amazing how the port shape and chamfer radii enhance or disrupt the flow.
http://www.yawpower.com/Flow%20Testing.html
I really want a flow bench now!
Exhaust porting is a black art. Paul Yaw uses a special rotary engine modeled flow bench to test his exhaust ports. It's amazing how the port shape and chamfer radii enhance or disrupt the flow.
http://www.yawpower.com/Flow%20Testing.html
I really want a flow bench now!
