Doweling: machining advice?
#1
Hot Dicken's Cider
Thread Starter
iTrader: (2)
Join Date: May 2003
Location: Marion, Ohio
Posts: 1,428
Likes: 0
Received 0 Likes
on
0 Posts
Doweling: machining advice?
I'm about to add two extra dowels per rotor to my motor. What is the best way to go about milling and reaming the holes? Do you drill through the housing and into the iron, then ream and flip the housing and do the other iron? Or just drill through the center iron/housing/into the front(or rear) and ream at the same time? How deep into the front iron are the holes usually drilled?
My plan was to drill through the center iron through the housing and about 1/4" into the front iron, then ream to 15mm. I would then clamp the rear stack together and indicate in on the reamed center iron holes and repeat. Probably going to grind stock dowels to 0.001" under and to whatever length I need.
I've never seen a write up of this, so I'm just assuming this is how it is done. Any info or corrections would be most helpful. Maybe I'll make a write up while I'm doing it.
My plan was to drill through the center iron through the housing and about 1/4" into the front iron, then ream to 15mm. I would then clamp the rear stack together and indicate in on the reamed center iron holes and repeat. Probably going to grind stock dowels to 0.001" under and to whatever length I need.
I've never seen a write up of this, so I'm just assuming this is how it is done. Any info or corrections would be most helpful. Maybe I'll make a write up while I'm doing it.
#2
Red Pill Dealer
iTrader: (10)
#3
Hot Dicken's Cider
Thread Starter
iTrader: (2)
Join Date: May 2003
Location: Marion, Ohio
Posts: 1,428
Likes: 0
Received 0 Likes
on
0 Posts
I've read that write-up before, but I plan on running the dowel through the housing so that both ends of the dowel are embedded in the irons, much like stock.
#4
Senior Member

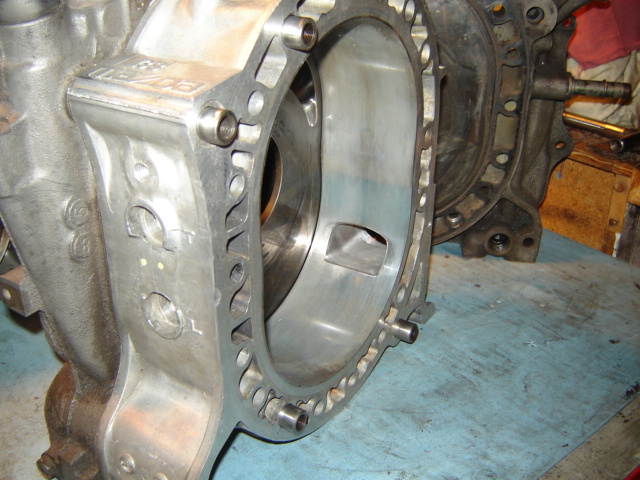

I am assuming these are going in place of bolt holes. The problem with drilling is that the drill will use the original hole as a pilot and just follow its path. If the holes aren't lined up perfectly you will not have a straight hole. An end mill has much less tendency to follow the hole path especially if you plunge slow. It is meant to cut horizontally. A long end mill will however deflect more than a short one so the idea is to keep the shortest stack of parts and have a good way to re-find the hole location you want to use.
I would stack the middle and rear iron with the original dowels in place and use an end mill to establish a good base lined hole. Now stack the housing under the middle iron and re-find the new hole center of the iron with a dowel chucked up (or better yet colletted). Now you can mill a matched rotor housing hole.
Ok now you have two irons and a housing with nice matched and aligned but undersized holes. Stack all three, re-find the hole center and drill through all 3 with a drill that is properly sized for the finish reamer. The drill shouldn't wander since the known straight hole will act as its guide. Now you can ream to size and have a beer.
I would stack the middle and rear iron with the original dowels in place and use an end mill to establish a good base lined hole. Now stack the housing under the middle iron and re-find the new hole center of the iron with a dowel chucked up (or better yet colletted). Now you can mill a matched rotor housing hole.
Ok now you have two irons and a housing with nice matched and aligned but undersized holes. Stack all three, re-find the hole center and drill through all 3 with a drill that is properly sized for the finish reamer. The drill shouldn't wander since the known straight hole will act as its guide. Now you can ream to size and have a beer.
#5
Rotary Enthusiast
iTrader: (1)
I'm about to add two extra dowels per rotor to my motor. What is the best way to go about milling and reaming the holes? Do you drill through the housing and into the iron, then ream and flip the housing and do the other iron? Or just drill through the center iron/housing/into the front(or rear) and ream at the same time? How deep into the front iron are the holes usually drilled?
My plan was to drill through the center iron through the housing and about 1/4" into the front iron, then ream to 15mm. I would then clamp the rear stack together and indicate in on the reamed center iron holes and repeat. Probably going to grind stock dowels to 0.001" under and to whatever length I need.
I've never seen a write up of this, so I'm just assuming this is how it is done. Any info or corrections would be most helpful. Maybe I'll make a write up while I'm doing it.
My plan was to drill through the center iron through the housing and about 1/4" into the front iron, then ream to 15mm. I would then clamp the rear stack together and indicate in on the reamed center iron holes and repeat. Probably going to grind stock dowels to 0.001" under and to whatever length I need.
I've never seen a write up of this, so I'm just assuming this is how it is done. Any info or corrections would be most helpful. Maybe I'll make a write up while I'm doing it.
