What do you guys think of this car?

Old 12-12-07, 10:46 PM
  #1
OC_
I'm bastardizing my car!
5 Year Member
Thread Starter

OC_'s Avatar

Join Date: Sep 2002
Location: Naperville, IL.
Posts: 1,258
Likes: 0
Received 0 Likes on 0 Posts
What do you guys think of this car?

I posted this in here because us racer types seem to know more about these kinds of things than people in general forums.

http://www.superlitecars.com/coupe_images.html

What do you guys think of this car?

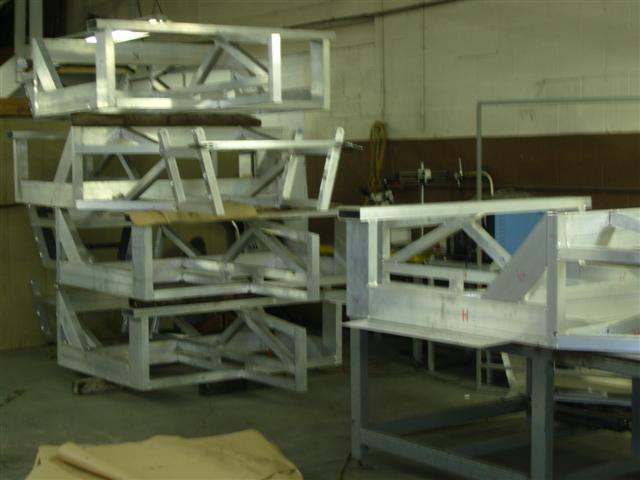

make sure you examine all the images where the frame is exposed.

I ask because i'm interested in what this manufacture has to offer, but when i see some things about this car, it just makes me cringe a little.

Heres some more pics which are not on that website.

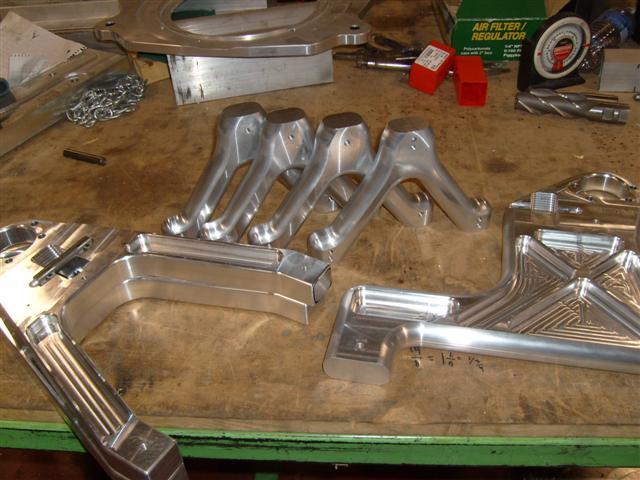

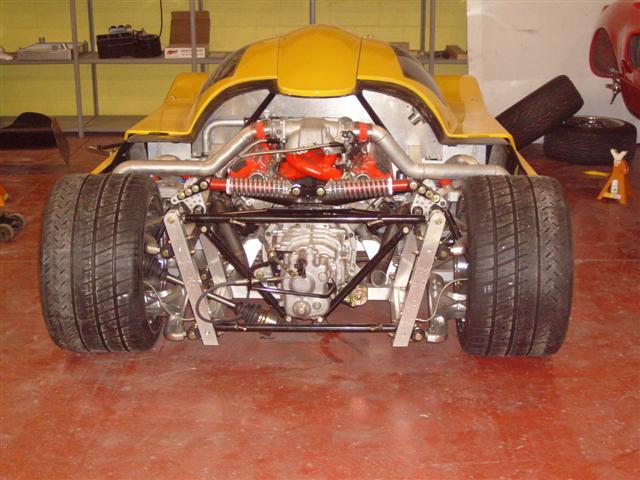

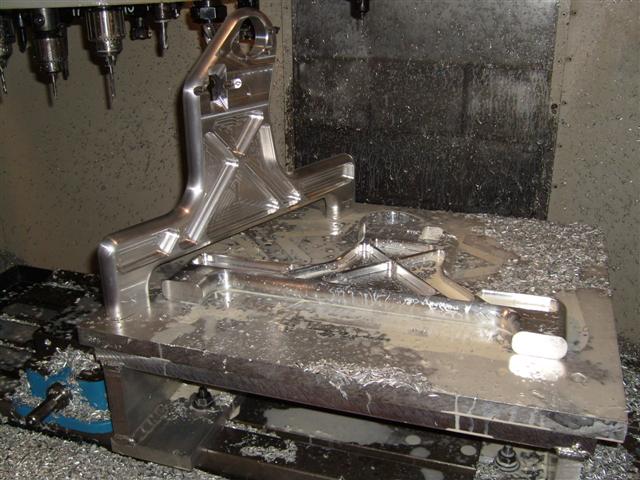

that funky looking control arm is so wider rear tires can be used; a strange design, no? I would love to put that into solid works and run an FEA on it. They have normal A shaped arms, but you have to run a smaller tire.
Attached Thumbnails What do you guys think of this car?-door-pics-008-small-.jpg   What do you guys think of this car?-door-pics-017-small-.jpg   What do you guys think of this car?-door-pics-020-small-.jpg   What do you guys think of this car?-s7300447-small-.jpg
OC_ is offline
Old 12-13-07, 12:37 AM
  #2
Lives on the Forum
10 Year Member

Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 1 Like on 1 Post
I don't have time go into detail right now, but by the looks of it they need to hire an engineer.
Black91n/a is offline
Old 12-13-07, 02:39 AM
  #3
Kim
OBEY YOUR MAZDA

Kim's Avatar

Join Date: Oct 2002
Location: Denmark
Posts: 3,059
Likes: 0
Received 0 Likes on 0 Posts
Kim is offline
Old 12-13-07, 04:06 AM
  #4
Lives on the Forum
10 Year Member

Join Date: Feb 2001
Location: n
Posts: 26,664
Likes: 0
Received 4 Likes on 4 Posts
What makes you cringe?


-Ted
RETed is offline
Old 12-13-07, 07:55 AM
  #5
Old Rotary Dog
10 Year Member

wrankin's Avatar

Join Date: Feb 2003
Location: Durham, NC
Posts: 1,461
Likes: 0
Received 2 Likes on 2 Posts
Kit cars and clones are always interesting - you always have to worry about if the designers have the engineering correct. Many of these companies are pretty fly-by-night so you also have to worry about long term part availability and support.

For me the warning lights were set off by the fact that these guys seem to be producing clones of existing semi-kit manufactures - the Arial Atom and what pretty much looks like an Ultima GTR. If they can't come up with an original design, then I have to really questions the engineering efforts behind their cars.

Last edited by wrankin; 12-13-07 at 08:18 AM.
wrankin is offline
Old 12-13-07, 09:48 AM
  #6
OC_
I'm bastardizing my car!
5 Year Member
Thread Starter

OC_'s Avatar

Join Date: Sep 2002
Location: Naperville, IL.
Posts: 1,258
Likes: 0
Received 0 Likes on 0 Posts
Steve Fox, a Formula SAE design judge and long time race car engineer one told me "Square tubing doesn't belong in a race car..." This car is only square tubing! Yes, I know that square is easy to manufacture, but its inferior to round in pretty much every way. I don't know the whole deal with billet control arms, too. they look great and all, but could it be that they are actually heavier than steel tube ones. Just look for bullet arms on any pro race car. Indy? don't they still use steel? That might be mandated, but i don't know. Finally, the roll hoop support doesn't even connect to a node. Maybe I'm over thinking things, but it seems to me that these are basic design issues...
OC_ is offline
Old 12-13-07, 10:26 AM
  #7
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 4 Likes on 4 Posts
Originally Posted by OC_ View Post
I don't know the whole deal with billet control arms, too. they look great and all, but could it be that they are actually heavier than steel tube ones. Just look for bullet arms on any pro race car. Indy? don't they still use steel? That might be mandated, but i don't know.
Billet is a process, not a metal type (i.e. you can have billet steel, or billet aluminum). However, generally since it starts out as a "chunk", it won't be hollow which "could" be stronger.
Mahjik is offline
Old 12-13-07, 10:39 AM
  #8
Lives on the Forum
10 Year Member

Join Date: Feb 2001
Location: n
Posts: 26,664
Likes: 0
Received 4 Likes on 4 Posts
Originally Posted by OC_ View Post
Steve Fox, a Formula SAE design judge and long time race car engineer one told me "Square tubing doesn't belong in a race car..." This car is only square tubing! Yes, I know that square is easy to manufacture, but its inferior to round in pretty much every way. I don't know the whole deal with billet control arms, too. they look great and all, but could it be that they are actually heavier than steel tube ones. Just look for bullet arms on any pro race car. Indy? don't they still use steel? That might be mandated, but i don't know. Finally, the roll hoop support doesn't even connect to a node. Maybe I'm over thinking things, but it seems to me that these are basic design issues...
It all sounds like strength issues to me?
Sure, I'm not going to argue square (rectangular) versus round tubing, but welding box tubing is a lot easier than fish-mouthing or notching round tubing?
Unless you're going to x-ray the welds, cutting and fitting round tube is a royal pain in the ***!

I can't comment on whether everything is strong enough, since there is no details on how heavy everything is?

As for the CNC'd arms, I don't see an issue of strength there. In fact, I'm sure the CNC'd billet arm is probably stronger than a welded tube arm of the same dimensions?
In fact, I dunno why they went this route, since welded tube arms would've been easier and lighter?
I think they just wanted to show off their CNC capability?


-Ted
RETed is offline
Old 12-13-07, 01:55 PM
  #9
Lives on the Forum
10 Year Member

Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 1 Like on 1 Post
Square tubing isn't necessarily evil, just not as efficient as round. I don't see any structure in the roof, not good for stiffness or strength. There's also not much triangulation. The rear section also seems to be at least partly bolted together, not good. Having bolt in stiffening bits is fine, but not the whole thing.

I don't like how the lower A arms are designed with those wide mounting points cantilevered out from the A. They'd probably be lighter and they'd certainly be cheaper in tubular steel. There's some large areas that aren't milled at all, even way out at the wheel end, hurting unsprung weight. With a 2 piece A arm it's also possible to make the alignment adjustable without having to undo any fasteners. If they wanted to make those aluminum arms as best as possible, they should have machined from both sides, not just pocket them from one side.
Black91n/a is offline
Old 12-13-07, 02:16 PM
  #10
OC_
I'm bastardizing my car!
5 Year Member
Thread Starter

OC_'s Avatar

Join Date: Sep 2002
Location: Naperville, IL.
Posts: 1,258
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RETed View Post
It all sounds like strength issues to me?
Sure, I'm not going to argue square (rectangular) versus round tubing, but welding box tubing is a lot easier than fish-mouthing or notching round tubing?
Unless you're going to x-ray the welds, cutting and fitting round tube is a royal pain in the ***!

I can't comment on whether everything is strong enough, since there is no details on how heavy everything is?

As for the CNC'd arms, I don't see an issue of strength there. In fact, I'm sure the CNC'd billet arm is probably stronger than a welded tube arm of the same dimensions?
In fact, I dunno why they went this route, since welded tube arms would've been easier and lighter?
I think they just wanted to show off their CNC capability?


-Ted

Well, i guess its not so much a question of stregth but more of a quesiton of efficiency and good engineering. I'm sure everything is plenty strong, those control arms look like they could hold up the world compaird to some of the stuff iv seen. But thats the point, I think the goal of any good race car is to weigh as little as possiable. Notice it doesnt talk about the weight of the car on the site.
OC_ is offline
Old 12-13-07, 03:04 PM
  #11
Rotary Enthusiast
10 Year Member

Eggie's Avatar

Join Date: Jan 2002
Location: 15143
Posts: 859
Likes: 0
Received 0 Likes on 0 Posts
Click over to the main RCR site and check out the other models. The 917's chassis looks much, much better.
Eggie is offline
Old 12-13-07, 05:26 PM
  #12
OC_
I'm bastardizing my car!
5 Year Member
Thread Starter

OC_'s Avatar

Join Date: Sep 2002
Location: Naperville, IL.
Posts: 1,258
Likes: 0
Received 0 Likes on 0 Posts
yeah, the 917 they have pictured is a tube for tube copy of the original. They also have a 917 build like their gt40 that costs less then half as much and that humans actually fit in.
OC_ is offline
Old 12-13-07, 06:48 PM
  #13
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 4 Likes on 4 Posts
Arrow

Look like they do some good kits. Here's a build of their GT40 kit:

http://www.gt40s.com/forum/gt40-buil...-mccall-9.html
Mahjik is offline
Old 12-13-07, 07:25 PM
  #14
OC_
I'm bastardizing my car!
5 Year Member
Thread Starter

OC_'s Avatar

Join Date: Sep 2002
Location: Naperville, IL.
Posts: 1,258
Likes: 0
Received 0 Likes on 0 Posts
ok, screw the square tube and heavy looking billet arms, he says the car weighs 1400lbs turn key minus (complete minus engine and trans). Whatever engine you put in that car is up to you but it look like these could weigh less then 2000lbs...
OC_ is offline
Old 12-14-07, 05:27 AM
  #15
Lives on the Forum
10 Year Member

Join Date: Feb 2001
Location: n
Posts: 26,664
Likes: 0
Received 4 Likes on 4 Posts
Rears look like double wishbone with a bellcrank damper system...
So, the arms are only going to see lateral tension or compression loads.
They should not be seeing bending loads, so I think they are overkill, especially with that low chassis weight...

The box tube for the chassis itself looks like Al?


-Ted
RETed is offline
Old 12-14-07, 01:52 PM
  #16
Lives on the Forum
10 Year Member

Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 1 Like on 1 Post
They'll also be seeing fore/aft loads from braking and acceleration that translates into ground plane bending.

If you want a light, powerful, cheap supercar the Factory Five Racing GTM looks pretty awesome to me. IIRC it's about $25k for the kit, then add in a donor C5 Corvette and a Porsche G50 transaxle and you've got a giant killer.
Black91n/a is offline
Old 12-14-07, 11:16 PM
  #17
OC_
I'm bastardizing my car!
5 Year Member
Thread Starter

OC_'s Avatar

Join Date: Sep 2002
Location: Naperville, IL.
Posts: 1,258
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RETed View Post
Rears look like double wishbone with a bellcrank damper system...
So, the arms are only going to see lateral tension or compression loads.
They should not be seeing bending loads, so I think they are overkill, especially with that low chassis weight...

The box tube for the chassis itself looks like Al?


-Ted
its all aluminum.

Notice the rear box is pretty wide, thats because its designed so that even a front drive engine an trans can be mounted in it. Its a neat concept that allows for many different engine and trans combos.
OC_ is offline
Old 12-15-07, 04:15 PM
  #18
Junior Member

Join Date: Nov 2007
Location: AUT
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Looks like lot of work
Fast Cars is offline
Old 01-02-08, 12:30 PM
  #19
My other car is a TVR
5 Year Member

Ctrl's Avatar

Join Date: Jun 2005
Location: Calgary
Posts: 261
Likes: 0
Received 0 Likes on 0 Posts
Thrown into the discussion FWIW.

I've only had one car with a tube frame chassis but it seems to get the job done.

The following chassis pics are of a car LIKE mine, but not mine.
The pics are large so I'll just link.

Pic 1
Pic 2
Ctrl is offline
