Wanted Weber Cold Air Box Ideas

Old 08-09-08, 08:38 PM
  #1
Junior Member
Thread Starter

Join Date: Feb 2008
Location: Amarillo TX
Posts: 28
Likes: 0
Received 0 Likes on 0 Posts
TX Wanted Weber Cold Air Box Ideas

Looking for ideas on making or buying a cold air box for 48IDA Weber on a 12a.
Thank you
RX73 is offline
Old 08-11-08, 06:03 PM
  #2
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2004
Location: Rocket City, Alabama
Posts: 1,035
Likes: 0
Received 1 Like on 1 Post
Different intakes and porting places the carb at different locations; no one air box will fit all motors and intake manifolds. You need to figure out the hood clearance you have between the bottom surface of the air box (which is also the same surface as the air horn flange) and the hood. It is hard getting enough hood clearance. One way to measure is to set a base plate on your carb. Make tall cones of modeling clay, and close the hood, mashing the cones down. Now measure how tall each cone is, and then you know how much hood clearance you have at each location you put a cone.

Note that the hood curves left to right, and also curves down in the front. You have less hood clearance in the front, and less hood clearance on the passenger side of the hood.

I use the hood as the lid to my air box. I put a piece of soft foam as a seal around the top of the box. When the hood closes, it is all sealed up.

I have photos, but they are too big to attach. PM me with your email address, and I will email the photos to you.
speedturn is offline
Old 08-13-08, 02:31 AM
  #3
OLDROTA
5 Year Member

Jaime Enriquez's Avatar

Join Date: Apr 2003
Location: Los Angeles
Posts: 1,389
Likes: 0
Received 1 Like on 1 Post

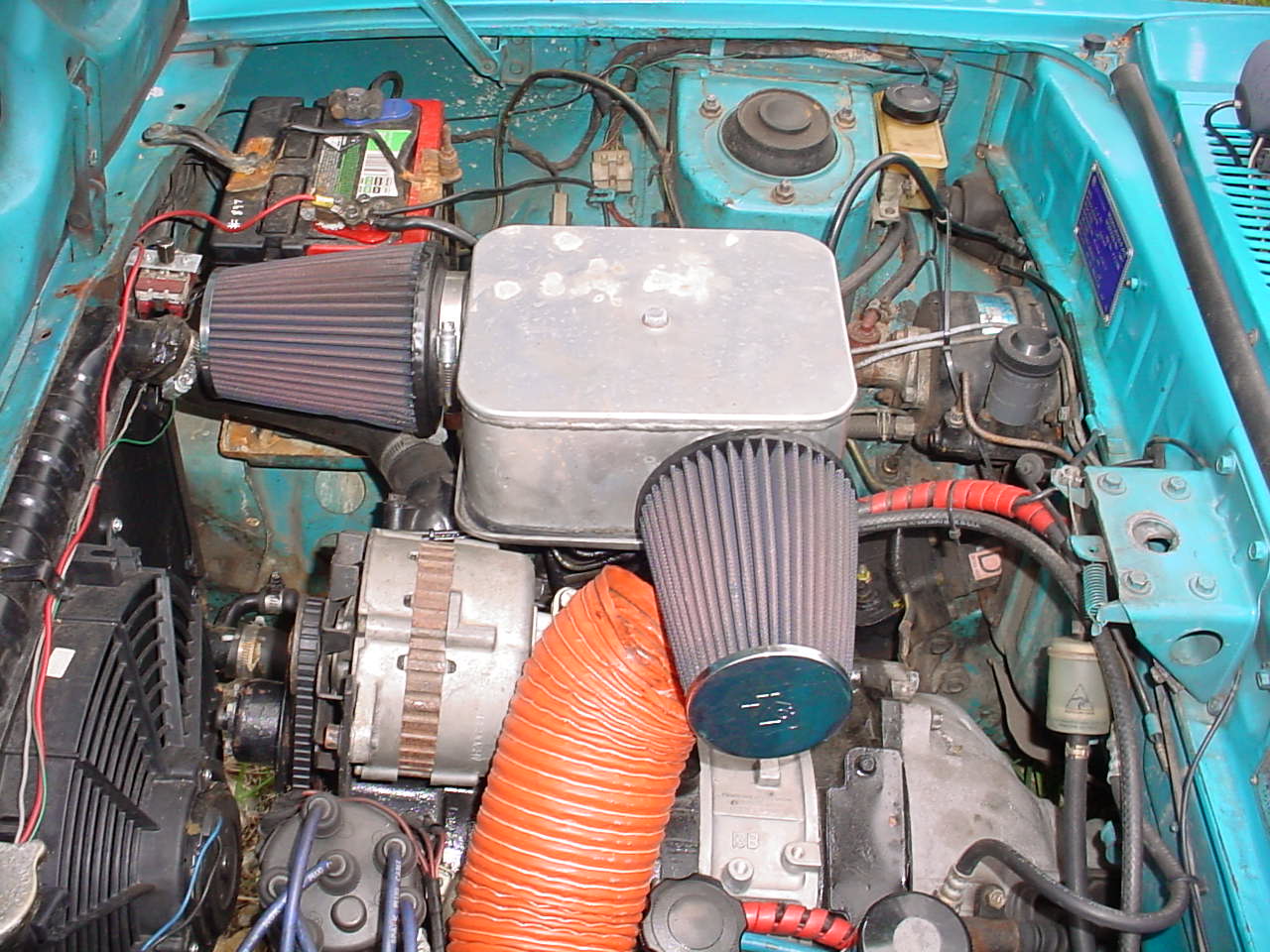

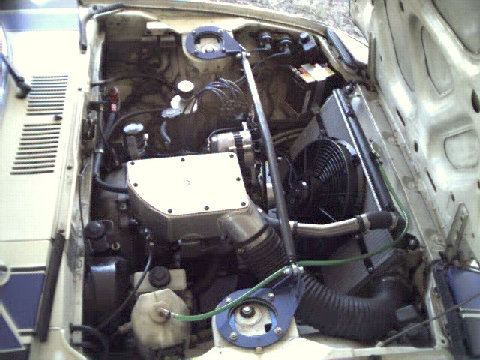

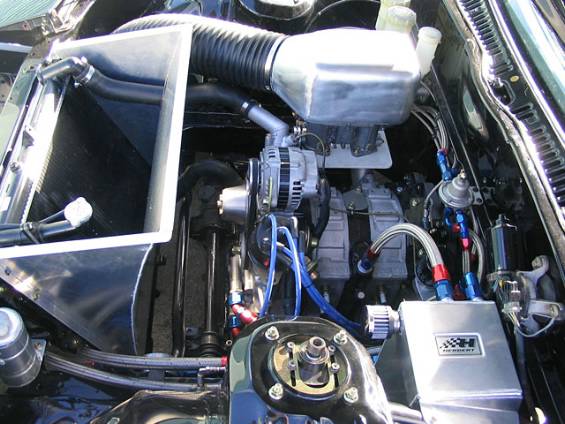

Xtreme Rotaries in OZ makes a fiberglass version...here are some other pics I found...
Attached Thumbnails Wanted Weber Cold Air Box Ideas-12859686full8fa.jpg   Wanted Weber Cold Air Box Ideas-enginebayvo1.jpg   Wanted Weber Cold Air Box Ideas-page6.jpg
Jaime Enriquez is offline
Old 08-14-08, 02:53 AM
  #4
OLDROTA
5 Year Member

Jaime Enriquez's Avatar

Join Date: Apr 2003
Location: Los Angeles
Posts: 1,389
Likes: 0
Received 1 Like on 1 Post
Pirkka's is also very clean.....and you know it works 'cause he WINS!http://www.youtube.com/watch?v=I9WXE...eature=related
Jaime Enriquez is offline
Old 08-16-08, 09:27 PM
  #5
Junior Member
Thread Starter

Join Date: Feb 2008
Location: Amarillo TX
Posts: 28
Likes: 0
Received 0 Likes on 0 Posts
Thanks for the info and ideas......
Guess I will make my own
RX73 is offline
Old 08-17-08, 11:59 AM
  #6
Racing is life!
10 Year Member
iTrader: (2)

cpa7man's Avatar

Join Date: Jan 2003
Location: Grapevine, TX
Posts: 2,174
Likes: 0
Received 0 Likes on 0 Posts

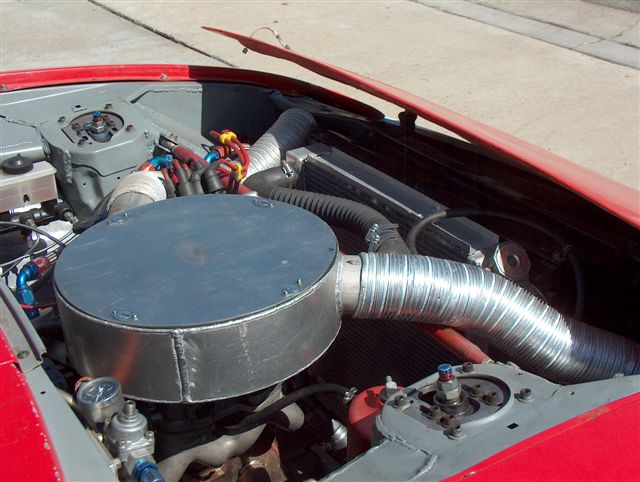

Jaime do you know if Pirkka sells those? Very nice car for sure. I checked to see if Xtreme rotaries had one they made, but the site is under construction. I'm in the market for one as well, or spend a quite a bit to have one fabbed for me. Here is another example that's on my EP car. Not quite cold air as I would like, but I'm working on a duct where the lights are.
Attached Thumbnails Wanted Weber Cold Air Box Ideas-copy-hpim0700.jpg
cpa7man is offline
Old 08-17-08, 07:28 PM
  #7
OLDROTA
5 Year Member

Jaime Enriquez's Avatar

Join Date: Apr 2003
Location: Los Angeles
Posts: 1,389
Likes: 0
Received 1 Like on 1 Post
Originally Posted by cpa7man View Post
Jaime do you know if Pirkka sells those? Very nice car for sure. I checked to see if Xtreme rotaries had one they made, but the site is under construction. I'm in the market for one as well, or spend a quite a bit to have one fabbed for me. Here is another example that's on my EP car. Not quite cold air as I would like, but I'm working on a duct where the lights are.
I don't think Prikka "makes and sells" anything...I believe he is just the driver..and one hellova driver he is! The one you pictured would be real easy to fab up anyway....the hardest part is sketching out the baseplate with the proper holes and making sure it clears the hood.

The Xtreme version looks like the first pic, but its fiberglass...and uses straps I believe to close it up....or latches.
Jaime Enriquez is offline
Old 08-21-08, 02:34 AM
  #8
10a *****
10 Year Member

Join Date: Jan 2004
Location: NZ
Posts: 306
Likes: 0
Received 0 Likes on 0 Posts
I have a carbon fibre one for my 3:



Very light and strong (plus bling factor!!)
re10 is offline
Old 08-21-08, 04:07 AM
  #9
OLDROTA
5 Year Member

Jaime Enriquez's Avatar

Join Date: Apr 2003
Location: Los Angeles
Posts: 1,389
Likes: 0
Received 1 Like on 1 Post
Originally Posted by re10 View Post
I have a carbon fibre one for my 3:



Very light and strong (plus bling factor!!)
That is sick...where and how [email protected]!?!
Jaime Enriquez is offline
Old 08-21-08, 11:10 AM
  #10
Brap Brap, Fap Fap
iTrader: (7)

Shainiac's Avatar

Join Date: Jun 2006
Location: Lyme, CT
Posts: 1,488
Received 9 Likes on 9 Posts
A few years ago, someone posted a writeup of their sheet metal airbox that was ducted into the scoop on a TII hood. IIRC, they simply used a K&N panel filter between the box and the hood. Like I said, it has been a few years since I saw this and it might have even been in another forum.
Shainiac is offline
Old 08-21-08, 02:25 PM
  #11
10a *****
10 Year Member

Join Date: Jan 2004
Location: NZ
Posts: 306
Likes: 0
Received 0 Likes on 0 Posts
Jaime,

New Zealand, and expensive! There is an email address to buy these on the Car Domain link (pg 5 I think) below:

V
V
V
re10 is offline
Old 08-21-08, 04:01 PM
  #12
Racing is life!
10 Year Member
iTrader: (2)

cpa7man's Avatar

Join Date: Jan 2003
Location: Grapevine, TX
Posts: 2,174
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by re10 View Post
Jaime,

New Zealand, and expensive! There is an email address to buy these on the Car Domain link (pg 5 I think) below:

V
V
V
Interesting. It uses the standard K&N filter for the IDA series, and the lower part of the filter housing. Thanks for the link to the great pictures. As speedturn discussed, clearence is going to always be an issue.
cpa7man is offline
Old 09-17-08, 01:11 PM
  #13
CPS Motorsport
5 Year Member
iTrader: (5)

tigermack's Avatar

Join Date: Jun 2006
Location: Fremont, CA
Posts: 1,114
Received 0 Likes on 0 Posts
Wonder why my bro didn't look into this...
tigermack is offline
Old 01-15-09, 06:51 PM
  #14
The Shadetree Project
iTrader: (40)

Hyper4mance2k's Avatar

Join Date: Jul 2002
Location: District of Columbia
Posts: 7,301
Received 1 Like on 1 Post
I had a similar box on my FB, but it has a single 3" pipe and a K&N cone filter on it. It flowed so poorly that the car wouldn't rev past 7k... Now I'm in the process of designing a new box, so I'm bumping this incase people have more pictures of other ideas.
Hyper4mance2k is offline
Old 02-13-09, 03:20 PM
  #15
The Shadetree Project
iTrader: (40)

Hyper4mance2k's Avatar

Join Date: Jul 2002
Location: District of Columbia
Posts: 7,301
Received 1 Like on 1 Post
I'm going to be switching to the bigger velocity stacks http://www.thesamba.com/vw/classifie...l.php?id=50845 so I was considering using one of K&N's sprint car air boxes and was wondering if anyone has used them and seen how they mount. The website doesn't really contain that much info.
http://www.knfilters.com/search/prod...?Prod=100-8569

I'm currently using the stock stacks and a custome air box that flows like crap...
Hyper4mance2k is offline
