Racing Transmissions
#1
Senior Member
Thread Starter
Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes
on
0 Posts
Racing Transmissions
Hey fellows. Just thought I would share my experiences with road racing and transmissions.
For the first five years of road racing I ran the stock TII gearboxes. There were a few good things and a few bad things. I know you can get a version of the T5 with a better shifter offset, but to date I have yet to find one.
Stock TII:
The Good:
-Bolts right up
-Can handle up to 300-350 rwhp
-Reasonably light
The Bad:
-Third gear blows after a while above 350 rwhp. (We've blown up a number of them in FC's and FD's)
-Shifter is sloppy
-Gear selection is horrible (3.483, 2.015, 1.391, 1.00, .719) (this is the later TII and FD ratios)
T5:
The Good:
-Easily available adapters
-Gear ratios in the Ford motorsports gear box are better (2.95, 1.94, 1.34, 1.00 .63)
-Fits in transmission tunnel with hole cut for shifter further forward and goofy shifter extension)
-Can fit a Pro 5.0 shifter and shifts well at lower rpm.
-You can buy them new for $1300 and they are easily sourced.
The Bad:
-You need to cut a hole for the shifter
-Doesn't like shifting at high rpm (which can lead to bent shift forks)
-Can hold about 350-400 rwhp before you blow 3rd gear. (again, after a while at power)
-You need to build a custom driveshaft and transmission mount
-You need to buy/build a bellhousing adapter and a new clutch
-You have to remove the pinion bearing from the eccentric shaft or cut down the input shaft
T5 with G-force kit:
The Good:
-Easily available adapters
-Gear ratios are excellent (2.42, 1.53, 1.23, 1.00 .90)
-Fits in transmission tunnel with hole cut for shifter further forward and goofy shifter extension)
-Can fit a Pro 5.0 shifter and shifts are amazing.
-You can buy them from G-force for around $3500.
The Bad:
-You need to cut a hole for the shifter
-Can hold about 400-450 rwhp before you blow 3rd gear.
-You need to build a custom driveshaft and transmission mount
-You need to buy/build a bellhousing adapter and a new clutch
-You have to remove the pinion bearing from the eccentric shaft or cut down the input shaft
Those are the transmissions I've had experience with. I just took 3rd gear out of my G-force T5 at the recent Edmonton Indy Race. I was running 18 lbs of boost and putting down about 460 hp at the wheels through Yokohama 280/650/18 slicks (they don't spin). I'll be rebuilding the T5, for the second time and starting to think about other options. I'd like to know what experience other people have ahad with the T56, Tremec TKO, etc.. I'm personally leaning towards a Jerico, but the $5K for the transmission and around $2K for the adapting hardware are giving me pause. I've also considered the G Force GF-5R as an option, but the costs are pretty much the same as the Jerico.
Cheers,
-Trent
For the first five years of road racing I ran the stock TII gearboxes. There were a few good things and a few bad things. I know you can get a version of the T5 with a better shifter offset, but to date I have yet to find one.
Stock TII:
The Good:
-Bolts right up
-Can handle up to 300-350 rwhp
-Reasonably light
The Bad:
-Third gear blows after a while above 350 rwhp. (We've blown up a number of them in FC's and FD's)
-Shifter is sloppy
-Gear selection is horrible (3.483, 2.015, 1.391, 1.00, .719) (this is the later TII and FD ratios)
T5:
The Good:
-Easily available adapters
-Gear ratios in the Ford motorsports gear box are better (2.95, 1.94, 1.34, 1.00 .63)
-Fits in transmission tunnel with hole cut for shifter further forward and goofy shifter extension)
-Can fit a Pro 5.0 shifter and shifts well at lower rpm.
-You can buy them new for $1300 and they are easily sourced.
The Bad:
-You need to cut a hole for the shifter
-Doesn't like shifting at high rpm (which can lead to bent shift forks)
-Can hold about 350-400 rwhp before you blow 3rd gear. (again, after a while at power)
-You need to build a custom driveshaft and transmission mount
-You need to buy/build a bellhousing adapter and a new clutch
-You have to remove the pinion bearing from the eccentric shaft or cut down the input shaft
T5 with G-force kit:
The Good:
-Easily available adapters
-Gear ratios are excellent (2.42, 1.53, 1.23, 1.00 .90)
-Fits in transmission tunnel with hole cut for shifter further forward and goofy shifter extension)
-Can fit a Pro 5.0 shifter and shifts are amazing.
-You can buy them from G-force for around $3500.
The Bad:
-You need to cut a hole for the shifter
-Can hold about 400-450 rwhp before you blow 3rd gear.
-You need to build a custom driveshaft and transmission mount
-You need to buy/build a bellhousing adapter and a new clutch
-You have to remove the pinion bearing from the eccentric shaft or cut down the input shaft
Those are the transmissions I've had experience with. I just took 3rd gear out of my G-force T5 at the recent Edmonton Indy Race. I was running 18 lbs of boost and putting down about 460 hp at the wheels through Yokohama 280/650/18 slicks (they don't spin). I'll be rebuilding the T5, for the second time and starting to think about other options. I'd like to know what experience other people have ahad with the T56, Tremec TKO, etc.. I'm personally leaning towards a Jerico, but the $5K for the transmission and around $2K for the adapting hardware are giving me pause. I've also considered the G Force GF-5R as an option, but the costs are pretty much the same as the Jerico.
Cheers,
-Trent
#2
No One Important
Join Date: Aug 2011
Location: Edmonton, Kanata
Posts: 35
Likes: 0
Received 0 Likes
on
0 Posts
wow, nice timing Trent... I was actually just looking for this info over the weekend. Picked up an FC last week to use next season as I am retiring the Evo after this fridays event.
Such expensive options, might keep my cheap butt around 300 horsies so I can use a more economical transmission.
Such expensive options, might keep my cheap butt around 300 horsies so I can use a more economical transmission.
#3
All out Track Freak!
iTrader: (263)
Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,672
Received 412 Likes
on
250 Posts
I just lost 3rd gear for the 3rd time after turning up the boost a little bit. From 12 psi to 14 and boom lost 3rd gear at about 7500 rpms. It was really REALLY HOT. I'm thinking if I add a trans cooler it'll keep things from expanding as much or keep the gears tighter under load. Have you tried running a good gear oil cooler on any or all of those boxes?
This was a nice trans, shifted well w/ no noise so it definitely sucked
This was a nice trans, shifted well w/ no noise so it definitely sucked
#4
Senior Member
trent
have you considered the supra turbo getrag tranny. they can hold 1200 horsepower, have close ratios, 6 speeds, positive shift action, and have been proven in australian touring car. And you won't be changing dog rings all the time. And there are several sources for an adapter. I think the trannies run about $700 -$1500 used. I was going to go this route at one point.
The tremec/ t56 is a great tranny but the ratios won't work with your car, (not even my car) unless you have 5.3 rear gears maybe?
This is a weird year . I finished the car late june , I've run 2 races within a month and now i'm already taking the car apart for next season. I've got a full page of changes to do.
wouter
have you considered the supra turbo getrag tranny. they can hold 1200 horsepower, have close ratios, 6 speeds, positive shift action, and have been proven in australian touring car. And you won't be changing dog rings all the time. And there are several sources for an adapter. I think the trannies run about $700 -$1500 used. I was going to go this route at one point.
The tremec/ t56 is a great tranny but the ratios won't work with your car, (not even my car) unless you have 5.3 rear gears maybe?
This is a weird year . I finished the car late june , I've run 2 races within a month and now i'm already taking the car apart for next season. I've got a full page of changes to do.
wouter
#5
SCCAEP
iTrader: (3)
Join Date: Dec 2006
Location: Dallas
Posts: 1,080
Likes: 0
Received 0 Likes
on
0 Posts
I like my 4spd Jerico. I don't think you need to spend $5k on the box and $2k on misc, think you can do it for much less. Used 4spd boxes are readily available, the adapter for the bellhousing isn't much, add a driveshaft, new clutch disk and the mount can be done by modifying the stock mount, less than $1k for this. The $7k is more what I would expect Taylor to quote for a 5 speed and you went new on everything.
#6
Do a barrel roll!
iTrader: (4)
Im doing a Gforce T5 in my FD. WIth a bit of searching, you can pick up a T5 from a 82-83 Nissan 280ZX Turbo, which has its tail housing 4" further back than all other T5s. This eliminated the need to cut up your trans tunnel and/or run goofy shifter extensions. There is one problem with this model T5 though, the tail housing will need modified to fit the Gforce gearsets, as the Nissan output shaft is a smaller diameter than the mustangs. I found a shop that will do the modification for ~$300. Im not done with the install as of yet, but I dont see any more issues. Sure its a bit of a hassle, and for a race-only car I guess most wouldnt care.. but I wanted to avoid any cutting of my FD.
#7
Senior Member
iTrader: (6)
I run a heavily modified, track only 93 FD (410 RWHP) and am on my 4th OEM transmission in a calendar year. While I could continue to source OEM transmissions from C-list for ~$300, I grew tried of not knowing when not if the box would break. To resolve this I am just finishing up a G-Force G101A 4 speed conversion. I will be testing and racing next week at Infineon.
If anyone is interested I could write up the information I have collected regarding this swap.
Guy
If anyone is interested I could write up the information I have collected regarding this swap.
Guy
Trending Topics
#8
All out Track Freak!
iTrader: (263)
Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,672
Received 412 Likes
on
250 Posts
I run a heavily modified, track only 93 FD (410 RWHP) and am on my 4th OEM transmission in a calendar year. While I could continue to source OEM transmissions from C-list for ~$300, I grew tried of not knowing when not if the box would break. To resolve this I am just finishing up a G-Force G101A 4 speed conversion. I will be testing and racing next week at Infineon.
If anyone is interested I could write up the information I have collected regarding this swap.
Guy
If anyone is interested I could write up the information I have collected regarding this swap.
Guy
Sorry to hear about the failures You are seriously a track addict
Do you have any idea what is failing and do you think a cooler would help or do you believe it's strictly a torque power problem and temps are not the issue?
#10
Senior Member
iTrader: (6)
The majority of my transmissions failures have involved 3rd gear, but I've also buzzed a lower main bearing. I don't know if temperature is one of or the major cause for these failures. I have tried several fluids (Redline MTL, lightweight shockproof, and non-synthetic) and have had similar failures.
John at Evil Genius Racing, he rebuilds all transmissions for Mazda USA, told me I was doing pretty good when I got 6 weekends out of my rebuilt transmission. He said they just can't handle the power.
Guy
#11
All out Track Freak!
iTrader: (263)
Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,672
Received 412 Likes
on
250 Posts
Fritz,
The majority of my transmissions failures have involved 3rd gear, but I've also buzzed a lower main bearing. I don't know if temperature is one of or the major cause for these failures. I have tried several fluids (Redline MTL, lightweight shockproof, and non-synthetic) and have had similar failures.
John at Evil Genius Racing, he rebuilds all transmissions for Mazda USA, told me I was doing pretty good when I got 6 weekends out of my rebuilt transmission. He said they just can't handle the power.
Guy
The majority of my transmissions failures have involved 3rd gear, but I've also buzzed a lower main bearing. I don't know if temperature is one of or the major cause for these failures. I have tried several fluids (Redline MTL, lightweight shockproof, and non-synthetic) and have had similar failures.
John at Evil Genius Racing, he rebuilds all transmissions for Mazda USA, told me I was doing pretty good when I got 6 weekends out of my rebuilt transmission. He said they just can't handle the power.
Guy
I think I'll drop power a little, loose some weight and put in the 4.3 I have laying around.
#12
Mr. September FB 2011
iTrader: (9)
Join Date: Mar 2009
Location: Winnipeg, Manitoba
Posts: 489
Likes: 0
Received 0 Likes
on
0 Posts
My OEM trans spikes to 230deg. I believe that most of my temp problems are the proximity to the exhaust. even though i have at least 6" of clearance, i think the heat from it under boost is the culprit.
I'm on my second trans for the season. not sure how long this one will last.
I'm on my second trans for the season. not sure how long this one will last.
#13
Senior Member
Thread Starter
Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes
on
0 Posts
What I'd like to to is add to the list I started with other gearbox options and rough costs to do it properly. A few guys have put forward the Supra gearbox as an option. Where is a good source, who makes an adapter kit? The Tex 101A or other used Nascar-style four speed seems a good option as they can stand up to the horsepower and are available. any good sources for the adapters?
I know Wouter (racingdriver)(700+ hp 20B) runs a Jerico and he loves it. I also know a local fellows who runs a very well built 300Z with the Jerico box and he had a failure where it lost all the fluid. Jerico put it back together for him for a under $300.
Best,
-Trent
I know Wouter (racingdriver)(700+ hp 20B) runs a Jerico and he loves it. I also know a local fellows who runs a very well built 300Z with the Jerico box and he had a failure where it lost all the fluid. Jerico put it back together for him for a under $300.
Best,
-Trent
#14
No One Important
Join Date: Aug 2011
Location: Edmonton, Kanata
Posts: 35
Likes: 0
Received 0 Likes
on
0 Posts
thats what Im most interested in... its racing so things will go wrong. But when a company stands behind their product it makes it worth a little more
#15
Senior Member
Thread Starter
Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes
on
0 Posts
The ratios in the Getrag V160 fro the Supra don't look that appealing for a road race / time attack car.
The ratios are:
First gear: 3.827:1
Second gear: 2.360:1
Third gear: 1.685:1
Fourth gear: 1.312:1
Fifth gear: 1:1
Sixth gear: 0.793:1
First is way too tall and I'd even question second. The jump to fifth from fourth is huge as well.
This is considering that before the Indy I've only used first gear in my G-force box for starts and getting it on and off the trailer. All the corners on my normal tracks let me stay in second.
For the Indy, I was using all five gears and nearing my top speed of 155 mph. This means my gearing is quite well suited to the track as I'm able to make effective use of all gears and accelerate as quickly as possible.
If I could change anything with the T5 gearing I would move first up a bit more and move third down just a hair.

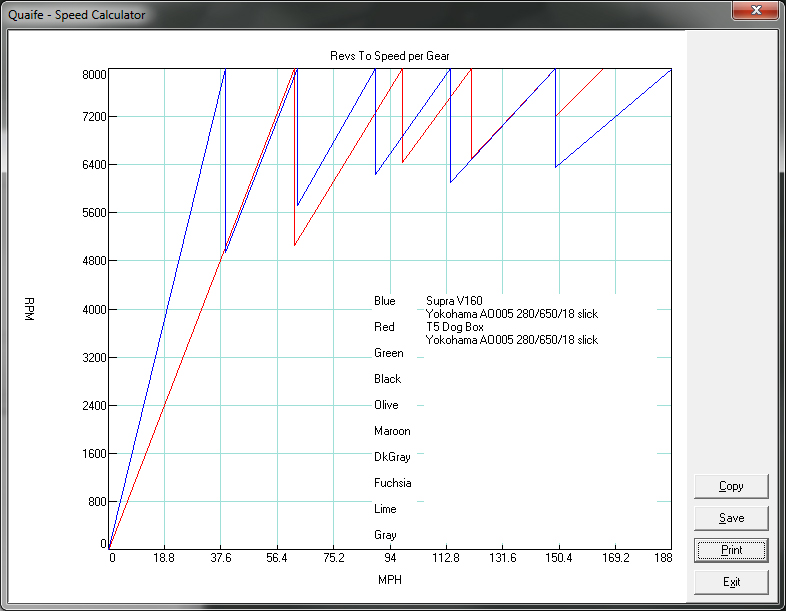

Here's an image comparing the V160 to my G-Force T5
-Trent
The ratios are:
First gear: 3.827:1
Second gear: 2.360:1
Third gear: 1.685:1
Fourth gear: 1.312:1
Fifth gear: 1:1
Sixth gear: 0.793:1
First is way too tall and I'd even question second. The jump to fifth from fourth is huge as well.
This is considering that before the Indy I've only used first gear in my G-force box for starts and getting it on and off the trailer. All the corners on my normal tracks let me stay in second.
For the Indy, I was using all five gears and nearing my top speed of 155 mph. This means my gearing is quite well suited to the track as I'm able to make effective use of all gears and accelerate as quickly as possible.
If I could change anything with the T5 gearing I would move first up a bit more and move third down just a hair.
Here's an image comparing the V160 to my G-Force T5
-Trent
Last edited by TrentO; 08-26-11 at 05:59 PM. Reason: adding content
#16
Senior Member
here are the ratios for my jerico
jerico supra- Ignore 1st
2.61 2.36
1.9 1.69
1.56 1.3
1.23 1.0
1.0 .79
I run 3.73 and 3.9 's in the back. If you ran 4.3's your 1.69 would be a usefull gear equivalent to my 2nd gear. ...maybe ?
jerico supra- Ignore 1st
2.61 2.36
1.9 1.69
1.56 1.3
1.23 1.0
1.0 .79
I run 3.73 and 3.9 's in the back. If you ran 4.3's your 1.69 would be a usefull gear equivalent to my 2nd gear. ...maybe ?
#17
When You say that the T5 likes to bend shift forks at high RPM shifts, Do you mean that hard shifts bend them, or just the fact that the RPM's are so high will bend the forks? Also when you swaped a T5 did you use the T2 T/O bearing or T5 T/O Bearing and retainer?
#18
Senior Member
Thread Starter
Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes
on
0 Posts
I said the T5 likes to bend shift forks due to the synchro gearbox not wanting to shift well at high RPM. When you add in an excited driver, you get bent and broken shift forks. I think this issue will be common with most non-dog gearboxes as they are not designed for 8000 rpm shifts.
-Trent
-Trent
#19
Senior Member
Thread Starter
Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes
on
0 Posts
Wouter brings up another issue. With the Jerico or GF-5R I'll need to replace the rear end with a shorter gear as the 5th gear will top out as a 1:1, as opposed to my current .90 overdrive. That's going to add more cost to the equation. I'll likely have to source an 8.8 rear end and build that up or just do a quick change.
-Trent
-Trent
#20
Full Member
iTrader: (2)
Join Date: Feb 2003
Location: central OH
Posts: 135
Likes: 0
Received 0 Likes
on
0 Posts
You can overdrive a Jerico box. It involves flipping the 3-4 lever off the side of the trans essentially making the pattern go from 1st to 2nd to 4th to 3rd. 3rd gear is the overdrive gear.
I have my Jerico set up with these ratios,
1st 2.176
2nd 1.392
3rd 1
4th .849
I have my Jerico set up with these ratios,
1st 2.176
2nd 1.392
3rd 1
4th .849
#22
Senior Member
Thread Starter
Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes
on
0 Posts
-Trent
#23
Senior Member
iTrader: (6)
Trent-
I try very hard not to add up what I spend on the car, but here is a rough estimate...
Refurbished G101A from G-Force with Long shifter and 3/4" Mazda adapter plate, installed 1.923, 1.538, 1.239, 1.0 gears - $3800
Busted Turbo II transmission - for bell housing - $50
Turbo II pressure plate and custom clutch disc, throw out bearing, pilot bearing and seal- $450 (ACT extreme, 6-puck)
OEM differential brace- Samberg - $500
Custom drive shaft - $500 - you could save a couple hundred here by getting some Nascar drive shaft parts off Ebay - my build didn't have the time to spare.
Turbo II starter - $100
Large issues to overcome...
- we had a clearance issue with the input flange of the 3.9 diff and the differential brace.
- custom exhaust would not clear the differential brace.
We ended up cutting the Samberg differential brace and used the various pieces and made a new torque arm. This took about 14 hours of an fab time...
Also you need to fab a mount for the tail of the transmission - this transmission bolts up to a standard 2-bolt Chevy, rubber transmission mount.
Oh yeah, you need to cut a BIG hole in your transmission tunnel and then fab a cover after the transmission is installed.
After one weekend with this transmission on the track I can say it shifts very fast and feels real solid. I look forward to racing my car and not worrying about when third gear is going to fail.
Guy
I try very hard not to add up what I spend on the car, but here is a rough estimate...
Refurbished G101A from G-Force with Long shifter and 3/4" Mazda adapter plate, installed 1.923, 1.538, 1.239, 1.0 gears - $3800
Busted Turbo II transmission - for bell housing - $50
Turbo II pressure plate and custom clutch disc, throw out bearing, pilot bearing and seal- $450 (ACT extreme, 6-puck)
OEM differential brace- Samberg - $500
Custom drive shaft - $500 - you could save a couple hundred here by getting some Nascar drive shaft parts off Ebay - my build didn't have the time to spare.
Turbo II starter - $100
Large issues to overcome...
- we had a clearance issue with the input flange of the 3.9 diff and the differential brace.
- custom exhaust would not clear the differential brace.
We ended up cutting the Samberg differential brace and used the various pieces and made a new torque arm. This took about 14 hours of an fab time...
Also you need to fab a mount for the tail of the transmission - this transmission bolts up to a standard 2-bolt Chevy, rubber transmission mount.
Oh yeah, you need to cut a BIG hole in your transmission tunnel and then fab a cover after the transmission is installed.
After one weekend with this transmission on the track I can say it shifts very fast and feels real solid. I look forward to racing my car and not worrying about when third gear is going to fail.
Guy
#24
has anybody used a GM mucie 4 speed or T10 transmission? a Muncie M21 has 2.2 ,1.64, 1.28, and 1.0 gear ratios. A Borg Warner Super T10 has 2.43, 1.61, 1.23, and 1.0 gears. Both can be biught new for less than $2000
Thread
Thread Starter
Forum
Replies
Last Post
rx8volks
Canadian Forum
0
09-01-15 10:46 PM
