OEM one piece 3mm apex seals???

Old 09-04-09, 09:11 AM
  #1
Rotary Freak
Thread Starter

Join Date: Jan 2004
Location: Belgium
Posts: 1,886
Likes: 0
Received 0 Likes on 0 Posts
OEM one piece 3mm apex seals???

Just cruising Yahoo auction website and came across a new set of OEM apex seals, one piece and 3mm

It even showed the Mazda OE part number

ZR 311 C01


Anyone familiar with this? Is this an uprated apex seal from Mazda?
Speedworks is offline
Old 09-04-09, 01:09 PM
  #2
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,606
Likes: 0
Received 124 Likes on 113 Posts
zr03 is the 13G, the 3 rotor race engine.
j9fd3s is offline
Old 09-05-09, 01:09 AM
  #3
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,083
Received 145 Likes on 128 Posts
What material?
Carbon/aluminum?
BLUE TII is offline
Old 09-07-09, 07:48 AM
  #4
Rotary Freak
Thread Starter

Join Date: Jan 2004
Location: Belgium
Posts: 1,886
Likes: 0
Received 0 Likes on 0 Posts
no info on that... it was just a set on sale. I figure, there are more or you can just order them

they went for about 60.000 JPY, which is about 3 times the normal price.
Speedworks is offline
Old 09-16-09, 08:29 AM
  #5
Rotary Freak
Thread Starter

Join Date: Jan 2004
Location: Belgium
Posts: 1,886
Likes: 0
Received 0 Likes on 0 Posts

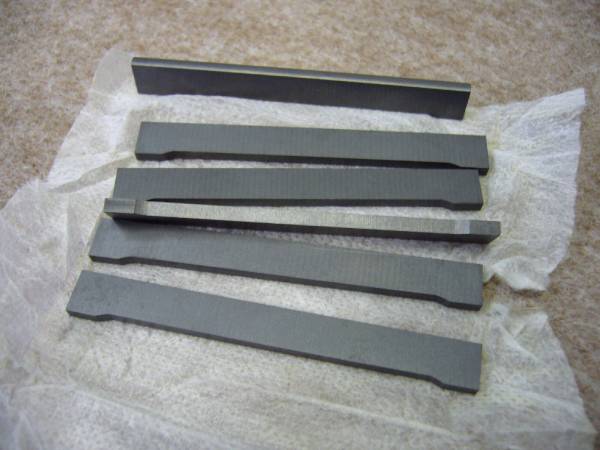

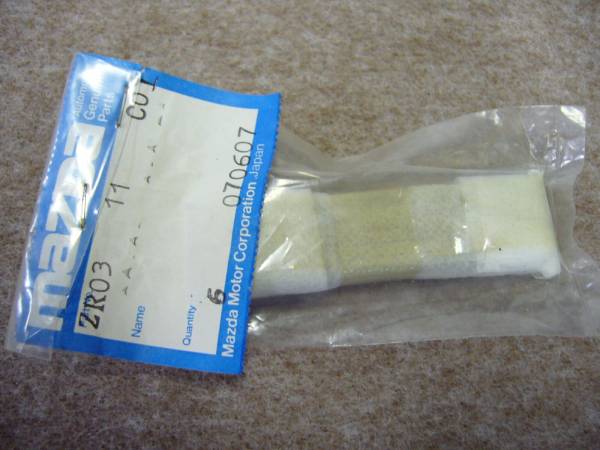

Here are some pics to back up my find
Attached Thumbnails OEM one piece 3mm apex seals???-3mm-1pc-apex-seals.jpg   OEM one piece 3mm apex seals???-h_taka5318-img600x450-1249540154thmf2o37808.jpg   OEM one piece 3mm apex seals???-h_taka5318-img600x450-124954015507mgkg37808.jpg
Speedworks is offline
Old 09-17-09, 04:20 AM
  #6
Rotary Freak
Thread Starter

Join Date: Jan 2004
Location: Belgium
Posts: 1,886
Likes: 0
Received 0 Likes on 0 Posts
bump
Speedworks is offline
Old 09-17-09, 06:48 PM
  #7
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,083
Received 145 Likes on 128 Posts
Yes, carbon/aluminum seals

Mazdacomp says

SEAL, APEX

Part No: ZR03-11-C01 The regular price is $64.30
The sale price is $45.90

The Yahoo auction states this was the seal kit from the Mazdaspeed "sports kit" engine.

Don't know if that is correct but "sports kit" 13B was the "over the counter" available to public kit launched in 1978 to make 13B into a dry sumped 13B peripheral port for racing as to homologate peripheral port engines in Grand Championship Series racing.
-------------

Looks the same to me as


SEAL, APEX

Part No: 4801-11-301 The regular price is $63.65
The sale price is $45.45

-------------
special race springs for carbon/aluminum apex seals

APEX SEAL SPRING-13B

Part No : ZR03-11-C04
The regular price is $10.75
The sale price is $7.65 $7.65
BLUE TII is offline
Old 09-18-09, 12:14 AM
  #8
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,606
Likes: 0
Received 124 Likes on 113 Posts
Originally Posted by BLUE TII View Post
Yes, carbon/aluminum seals

Mazdacomp says

SEAL, APEX

Part No: ZR03-11-C01 The regular price is $64.30
The sale price is $45.90

The Yahoo auction states this was the seal kit from the Mazdaspeed "sports kit" engine.

Don't know if that is correct but "sports kit" 13B was the "over the counter" available to public kit launched in 1978 to make 13B into a dry sumped 13B peripheral port for racing as to homologate peripheral port engines in Grand Championship Series racing.
-------------

Looks the same to me as


SEAL, APEX

Part No: 4801-11-301 The regular price is $63.65
The sale price is $45.45

-------------
special race springs for carbon/aluminum apex seals

APEX SEAL SPRING-13B

Part No : ZR03-11-C04
The regular price is $10.75
The sale price is $7.65 $7.65
my mazdaspeed catalog says sports kit engine, 13G 3 rotor. come to think of it, i wonder what the difference is between the 4801 seals and the zr03, i know the 13G has different rotors and things
j9fd3s is offline
Old 09-18-09, 02:01 AM
  #9
Rotary Freak
Thread Starter

Join Date: Jan 2004
Location: Belgium
Posts: 1,886
Likes: 0
Received 0 Likes on 0 Posts
could this be an upgrade for a 13B-Rew when going with 3mm rotors?
Speedworks is offline
Old 09-18-09, 11:52 AM
  #10
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,606
Likes: 0
Received 124 Likes on 113 Posts
Originally Posted by Speedworks View Post
could this be an upgrade for a 13B-Rew when going with 3mm rotors?
define upgrade.
j9fd3s is offline
Old 09-18-09, 01:06 PM
  #11
Rotary Freak
Thread Starter

Join Date: Jan 2004
Location: Belgium
Posts: 1,886
Likes: 0
Received 0 Likes on 0 Posts
Just trying to make sure they are suited for turbo applications...

going with a 13b REW with GT40R
Speedworks is offline
Old 09-18-09, 08:36 PM
  #12
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,083
Received 145 Likes on 128 Posts
No, not at all suitable for forced induction applications.

Even naturally aspirated detonation from too much spark advance can cause them to break up. NSU couldn't keep carbon seals together because they insisted on using a centrifugal advance mechanism.
BLUE TII is offline
Old 09-19-09, 01:46 PM
  #13
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,606
Likes: 0
Received 124 Likes on 113 Posts
carbon seals + boost = bad idea. i was cautioned against detonation with carbons on an N/A...
j9fd3s is offline
