My ICSCC ST FC3S Race car build

It has been in the works for quite awhile now, and I've posted a lot of questions but finally have some time while I watch the Saint's/49'ers game to post up a build thread. I've been posting some upates on Speedhunters, but work has progressed slowly through 2011 so I didn't update very much.

I am building the car for both Time Attack/Solo Sprint, as well as the ICSCC Sport Touring rules, which is based around a 1:10 power to weight ratio.

The chassis I started with was a pretty tired 1988 GX base, had no sunroof which gave me more headroom, and less weight up top.
CJarrett is offline
Old 01-14-12, 05:00 PM
  #2
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts


Car was stored on top of a storage container for a year before I found it. Picked it up for $200 and brought it home.



Had some sweet seat covers



And stickers



Also picked up a donor car, for suspension, 5 lug, S5 engine, and some other bits.

I had just had laser eye surgery when I needed to tear apart the S5, and pull the S4 engine, so I asked the local Rotary boys to come and help, and they had the car apart in an hour or so and helped me pull the other engine in exchange for a few free parts.
CJarrett is offline
Old 01-14-12, 05:06 PM
  #3
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts


Spent a bunch of time tearing into the car and stripping it down to the bare shell.







Once it was stripped down it was time to repair the bit of rust it had and get the roll cage in.
CJarrett is offline
Old 01-14-12, 05:09 PM
  #4
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts


Got the interior stripped down, used dry ice to help freeze the stick sound deadening out and a heat gun to scrape the rest out.

Once that was done, was time to stitch weld the chassis.



Had to strip out all the seam sealer which is a bitch of a job, but with a chassis over 20 years old, worth it IMO.
CJarrett is offline
Old 01-14-12, 05:15 PM
  #5
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts

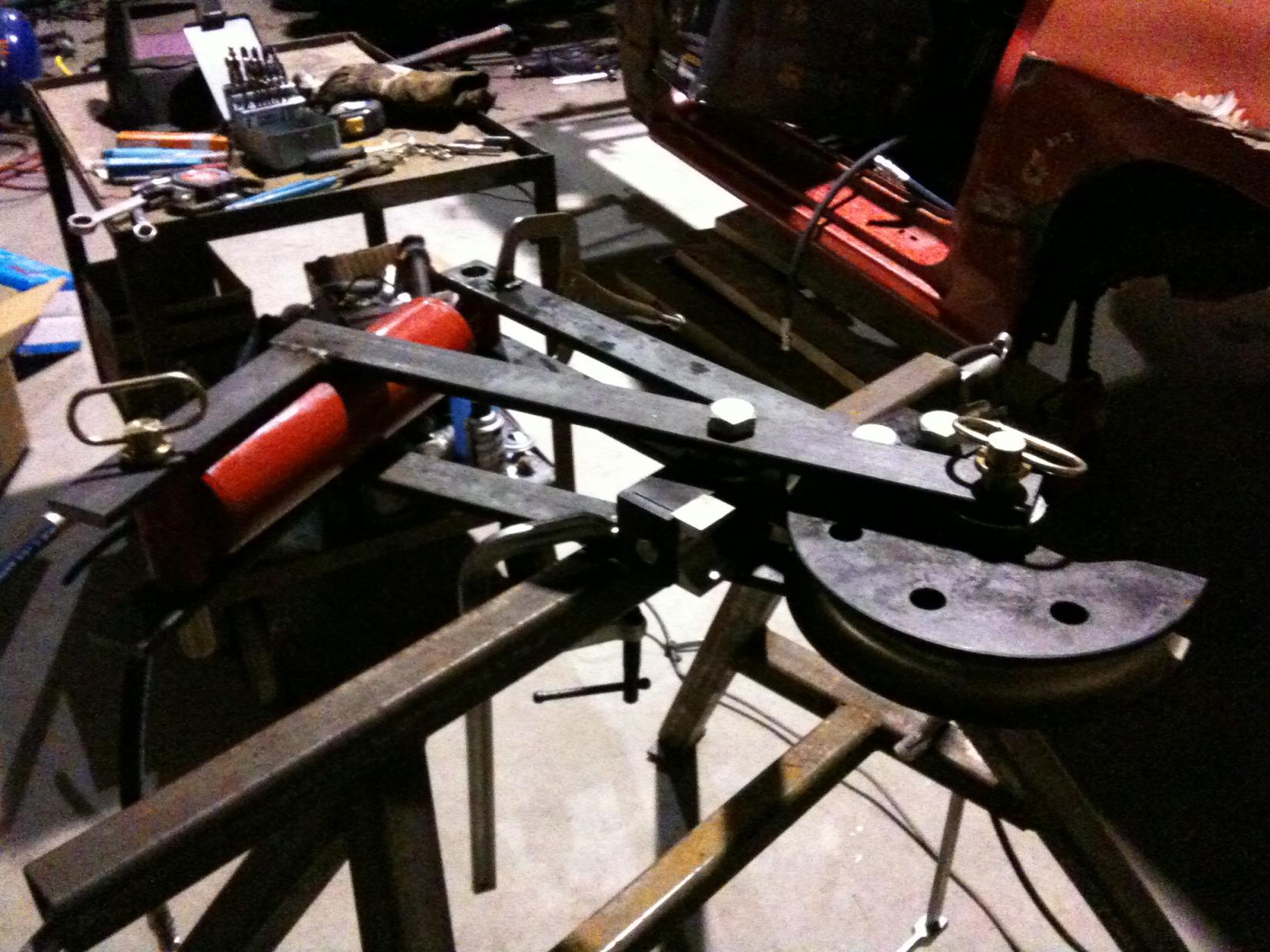

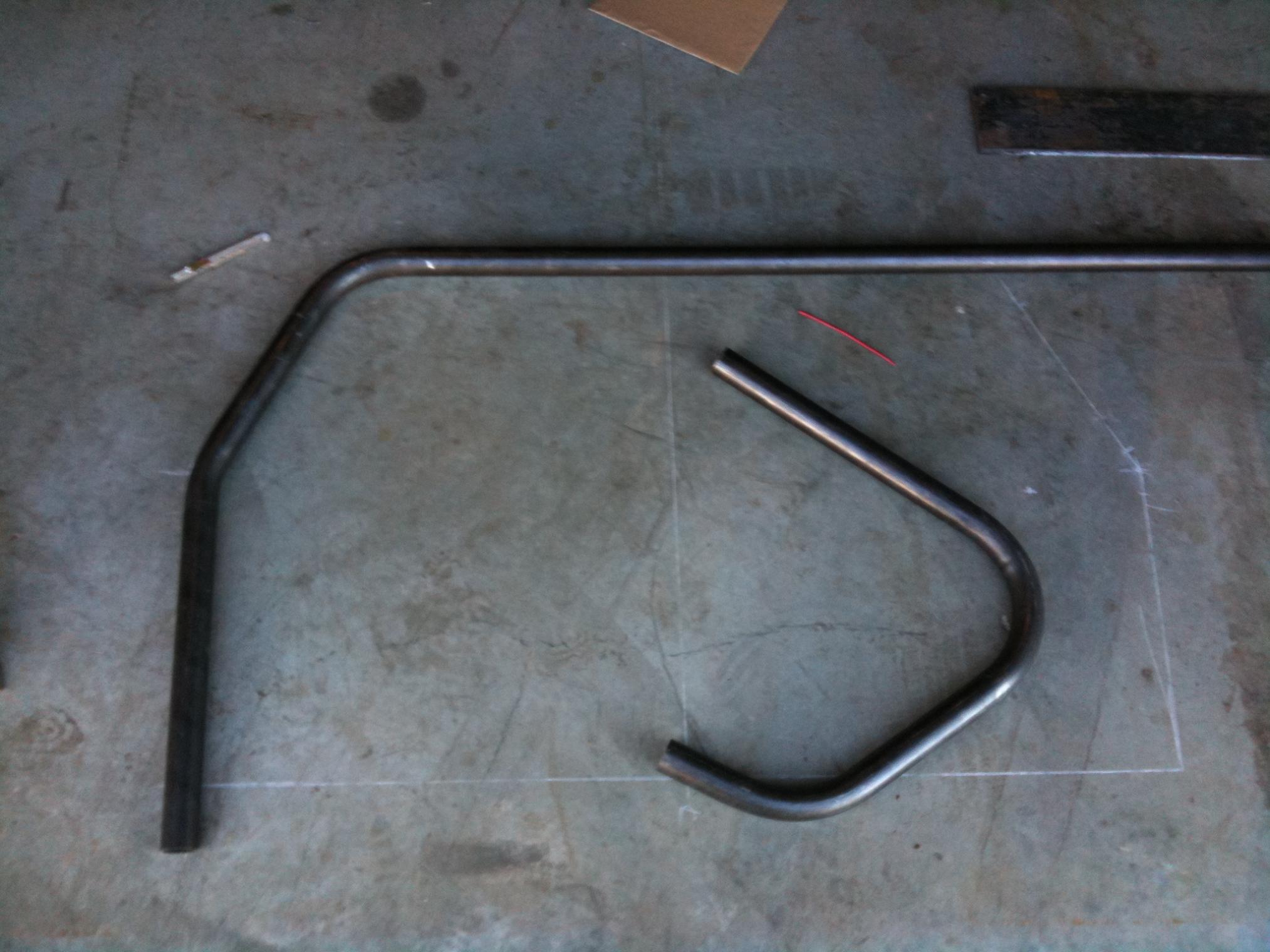

Went out to my friend Colin's shop and we built ourselves a hydraulic tubing bender and started on the cage. The bender was hooked up to his forklift, so you could use the forklift controls to control the bender, pretty slick actually.
Attached Thumbnails My ICSCC ST FC3S Race car build-img_0296.jpg   My ICSCC ST FC3S Race car build-img_0308.jpg   My ICSCC ST FC3S Race car build-img_0317.jpg   My ICSCC ST FC3S Race car build-img_0325.jpg   My ICSCC ST FC3S Race car build-img_0362.jpg

CJarrett is offline
Old 01-14-12, 05:19 PM
  #6
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts

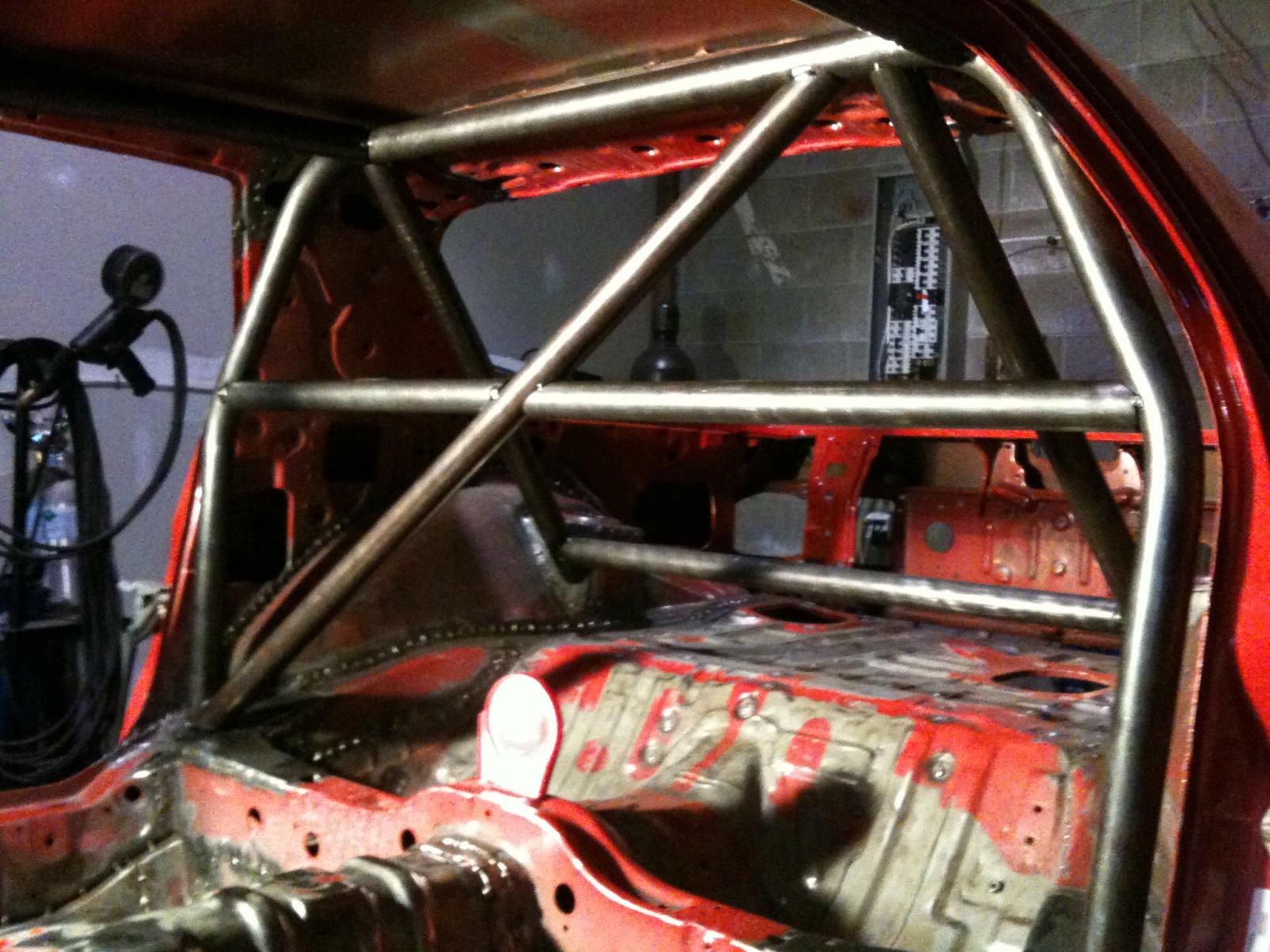

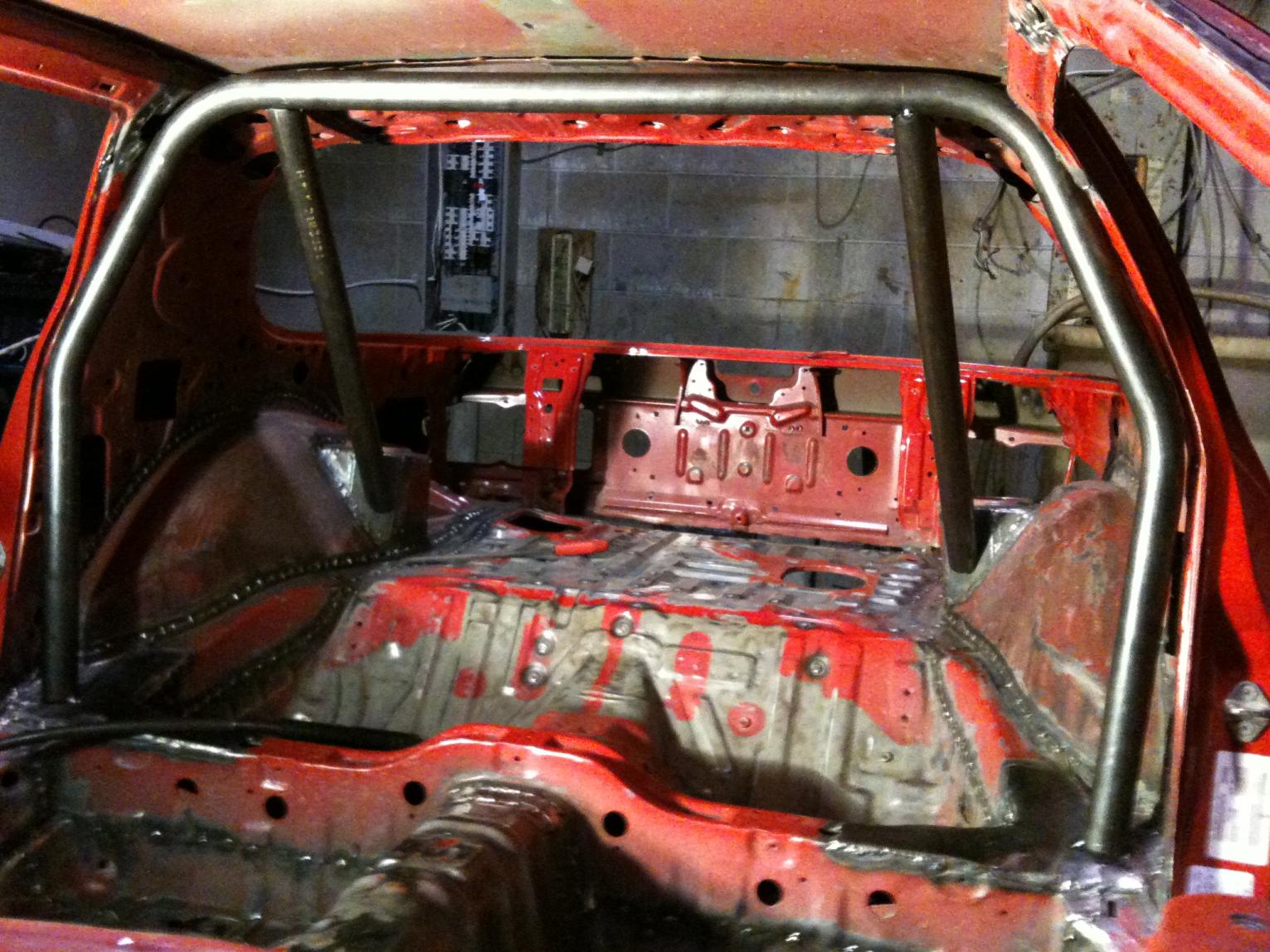

Cage turned out pretty well. Used 1.75" 0.095" wall DOM, but looking back I may have used 1.625" next time.





Being 6'4" I need all the headroom I could get, so the cage was tucked up as far as possible





Also made sure the A-pillar bars were in line with my line of sight with the a-pillars, giving me the best outward visibility.



Nascar style bars on the drivers side





X-bars on the passenger side
CJarrett is offline
Old 01-14-12, 05:23 PM
  #7
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts


Gutted and lightened the doors, made my own brackets for the stock inner door handles.



Bought some bolt-through dimple dies and made myself some gussets for the cage since the rules for my class allow any points of attachment for the cages.





Gutted my hatch too. Needs lexan next.

CJarrett is offline
Old 01-14-12, 05:27 PM
  #8
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts
Build myself some basic rotisserie stands so I could rotate the car and access the bottom easily to clean it up and stitch weld it.







Then Dave (docholiday) helped me clean up the bottom of the car and remove 22 years of gunk.



Also built a custom strut brace, but will re-make it out of aluminum.

CJarrett is offline
Old 01-14-12, 05:29 PM
  #9
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts


Flyin Miata helped me re-build my steering rack and de-power it. This is the S5 rack so its the perfect ratio for de-powering.



Realized I was still too tall with my Sabelt Taurus seat, so docholiday built me a drop box and we welded it in.



Not bad for a tall dude...
CJarrett is offline
Old 01-14-12, 05:33 PM
  #10
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts


Got my balance bar and dual MC's for the brake adjustment system.



Dave/docholiday helping me get the pedal box modified so I can run the dual MC setup.



Made a new mounting hole from guidance from a few of you guys, helping the pedal ratio for better brake feel with the manual brakes.
CJarrett is offline
Old 01-14-12, 05:40 PM
  #11
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts


Our cat Juicy in my test seat...

Picked up a set of 17x8 BBS RS's in decent shape. Bought some new lips for them so time to rebuilt the wheels. Had to bake them first (wife loved that part)



Get them apart...



Re-painted the centers and get them back together.



Lookin good!

CJarrett is offline
Old 01-14-12, 05:45 PM
  #12
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts


Awesome looking Pettit Trak-Pro Race spec coilovers. Can't wait to get these mounted.



Got my daughter to paint my side mirrors.



Yep, they are pink.



AWR 2 piece rotors



AWR brake ducts



Got the bottom sealed up



Momo dished wheel.
CJarrett is offline
Old 01-14-12, 05:47 PM
  #13
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts


Trimmed the dash to fit with the cage and dyed it black.



Painted a few of the suspension members



JDM TII trans and Mazdatrix short shifter with an extension I made.
CJarrett is offline
Old 01-14-12, 05:48 PM
  #14
Turbo Lover
10 Year Member
iTrader: (6)

Ball joint's Avatar

Join Date: Feb 2003
Location: Cleveland
Posts: 784
Likes: 0
Received 0 Likes on 0 Posts
Looks great! Takes a patient man to do all that stitch welding.

Is that cat a Savannah?
Ball joint is offline
Old 01-14-12, 05:53 PM
  #15
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts


Dave and I machined some upper diff mounts.



And we got the car fully sealed up with epoxy primer.



The cat is a bengal, and she is rad. She attacks our 95lb doberman all the time.
CJarrett is offline
Old 01-14-12, 06:03 PM
  #16
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts
Also did a few concept renders to see how I thought it would look when I'm done. Have some new fender designs, and a different front bumper/headlight treatment now. If I get some time I'll update them.


















Also decided on going black. Every vehicle I've owned/own is black... even the Fiat 500 I will be restoring will be black.
CJarrett is offline
Old 01-14-12, 06:10 PM
  #17
IAN
Rotary Reborn!
iTrader: (3)

IAN's Avatar

Join Date: Mar 2001
Location: Canada
Posts: 5,248
Likes: 0
Received 0 Likes on 0 Posts
Awesome. Keep us posted please on the build. Subscribed...
IAN is offline
Old 01-14-12, 08:48 PM
  #18
Senior Member
5 Year Member
iTrader: (3)

Join Date: Sep 2004
Location: San Luis Obispo, CA
Posts: 548
Likes: 0
Received 0 Likes on 0 Posts
I was following the build on Speedhunters. Glad to see it up over here.
HotRodMex is offline
Old 01-15-12, 05:46 AM
  #19
Sua Sponte
15 Year Member
iTrader: (31)

Brent Dalton's Avatar

Join Date: Aug 2001
Location: Savannah
Posts: 3,122
Likes: 0
Received 1 Like on 1 Post
Very nice, well thought out track car. Can't wait to see some more updates!
Brent Dalton is offline
Old 01-15-12, 01:30 PM
  #20
Love your Fabricator!
10 Year Member

BigAl...'s Avatar

Join Date: Sep 2004
Location: Miami, FL
Posts: 353
Likes: 0
Received 0 Likes on 0 Posts
Just stumbled across your build, looks like the beginnings of a great racecar except for the pink mirrors . All kidding aside you're off to a great start!
BigAl... is offline
Old 01-15-12, 06:12 PM
  #21
Full Member
iTrader: (6)

Infidel's Avatar

Join Date: Sep 2010
Location: Des Moines, IA
Posts: 60
Likes: 0
Received 0 Likes on 0 Posts
yes! excellent choice of wheels, i'm actually looking for some donors myself. what were the before and after widths, and offsets if you don't mind me asking, and what size lip did you add.

I've also been following on speedhunters. Looks like it's going to be amazing.
Infidel is offline
Old 01-15-12, 11:33 PM
  #22
FC Racer
15 Year Member
Thread Starter

CJarrett's Avatar

Join Date: May 2001
Location: Vancouver BC Canada
Posts: 412
Likes: 0
Received 0 Likes on 0 Posts
Thanks BigAl, been watching yours closely too, can't wait to see it all finished.

Wheels were 8" wide with a 1" lip stock, put on a 3.5" lip and are now 11.5" wide. However, ST only allows 10" wheels in competition, so these may become my Time Attack wheels and get some RPF01's for ST.
CJarrett is offline
Old 01-16-12, 12:22 AM
  #23
JPR imports helper monkey

TyFc3s's Avatar

Join Date: May 2010
Location: New Jersey
Posts: 68
Likes: 0
Received 0 Likes on 0 Posts
Awesome work so far, ive been following this build on speedhunters and cant believe that i almost forgot about it, lol, i guess its been alittle while.. beautiful car/build, and i cant wait to see more done

im subscribing
TyFc3s is offline
Old 01-16-12, 09:31 AM
  #24
Full Member

Join Date: Aug 2011
Location: Lincoln, England
Posts: 92
Likes: 0
Received 2 Likes on 2 Posts
I love the renderings, the car is going to look fantastic.

Good luck with the build.

Richard
Richard.C is offline
Old 01-16-12, 09:48 AM
  #25
IFO Forced Induction Slo
10 Year Member
iTrader: (3)

bigdv519's Avatar

Join Date: Mar 2004
Location: Houston
Posts: 1,315
Likes: 0
Received 0 Likes on 0 Posts
Subscribed!! Great build. I think I'm inspired to build a rotisserie myself for my other project.
bigdv519 is offline
