The Hillclimb RX7 - a saga

Reply


Old 11-29-16, 03:01 PM
  #426
Senior Member
Thread Starter
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 338
Thanks: 0
Thanked 0 Times in 0 Posts
S5 TII intake soup to nuts has been acquired for $78 shipped from Ohio. This will make the turbo conversion much simpler.

If anybody has some housings in decent condition I'm looking for a pair for a fresh LeMons engine build.
DaveEstey is offline
Reply With Quote

Old 11-29-16, 09:33 PM
  #427
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,085
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by DaveEstey View Post
If anybody has some housings in decent condition I'm looking for a pair for a fresh LeMons engine build.
I have a pair, one is pretty new, one it's a bit older, both are completely fine for lemons...

I'll try and remember to take some pictures of them and PM you.
eage8 is offline
Reply With Quote

Old 12-02-16, 07:53 AM
  #428
Senior Member
Thread Starter
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 338
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by eage8 View Post
I have a pair, one is pretty new, one it's a bit older, both are completely fine for lemons...

I'll try and remember to take some pictures of them and PM you.
Word. Thanks man.

Any things you can share about racing a turbocharged RX7 would be greatly appreciated too.
DaveEstey is offline
Reply With Quote

Old 12-03-16, 11:12 AM
  #429
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 23,308
Thanks: 0
Thanked 1 Time in 1 Post
Quote:
Originally Posted by DaveEstey View Post
Word. Thanks man.

Any things you can share about racing a turbocharged RX7 would be greatly appreciated too.
thoughts;

your setup with the radiator in the back is actually going to work out really well.

cooling is always a problem. i think you have enough radiator, but you'll want more oil cooling. 2x stock coolers are probably the easy start.

you want an intercooler that is pretty big, and the turbo intake will want some filtered cold air. this is where the radiator in the back is going to really help, in a normal FC, you end up with an IC, oil cooler radiator sandwich, and its hard to get enough airflow to everything to keep it cool. you could just mount the oil coolers where the radiator was, and then put an IC in front of that and call it a day. or you could stack them like a 1st gen, where the IC goes on top of the oil cooler, you put a sheet of AL (or whatever) in between, run it to the grille with something to adjust the height at the front, and then adjust it in the opening until temps are ok.

300hp seems to be a hard hp number to hit, its traditionally either a stock turbo that is maxed out, or a big aftermarket turbo that is running as little boost/power as possible. just a for instance here, but my FC (running an REW engine), was either going to be running a stock turbo with some bigger wheels (i want to do some testing, but i like the V trim), at around 280 hp flywheel, OR i just bought an HKS manifold, and with a 60-1 on it, i'm looking at about 360hp again flywheel. to tune it down to 300hp, i need to be able to run like 8psi, and a restrictive exhaust. which would probably make it pretty laggy.

i know there are some new turbos that maybe change things, my practical knowledge is dated
j9fd3s is offline
Reply With Quote

Old 12-05-16, 10:30 AM
  #430
Senior Member
Thread Starter
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 338
Thanks: 0
Thanked 0 Times in 0 Posts
Lag isn't so much an issue since this will only be running at race speeds and generally between 4-9k rpm with the odd 10k rpm if needed.

300whp does seem to be a bit of an odd duck number. Maybe I'd be better off just building a new engine for more power from the onset.
DaveEstey is offline
Reply With Quote

Old 12-05-16, 12:33 PM
  #431
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,056
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by DaveEstey View Post
Lag isn't so much an issue since this will only be running at race speeds and generally between 4-9k rpm with the odd 10k rpm if needed.

300whp does seem to be a bit of an odd duck number. Maybe I'd be better off just building a new engine for more power from the onset.
At 400 WHP the magic begins.
LargeOrangeFont is offline
Reply With Quote

Old 12-05-16, 12:44 PM
  #432
Senior Member
Thread Starter
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 338
Thanks: 0
Thanked 0 Times in 0 Posts
The car feels pretty magical with 210whp and 5:14 gears already haha. Not sure if I really want to double the power at the wheels in this chassis.

I do have plans for a tube chassis car though...
DaveEstey is offline
Reply With Quote

Old 12-05-16, 04:40 PM
  #433
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,056
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by DaveEstey View Post
The car feels pretty magical with 210whp and 5:14 gears already haha. Not sure if I really want to double the power at the wheels in this chassis.

I do have plans for a tube chassis car though...
It just feels magical because you never have to let off the gas

The car takes power pretty well with a big enough tire. I'm running 3.73s not 5.14s so there is quite a difference there. As you know the steep rear gear is not needed with the extra power.
LargeOrangeFont is offline
Reply With Quote

Old 03-15-17, 08:57 AM
  #434
Senior Member
Thread Starter
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 338
Thanks: 0
Thanked 0 Times in 0 Posts
Been off the radar, but still busy.

First I got distracted because my lady wants a motorcycle of her own, so I bought a '77 Honda CJ360T and did a frame-off resto. Still waiting on tins to come back from paint.



After that it was back to work prepping the hillclimb car. I've contracted Anze suspension to set up some new dampers for the car and Andrew Wilkstrom to consult the setup. I'm going with a set of JRZ RS Pro double adjustables. Was going to choose Penske's, but the fronts would be fully custom and problematic to replace should I have an off. I should have the dampers in hand in early April.

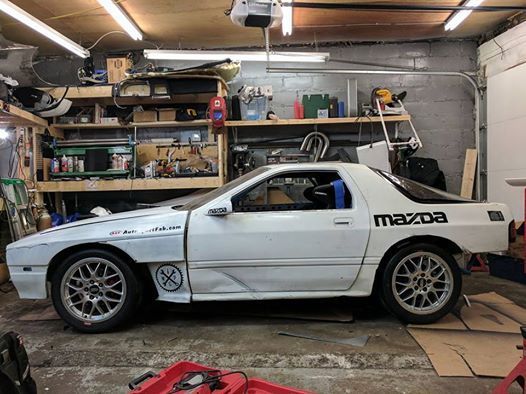

With that job delegated, it was time to reconfigure the rear of the car for greater strength and efficiency pushing air to the radiators.

Step one - learn to carbon fiber.

I made a mold of the rear hatch glass and then vacuum bagged a thin carbon skin. Learned a lot, but was ultimately not entirely pleased - not strong enough.








Round two I modified the laminate using 2 different types of carbon fabric and some 1/16 ultra light balsa wood as a core. The result is WAY stronger and still well under 5lbs total.







Needs a little more finishing, but I'll do that once I add the air scoops.

Next up I'll be making a set of manifolds for the radiators so I can make things as efficient and neat as possible.

Also on the list - putting new brake lines in my tow rig.




Lifting the bed to access the rear line sucked. The things we do for racing.
DaveEstey is offline
Reply With Quote

Old 03-17-17, 07:27 PM
  #435
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,056
Thanks: 0
Thanked 0 Times in 0 Posts
Excited to hear more detail on the shock setup. Looks like you've been having some fun.
LargeOrangeFont is offline
Reply With Quote

Old 03-17-17, 09:35 PM
  #436
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,085
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by LargeOrangeFont View Post
Excited to hear more detail on the shock setup. Looks like you've been having some fun.
+1

I've always been suspicious of the anze penske struts since penske didn't make struts to my knowledge until recently which anze struts aren't based on... (most dampers aren't really designed for side loads...)

JRZs are supposed to be really nice, right up there with penske and ohlins
eage8 is offline
Reply With Quote

Old 03-18-17, 11:04 PM
  #437
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,056
Thanks: 0
Thanked 0 Times in 0 Posts
If you are ok with sharing prices I am very interested.. either here or via PM.
LargeOrangeFont is offline
Reply With Quote

Old 03-19-17, 04:33 PM
  #438
Senior Member
Thread Starter
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 338
Thanks: 0
Thanked 0 Times in 0 Posts
The dampers invoiced at $4,7XX. I'll be purchasing a number of spring sets to help fine tune them so that's a floating number. Also going to grab a new set of GC camber plates since I don't like the design of the AWR plates I have currently.
DaveEstey is offline
Reply With Quote

Old 03-19-17, 06:21 PM
  #439
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,056
Thanks: 0
Thanked 0 Times in 0 Posts
Cool, thanks!
LargeOrangeFont is offline
Reply With Quote

Old 03-19-17, 08:31 PM
  #440
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,085
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by DaveEstey View Post
The dampers invoiced at $4,7XX. I'll be purchasing a number of spring sets to help fine tune them so that's a floating number. Also going to grab a new set of GC camber plates since I don't like the design of the AWR plates I have currently.
I don't like the GC plates much...

Since the upper spring seat sits on the bearing retainer instead of the bearing itself, when the suspension compresses and the damper moves (with the arc of the lower control arm). it's pivoting on a surface that's not really a bearing or contoured nearly well enough. I think it leads to binding...

I have the newer version of the AWR plates that have huge bearings (3/4" ID instead of the standard 5/8" bearings) and the spring seat is supported by the bearing itself so it pivots with the bearing. (and the bearing is actually big enough to support that load)

that being said, most things AWR makes are pretty sloppily put together, so it might needs some fiddling (mine came with the wrong width snap rings in them)

eage8 is offline
Reply With Quote

Old 03-20-17, 08:14 AM
  #441
Senior Member
Thread Starter
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 338
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by eage8 View Post
I don't like the GC plates much...

Since the upper spring seat sits on the bearing retainer instead of the bearing itself, when the suspension compresses and the damper moves (with the arc of the lower control arm). it's pivoting on a surface that's not really a bearing or contoured nearly well enough. I think it leads to binding...

I have the newer version of the AWR plates that have huge bearings (3/4" ID instead of the standard 5/8" bearings) and the spring seat is supported by the bearing itself so it pivots with the bearing. (and the bearing is actually big enough to support that load)

that being said, most things AWR makes are pretty sloppily put together, so it might needs some fiddling (mine came with the wrong width snap rings in them)

When did AWR change the design? Mine are only a couple years old and have the 5/8" hole.
DaveEstey is offline
Reply With Quote

Old 03-20-17, 08:18 AM
  #442
Senior Member
Thread Starter
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 338
Thanks: 0
Thanked 0 Times in 0 Posts
My AWR E-production strut tubes are for sale if anybody is interested.
DaveEstey is offline
Reply With Quote

Old 03-20-17, 10:07 AM
  #443
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,085
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by DaveEstey View Post
When did AWR change the design? Mine are only a couple years old and have the 5/8" hole.
I bought mine when I upgraded to the 50mm bilsteins, according to my photo album spring 2014. I'm pretty sure mine were the first set of the new ones. My rear hats are also upgraded with bigger bearings too. They use a QA1 WPB12T.

-Mike
eage8 is offline
Reply With Quote

Old 03-20-17, 01:59 PM
  #444
Senior Member
Thread Starter
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 338
Thanks: 0
Thanked 0 Times in 0 Posts
I don't even see the front plates available any more.
DaveEstey is offline
Reply With Quote

Old 05-11-17, 08:23 AM
  #445
Senior Member
Thread Starter
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 338
Thanks: 0
Thanked 0 Times in 0 Posts
AWR no longer makes camber plates for the FC. Tony suggested GroundControl plates as did my consultant, so...



Hyperco 450lb springs with 4" 11lb helpers and needle bearings. Rear is similar, but with 350lb springs.

Dirty



Also discovered that my adjustable sway bar endlinks got fubar'd in the roll, so those are replaced now.

Tires arrived last Friday - these are the GRC Yokohamas.





These sucked so bad to mount. Incredibly stiff carcass and hella sticky compound.




Oh yeah, I also finally got the bike parts back from the painter - so that project is done.





DaveEstey is offline
Reply With Quote

Old 05-11-17, 08:26 AM
  #446
Senior Member
Thread Starter
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 338
Thanks: 0
Thanked 0 Times in 0 Posts
Oh yeah, we're racing the red RX7 at LeMons at NJMP this weekend so I've been prepping that too. Nothing much to share other than the Clutch Masters pressure plate that didn't work at all so I had to swap the old stuff back in - thanks for eating 2 hours of my time, Clutch Masters.
DaveEstey is offline
Reply With Quote

Old 05-14-17, 04:19 PM
  #447
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,056
Thanks: 0
Thanked 0 Times in 0 Posts
Wow the shocks look great! Can't wait to hear how they work.
LargeOrangeFont is offline
Reply With Quote

Old 05-18-17, 08:04 AM
  #448
Senior Member
Thread Starter
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 338
Thanks: 0
Thanked 0 Times in 0 Posts
Looks like I landed on my presilencer.

Restuffed it with steel wool, welded what I could back together and then patched it with a 16ga steel sheet.





Welding on a dirty, pre-mix exhaust sucks. It should hold together for the weekend so I can order a new one without rush ordering.





The last of my heims came in so I was able to button up the suspension and drop it on its wheels for the first time since September. Feel good moment.





Cosmetics are high on my list this summer - just bought a random orbital air sander to help knock off the old paint.

The list for tonight is:


Re-install the presilencer

Re-install and bleed the pedal box

Re-install front bumper

Tidy up remote reservoir lines

Oil change

Fresh spark plugs

Make some noise and heat
DaveEstey is offline
Reply With Quote

Old 05-18-17, 09:20 AM
  #449
Spin 2 Win
iTrader: (3)

Join Date: Jul 2013
Location: Iowa
Posts: 181
Thanks: 0
Thanked 0 Times in 0 Posts
What pedal box are you running and what master cylinder setup again? I am still trying to get my stock GXL brake booster to work with my full bridge engine using a vacuum accumulator but starting to think that floor mount pedal box with a dual master cylinder setup might be what's needed...
Lavitzlegend is offline
Reply With Quote

Old 05-18-17, 09:50 AM
  #450
Senior Member
Thread Starter
iTrader: (2)

DaveEstey's Avatar

Join Date: Jun 2012
Location: MA
Posts: 338
Thanks: 0
Thanked 0 Times in 0 Posts
I'm running a wilwood box with dual 3/4" masters and remote reservoirs
DaveEstey is offline
Reply With Quote



Reply

Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Th0m4s
Build Threads
16
05-16-17 06:53 PM
purerx7
3rd Generation RX-7 (1993-2002) Parts
49
02-25-16 08:21 PM
TorkFD
3rd Generation RX-7 (1993-2002) Vehicles
12
11-10-15 10:04 AM
SHOCKANAWE
3rd Generation RX-7 (1993-2002) Parts
2
10-24-15 12:12 PM
JamesBond000
2nd Generation RX-7 (1986-1992) Vehicles
2
08-28-15 12:25 AM



Thread Tools
Search this Thread

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -5. The time now is 03:43 PM.


All content Copyright 2007 by Internet Brands, Inc.
