Fuel System Fittings

Old 07-14-14, 05:10 AM
  #1
Friday Night Nitrous Fire
Thread Starter
iTrader: (7)

AX75F92's Avatar

Join Date: Mar 2003
Location: Anaheim
Posts: 345
Likes: 0
Received 1 Like on 1 Post
Fuel System Fittings

I wanted to ask you guys...what type of fittings do you use on your track cars? Yesterday, a friend and I spent some time going over every inch of my planned E85 fuel system and mapped out exactly what fitting will go where. It was a rather humbling exercise as things quickly got out of hand and before we knew it the estimate came out to somewhere around $1300 in fittings alone. This doesn't included the PTPE (teflon) E85 fuel line (this line BTW requires a special type of AN fitting). I know fittings get expensive, but damn. Have you guys all bit the bullet and dropped that kind of money on AN fittings for your fuel system? In the end, we started considering the possibility of just going with barb adapters and using hose clamps. =X

Im still looking for a reasonable alternative or a cheaper source for ANs, but then you start having to deal with Chinese made fittings. Any info would be appreciated.
AX75F92 is offline
Old 07-14-14, 11:42 AM
  #2
FC guy
iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,669
Received 9 Likes on 9 Posts
Check these guys out. Website is a little crappy but if you call you get a very knowledgeable person on the phone, usually ships out same day as well British American Transfer
Rob XX 7 is offline
Old 07-14-14, 07:10 PM
  #3
Doin' Work Son!
iTrader: (8)

ruddyrid's Avatar

Join Date: Mar 2009
Location: Oxnard, CA
Posts: 446
Received 0 Likes on 0 Posts
Support your locals! I've bought 99% of my fittings from here:

AN Adapters & AN Hose Ends and Hose | AN Plumbing
ruddyrid is offline
Old 07-16-14, 12:16 AM
  #4
Rotary Enthusiast
iTrader: (1)

Join Date: Feb 2012
Location: CA
Posts: 1,075
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ruddyrid View Post
Support your locals! I've bought 99% of my fittings from here:

AN Adapters & AN Hose Ends and Hose | AN Plumbing
same place for me
GrossPolluter is offline
Old 07-16-14, 02:37 PM
  #5
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,106
Received 30 Likes on 23 Posts
I've also bought a lot of stuff from anplumbing.com. Always a good experience.

In my experience, Earl's and Goodridge go together the best. Seen several Chinese Summit fittings leak. The name stuff ain't cheap but it's worth it when it comes to something like a fuel system.
C. Ludwig is offline
Old 07-16-14, 08:33 PM
  #6
Red Car, Blue Notes
iTrader: (1)

elwood's Avatar

Join Date: Mar 2003
Location: Lake Orion, MI
Posts: 1,461
Likes: 0
Received 2 Likes on 2 Posts
I don't think you need PTFE for E85. Aeroquip's fluid compatibility chart lists Ethanol compatibility as Excellent with their typical synthetic rubber hoses --> http://www.advancedfluidconnectors.c...ility_info.pdf
elwood is offline
Old 07-18-14, 01:19 AM
  #7
here we go again
iTrader: (3)

Gian's Avatar

Join Date: Oct 2010
Location: oxnard
Posts: 280
Likes: 0
Received 0 Likes on 0 Posts
Earl's has the largest openings (passages). China stuff leaks. Try to simplify what you have as much as possible.
Gian is offline
Old 07-18-14, 03:56 AM
  #8
Friday Night Nitrous Fire
Thread Starter
iTrader: (7)

AX75F92's Avatar

Join Date: Mar 2003
Location: Anaheim
Posts: 345
Likes: 0
Received 1 Like on 1 Post
Thanks for the input guys.
Im leaning towards this stuff:
Goodridge G-Line XF 910.
Carbon impregnated PTFE, kevlar fabric braid, light weight, and around $14/ft for -6 and $19 for -8.
Also the "olive-less" reusable fittings they make for this hose is reasonable at around $15-20/fitting.
I think Ill give it a shot.
Interestingly, I see websites listing the hose for like $30-40/ft, then most fall around the low $20s, but this plumbing monkey site has the best deals by far.
910-06 - G-Line XF Series Aramid Braided Hose -
AX75F92 is offline
Old 07-18-14, 09:22 PM
  #9
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,106
Received 30 Likes on 23 Posts
I've used the 910 and it's great to work with. Super easy to cut and set the fittings. Very flexible. Spendy but good.
C. Ludwig is offline
Old 07-28-14, 09:42 AM
  #10
Full Member
10 Year Member

yelwoci's Avatar

Join Date: Mar 2005
Location: London, UK
Posts: 60
Likes: 0
Received 0 Likes on 0 Posts
On my racecar I use 3/8" ID maleable copper tube outside along side the chassis rails and minimise the number of Aeroquip hose connections. One of the problems caused by the expense of the connectors is the downsizing the pipe sizes to reduce costs of the connectors; which reduces fuel flow and raises pump effort.
I have about 500 $600 worth of connectors on mine.
If you run the pipe inside the cabin; you must run Aeroquip steel braided the whole way with no connectors in the cabin; even at bulkheads. Counter intuitive maybe but bulkhead grommets don't spray fuel mist!
yelwoci is offline
Old 07-29-14, 09:20 PM
  #11
Rotary Enthusiast
iTrader: (14)

freddyrx3's Avatar

Join Date: Oct 2005
Location: new jersey
Posts: 1,070
Likes: 0
Received 0 Likes on 0 Posts
XRP all day
freddyrx3 is offline
Old 07-30-14, 08:09 AM
  #12
IRS 4 Life
iTrader: (12)

Bacon's Avatar

Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 0 Likes on 0 Posts
My build is almost all areoquip or earls anno tough, lol expensive wait still you start buying -12 and -16 at 50$ a piece plus for some fittings....
Bacon is offline
Old 08-02-14, 04:32 AM
  #13
Friday Night Nitrous Fire
Thread Starter
iTrader: (7)

AX75F92's Avatar

Join Date: Mar 2003
Location: Anaheim
Posts: 345
Likes: 0
Received 1 Like on 1 Post
Thanks for the info guys.

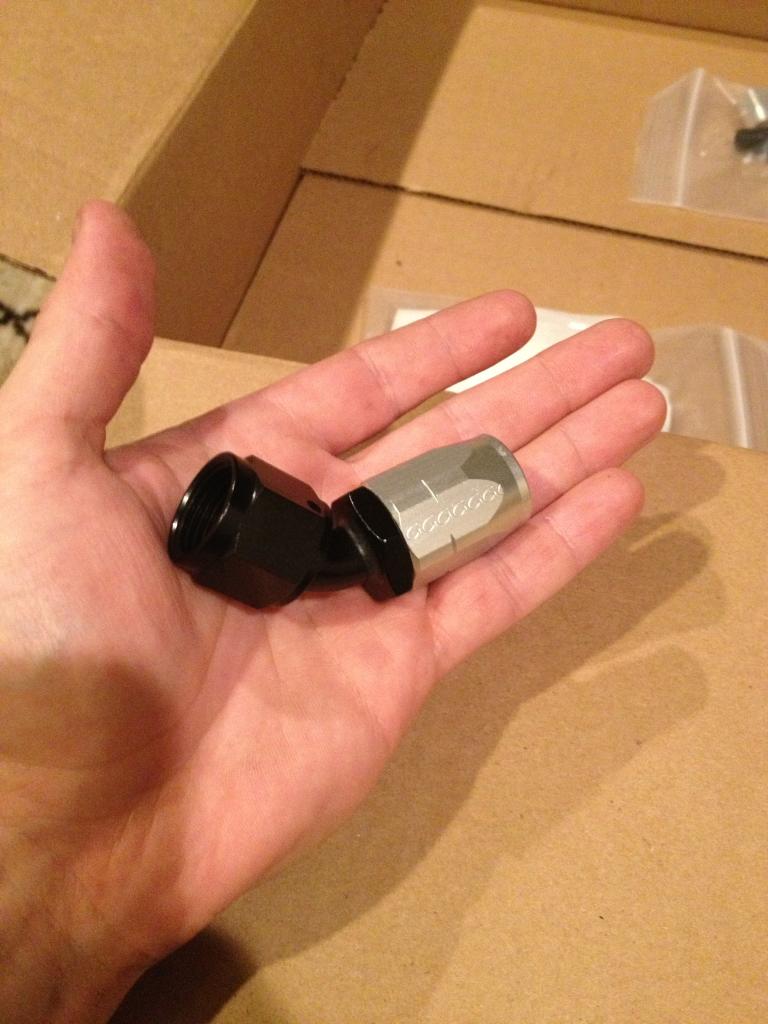

I ended up getting the Goodridge 910 and their olive-less reusable hose ends.


Name:  5FFCC4E7-5745-4317-82AB-E0476C0C1324.jpg
Views: 19
Size:  80.9 KB

So far Im pretty impressed. The hose is feather light and insanely flexible for teflon, and like Chris said, the hose ends are very easy to work with.
AX75F92 is offline
