An EProd car is born

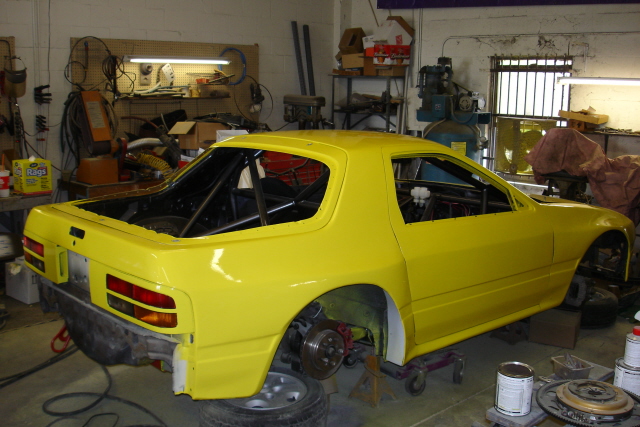

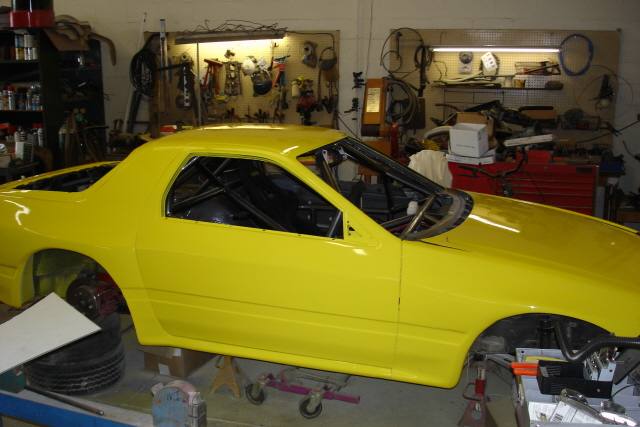

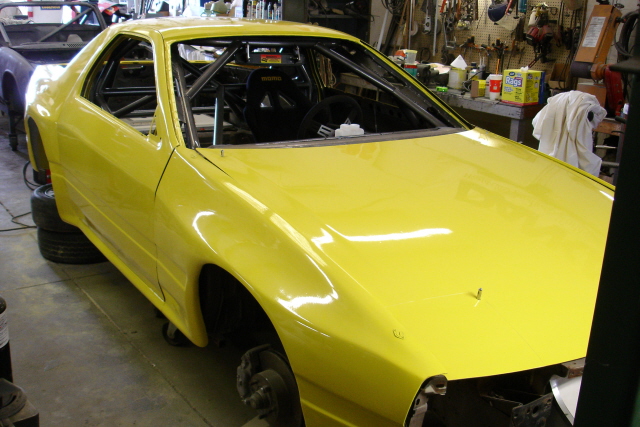

Here are some shots of my latest car.
Quick details:
All fiberglass hood, fenders, quarters, hatch. Flared 2 inches to clear tires.
Driveline and suspension are next.
Attached Thumbnails An EProd car is born-car5.jpg   An EProd car is born-car6.jpg   An EProd car is born-car7.jpg
jgrewe is offline
Old 03-09-06, 01:18 PM
  #2
Rotary Freak
10 Year Member

fcturbo2's Avatar

Join Date: Mar 2001
Location: LA.,California USA
Posts: 1,611
Likes: 0
Received 0 Likes on 0 Posts
WOW~!...cant wait to see the finished product in action..
fcturbo2 is offline
Old 03-09-06, 09:10 PM
  #3
GET OFF MY LAWN
10 Year Member
Thread Starter
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
Don't know if I'll make it that far west racing this one! Maybe halfway, like Topeka... I'm shooting to have the car on the track for some testing in early May. My big hold up now is the fact that the Aim MXL Pro I ordered has been backordered for over a month.
jgrewe is offline
Old 03-09-06, 11:08 PM
  #4
Mad Man


Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
What hatch are you using? Looks nice, Tripoint, AWR, Japco? I need to drop some serious weight from mine, it's a hefty 2900 wet, w/me (155#). Of course it is not an EP car, just wish I had known more when I started... I look forward to your updates, keep'em coming, Carl
Carl Byck is offline
Old 03-10-06, 08:39 AM
  #5
GET OFF MY LAWN
10 Year Member
Thread Starter
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
I made the all the body panels myself. One of the guys I share the shop with used to build boats and he made all the body panel molds. When I was ready for the hatch frame he walked me through the whole process of mold making etc. (he runs a 'vert so he didn't have a hatch) The frame weighs just under 4lbs and the 1/8th polycarbonate is about 11lbs so the whole package is just under 15lbs instead of the stock 57lbs.
jgrewe is offline
Old 03-10-06, 09:44 AM
  #6
Lives on the Forum
15 Year Member

DamonB's Avatar

Join Date: Feb 2001
Location: Dallas
Posts: 9,617
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by jgrewe
I made the all the body panels myself. One of the guys I share the shop with used to build boats and he made all the body panel molds.
That's the stuff I want to see! Hell of a project.
DamonB is offline
Old 03-10-06, 12:46 PM
  #7
REW'd FB
5 Year Member

z-beater's Avatar

Join Date: Dec 2004
Location: WA
Posts: 2,685
Likes: 0
Received 0 Likes on 0 Posts
Wow, nice custom work there.
z-beater is offline
Old 03-10-06, 01:30 PM
  #8
Rotary Freak
5 Year Member

owen is fat's Avatar

Join Date: Apr 2004
Location: Rochester, NY
Posts: 1,579
Likes: 0
Received 0 Likes on 0 Posts
wow, such great DIY work, big props to you!
tell us more about your hood... weight? source? cost?
thats gonna be a fun car on track!
congrats, looks awesome!
owen is fat is offline
Old 03-10-06, 02:36 PM
  #9
GET OFF MY LAWN
10 Year Member
Thread Starter
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
Everything you see was done by me. Body panels, cage, paint, wiring etc etc. The hood weighs 14-15 lbs and attaches with hood pins. There might be $25 in materials.
jgrewe is offline
Old 03-10-06, 02:46 PM
  #10
GET OFF MY LAWN
10 Year Member
Thread Starter
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts

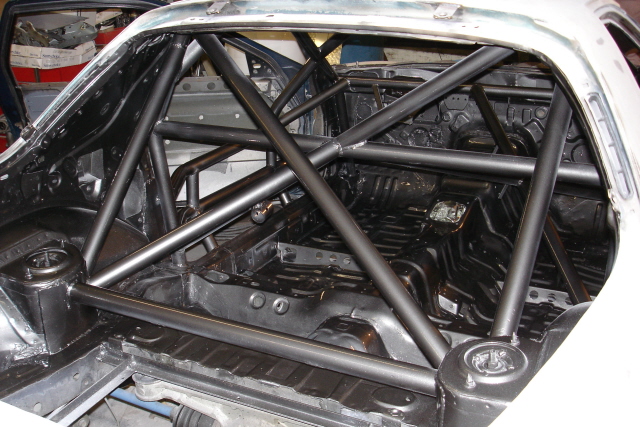

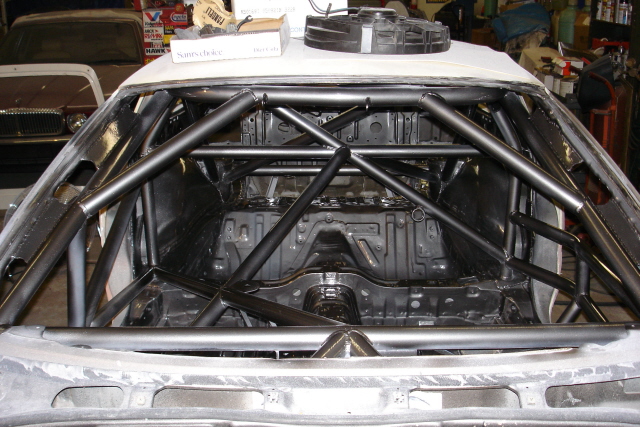

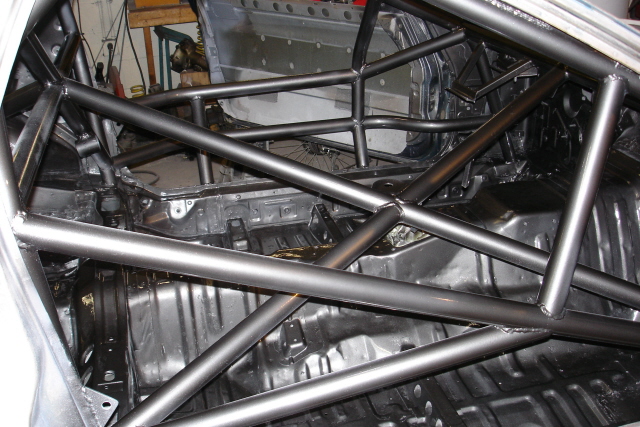

Here are pics of the cage.
Attached Thumbnails An EProd car is born-cage1.jpg   An EProd car is born-cage2.jpg   An EProd car is born-cage3.jpg
jgrewe is offline
Old 03-10-06, 07:08 PM
  #11
Racing is life!
10 Year Member
iTrader: (2)

cpa7man's Avatar

Join Date: Jan 2003
Location: Grapevine, TX
Posts: 2,174
Likes: 0
Received 0 Likes on 0 Posts
Can you show us what you did under the hood with the front of the cage? That looks like one stout cage.

The fenders look great along with the hatch. Several racers build there own fiberglass pieces. Most of them do so because they don't like (or don't want to pay the high price + high freight) what's avaliable commerically. You could for sure go into the fiberglass business.
cpa7man is offline
Old 03-10-06, 09:09 PM
  #12
GET OFF MY LAWN
10 Year Member
Thread Starter
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts

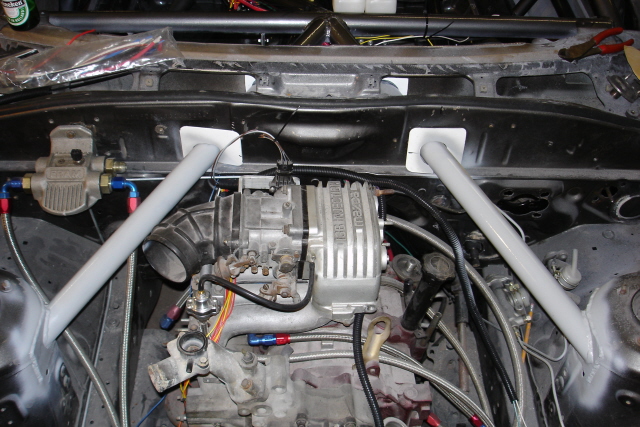

Here's the engine compartment. I have been mocking things up so it hasn't been painted.
Attached Thumbnails An EProd car is born-cage4.jpg
jgrewe is offline
Old 03-10-06, 09:22 PM
  #13
Drive it like ya stole it
5 Year Member

Slo Motorsports's Avatar

Join Date: Feb 2006
Location: Mass
Posts: 380
Likes: 0
Received 0 Likes on 0 Posts
Looks great! Keep the pix coming.
Slo Motorsports is offline
Old 03-11-06, 12:56 AM
  #14
Lives on the Forum
10 Year Member

Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 1 Like on 1 Post
That's a very nice looking car, the cage is beautifully made and looks well designed. The body work is also very good. I really admire people like you with the skills to do so much of the build on your own.
Black91n/a is offline
Old 03-11-06, 03:26 PM
  #15
RIP Icemark
5 Year Member
iTrader: (4)

j200pruf's Avatar

Join Date: Oct 2002
Location: Aloha OR
Posts: 1,481
Likes: 0
Received 0 Likes on 0 Posts
What kind of tire/wheel sizes do you run in Eprod.
j200pruf is offline
Old 03-11-06, 03:46 PM
  #16
GET OFF MY LAWN
10 Year Member
Thread Starter
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
Wheel size is limited to 15x7. Tires are whatever you can fit UNDER the fender even if its flared. We run 9.5" wide slicks that are specially made for a narrow rim.

On another subject, I put the car on scales today. I just wanted to see what my neurosis about adding lightness to the car has gotten me. I gathered all kinds of parts that aren't installed on the car yet and put them in the general location they will be in relation to the wheels. I didn't add any fluids so these are dry weights but with me in the car. One thing I didn't account for was exhaust pipe but a did throw a muffler in the pass. corner. There also was no starter.

LF RF
540 528

LR RR
563 478

TOTAL 2109 lbs.
My weight is 189 on one of the scales. So the car is 1920 dry
Minimum weight for the class is 2350 lbs with driver.

Last edited by jgrewe; 03-11-06 at 04:06 PM.
jgrewe is offline
Old 03-24-06, 09:38 PM
  #17
GET OFF MY LAWN
10 Year Member
Thread Starter
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts

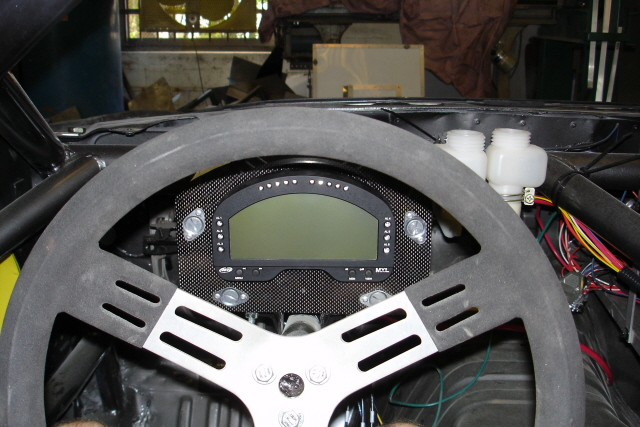

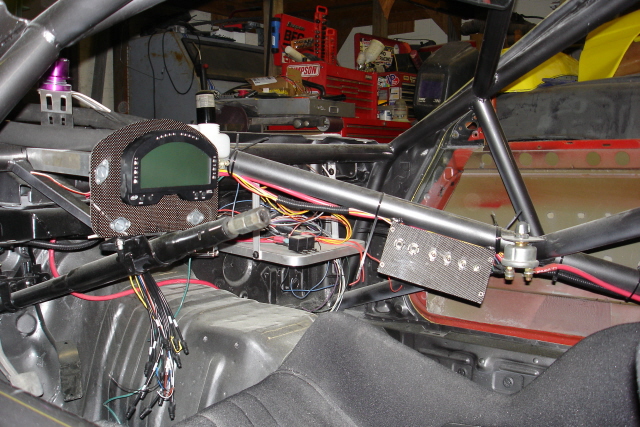

Here are some shots of the 'office' under construction. After being on backorder for over a month my dash/dataq system finally showed up. Its an AIM MXL Pro 05. I'm making my list for all the sensors and extra wiring I need.

The whole engine harness has been pulled back through the firewall and is in a ball by the ECU shelf on the passenger side. I'll be painting the engine compartment this next week.
Attached Thumbnails An EProd car is born-car8.jpg   An EProd car is born-car9.jpg
jgrewe is offline
Old 03-25-06, 03:16 PM
  #18
Banned. I got OWNED!!!

christaylor's Avatar

Join Date: Mar 2003
Location: Austin, Texas
Posts: 1,546
Likes: 0
Received 0 Likes on 0 Posts
You'll love the hell out of that dash once you get on track. I drove a customer's car in an enduro with it, and it's really nice. He wired in some bigger and brighter warning lights (superbright LEDs) that make it impossible to miss. He did it for the video camera, but it makes it hard to say, "I didn't see the light....".
christaylor is offline
Old 03-28-06, 01:48 AM
  #19
Senior Member
15 Year Member

SPiN Racing's Avatar

Join Date: Mar 2001
Location: St. Pete, FL
Posts: 481
Likes: 0
Received 0 Likes on 0 Posts
JOHN!!

Looks awesome!

Nice to see you at Sebring! Didnt get a chance to see the Turner on the track. I was looking for it during one of the sessions when the 997 was ready to go, and I had some time LOL.

I am really gonna have to squeese in some time to get across town and check her out. Swap some more ideas along the way

BTW.. For those who might think he is an amatuer. Dont believe it. He isnt just some dude with tools in mom and dad's garage.. he he he
SPiN Racing is offline
Old 03-28-06, 08:59 AM
  #20
GET OFF MY LAWN
10 Year Member
Thread Starter
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
Scott, the Turner got punted off the track by a Corvette on the outside of 17 during the Enduro. The front right corner is crushed.

Which minute of spare time were you looking? The first or the second one
jgrewe is offline
Old 03-28-06, 11:47 AM
  #21
Senior Member
15 Year Member

SPiN Racing's Avatar

Join Date: Mar 2001
Location: St. Pete, FL
Posts: 481
Likes: 0
Received 0 Likes on 0 Posts
Ouuuuch. Im sorry to hear that.

But just think.. now you can re-re-engineer the shocks etc again Just another oppertunity for improvement...

Not sure have an event at Atl this weekend.. and the next two after I should be in Texas working on some cars.
o.O

Umm soo yeah. I will prolly end up seeing it on the track first! LOL
SPiN Racing is offline
Old 04-02-06, 11:05 PM
  #22
Banned. I got OWNED!!!

christaylor's Avatar

Join Date: Mar 2003
Location: Austin, Texas
Posts: 1,546
Likes: 0
Received 0 Likes on 0 Posts
What cars in Texas will you be working on?
christaylor is offline
Old 04-02-06, 11:40 PM
  #23
GET OFF MY LAWN
10 Year Member
Thread Starter
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
Scott fills the weekends he isn't driving making Porsches fast for Farnbacher Loles, it's probably one(or a bunch) of them.
jgrewe is offline
Old 04-03-06, 09:01 PM
  #24
Banned. I got OWNED!!!

christaylor's Avatar

Join Date: Mar 2003
Location: Austin, Texas
Posts: 1,546
Likes: 0
Received 0 Likes on 0 Posts
Ahhh... at the GP.

Well I'll be doing worker registration, so if that's anywhere near driver/crew, pop in and say Hi!
christaylor is offline
Old 12-08-06, 04:15 PM
  #25
GET OFF MY LAWN
10 Year Member
Thread Starter
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
Its been a while since I've updated info on the car. I spent the Fall traveling doing the Zoom Zoom Live Tour and I got no time in on the car. I dug up some pics for everybody's enjoyment.

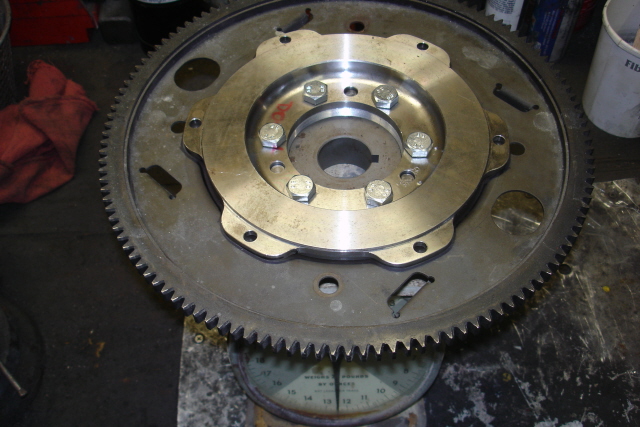

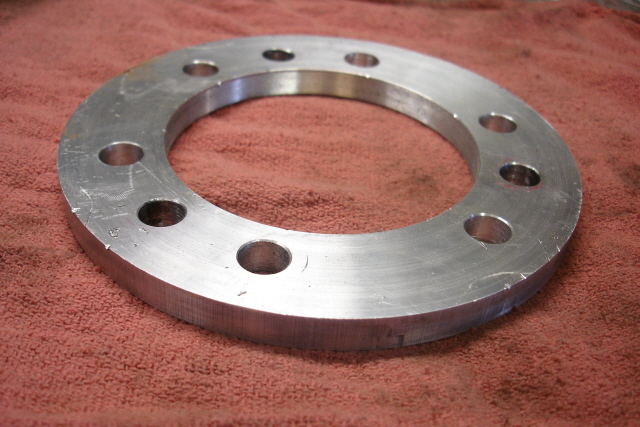

There are two of my clutch set-up using a flex plate. I had some QuarterMaster clutch stuff laying around and figured I could save some weight. I had a spacer made to fill the gap in the dish of the flexplate. I could have turned it myself but then I thought,"This thing is going to be spinning 9K!" so I had a friend who does it for a living do it. It turned out great. The whole thing came in at 12lbs 7oz including the counterweight and hardware. The whole clutch and flywheel package weighs in at just under 18lbs. The stock assembly weighs about 36 lbs. The big thing is rotational mass though and this set-up is low.

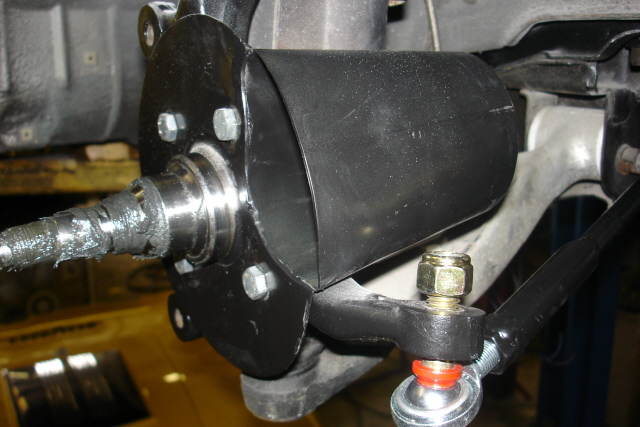

The other picture is of the brake duct I made. It puts all the air into the center of the disc from a 3" hose. This will keep the disc from having one side getting cooler than the other because it all gets cooled from inside.
Attached Thumbnails An EProd car is born-clutch1.jpg   An EProd car is born-clutch2.jpg   An EProd car is born-brakeduct.jpg
