Desiging front spliter for FD - Cwest bumper

Race Car Tech Discuss anything related to road racing and auto X.

Desiging front spliter for FD - Cwest bumper

Old 03-23-09, 09:20 PM
  #1
The wankel way!!
5 Year Member
Thread Starter

TURSTY's Avatar

Join Date: May 2008
Location: New Zealand
Posts: 462
Likes: 0
Received 0 Likes on 0 Posts
Desiging front spliter for FD - Cwest bumper

Hay guys.

Im looking to mock up a simple splitter for the front of my FD. It has a Cwest front bumper with quite a bit of ground clearance....about 80-90mm.

What Im wondering is how far back to run it and what angle I should try for as it goes under the front?
TURSTY is offline
Old 03-24-09, 12:28 AM
  #2
DragonFly
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Likes: 0
Received 4 Likes on 3 Posts
do a search for my name and 'splitter' or 'undertray'

:-)
damian is offline
Old 03-24-09, 07:27 AM
  #3
Full Member
10 Year Member

Join Date: Jul 2005
Location: The Netherlands
Posts: 163
Likes: 0
Received 0 Likes on 0 Posts


jeroentje.nl is offline
Old 03-24-09, 11:06 AM
  #4
Corn-to-Noise Converter
iTrader: (6)

Carlos Iglesias's Avatar

Join Date: Mar 2002
Location: The Elysian Fields (Texas)
Posts: 1,180
Received 9 Likes on 5 Posts

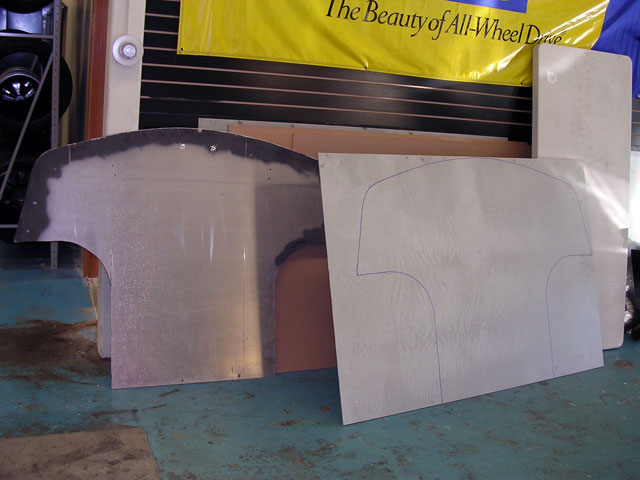

Another hack's version...



I'll probabley extend the next version back to the the front edge of the oil pan.



Subtle at 2" of leading edge.



.
Carlos Iglesias is offline
Old 03-24-09, 11:33 AM
  #5
DragonFly
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Likes: 0
Received 4 Likes on 3 Posts

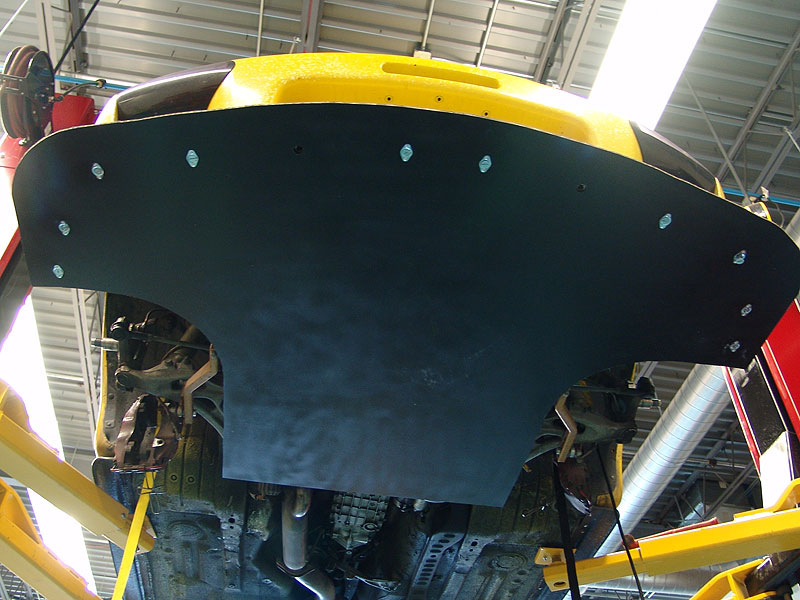

pics from some of my splitter/undertray threads:

https://www.rx7club.com/forum/showth...amian+splitter









damian is offline
Old 03-24-09, 06:07 PM
  #6
The wankel way!!
5 Year Member
Thread Starter

TURSTY's Avatar

Join Date: May 2008
Location: New Zealand
Posts: 462
Likes: 0
Received 0 Likes on 0 Posts
You guys are awesome! Cheers guys......nice work!
TURSTY is offline
Old 03-25-09, 05:55 PM
  #7
The wankel way!!
5 Year Member
Thread Starter

TURSTY's Avatar

Join Date: May 2008
Location: New Zealand
Posts: 462
Likes: 0
Received 0 Likes on 0 Posts
Looking at the options, what woud you recomend for for thicknesses

Alloy - 2,3,4mm?

Plywood - 5,6mm?

Fibreglass/carbon - 4mm?

Also any idea of weights for each?
TURSTY is offline
Old 03-25-09, 06:46 PM
  #8
Brap Brap, Fap Fap
iTrader: (7)

Shainiac's Avatar

Join Date: Jun 2006
Location: Lyme, CT
Posts: 1,485
Received 9 Likes on 9 Posts
Damian, do know what the individual Dzus fasteners are rated at? The retaining clip is rather scrawny and that front lip looks like it would be making a lot of downforce at speed. Have you been running that setup for very long? It looks very convenient and functional.
Shainiac is offline
Old 03-26-09, 03:56 PM
  #9
DragonFly
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Likes: 0
Received 4 Likes on 3 Posts
>>Damian, do know what the individual Dzus fasteners are rated at?

80 cobillion giga pounds..... in other words, I have no idea :-)

>>The retaining clip is rather scrawny and that front lip looks like it would be making a lot of downforce at speed.

The downforce is spread across the entire surface, so in the end each fastener take a smaller precent of the force.


>>Have you been running that setup for very long? It looks very convenient and functional.

Check my post times in my threads to get the dates, I dunno off the top of my head, but it has been for years now. :-)
damian is offline
Old 03-27-09, 09:53 AM
  #10
10 lb. boost, 5lb. bag
10 Year Member
iTrader: (1)

Gene's Avatar

Join Date: Mar 2001
Location: New York, NY
Posts: 1,076
Likes: 0
Received 0 Likes on 0 Posts
I've posted it before, but here's a great article about fabbing your own splitters:

http://www.specialprojectsms.com/ind...?categoryID=30
Gene is offline
Old 03-27-09, 11:09 AM
  #11
Just in time to die
10 Year Member
iTrader: (1)

Zero R's Avatar

Join Date: Nov 2001
Location: look behind you
Posts: 4,143
Likes: 0
Received 1 Like on 1 Post
Best advice I can give mount it to the chassis, not the bumper. You can have the bumper attach to it but don't use the bumper as the means to attach it to the body.
Zero R is offline
Old 03-30-09, 08:56 PM
  #12
DragonFly
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Likes: 0
Received 4 Likes on 3 Posts
^^ agreed
although I do attach mine to the bumper, I also attach it to the subframe, that is where it gets its horizontal stability from, so the splitter ends up giving horizontal stability to the bumper via the subframe support via the splitter.

one I have time to design a new rebar, it will provide support for a splitter, that would be ideal, so that all its support is from the car frame, and the nose just 'sits' on the splitter
damian is offline
Old 03-31-09, 04:26 PM
  #13
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2004
Location: Rocket City, Alabama
Posts: 1,035
Likes: 0
Received 1 Like on 1 Post
Large flat plates are not very strong structurally. The underside needs to be flat, but the top side can have stiffener ribs added to make it stiffer and stronger.

putting it another way, if you run without stiffener ribs, then you must make it very thick (and heavy)

with stiffeners added to the upper surface, then the plate can be made much thinner.

I use .040" thick (1 mm) aluminum sheet with stiffeners added to the upper surface. I make the stiffeners out of sheet alum, and rivet them to the upper surface, so that my lower surface stays nice and smooth. Stiffeners can be C sections or hat sections.
speedturn is offline
Old 11-19-09, 03:19 PM
  #14
The wankel way!!
5 Year Member
Thread Starter

TURSTY's Avatar

Join Date: May 2008
Location: New Zealand
Posts: 462
Likes: 0
Received 0 Likes on 0 Posts
Sorry to drag this back up again guys, but im actully interested in the other end of the car now.

Does anyone have any pics of a car with a rear diffuser on a hoist? I just want to see how the leading edge attaches to the underbody.
TURSTY is offline
