Brake ducts advice opinions sought.

Old 04-19-15, 03:20 PM
  #1
mp5
Senior Member
Thread Starter
iTrader: (2)

mp5's Avatar

Join Date: Jun 2002
Location: OH.
Posts: 611
Liked 4 Times in 4 Posts
Brake ducts advice opinions sought.

I want to run some ducts on the front of my FD stock brakes to help cooling at the track and after searching around a bit I think I can fashion some 3 or 4 inch pipe from my 99 lip and follow it all the way up to the back plate.

Are people are fabricating their own backplate or buying a kit somewhere ?

And when finished the results are far superior to the stock set up ?
mp5 is offline
Old 04-19-15, 03:46 PM
  #2
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,398
Likes: 0
Liked 108 Times in 98 Posts
Originally Posted by mp5 View Post

And when finished the results are far superior to the stock set up ?
to answer this would require a little testing. you'd need to take some temps of the stock setup, and then make the duct, and retake the temps, preferably at the same track, correct for any difference in ambient temp, and then you'd know.

you'd probably learn what temp the pads like too.

i think actually making the duct would be pretty simple, cut a hole in the backing plate, install pipe, route duct, done
j9fd3s is offline
Old 04-19-15, 04:01 PM
  #3
Rotary Enthusiast
iTrader: (19)

Join Date: Apr 2002
Location: Colorado Springs, CO
Posts: 1,168
Likes: 0
Liked 5 Times in 4 Posts
Another option we might do here is duct the backside of the oil coolers. run a 3" hose from the back of the oil coolers to the backing plate of the brakes. this way you don't need to duct anything below the car or the bumper. just a short hose between the two. shouldn't be too bad.
lOOkatme is offline
Old 04-19-15, 04:34 PM
  #4
mp5
Senior Member
Thread Starter
iTrader: (2)

mp5's Avatar

Join Date: Jun 2002
Location: OH.
Posts: 611
Liked 4 Times in 4 Posts
I suppose just punching out a 3 inch diameter hole in the backing plate would suffice? my concern is running the end of the pipe close enough to the rotor to get the air to do some good.
mp5 is offline
Old 04-19-15, 08:24 PM
  #5
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Liked 4 Times in 4 Posts
Arrow

Mahjik is offline
Old 04-20-15, 08:13 PM
  #6
mp5
Senior Member
Thread Starter
iTrader: (2)

mp5's Avatar

Join Date: Jun 2002
Location: OH.
Posts: 611
Liked 4 Times in 4 Posts
Thanks Mahjik,I will probably just make a make my own setup like that.
mp5 is offline
Old 04-22-15, 06:52 AM
  #7
Rotary Freak

23Racer's Avatar

Join Date: Jul 2003
Location: Oakville, Ontario
Posts: 2,192
Likes: 0
Liked 3 Times in 3 Posts
Just be very careful. The duct work shown in the linked thread looks good, but is only blowing cold air on one side of the rotor. This can create a temperature imbalance from side to side on the rotor and lead to uneven pad wear and potentially rotor cracking if the imbalance is great enough and the rotor is weak enough in one place.

If I may suggest 2 approaches. The first is to build the duct work to the backing plate, then guide the air to the very center of the rotor near the spindle. This allows the air to pass through the rotor through the internal venting of the rotor (center to outer) and thereby cooling both sides equally from inside (best choice).

The second way would be to guide the air to the back face of the wheel and allow it to just add a bunch of air to everything, from the caliper, the rotors on both sides and the spindle. This is the way that I do it as the cooling air needs to get to the rotors and calipers on my cars as I can actually melt out the caliper piston o-rings if I don't. It is no way the most efficient and at times I want to go to the first selection and add a second ducting line to cool the caliper, but things are under control right now and I just don't want to mess with it until I need to.

Eric
23Racer is offline
Old 04-24-15, 02:54 PM
  #8
mp5
Senior Member
Thread Starter
iTrader: (2)

mp5's Avatar

Join Date: Jun 2002
Location: OH.
Posts: 611
Liked 4 Times in 4 Posts
Originally Posted by 23Racer View Post

If I may suggest 2 approaches. The first is to build the duct work to the backing plate, then guide the air to the very center of the rotor near the spindle. This allows the air to pass through the rotor through the internal venting of the rotor (center to outer) and thereby cooling both sides equally from inside (best choice).

Eric

I have read this is the way to do it and you get cooling to the bearing too.

Question,is there a preferable material to use aluminum or steel ?
mp5 is offline
Old 04-24-15, 03:12 PM
  #9
Rotary Freak

23Racer's Avatar

Join Date: Jul 2003
Location: Oakville, Ontario
Posts: 2,192
Likes: 0
Liked 3 Times in 3 Posts
Use aluminum. Remember unsung weight concerns. Lighter is better.

Eric
23Racer is offline
Old 04-29-15, 12:20 PM
  #10
mp5
Senior Member
Thread Starter
iTrader: (2)

mp5's Avatar

Join Date: Jun 2002
Location: OH.
Posts: 611
Liked 4 Times in 4 Posts
So I,m going to fab my own ducts and backplate will post pics when I,m done.

Pads I,m planning on running are Carbotech p10 and p12 in front on some cheap oem discs.

Mid Ohio has a nice little back straight
mp5 is offline
Old 05-07-15, 10:14 PM
  #11
mp5
Senior Member
Thread Starter
iTrader: (2)

mp5's Avatar

Join Date: Jun 2002
Location: OH.
Posts: 611
Liked 4 Times in 4 Posts
I have some parts to fab and install
mp5 is offline
Old 05-22-15, 12:04 PM
  #12
mp5
Senior Member
Thread Starter
iTrader: (2)

mp5's Avatar

Join Date: Jun 2002
Location: OH.
Posts: 611
Liked 4 Times in 4 Posts
Video updates and what I discovered to make this all fit.



Updates...https://www.rx7club.com/rx-7-audio-v.../#post11917415
mp5 is offline
Old 06-02-15, 07:36 AM
  #13
mp5
Senior Member
Thread Starter
iTrader: (2)

mp5's Avatar

Join Date: Jun 2002
Location: OH.
Posts: 611
Liked 4 Times in 4 Posts
Ran at Mid Ohio yesterday and the brake setup was solid,stopped me from 130 mph without any apparent fade,we ran about 35 laps and felt as strong at the end as it did from the start.

Recap...build 3 inch ducts to the stock sized rotors at the front.......purchased new rotors,Carbotech XP10,XP12 pads front and back fresh Wilwood 600 hi temp brake fluid.I,m running stainless steel lines.

I was expecting a lot more noise and grinding,there was very little or any noise at all,dusting was pretty minimal so I would give a thumbs up to the pads.... so in conclusion if you own a street car and want to throw on some r comps and track it and not be held back by the stock system I think this will definitely help you.

Last edited by mp5; 06-02-15 at 07:39 AM.
mp5 is offline
Old 06-03-15, 09:39 AM
  #14
mp5
Senior Member
Thread Starter
iTrader: (2)

mp5's Avatar

Join Date: Jun 2002
Location: OH.
Posts: 611
Liked 4 Times in 4 Posts
20150601_133014 by





mp5 is offline
Old 07-14-15, 12:33 AM
  #15
Full Member

Macen's Avatar

Join Date: Mar 2007
Location: Varberg, Sweden
Posts: 118
Likes: 0
Liked 0 Times in 0 Posts

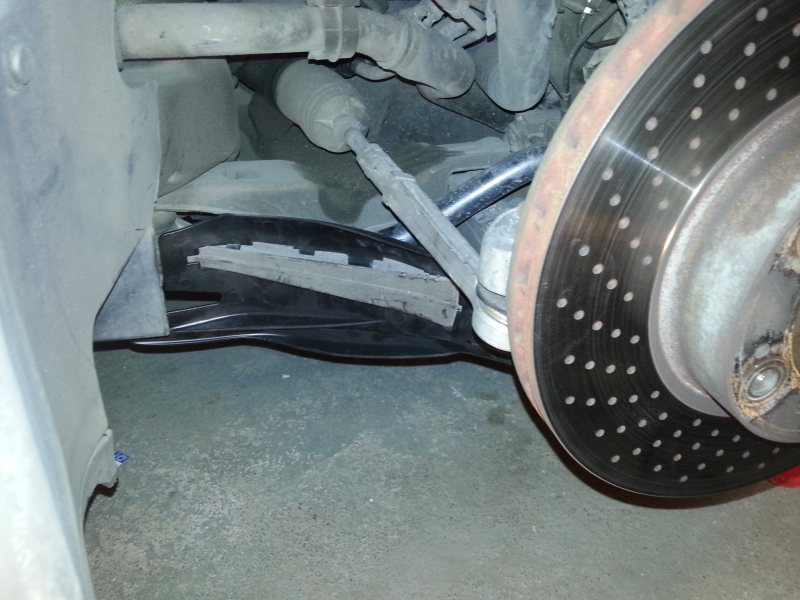

What do you guys think about these brake cooling spoilers that Porsche uses? Costs $10.
Attached Thumbnails Brake ducts advice opinions sought.-brakespoiler.jpg
Macen is offline
Old 07-14-15, 07:11 AM
  #16
Rotary Enthusiast
iTrader: (19)

Join Date: Apr 2002
Location: Colorado Springs, CO
Posts: 1,168
Likes: 0
Liked 5 Times in 4 Posts
Originally Posted by Macen View Post
What do you guys think about these brake cooling spoilers that Porsche uses? Costs $10.
I think that is all that is needed. direct air to the brakes.
lOOkatme is offline
Old 07-14-15, 07:24 AM
  #17
Full Member

Macen's Avatar

Join Date: Mar 2007
Location: Varberg, Sweden
Posts: 118
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by lOOkatme View Post
I think that is all that is needed. direct air to the brakes.
Yeah, I think so too. A cheap and easy mod.
I've hot the big -99 breaks also. Gonna give the spoilers a go.

Porsche part numbers:
997 341 483 92 left
997 341 484 92 right

Last edited by Macen; 07-14-15 at 03:25 PM.
Macen is offline
Old 08-18-16, 05:29 AM
  #18
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: los angeles
Posts: 714
Liked 3 Times in 3 Posts
Originally Posted by Macen View Post
Yeah, I think so too. A cheap and easy mod.
I've hot the big -99 breaks also. Gonna give the spoilers a go.

Porsche part numbers:
997 341 483 92 left
997 341 484 92 right

did you install them yet? please post pictures
MILOS7 is offline
Old 08-18-16, 11:46 AM
  #19
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2004
Location: Rocket City, Alabama
Posts: 1,035
Likes: 0
Liked 1 Time in 1 Post
As 23racer said, it is very important to duct cool air to the center of the rotor. Vented rotors work as centrifugal air pumps, as they turn the vanes pump air cooling air from the center through the inside passages, cooling both faces of the rotor. Blowing cool air on one face of a rotor does not cool a rotor down nearly as well as blowing cool air into the center of the rotor.

Another trick is to grind away sharp casting flash from the around the inside edges of the rotor. We are trying to get air into those passages, and sharp edges really impede air flow.
speedturn is offline
Old 08-18-16, 01:28 PM
  #20
Full Member

Macen's Avatar

Join Date: Mar 2007
Location: Varberg, Sweden
Posts: 118
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by MILOS7 View Post
did you install them yet? please post pictures
I haven't mounted them yet, just test fitted. Rear will fit with some modifications. I'm gonna make a hole with a dremel in the brake shield and mount the spoiler on the lower rear control arm. Will post pictures when it's done.

Front will not fit. I'm gonna go for a hose from the front to the center of the brake disks.
Macen is offline
Old 10-10-16, 05:55 PM
  #21
Time or Money, Pick one
iTrader: (31)

silverTRD's Avatar

Join Date: Oct 2005
Location: Torrance, ca.
Posts: 2,713
Likes: 0
Liked 14 Times in 14 Posts
Any updates to the Porsche ducts in the front? I'm intrigued and may try this or draw inspiration to make my own.
silverTRD is offline
Old 10-13-16, 12:17 PM
  #22
Full Member

Macen's Avatar

Join Date: Mar 2007
Location: Varberg, Sweden
Posts: 118
Likes: 0
Liked 0 Times in 0 Posts
I didn't mount mine in the front. I built proper cooling with hoses from the front to the hub.
Maybe I will try to mount the ducts in the rear.
Macen is offline
Old 10-14-16, 07:43 PM
  #23
Full Member
iTrader: (4)

Join Date: Mar 2012
Location: Milwaukee
Posts: 59
Likes: 0
Liked 0 Times in 0 Posts
If you dont care about your turn signals, you can do what I did. I 3d printed my ducts and put them where my turn signals are. Excuse the swirl marks, I just painted the car and didnt finish buffing it





Last edited by Standing Z; 10-14-16 at 07:45 PM.
Standing Z is offline
Old 10-18-16, 10:34 AM
  #24
Full Member

Join Date: Sep 2013
Location: asheville
Posts: 239
Likes: 0
Liked 2 Times in 2 Posts

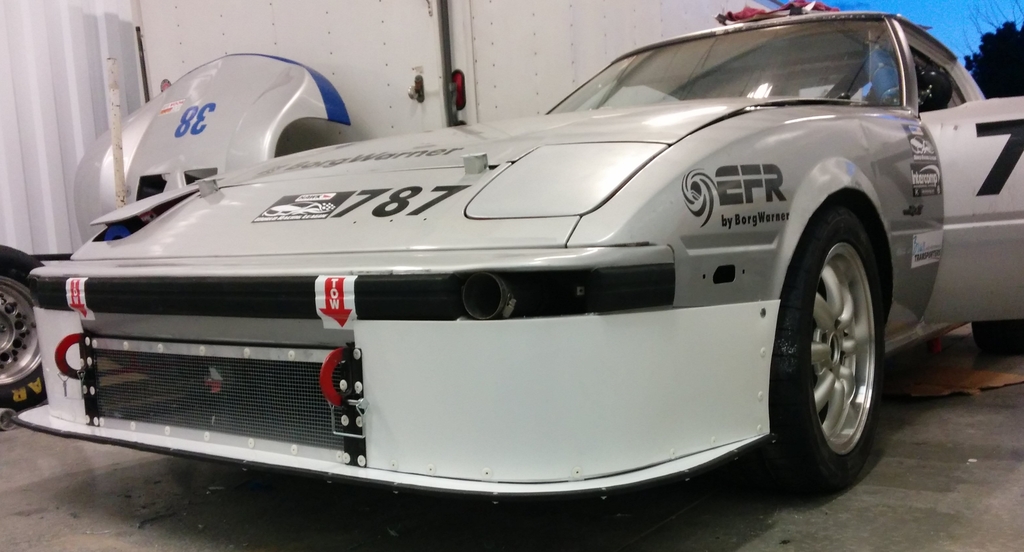

A much less fancy way to use your turn signal holes for cooling ducts. I may have to design some that I can get printed, that does look much nicer.

Name:  IMG_20150619_210640_zpsfwmmignk.jpg
Views: 29
Size:  323.4 KB

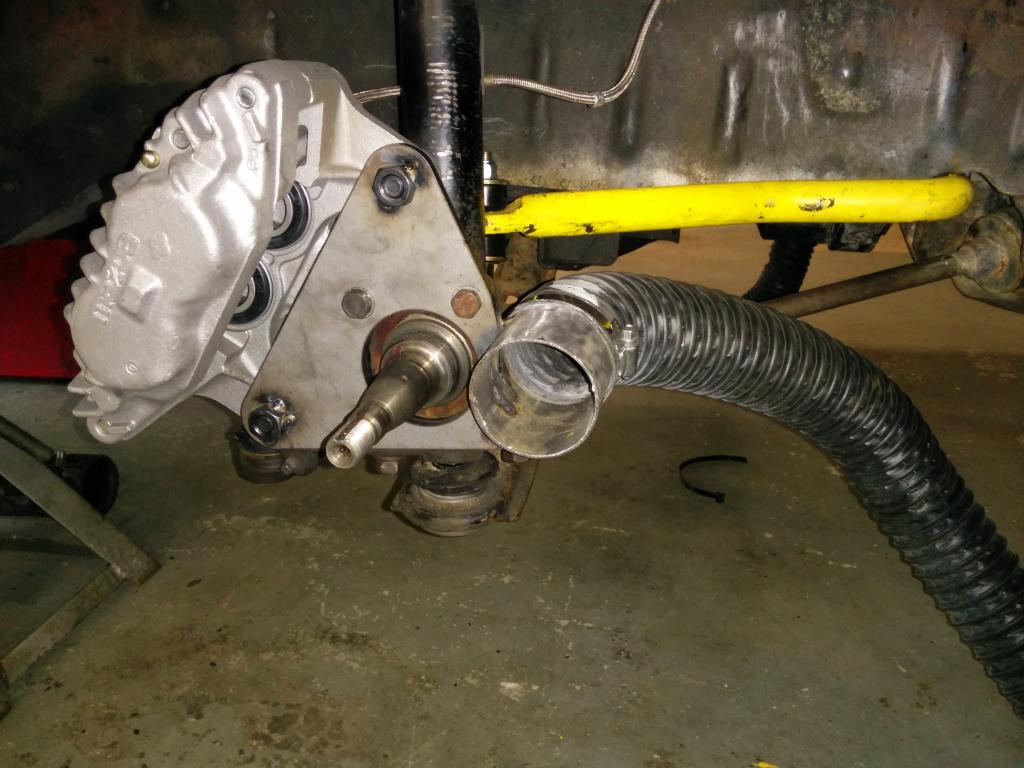

I designed my caliper brackets so I could mount the cooling hoses as close to the center as possible, the massive amount of rubber I have to clean out of the center of the rotors after every race tells me it must be working.

Name:  IMG_20140518_163903_zpsageqlwmq.jpg
Views: 26
Size:  94.2 KB
mhr650 is offline
Old 10-20-16, 02:39 PM
  #25
Full Member

Macen's Avatar

Join Date: Mar 2007
Location: Varberg, Sweden
Posts: 118
Likes: 0
Liked 0 Times in 0 Posts
This is my ghetto setup brake cooling.

I started with a 65mm hole in the brake shield.
Then cut a pipe and welded two ears. Drilled two holes in the shield and mounted the pipe's ears to the shield.





I then attached a pipe cut on the diagonal to the stock bumper air canals. Then I attached a 65mm hose between the pipes.





30-40mm between the tire and the hose at full lock and the wheel on the ground.

Macen is offline
