Race Car Tech Discuss anything related to road racing and auto X.

Any 4.88 2nd Gen Diffs Left?

Old 05-10-15, 10:08 AM
  #1
SCCAEP
Thread Starter
iTrader: (3)

SCCAITS's Avatar

Join Date: Dec 2006
Location: Dallas
Posts: 1,080
Likes: 0
Liked 0 Times in 0 Posts
Any 4.88 2nd Gen Diffs Left?

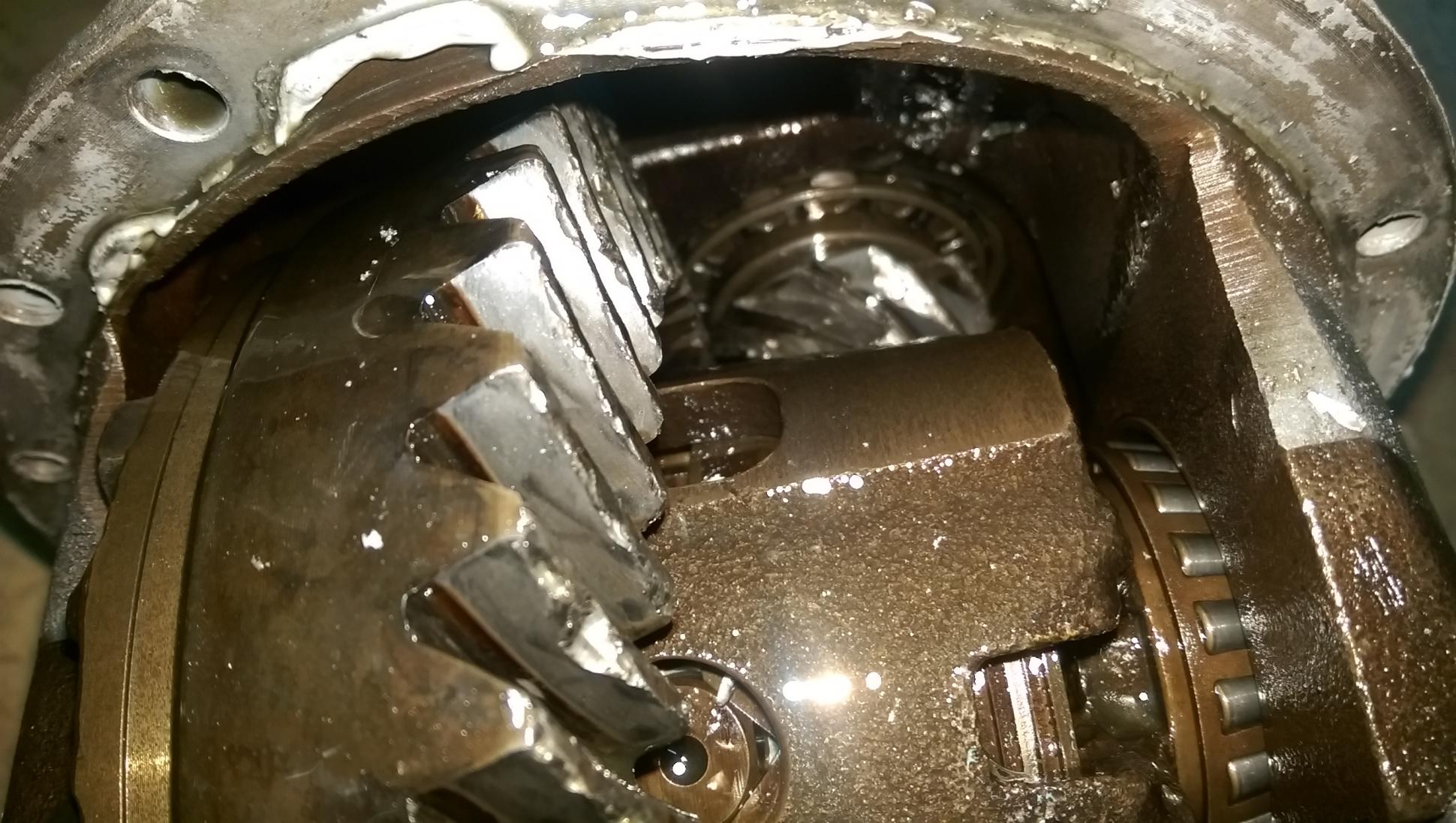

Have one or know of someone who does? Mine ate itself last weekend and looking for a new one. R&P only or complete diff is good with me.
Attached Thumbnails Any 4.88 2nd Gen Diffs Left?-diff.jpg
SCCAITS is offline
Old 05-13-15, 11:39 AM
  #2
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,175
Liked 10 Times in 10 Posts
Mazdatrix still sells 4.77s... but they're $$$$

I'm not sure if it's legal in EP, but you could just swap in a ford 8.8:
FC Ford 8.8 IRS Mounting Kit

I'm running 5.13s in mine currently. They make 4.88s for them too.
eage8 is offline
Old 05-13-15, 12:47 PM
  #3
Rallye RX7
iTrader: (11)

fidelity101's Avatar

Join Date: May 2005
Location: MI/CHI
Posts: 2,223
Liked 3 Times in 3 Posts
I cant tell from the photo but is your diff an NA or T2?
fidelity101 is offline
Old 05-15-15, 08:20 AM
  #4
SCCAEP
Thread Starter
iTrader: (3)

SCCAITS's Avatar

Join Date: Dec 2006
Location: Dallas
Posts: 1,080
Likes: 0
Liked 0 Times in 0 Posts
Have to run the NA diff in EP. I have a 4.30 but use the 4.88 for shorter tracks (Jerico gear box). A 4.77 would also work and I talked to the guy that makes the 4.77 for Mazdatrix but would prefer one complete and ready to go. There's got to be a few laying around and they are not as popular as the 5.12.
SCCAITS is offline
Old 06-10-15, 02:00 PM
  #5
Proven Lurker
iTrader: (3)

Continuum's Avatar

Join Date: Feb 2002
Location: Potomac, MD
Posts: 60
Likes: 0
Liked 0 Times in 0 Posts
I was in a similar situation last year. Had a busted 5.12, so I put my old 4.10 in the car. I spent a significant amount of time looking for another 5.12 or a 4.88. I never did find one. I finally ordered a 4.857 R&P from Mazda Motorsports (MP01‐27‐110, $458) for the SCCA runoffs (Oct) but they were backordered and it didn't arrive in time - I think I finally received it in February. I'm planning to have Mazdatrix put a diff together for me with it.

I'll watch this thread and hope you have better luck.


Jason
Continuum is offline
Old 06-11-15, 11:27 AM
  #6
Full Member
iTrader: (1)

Join Date: Jul 2004
Location: Bucks County PA
Posts: 232
Liked 2 Times in 2 Posts
Interesting you are all having so much trouble finding this. The FC diff is the same R&P specs as the FB correct?

I run an 84 and I got my 4.77 R&P out of the front axel of a kia sportage... If I recall I don't think I paid more than 150 bucks for the whole diff. and there were tons to be had on ebay.
wallyrx7 is offline
Old 06-11-15, 11:58 AM
  #7
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,141
Liked 6 Times in 6 Posts
Originally Posted by wallyrx7 View Post
Interesting you are all having so much trouble finding this. The FC diff is the same R&P specs as the FB correct?

I run an 84 and I got my 4.77 R&P out of the front axel of a kia sportage... If I recall I don't think I paid more than 150 bucks for the whole diff. and there were tons to be had on ebay.
The FC diff has a longer pinion than the FB.. so the gear has to be grafted on to a FC pinion shaft.
LargeOrangeFont is offline
Old 06-23-15, 11:12 PM
  #8
RE for life

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,173
Likes: 0
Liked 17 Times in 14 Posts
I have custom 5.12 final drive for FC, that I don't need
diyman25 is offline
Old 06-24-15, 03:15 PM
  #9
Tear you apart
iTrader: (10)

Jager's Avatar

Join Date: Aug 2004
Location: Bemidji Minnesota
Posts: 5,743
Liked 12 Times in 11 Posts
I have one, been waiting for 2 days for the 2nd generation for sale mods to approve my thread.

4.88 speedsource rear end set up by Trembly, Miata torsen diff, 1500 miles, all you have to do is bolt the housing together and install the subshafts (which I have all of it).

Intersted?
Jager is offline
Old 07-28-15, 06:13 PM
  #10
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,702
Likes: 0
Liked 3 Times in 3 Posts
I have two sets of 4.78 kia gears. I was planning to send them to the guy who extended them for speedsource. Have not had the need for it yet....

If you are interested perhaps we can have him do both, one for you and one for me...
RockLobster is offline
Old 07-28-15, 06:15 PM
  #11
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,702
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by Continuum View Post
I was in a similar situation last year. Had a busted 5.12, so I put my old 4.10 in the car. I spent a significant amount of time looking for another 5.12 or a 4.88. I never did find one. I finally ordered a 4.857 R&P from Mazda Motorsports (MP01‐27‐110, $458) for the SCCA runoffs (Oct) but they were backordered and it didn't arrive in time - I think I finally received it in February. I'm planning to have Mazdatrix put a diff together for me with it.

I'll watch this thread and hope you have better luck.


Jason

Unless you are running a 1st gen or miata full 3rd member somehow that part number wont fit a 2nd gen diff....it's the short pinion version. You will have to have mazdatrix extend it.
RockLobster is offline
Old 07-28-15, 06:16 PM
  #12
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,702
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by diyman25 View Post
I have custom 5.12 final drive for FC, that I don't need
8" or 7" ?
RockLobster is offline
Old 07-28-15, 08:14 PM
  #13
Rotary Freak
iTrader: (5)

Join Date: Sep 2011
Location: Miami
Posts: 2,824
Likes: 0
Liked 0 Times in 0 Posts
Isnt it a common mod for FD guys to put TII diffs into the FD's ?? why cant it be done visa versa , take an FD Diff with the RX8 ring and pinion , and than put it into an FC?

you have have 4.44 or 4.77
Tem120 is offline
Old 07-29-15, 09:48 AM
  #14
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,702
Likes: 0
Liked 3 Times in 3 Posts
Because the pinion in the FC is much longer. The gear sets are not interchangeable.

The differential itself is interchangeable between TII, FD and RX-8. But only the carrier, not the gears.

Just like the differential is interchangeable between the miata and all non-turbo RX-7s..(with some variation in stub shafts)
RockLobster is offline
Old 07-29-15, 12:47 PM
  #15
Proven Lurker
iTrader: (3)

Continuum's Avatar

Join Date: Feb 2002
Location: Potomac, MD
Posts: 60
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by RockLobster View Post
Unless you are running a 1st gen or miata full 3rd member somehow that part number wont fit a 2nd gen diff....it's the short pinion version. You will have to have mazdatrix extend it.
Correct. They've got a shop they sub out to for the modification.


Jason
Continuum is offline
Old 07-29-15, 03:17 PM
  #16
This sh*t burns oil!
iTrader: (7)

Join Date: Oct 2006
Location: Charlotte, NC - USA
Posts: 1,209
Liked 1 Time in 1 Post
Originally Posted by RockLobster View Post
I have two sets of 4.78 kia gears. I was planning to send them to the guy who extended them for speedsource. Have not had the need for it yet....
How much was he going to charge to extend a pinion? Because that sounds kind of like a viable option(extend rx8 4.44 for fc tii).
SpikeDerailed is offline
Old 07-30-15, 08:35 AM
  #17
SCCAEP
Thread Starter
iTrader: (3)

SCCAITS's Avatar

Join Date: Dec 2006
Location: Dallas
Posts: 1,080
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Jager View Post
I have one, been waiting for 2 days for the 2nd generation for sale mods to approve my thread.

4.88 speedsource rear end set up by Trembly, Miata torsen diff, 1500 miles, all you have to do is bolt the housing together and install the subshafts (which I have all of it).

Intersted?

Wish I would have logged on the site sooner. Just saw you sold it and I would have bought it for your asking price.

Originally Posted by RockLobster View Post
I have two sets of 4.78 kia gears. I was planning to send them to the guy who extended them for speedsource. Have not had the need for it yet....

If you are interested perhaps we can have him do both, one for you and one for me...

I know the guy you are referring to and spoke to him a couple months back after mine broke and he recommends using new Kia gear sets as they are relatively cheap and worth the extra $100 or so over used. If I recall he was about $600 labor for the pinion modification. He also does them for Mazdatrix. I"m going to keep looking for used.



Still looking, prefer a clutch type 4.88 LSD but would consider Torsen for the right price.
SCCAITS is offline
Old 08-06-15, 05:51 AM
  #18
Full Member
5 Year Member

Join Date: Dec 2008
Location: AUSTRALIA
Posts: 214
Likes: 0
Liked 0 Times in 0 Posts
Anyone have any better gears for sale other than the standard gears for a FC turboII diff?

If U do can U Pm's please may be keen
SEDUCE is offline
