5 point seat belt

Old 02-10-10, 11:32 PM
  #1
i want a radio in my car!
5 Year Member
Thread Starter

juan0's Avatar

Join Date: Jul 2008
Location: hayward, CA
Posts: 307
Likes: 0
Received 0 Likes on 0 Posts
5 point seat belt

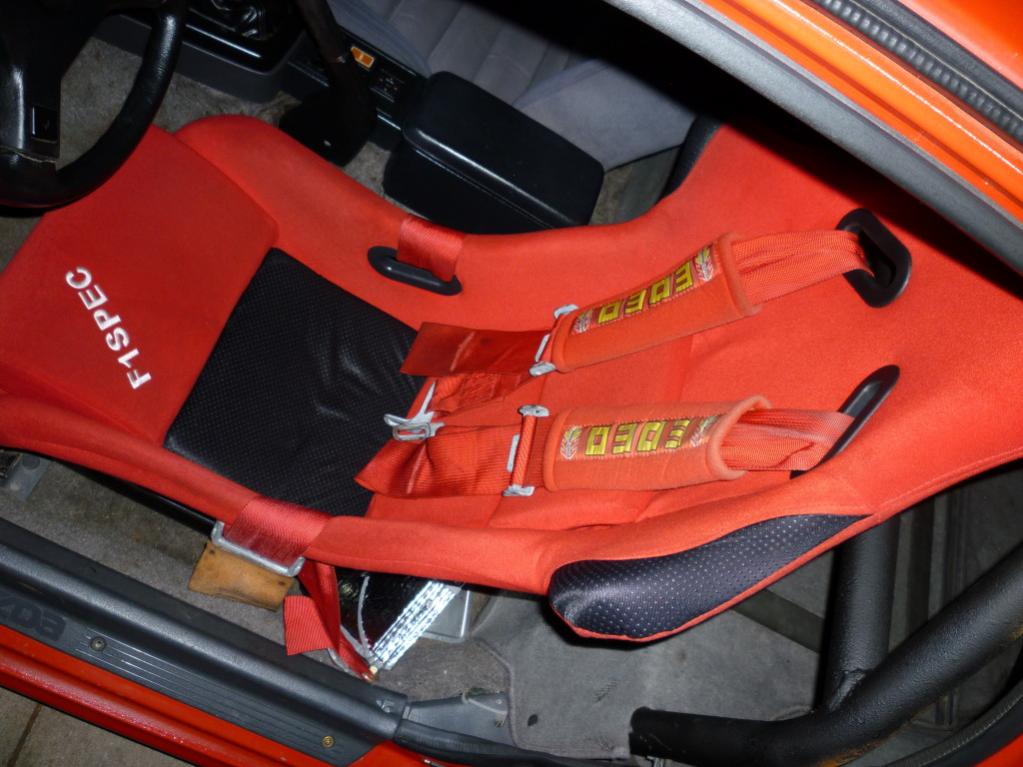

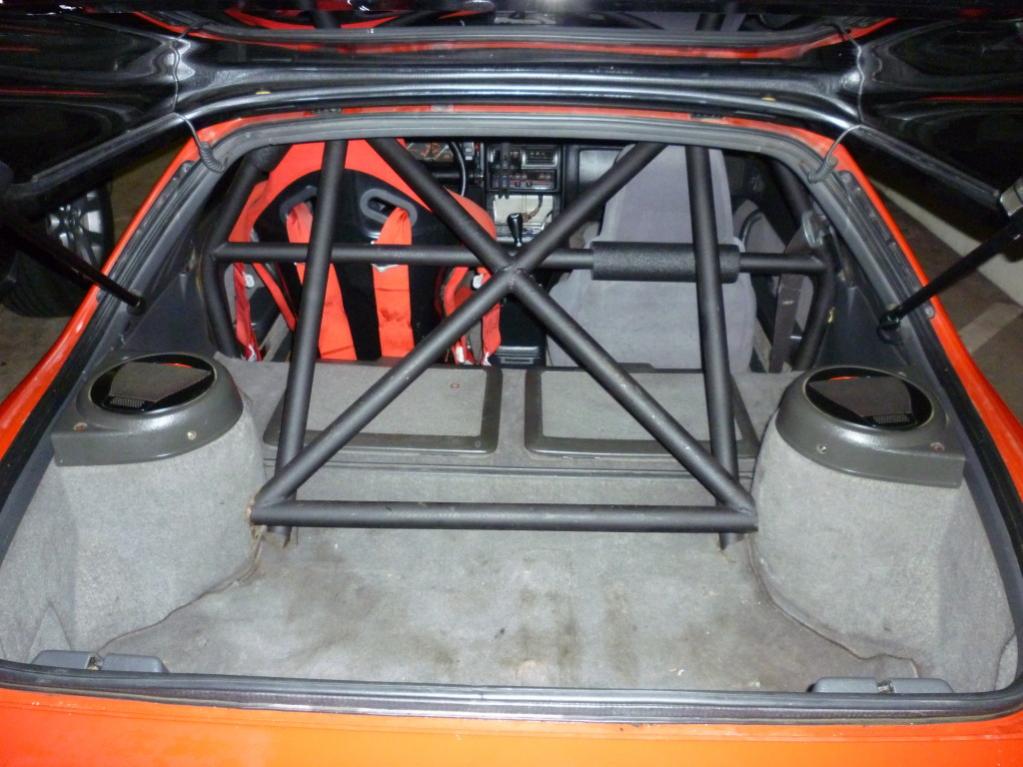

I got my rx7 with a rollbar and a 5 point seatbelt harness and is there certain way the belt has to be bolted on the rollbar? as you can see in the pics, you see the type of harness and the type of rollbar
Attached Thumbnails 5 point seat belt-p1000357.jpg   5 point seat belt-p1000354.jpg
juan0 is offline
Old 02-11-10, 07:55 AM
  #2
SCCAEP
iTrader: (3)

SCCAITS's Avatar

Join Date: Dec 2006
Location: Dallas
Posts: 1,080
Likes: 0
Received 0 Likes on 0 Posts
That seat isn't set up for 5 point. The shoulder harness will wrap around the horizontal bar. Read through the below, you will learn a lot about proper installation:

http://www.schrothracing.com/sdocs/2...structions.pdf
SCCAITS is offline
Old 02-11-10, 08:37 AM
  #3
Lives on the Forum
10 Year Member

Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 1 Like on 1 Post
It is prefered to wrap the belts around the harness bar, rather than bolt them to it. I have no idea why someone would do it as shown in the picture.
Black91n/a is offline
Old 02-11-10, 11:17 AM
  #4
i want a radio in my car!
5 Year Member
Thread Starter

juan0's Avatar

Join Date: Jul 2008
Location: hayward, CA
Posts: 307
Likes: 0
Received 0 Likes on 0 Posts
i read the link SCCAITS put on and seems like it is set up correctly... if anybody knows how it's set up wrong just say so
juan0 is offline
Old 02-11-10, 11:24 AM
  #5
Senior Member
iTrader: (5)

BonesZ33's Avatar

Join Date: Apr 2009
Location: Burlington, NC
Posts: 277
Likes: 0
Received 0 Likes on 0 Posts
Curious, Can you setup a harness with racing seats with NO roll bar at all? Or is the only way to attach the belts is at the bar?
BonesZ33 is offline
Old 02-11-10, 12:51 PM
  #6
10 lb. boost, 5lb. bag
10 Year Member
iTrader: (1)

Gene's Avatar

Join Date: Mar 2001
Location: New York, NY
Posts: 1,076
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by SCCAITS View Post
That seat isn't set up for 5 point. The shoulder harness will wrap around the horizontal bar. Read through the below, you will learn a lot about proper installation:

http://www.schrothracing.com/sdocs/2...structions.pdf
That seat looks like the bottom cushions velcro on and off, there is probably a hole in the bottom you can get to for the sub belt, and then it comes out between the cushions. Lots of sparco seats are set up that way, and that seat looks just like a sparco evo.
Gene is offline
Old 02-11-10, 01:15 PM
  #7
it go down in the dm
10 Year Member
iTrader: (10)

danegerous's Avatar

Join Date: Jan 2005
Location: Vegas
Posts: 1,386
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by BonesZ33 View Post
Curious, Can you setup a harness with racing seats with NO roll bar at all? Or is the only way to attach the belts is at the bar?
Thats the only proper way. A lot of people hook them up to rear strut bars or bolt them to the floor and that is wrong because dude to an impact the mounting point of the harness will affect what forces are applied to your body. They are supposed to level with your shoulders, directly behind you.
danegerous is offline
Old 02-11-10, 01:31 PM
  #8
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 4 Likes on 4 Posts
Originally Posted by BonesZ33 View Post
Curious, Can you setup a harness with racing seats with NO roll bar at all? Or is the only way to attach the belts is at the bar?
Yes you can. As mentioned, there are options such as using harness/strut tower bars. However, the problem without using a rollbar or cage, your head will most likely be the highest point inside the car. In the case of a rollover, the harness will not provide slack for you to bend like a standard seat belt. This can cause the roof to cave in your on head causing spinal injury (or worse).

While this is an extreme situation, it is a real scenario which can happen. The best idea is not to use a harness without a rollbar or rollcage.
Mahjik is offline
Old 02-11-10, 06:08 PM
  #9
Has been.. hangin' around
10 Year Member

Silkworm's Avatar

Join Date: Mar 2001
Location: Milpitas, CA
Posts: 2,618
Likes: 0
Received 0 Likes on 0 Posts
Disclaimer, I can't see those pics very well, it's hard to see how the bolts are installed in the shoulder harness mounts

That said, I've never seen a harness manufacturer claim that the only way the harnesses should be mounted is a wrap around the horizontal bar. My car the shoulder harnesses were mounted using bolts.

Here's how mine looked before I sold it:

Seat looks fine, as long as the 5 point belt comes up through the bottom of the seat, not wrapped around the front of it. hard to tell from that pic where the 5th point is.

PaulC
Silkworm is offline
Old 02-11-10, 07:30 PM
  #10
10 lb. boost, 5lb. bag
10 Year Member
iTrader: (1)

Gene's Avatar

Join Date: Mar 2001
Location: New York, NY
Posts: 1,076
Likes: 0
Received 0 Likes on 0 Posts
Silkworm I don't know about that design... in a crash the seat back brace will be applying leverage to the end of those nice long bolts...

I don't know why people do anything other than wrap around the bar. All you're doing is adding more complication and more potential sources of failure.

Also always make sure to double-back through your three bar adjusters. (I don't see it anywhere here but it's always good to remind people) I don't know how many cars I see with it wrong when I go to the track but it's a lot. I always point it out to people when I see it.
Gene is offline
