5 Lug swap on NA FC for bigger brakes worth it?

Race Car Tech Discuss anything related to road racing and auto X.

5 Lug swap on NA FC for bigger brakes worth it?

Old 11-19-13, 10:53 AM
  #1
jackie chan > chuck norri
5 Year Member
Thread Starter
iTrader: (2)

celbii's Avatar

Join Date: Apr 2007
Location: oklahoma city
Posts: 699
Likes: 0
Received 1 Like on 1 Post
5 Lug swap on NA FC for bigger brakes worth it?

Hello All,
I have an 88 NA fc, which im hoping to reach around 170WHP at the end of the day with streetport and supporting mods. That said I have a base 4 lug model, with the smaller brakes all the way around. I was recently told that it would be a waste to upgrade to the 5 lug and larger stock brakes upfront, and just unneeded weight, since at my power levels I wouldn't out use the single brakes. Any thoughts on this matter? Track running wouldn't be anything serious just high speed touring at Hallett Motor Racing Circuit and maybe some autox days.

Thanks
celbii is offline
Old 11-19-13, 01:18 PM
  #2
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,176
Received 10 Likes on 10 Posts
The larger brakes have aluminum front calipers and are probably lighter than your current front brakes...

I would do it. They're pretty nice for stock brakes and will probably be pretty cheap to do.
eage8 is offline
Old 11-19-13, 04:43 PM
  #3
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,153
Received 9 Likes on 9 Posts
I would do it. The larger rotors will be less prone to brake fade. Lots more cheap wheel choices too (sn95 mustang wheels).

If you get the correct hubs you can get all new brake calipers, rotors and pads for around $400.
LargeOrangeFont is offline
Old 11-19-13, 08:21 PM
  #4
Living on the North Coast
iTrader: (31)

DeaconBlue's Avatar

Join Date: Mar 2009
Location: Avon Lake
Posts: 602
Received 5 Likes on 5 Posts
Not to mention that there are more pad fiction options for the 5-lug 4-piston calipers setup.
DeaconBlue is offline
Old 11-19-13, 08:58 PM
  #5
20bwannabe
iTrader: (2)

apsolus's Avatar

Join Date: Nov 2012
Location: san antonio tx
Posts: 209
Likes: 0
Received 0 Likes on 0 Posts
just throwing this out there, i just got rid of my 87 base 4 lug and now have an 89 convertable with the 5 lug and the brakes are not any better as far as street driving. even getting on the brakes hard, the vert doesnt stop better compared to the old coupe. but if your serious about taking it on the track at all im sure the bigger brakes will be worthwile
apsolus is offline
Old 11-21-13, 11:36 AM
  #6
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,643
Likes: 0
Received 131 Likes on 117 Posts
one of the fastest IT cars i've seen was a 4 lug car. @170hp there is no reason to switch, and wheel selection is probably better with the 4 lug.

also the base brakes were used on the 1st gen too, so pad selection is about the same
j9fd3s is offline
Old 11-21-13, 12:55 PM
  #7
Mr. September FB 2011
5 Year Member
iTrader: (9)

nofords's Avatar

Join Date: Mar 2009
Location: Winnipeg, Manitoba
Posts: 489
Likes: 0
Received 0 Likes on 0 Posts
What I've found is that there are better pads out there for the FC/FD front brakes and as far as a track day car is concerned, the 4 piston setup is more ideal from a serviceability/reliability stand point.


Originally Posted by apsolus View Post
just throwing this out there, i just got rid of my 87 base 4 lug and now have an 89 convertable with the 5 lug and the brakes are not any better as far as street driving. even getting on the brakes hard, the vert doesnt stop better compared to the old coupe.
There are many reasons why this would be. Something as simple as changing to an economy pad over OE will make this true.
nofords is offline
Old 11-22-13, 11:24 AM
  #8
Living on the North Coast
iTrader: (31)

DeaconBlue's Avatar

Join Date: Mar 2009
Location: Avon Lake
Posts: 602
Received 5 Likes on 5 Posts
The one thing that is very often over looked when swapping from 4-lug to 5-lug brakes in the FC is the m/c size and booster. The GXL, convertible and GTUs came with the same 5-lug brakes as the T2, but they had to make do with the smaller m/c and single diaphragm booster from the base 4-lug setup. This means a longer pedal travel and "lazy" initial action. That is why the 929 m/c and booster swap is so popular (even on T2 cars). Also the FC is known to have a lot of firewall flex which adds to this “lazy” pedal feel. A master cylinder brace is highly recommended in a FC that sees any track time.

The two biggest impacts on brake performance is coefficient of friction (cF) of the pad material selection and tires. For example I run Hawk HPS pads on the street and Hawk Blue pads on the track. There is a big difference in cF rating as well as cold and hot bite with those two pad materials. Not to mention the switch from street tire to DOT R tires as far as grip is concerned.

Large brake rotors do increase the amount of torque generated per pedal pressure applied because of their larger diameter. They also have a greater thermal capacity due to increased fire path mass. The greater width also increases the vent width and cooling surface area. Both of these greatly reduce fade.

But larger brakes tend to add to the un-sprung weight at each corner. Now 2-pcs aftermarket rotors with aluminum hats can help offset any weight gain compared to the same diameter OEM 1-pcs rotors. Since I don't have the actual weights of all the 4-lug and 5-lug components in front of me, I am not sure which setup is lighter or heavier or by how much. !5” rims fit over both factory setups, so you are not adding more weight by having to switch to a 16” or larger wheel/tire combo which can be the case with other brake upgrades or on other cars.

Multi-piston fixed calipers tend to keep a more evenly applied pressure across the pad to rotor interface (differential bore pistons sized calipers help even more) compared to single piston floating calipers. They also tend to be a much more durable setup than the single piston floating calipers

The key is if you car is light enough and with lower power, you may be fine with the 4-lug brakes on a say smaller road course. But if you have a major braking zone or two on a longer or larger road course or the brakes begin to fade after only a few laps into the secession, then you need to either upgrade the pads and / or the hardware to the 5-lug setup. Luckily if you have a base coupe and need to make the 5-lug upgrade it is fairly easy and cheap with readily available parts.
DeaconBlue is offline
Old 11-22-13, 11:40 AM
  #9
Living on the North Coast
iTrader: (31)

DeaconBlue's Avatar

Join Date: Mar 2009
Location: Avon Lake
Posts: 602
Received 5 Likes on 5 Posts
Originally Posted by j9fd3s View Post
one of the fastest IT cars i've seen was a 4 lug car. @170hp there is no reason to switch, and wheel selection is probably better with the 4 lug.

also the base brakes were used on the 1st gen too, so pad selection is about the same
You may want to double check on that. I recently received a notice from RockAuto where several brake companies were discontinuing their pad/caliper offerings for the 4-lug applications. That doesn't mean that you still can't buy decent street or race pads or even rebuilt calipers for the 4-lug step-up, but I also noticed that there were not any 5-lug applications noted in the soon to-be-discontinued parts listing this time around. The FC is 23-28 years and the SA/FB is older. The aftermarket parts movement is getting fairly slow across the board for these cars, so parts availability gets a bit scarcer every year now. Since RX7 were so heavily raced in their day, track worthy pads should continue to be available for some time.
DeaconBlue is offline
Old 11-24-13, 05:24 PM
  #10
Mr. September FB 2011
5 Year Member
iTrader: (9)

nofords's Avatar

Join Date: Mar 2009
Location: Winnipeg, Manitoba
Posts: 489
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by DeaconBlue View Post
The one thing that is very often over looked when swapping from 4-lug to 5-lug brakes in the FC is the m/c size and booster. The GXL, convertible and GTUs came with the same 5-lug brakes as the T2, but they had to make do with the smaller m/c and single diaphragm booster from the base 4-lug setup. This means a longer pedal travel and "lazy" initial action. That is why the 929 m/c and booster swap is so popular (even on T2 cars). Also the FC is known to have a lot of firewall flex which adds to this “lazy” pedal feel. A master cylinder brace is highly recommended in a FC that sees any track.
Another thing to with this comment is Wilwood makes a direct bolt on 1 1/16 mc to T2 booster which is larger than the 929 mc and easier to come by.
nofords is offline
Old 11-25-13, 12:25 PM
  #11
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,176
Received 10 Likes on 10 Posts
Originally Posted by nofords View Post
Another thing to with this comment is Wilwood makes a direct bolt on 1 1/16 mc to T2 booster which is larger than the 929 mc and easier to come by.
Really? what's the part number? 1 1/16 might be bordering on too big...
eage8 is offline
Old 11-25-13, 01:10 PM
  #12
Living on the North Coast
iTrader: (31)

DeaconBlue's Avatar

Join Date: Mar 2009
Location: Avon Lake
Posts: 602
Received 5 Likes on 5 Posts
Originally Posted by eage8 View Post
Really? what's the part number? 1 1/16 might be bordering on too big...
I had heard that a few folks have used a Subura Legecy 1-1/16" master cylinder, but I did not know that Wilwood had one that would bolt-on to the T2 booster. That could come in handy for those using aftermarket multi-piston calipers
DeaconBlue is offline
Old 11-25-13, 03:11 PM
  #13
Mr. September FB 2011
5 Year Member
iTrader: (9)

nofords's Avatar

Join Date: Mar 2009
Location: Winnipeg, Manitoba
Posts: 489
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by eage8 View Post
Really? what's the part number? 1 1/16 might be bordering on too big...
Wilwood Aluminum Master Cylinders 260-4893

I believe that is it. It has 3.2" c-c bolt holes.

To install this on the T2 booster, thread the head of the pushrod between the booster and mc all the way in (not the end that connects to the brake pedal).

I used this on my race car: FC 4 pots up front and wilwood 4pots out back with a wilwood proportioning valve. Medium-Hard pedal but that's something I like!
nofords is offline
Old 11-26-13, 10:20 AM
  #14
Living on the North Coast
iTrader: (31)

DeaconBlue's Avatar

Join Date: Mar 2009
Location: Avon Lake
Posts: 602
Received 5 Likes on 5 Posts

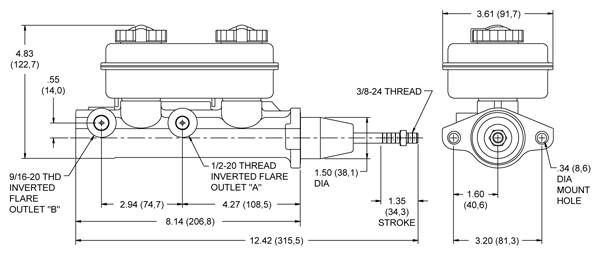

Here is the print for the Wilwood m/c #260-4893
Attached Thumbnails 5 Lug swap on NA FC for bigger brakes worth it?-wilwood-260-4893_dwg-lg.jpg
DeaconBlue is offline
Old 11-26-13, 06:22 PM
  #15
Mr. September FB 2011
5 Year Member
iTrader: (9)

nofords's Avatar

Join Date: Mar 2009
Location: Winnipeg, Manitoba
Posts: 489
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by DeaconBlue View Post
Here is the print for the Wilwood m/c #260-4893
Ignore the piston in that diagram. That part# is shipped without one and if you buy the one that has it included (260-4894) you won't use it anyway.
nofords is offline
Old 11-30-13, 11:29 AM
  #16
Senior Member
iTrader: (2)

Carl's Avatar

Join Date: Oct 2002
Location: Cardiff, CA
Posts: 445
Likes: 0
Received 2 Likes on 2 Posts
Slight shift of the thread. Are the 5-lug calipers (4 piston) a direct bolt-up replacement for the 4-lug calipers (single piston)?
Carl is offline
Old 12-01-13, 10:52 AM
  #17
Living on the North Coast
iTrader: (31)

DeaconBlue's Avatar

Join Date: Mar 2009
Location: Avon Lake
Posts: 602
Received 5 Likes on 5 Posts
Originally Posted by Carl View Post
Slight shift of the thread. Are the 5-lug calipers (4 piston) a direct bolt-up replacement for the 4-lug calipers (single piston)?
IIRC, someone (maybe CorkSport) used to sell a kit with brackets, but you had to have the '84-85 GSL-SE hubs/spindles - or something like that.
DeaconBlue is offline
Old 12-01-13, 09:58 PM
  #18
Mr. September FB 2011
5 Year Member
iTrader: (9)

nofords's Avatar

Join Date: Mar 2009
Location: Winnipeg, Manitoba
Posts: 489
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Carl View Post
Slight shift of the thread. Are the 5-lug calipers (4 piston) a direct bolt-up replacement for the 4-lug calipers (single piston)?
if you are referring to FC then yes, once the hubs are changed then the 4piston calipers bolt to the spindles
nofords is offline
Old 12-01-13, 11:27 PM
  #19
Living on the North Coast
iTrader: (31)

DeaconBlue's Avatar

Join Date: Mar 2009
Location: Avon Lake
Posts: 602
Received 5 Likes on 5 Posts
Originally Posted by DeaconBlue View Post
IIRC, someone (maybe CorkSport) used to sell a kit with brackets, but you had to have the '84-85 GSL-SE hubs/spindles - or something like that.
This was assuming you were referring to install the FC 4-piston on an FB.
DeaconBlue is offline
Old 12-01-13, 11:31 PM
  #20
Living on the North Coast
iTrader: (31)

DeaconBlue's Avatar

Join Date: Mar 2009
Location: Avon Lake
Posts: 602
Received 5 Likes on 5 Posts
Originally Posted by nofords View Post
if you are referring to FC then yes, once the hubs are changed then the 4piston calipers bolt to the spindles
Here is how to install the 4-piston FC setup onto a 4-lug FC and keep your 4-lug wheels.

How To Install 4 Piston Brakes On A 4 Lug FC RX-7
DeaconBlue is offline
