lgjp2631

ok i wanted to know what wires needed to be removed? i got mine used and it didnt come with anything.and i figured some1 on this forum would know. thanks, jason

FJDRX7

iTrader: (32)

Some stores have them out already, should call them and ask, some people pull the pins, some buy the extention for the power fc and cut those, some cut and cap this wires, is your car and should be your choice, but pick the smart one



here is the link of the extention
http://www.autosportwiring.com/products.htm#Mazda

lgjp2631

thank you so very much.that was a great and easy chart to read.thanks, jason

adictd2b00st

related question, if those wires are for emissions (egr) and mine are removed, do i still need to cut these wires or no?

cewrx7r1

iTrader: (2)

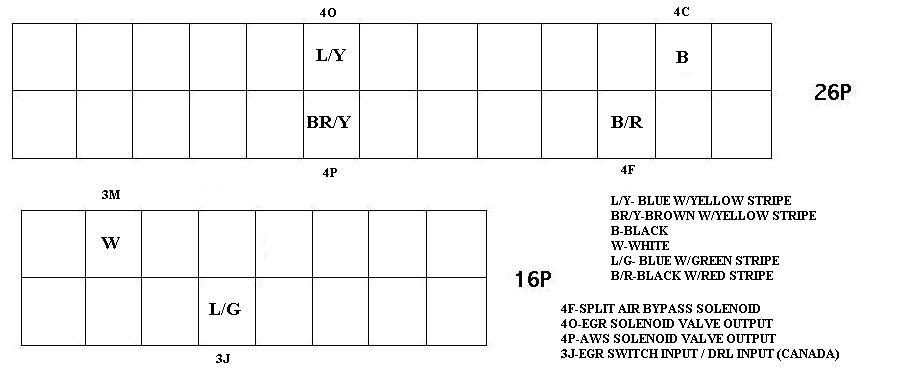

From my notes, I think this view is better!

lgjp2631

you guys are great. thanks, jason

GoRacer

iTrader: (2)

I did not have any need to remove wires/pins but then at teh time I didn't use the A/C.

DriftDreamzSS

iTrader: (4)

What is pin 4C in the diagram in the 2nd post? Should it be removed or only the 3 on the 26pin and 1 on the 16 pin that are labled below the diagram?

cewrx7r1

iTrader: (2)

DAPDAS

modimport

what is the purpose of cutting these 4 wires? just curious, no one would ever tell me.

scrubolio

iTrader: (8)

^ your car won't run smoothly, try it with him in first and you'll see. i'd recommend taking out the pins on the harness plug or cutting the pins directly on the ECU (not cutting the wires on the harness directly)
