Power FC Power FC Failure?
11-23-12, 12:55 PM
#1
Who say's i need a Van
Thread Starter
iTrader: (18)
Join Date: Feb 2009
Location: Whatsittoya
Posts: 609
Likes: 0
Received 0 Likes
on
0 Posts
Power FC Failure?

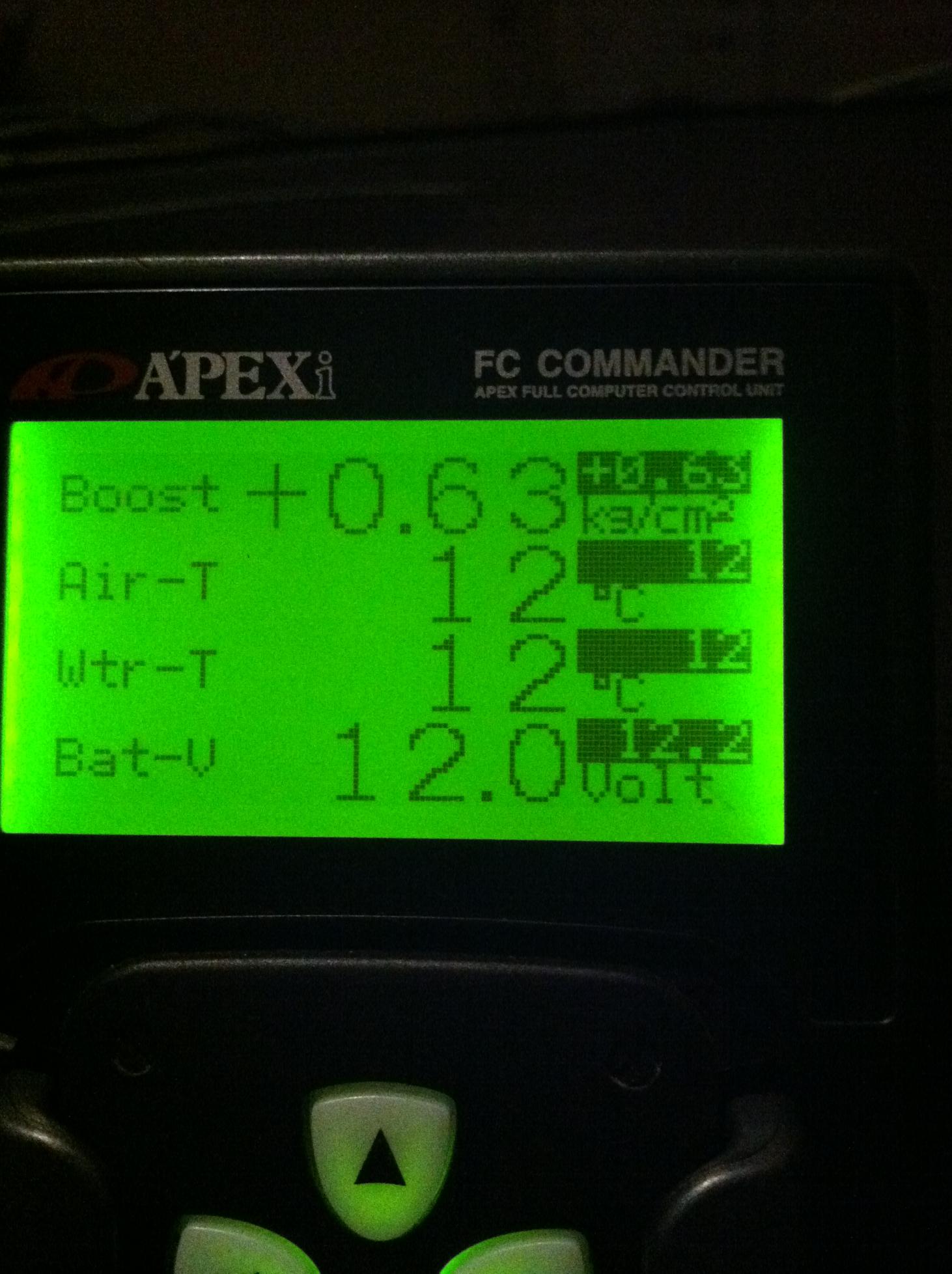

I'm now on my 3rd alternator because of bad luck with refurbed units. I installed the 3rd one this morning and it is putting out 12v+, however my car wont turn over and the boost reading on the Commander says +.64.....even when the car is turned off.
I tried to unplug the boost sensor and the PFC reads +2.14...even unplugged, WTF. My car seemed to be running fine before the need for the new alternator and rough when the alternators failed (below 11.5v). When i try to turn it over it sputters and sounds like **** but never actually starts. Im leaning more towards the PFC or electrical system as my problem and not so much the engine its self but i could be wrong.
Any ideas as to why the PFC is suddenly reading wrong? Or has anyone experienced a similar problem before? Where to start?
Jason
I tried to unplug the boost sensor and the PFC reads +2.14...even unplugged, WTF. My car seemed to be running fine before the need for the new alternator and rough when the alternators failed (below 11.5v). When i try to turn it over it sputters and sounds like **** but never actually starts. Im leaning more towards the PFC or electrical system as my problem and not so much the engine its self but i could be wrong.
Any ideas as to why the PFC is suddenly reading wrong? Or has anyone experienced a similar problem before? Where to start?
Jason
11-24-12, 10:52 AM
#3
rat ta tat tat
Join Date: Aug 2012
Location: pinwheel galaxy
Posts: 153
Likes: 0
Received 0 Likes
on
0 Posts
did the PIM scale/ offset settings get changed from normal to option1. option2 etc???
Some have done this on accident playing with the comander.
Do you have a 2 or 3 bar map sensor?
Some have done this on accident playing with the comander.
Do you have a 2 or 3 bar map sensor?
11-24-12, 07:06 PM
#6
REPU Garage
iTrader: (17)
Join Date: Jun 2007
Location: Northern Colorado
Posts: 623
Likes: 0
Received 0 Likes
on
0 Posts

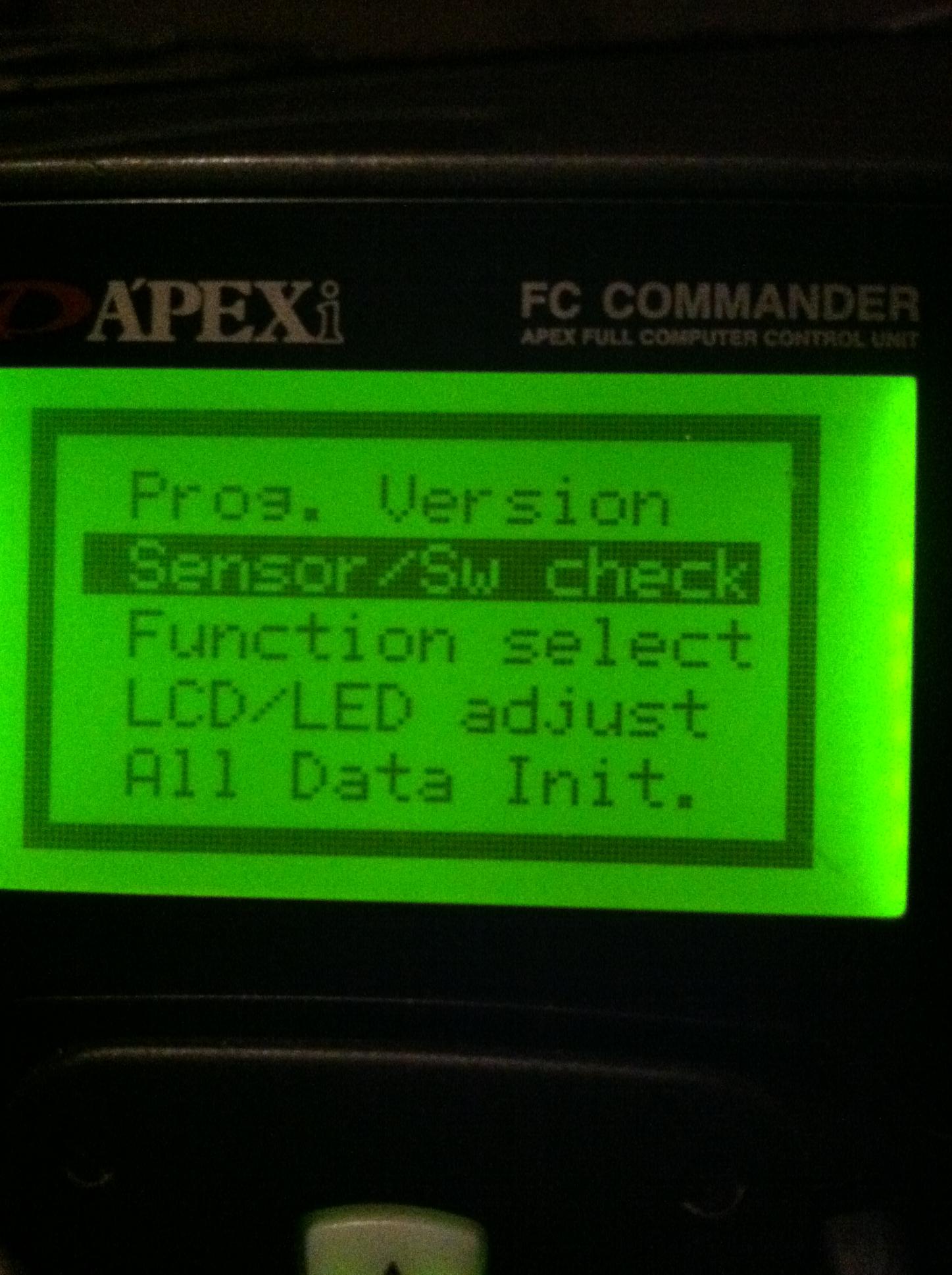

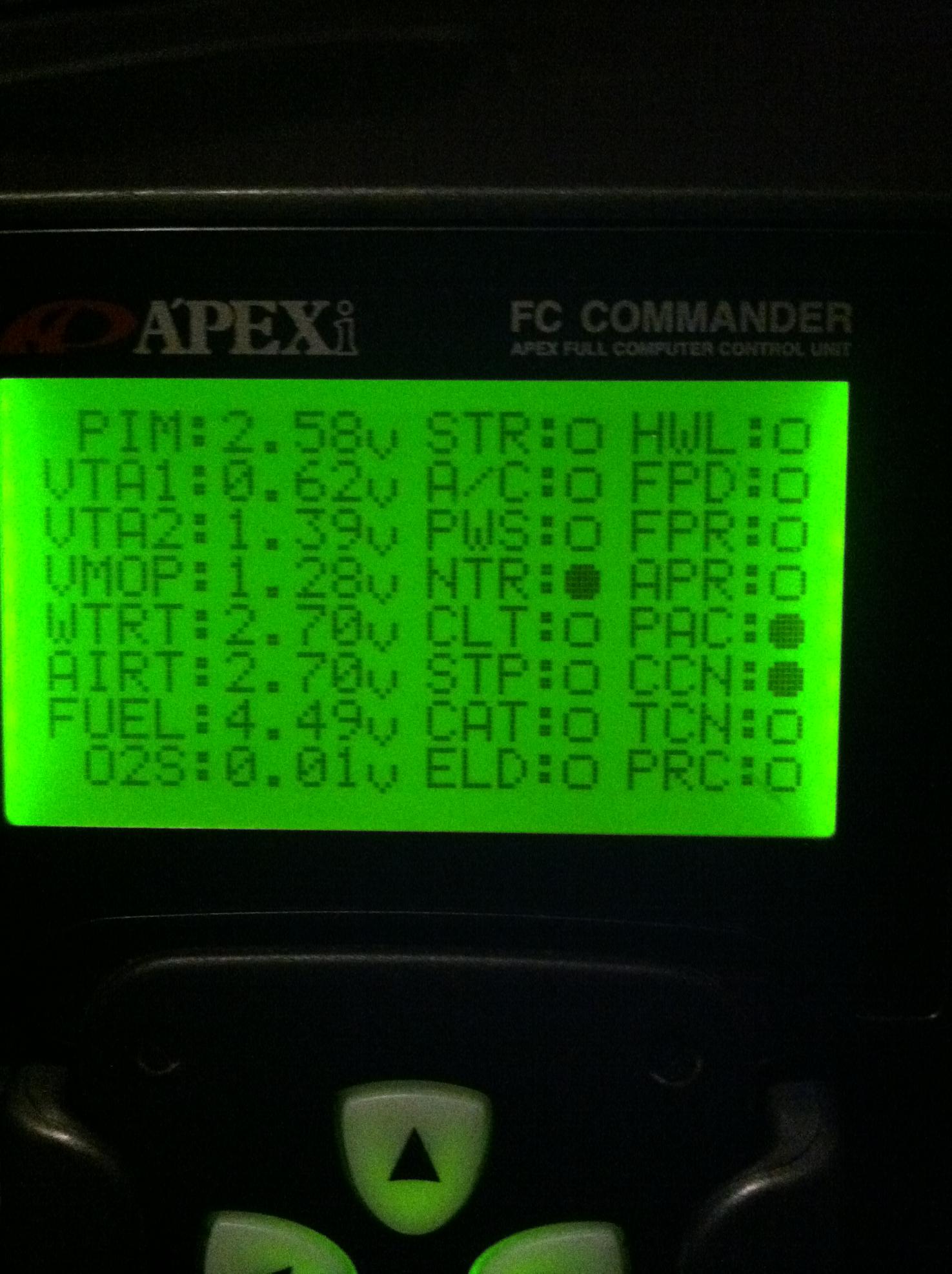

From the main screen on the commander go to "settings/etc" then "sensor check". If anything is highlighted then the PFC isn't reading it. Typically if the MAP sensor isn't reading correctly your TPS sensors will be highlighted in the sensor check screen, this would indicate a failure within the PFC more than likely.
11-24-12, 07:07 PM
#7
From the main screen on the commander go to "settings/etc" then "sensor check". If anything is highlighted then the PFC isn't reading it. Typically if the MAP sensor isn't reading correctly your TPS sensors will be highlighted in the sensor check screen, this would indicate a failure within the PFC more than likely.
thewird
Trending Topics
11-25-12, 01:05 PM
#9
REPU Garage
iTrader: (17)
Join Date: Jun 2007
Location: Northern Colorado
Posts: 623
Likes: 0
Received 0 Likes
on
0 Posts
True. I only mentioned the TPS sensors because internally the PFC has a 5v regulator that is shared on MAP and TPS sensor circuit. If all 3 sensors are out of range or not being read then its likely the regulator went bad.
No sensors are highlighted so I doubt the issue is the PFC. Double check that you didn't accidentally change your MAP sensor calibration to another option (there are 5 pre programmed within the PFC). Also, check the obvious- make sure the MAP sensor is connected to a hose to the manifold.
If everything checks out, then I would suspect either the MAP sensor is bad or the wiring for it.
No sensors are highlighted so I doubt the issue is the PFC. Double check that you didn't accidentally change your MAP sensor calibration to another option (there are 5 pre programmed within the PFC). Also, check the obvious- make sure the MAP sensor is connected to a hose to the manifold.
If everything checks out, then I would suspect either the MAP sensor is bad or the wiring for it.
11-25-12, 06:13 PM
#10
Who say's i need a Van
Thread Starter
iTrader: (18)
Join Date: Feb 2009
Location: Whatsittoya
Posts: 609
Likes: 0
Received 0 Likes
on
0 Posts
Great feedback guys.
I found that my PIM voltge was set to program 2 instead of "normal". I must of accidentally set it to another PIM setting and when I set it to normal, then BAM. Started right up :0. I think there is some minor calibration issues i need to correct as was stated by Turbo8 because now in the start postion the boost is reading -54. At least she's runnin again
I found that my PIM voltge was set to program 2 instead of "normal". I must of accidentally set it to another PIM setting and when I set it to normal, then BAM. Started right up :0. I think there is some minor calibration issues i need to correct as was stated by Turbo8 because now in the start postion the boost is reading -54. At least she's runnin again
