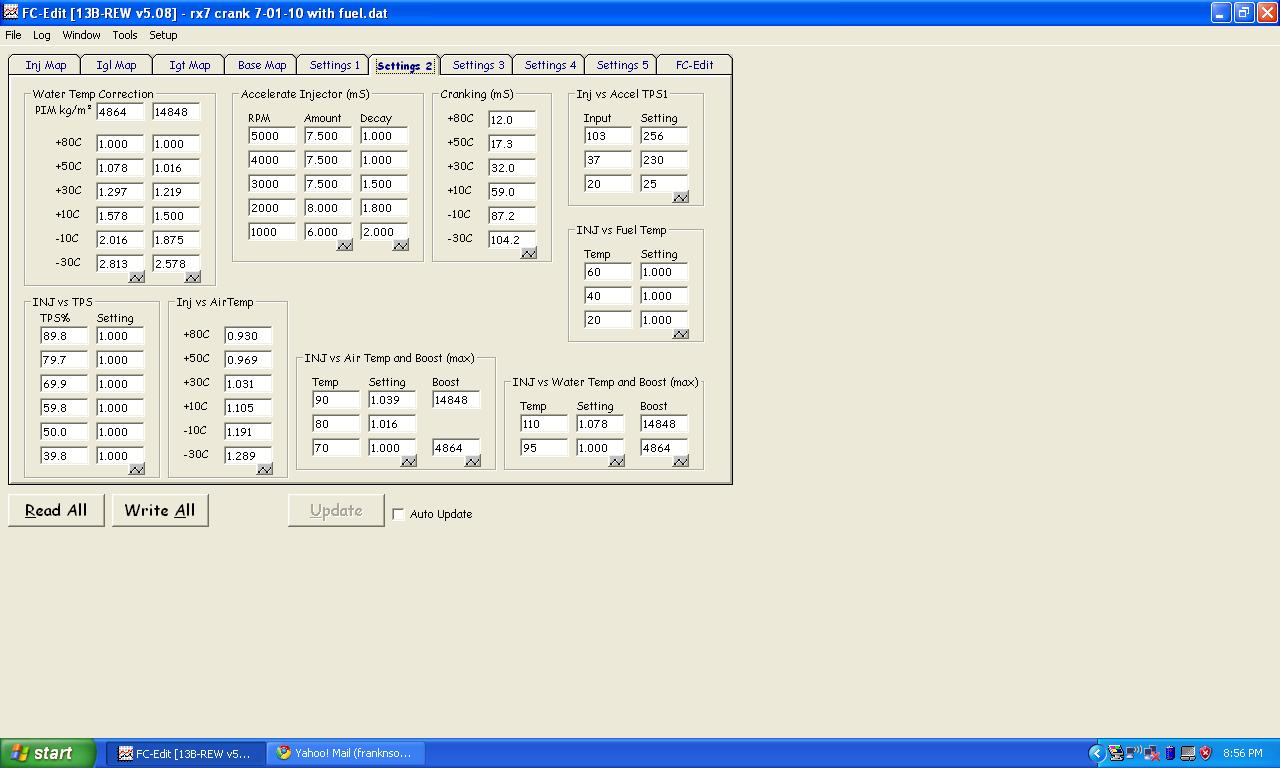

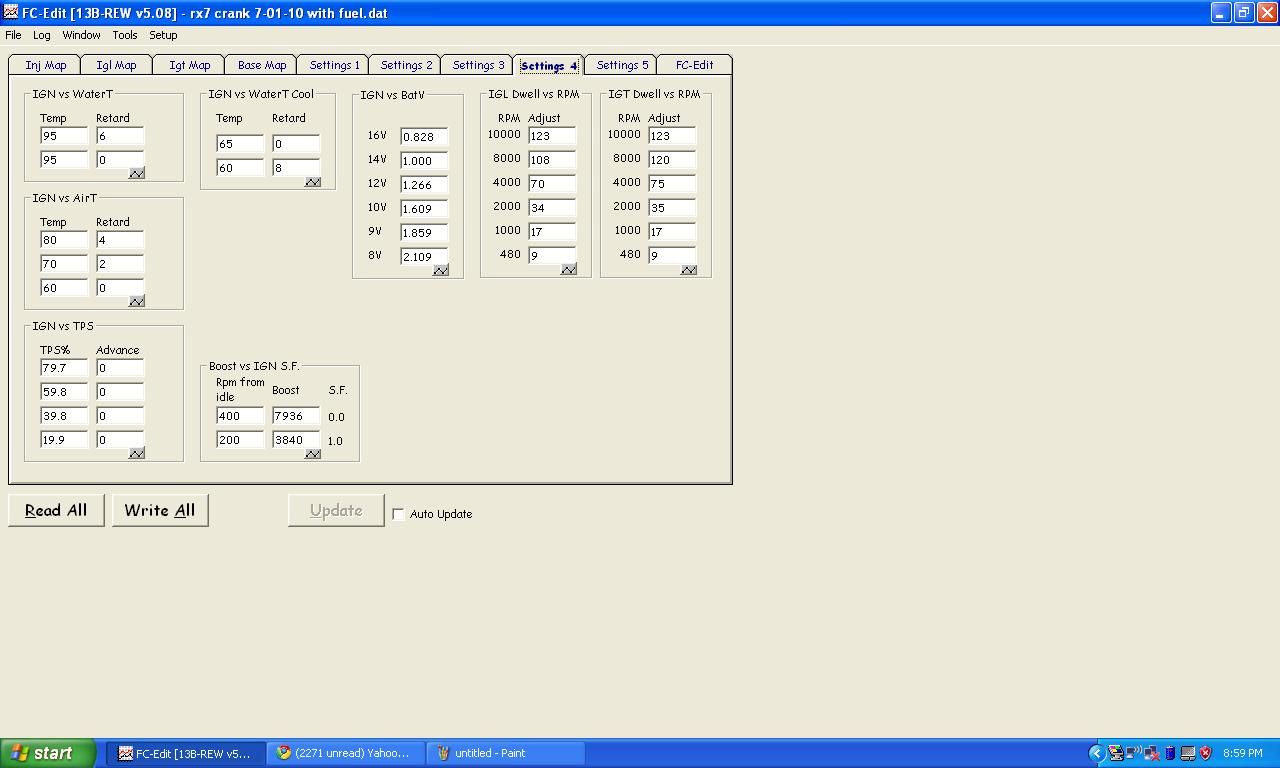

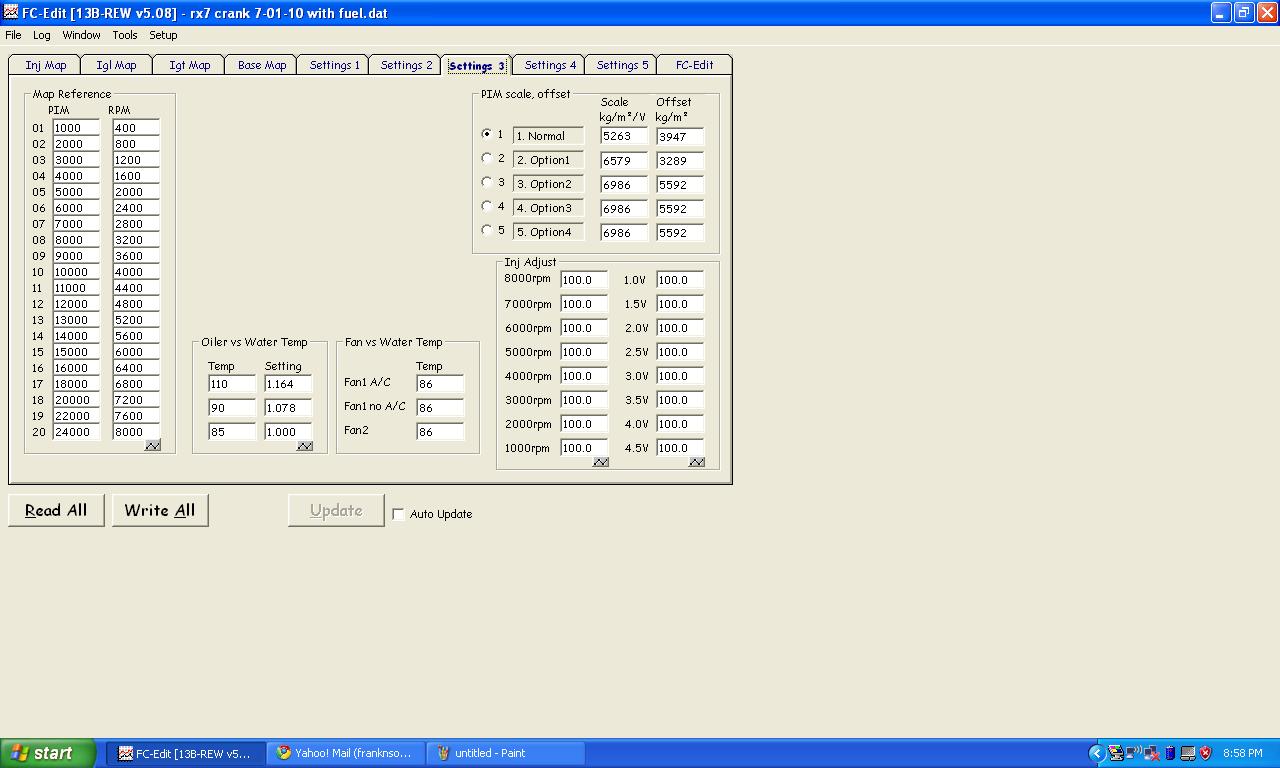

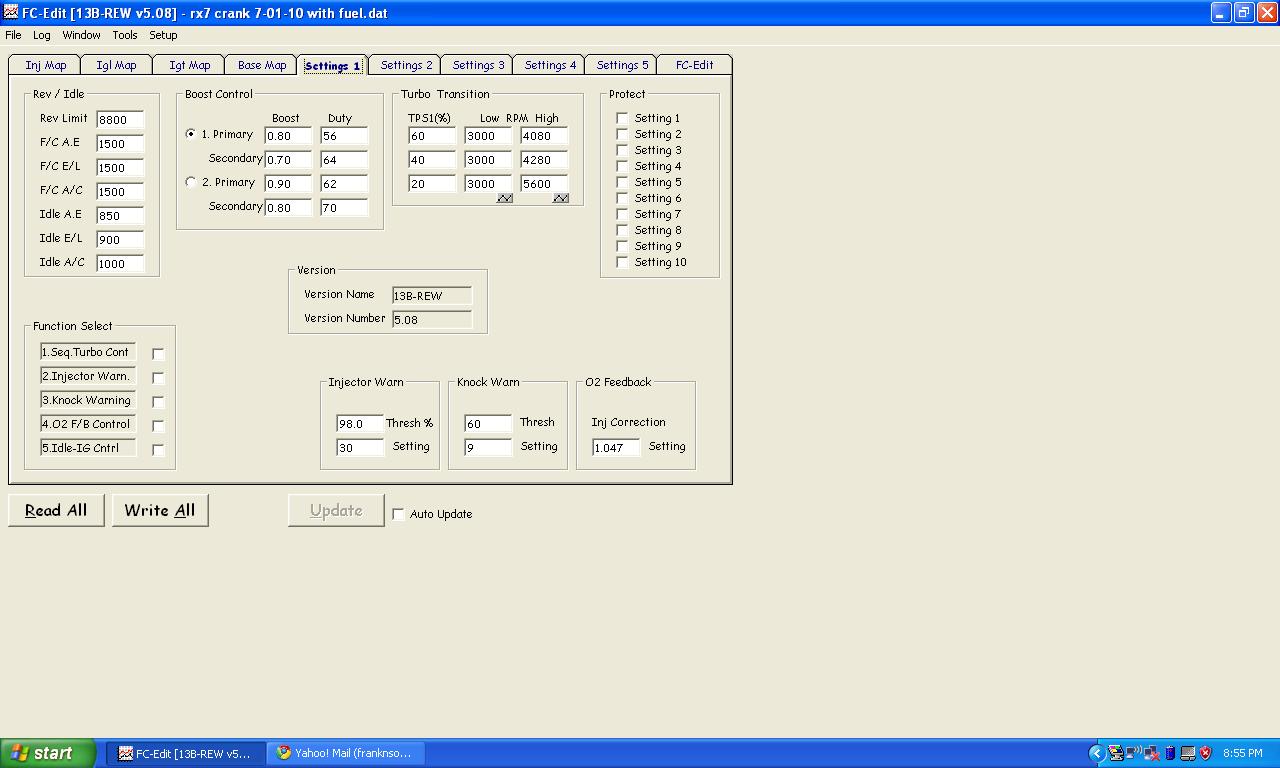

pictures of my settings in my datalogit.
my set up is 550/1300 with a single t60-1. stock port. my car will run for a 5-10 seconds than it floods out. please look at my setting and let me know if you see something wrong. i attached a screen print of the car running during that 5-10 and the rpm were about 2400
Last edited by fns; 07-20-10 at 11:37 PM. Reason: add pictures
#3
500+hp club
iTrader: (26)
remember you have stock primary injectors so a base map settings should get u started just fine. you have it all messed up lol but its cool. under setting 5 it should look like this for now. every car is different but this should get u started so copy all this. any other help just pm me
#4
Eye In The Sky
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,895
Likes: 0
Received 114 Likes
on
66 Posts
The proper way is to download the map onto your computer, zip it, then attach it here to your post.
I refuse to go back to the 90s before we had the DATALOGIT.
You MUST have a DL if you plan to do any inquiry into your PFC.
I refuse to go back to the 90s before we had the DATALOGIT.
You MUST have a DL if you plan to do any inquiry into your PFC.
#6
Full Member
Thread Starter
Join Date: Apr 2007
Location: PHOENIX
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts
Makes sense.....I do have the Datalogit...I just do not know how to zip a file...Go figure I worked for CompUSA for 14 years and I do not how to use a computer....Maybe that is why they are out of business now.
#7
Senior Member
iTrader: (1)

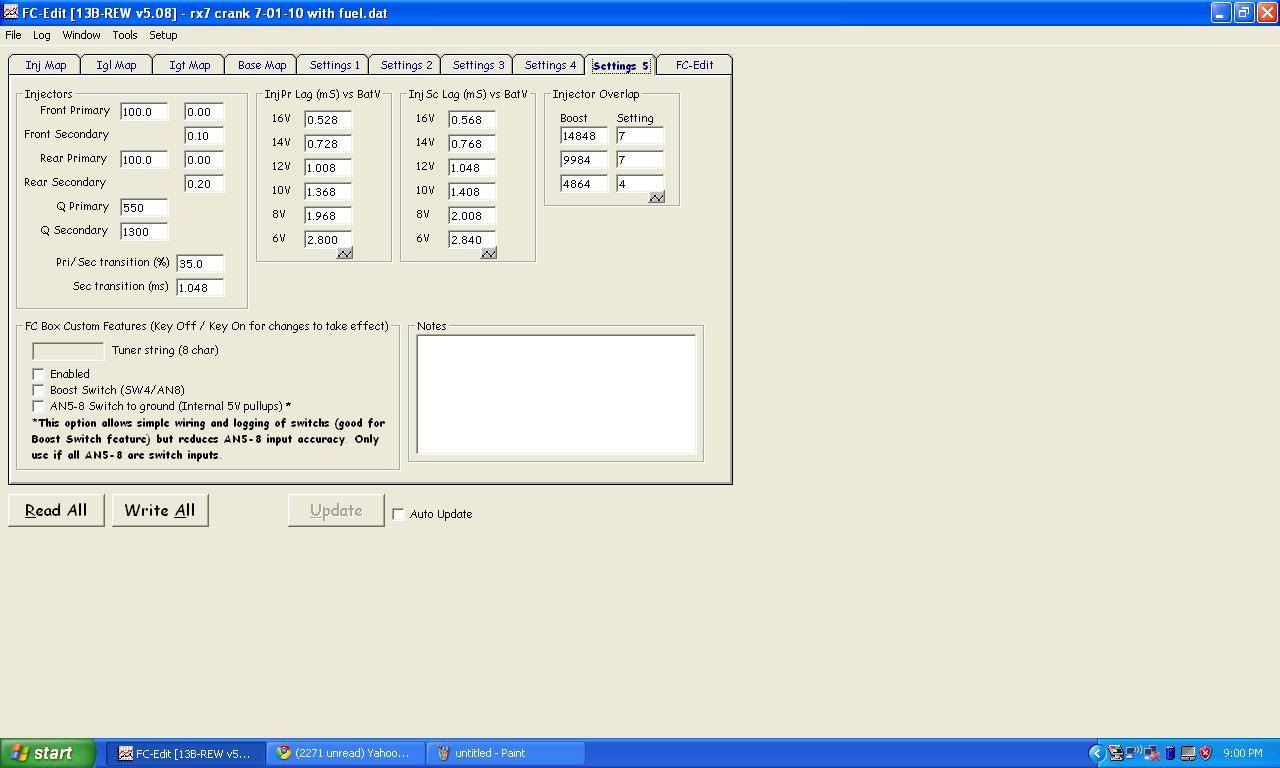

I don't see anything radically wrong with settings 5; as you are running the stock 550 primaries your setting of 100 is correct. Your secondary lag times are in family for the 1300's. PIM offset is OK if you are running the factory MAP sensor? You may want to try and set the water temperature corrections for +30 and +50 to 1.00 (mine are there anyway) and see if it helps.

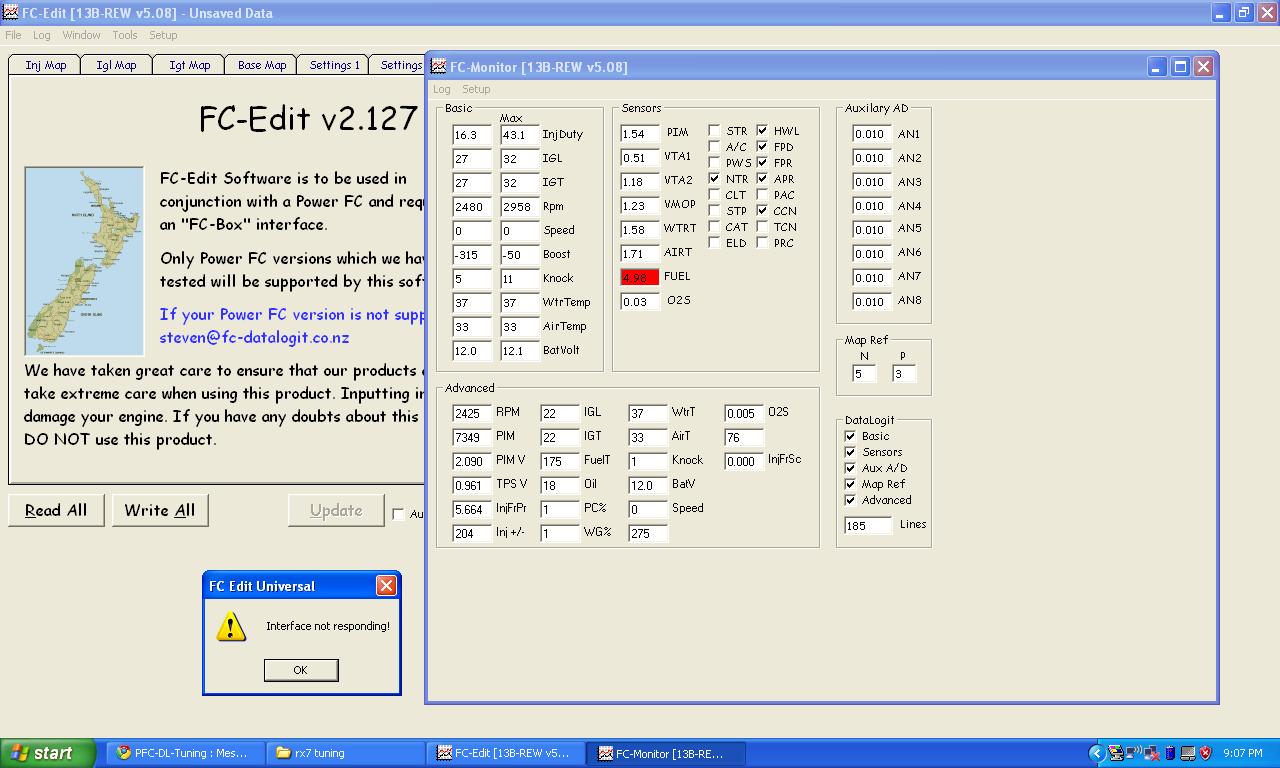

Looking at the last screen your injector duty of 16.3% for 2500 rpm is probably the problem. Take a look at your maps lines 7 and 8 at 2400 to 2800.... check the relationship and values in your inj correction map and base map. Assume there is no load on the engine so the duty should be around 8% at most.
Otherwise looks as if you have a hardware problem from my aspect.
Looking at the last screen your injector duty of 16.3% for 2500 rpm is probably the problem. Take a look at your maps lines 7 and 8 at 2400 to 2800.... check the relationship and values in your inj correction map and base map. Assume there is no load on the engine so the duty should be around 8% at most.
Otherwise looks as if you have a hardware problem from my aspect.
Trending Topics
#8
Full Member
Thread Starter
Join Date: Apr 2007
Location: PHOENIX
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts
i thought since they are stock 550 the settings should be at 100. i went ahead and used the setting from silverfdturbo6port and now it started right up and idles. the idle does sound a little rough. i am going try and attach the video from my phone so you can hear what i am talking about.
#9
Senior Member
iTrader: (1)
i thought since they are stock 550 the settings should be at 100. i went ahead and used the setting from silverfdturbo6port and now it started right up and idles. the idle does sound a little rough. i am going try and attach the video from my phone so you can hear what i am talking about.
silverfdturbo6port is running 850 primaries so his setting of 65 is correct.
This will patch your problem but it is not the problem and you will run into a lean condition if everything else was correctly operating. I think your maps got fubar'd or you have a hardware problem.
#11
Full Member
Thread Starter
Join Date: Apr 2007
Location: PHOENIX
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts
Silverfdturbo6port....Thank you for the map the car starts and idles now. It still seems like it is running fat...My question now is your settings on the injectors are 65. Which everything I read says that is the settings for 850cc and the stock 550 should be 100?? Can anyone help me understand.
I double checked my injectors and they do not have any ingravings show they have been reworked. I may take them to a shop and have them tested.
I double checked my injectors and they do not have any ingravings show they have been reworked. I may take them to a shop and have them tested.
