Power FC Obsolete injectors
10-21-10, 12:22 PM
#1
Eye In The Sky
Thread Starter
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,892
Likes: 0
Received 114 Likes
on
66 Posts
Obsolete injectors
Please stop using the obsolete Bosch 850 injectors for the primaries!
It has been know for years that for a street car, getting a lean idle and good injector transition is difficult.
I run 550/1600 at around 400 WHP without any problems.
If I had to redo mine, I would go ID725/ID2000 which are so superior to the Bosches.
It has been know for years that for a street car, getting a lean idle and good injector transition is difficult.
I run 550/1600 at around 400 WHP without any problems.
If I had to redo mine, I would go ID725/ID2000 which are so superior to the Bosches.
10-23-10, 12:22 AM
#4
The OEM 850cc side feeds were never designed to be run in the primary position so it's no surprise they don't run well when installed there. There's really no point in running 850cc side feed primaries. For anyone. Ever.
Trending Topics
10-25-10, 11:54 AM
#8
Wastegate John
iTrader: (13)
Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,979
Likes: 0
Received 9 Likes
on
9 Posts

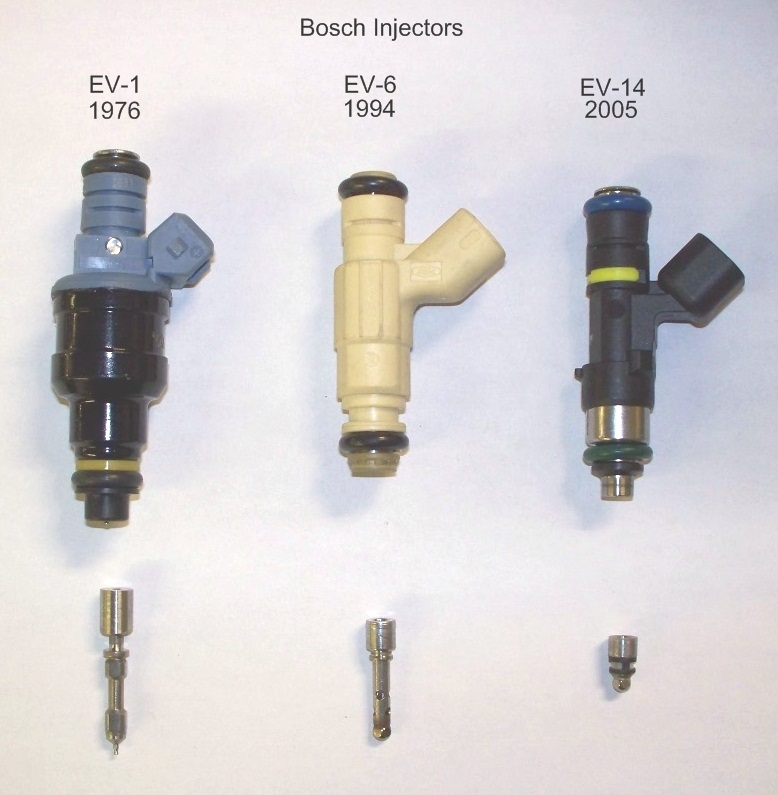

I think he got the picture from here http://www.injectordynamics.com/questionsanswered.html scroll about halfway down.
John
John
10-29-10, 01:03 PM
#14
The newer Bosch EV-14/ID injectors are much more stable at higher fuel pressures and you get better atomization there. I would recommend that everyone stop using old logic from old injectors about running standard current sizes and start trying to run smaller injectors at higher fuel pressures instead. Beef up that fuel system. Run 60+ psi. It will run smoother. Just to give you an example, let's use standard injector numbers for clarity reasons. A 2nd gen n/a has 4-460 cc injectors while the TII has 4-550 cc injectors. If you were to install the 460's in the TII and then raise fuel pressure up to 60 psi, assuming the injectors were still linear of course, you'd have the same amount of fuel but with better atomization. That's the way to go. There are still too many people using ancient fuel system logic. Higher fuel pressure is where it's at but you need a modern injector to do it.
10-29-10, 02:28 PM
#15
The newer Bosch EV-14/ID injectors are much more stable at higher fuel pressures and you get better atomization there. I would recommend that everyone stop using old logic from old injectors about running standard current sizes and start trying to run smaller injectors at higher fuel pressures instead. Beef up that fuel system. Run 60+ psi. It will run smoother. Just to give you an example, let's use standard injector numbers for clarity reasons. A 2nd gen n/a has 4-460 cc injectors while the TII has 4-550 cc injectors. If you were to install the 460's in the TII and then raise fuel pressure up to 60 psi, assuming the injectors were still linear of course, you'd have the same amount of fuel but with better atomization. That's the way to go. There are still too many people using ancient fuel system logic. Higher fuel pressure is where it's at but you need a modern injector to do it.
10-30-10, 10:15 AM
#18
Eye In The Sky
Thread Starter
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,892
Likes: 0
Received 114 Likes
on
66 Posts
The following is theoretical as I have not seen any data on it!
Our TBs have three intake paths. The single bottom one supplies air to the two primary ports. The two top ones, supply air to the two secondary ports. Then we have the ratio of the ports sizes and flow characteristics. So estimating, lets say that the primary ports flow 30% of the air into the engine.
For optimum fuel dispersant from the injectors, we want proportional fuel flow for air flow. If it takes 550+2000 = 2550cc of injectors for fuel, then 30% of that is 750. Thus we would want a set of 765/1785. So having 550/2000 is not optimum but since we can not buy cheap custom injectors, we have to live with what the Mazda design gives us.
Here is an experiment that shows how bad the Mazda intake/injector/system design is. This is more applicable to us that removed the secondary vacuum throttle plates. Measure the TPS voltage when the secondary ports just start to open. Then while cruising determine the cruise speed for that TPS voltage and when the secondaries just start to flow fuel. Mine was like about 58mph and 110mph.
In between 58 and 110, all ports are flowing some air but all fuel goes into the primary port air flow. Not optimum mixing.
10-30-10, 10:51 AM
#19
It is good for a street car. I would go with 725/2000 because:
The following is theoretical as I have not seen any data on it!
Our TBs have three intake paths. The single bottom one supplies air to the two primary ports. The two top ones, supply air to the two secondary ports. Then we have the ratio of the ports sizes and flow characteristics. So estimating, lets say that the primary ports flow 30% of the air into the engine.
For optimum fuel dispersant from the injectors, we want proportional fuel flow for air flow. If it takes 550+2000 = 2550cc of injectors for fuel, then 30% of that is 750. Thus we would want a set of 765/1785. So having 550/2000 is not optimum but since we can not buy cheap custom injectors, we have to live with what the Mazda design gives us.
Here is an experiment that shows how bad the Mazda intake/injector/system design is. This is more applicable to us that removed the secondary vacuum throttle plates. Measure the TPS voltage when the secondary ports just start to open. Then while cruising determine the cruise speed for that TPS voltage and when the secondaries just start to flow fuel. Mine was like about 58mph and 110mph.
In between 58 and 110, all ports are flowing some air but all fuel goes into the primary port air flow. Not optimum mixing.
The following is theoretical as I have not seen any data on it!
Our TBs have three intake paths. The single bottom one supplies air to the two primary ports. The two top ones, supply air to the two secondary ports. Then we have the ratio of the ports sizes and flow characteristics. So estimating, lets say that the primary ports flow 30% of the air into the engine.
For optimum fuel dispersant from the injectors, we want proportional fuel flow for air flow. If it takes 550+2000 = 2550cc of injectors for fuel, then 30% of that is 750. Thus we would want a set of 765/1785. So having 550/2000 is not optimum but since we can not buy cheap custom injectors, we have to live with what the Mazda design gives us.
Here is an experiment that shows how bad the Mazda intake/injector/system design is. This is more applicable to us that removed the secondary vacuum throttle plates. Measure the TPS voltage when the secondary ports just start to open. Then while cruising determine the cruise speed for that TPS voltage and when the secondaries just start to flow fuel. Mine was like about 58mph and 110mph.
In between 58 and 110, all ports are flowing some air but all fuel goes into the primary port air flow. Not optimum mixing.
If that's the case, wouldn't the secondaries become active at an earlier (more appropriate) time if you were using smaller/stock primaries?
10-31-10, 07:34 PM
#20
Eye In The Sky
Thread Starter
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,892
Likes: 0
Received 114 Likes
on
66 Posts
Thus I have exceeded you question twice in my setup, and my previuosly posted results are better than stock!
11-01-10, 10:27 AM
#21
The reason to buy the ID/Bosch EV14 injectors (which are now also being sold by fiveomotorsport) is because they are Bosch, not because they are ID. You can trust them because Bosch designed them and they weren't put together in somebody's garage. All ID or any other vendor does is flow test them and resell them in various configurations for different styles of fitment.
Whatever limitations this design has, Mazda must have had some work around on the factory computer. We only have a limited understanding of how Mazda controlled things on a 100% stock car.
Here is an experiment that shows how bad the Mazda intake/injector/system design is. This is more applicable to us that removed the secondary vacuum throttle plates. Measure the TPS voltage when the secondary ports just start to open. Then while cruising determine the cruise speed for that TPS voltage and when the secondaries just start to flow fuel. Mine was like about 58mph and 110mph.
In between 58 and 110, all ports are flowing some air but all fuel goes into the primary port air flow. Not optimum mixing.
In between 58 and 110, all ports are flowing some air but all fuel goes into the primary port air flow. Not optimum mixing.
11-01-10, 11:09 AM
#22
Hey arghx, i want to order some of the new bosch EV14's.. Is there a standard size injector o ring that is used or do i have to order a specific set. I have the KG parts primary rail with 850cc in there now (yes i know, pain in the *** for idle), and the Rotorsports racing secondary rail with the bosch 1600's.
What would be the best setup for me to go to. I am running a S475 with twin bosch 044's and will be trying to push about 600+ to the wheels soon.
So do i go: 725/2000, or do the 1000/2000 setup?
Thanks for the help. And i was looking for u at the track yesterday. Heard u were suppose to come. I forgot his name, but a guy that knows u with a red fd ran a nice 11.9 time. I didnt geet to run my car because of too much fuel at the time.
What would be the best setup for me to go to. I am running a S475 with twin bosch 044's and will be trying to push about 600+ to the wheels soon.
So do i go: 725/2000, or do the 1000/2000 setup?
Thanks for the help. And i was looking for u at the track yesterday. Heard u were suppose to come. I forgot his name, but a guy that knows u with a red fd ran a nice 11.9 time. I didnt geet to run my car because of too much fuel at the time.
11-01-10, 12:52 PM
#23
Hey arghx, i want to order some of the new bosch EV14's.. Is there a standard size injector o ring that is used or do i have to order a specific set. I have the KG parts primary rail with 850cc in there now (yes i know, pain in the *** for idle), and the Rotorsports racing secondary rail with the bosch 1600's.
What would be the best setup for me to go to. I am running a S475 with twin bosch 044's and will be trying to push about 600+ to the wheels soon.
And i was looking for u at the track yesterday. Heard u were suppose to come. I forgot his name, but a guy that knows u with a red fd ran a nice 11.9 time.
11-08-10, 10:31 PM
#25
Eye In The Sky
Thread Starter
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,892
Likes: 0
Received 114 Likes
on
66 Posts
One thing about these injectors, the voltage vs. lag is supplied which allows proper setup of both lag tables which means the lag diference in the inj only table would be 0.
You set them up like any other injector by the rules the PFC listsa except for lag.
You set them up like any other injector by the rules the PFC listsa except for lag.
